Power Supply 12V to 48V Board Relay Module Power-Off Protection Module Automatic Switching Module UPS Emergency Cut-Off Battery

Features:

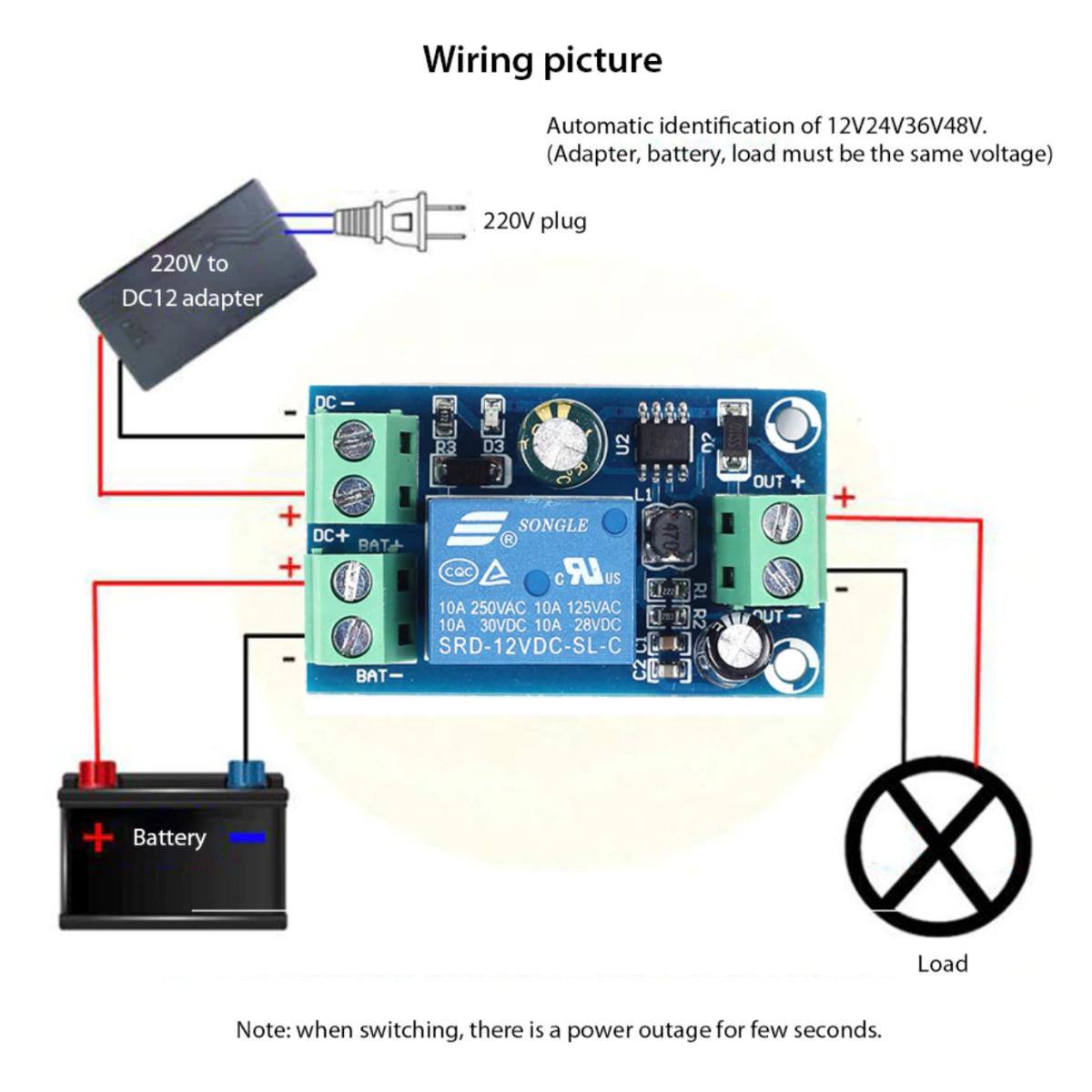

• Easy to use, when the DC power supply terminal has power, the power supply is preferred, and the power supply is automatically switched when the DC power supply terminal has no power.

• Has the function of automatically switching power supply after power failure, suitable for DC 12V, 24V, 36V, 48V.

• Made of high quality materials, this module is sturdy, durable, not easy to wear, and has a long service life.

• Using sophisticated production technology, this module has stable performance and can work for a long .

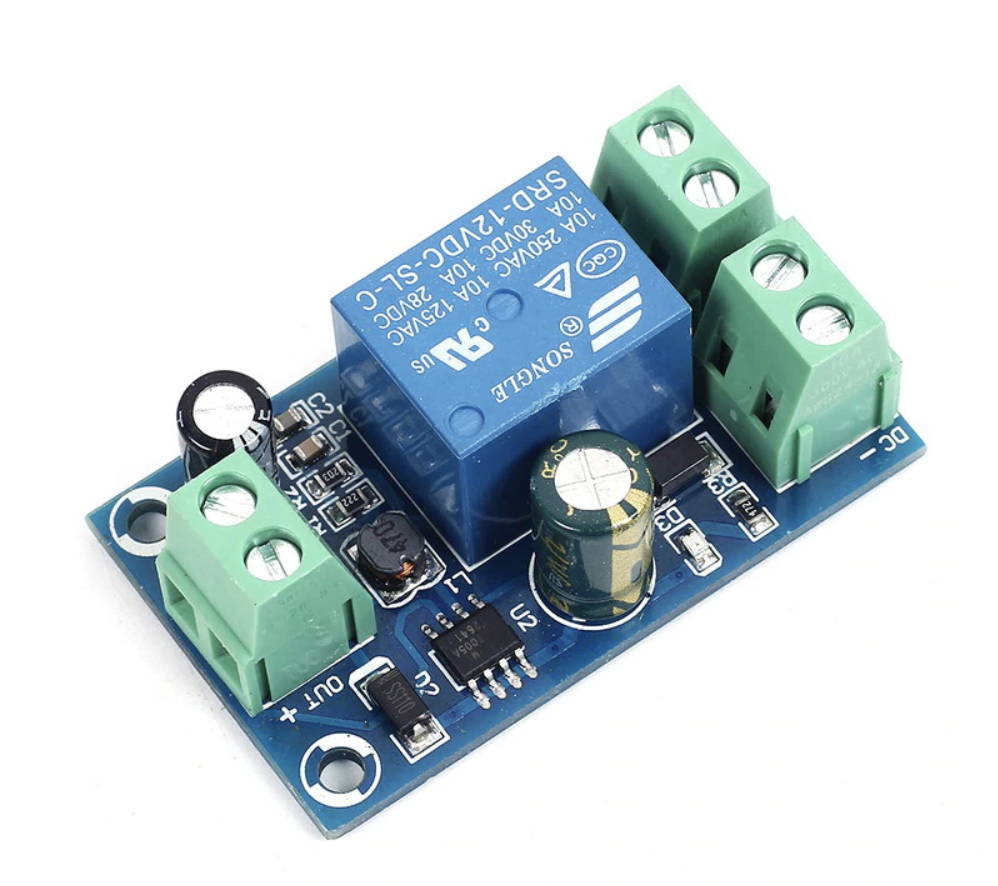

• This controller module has a 1.6mm thick double layer circuit board with a load of 10A, which can be used for emergency.

Specifications:

• Item Type: Controller Module

• Material: Copper Clad Laminate

• Model: YX X804

• Working Voltage: DC 12V to 48V

• Load: 10A

• Product Size: Approx. 50 x 30 x 18mm / 2.0 x 1.2 x 0.7in

• Installed Size: Approx. 23mm / 1.0in (2 Holes 3MM)
