Specifications:

• 4-channel Step-down Buck DC-DC Converter power module
• 3.3V output: Input 4.5-30V, Output 3.3V (±3%)
• 5V output : Input 6.5-30V, Output 5V (±3%)
• 12V output : Input 13.5-30V, Output 12V (±3%)
• AJD output : Input 4.5-30V, Adjustable Output 2-28V
• Maximum output current per channel : 3A;
• Overall maximum load power: 50 watts
• Master chip : XL2596(compatible LM2596)
• Working frequency 150KHz.

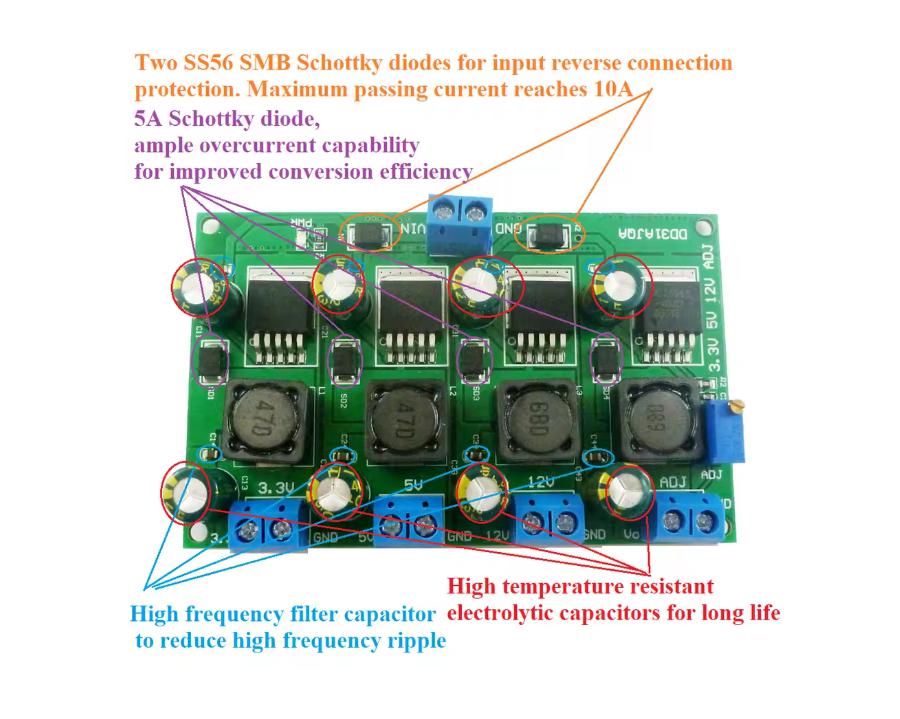

• Input reverse connection protection
• Built in thermal shutdown function,Built in current limit function,Built in second current limit function
• Operating Temperature :–40°C to +85°C
• Storage Temperature : –65°C to +150°C
• Size : 88 x 55 x 15mm

Attention:

This is a DC-DC voltage converter module,Must be noted when using:

1. Input voltage can not be greater than the maximum input range
2. Output power can not be greater than the maximum load for a long time
3. Input power must be greater than the output power, because the power consumption of the module itself

Applications:

• MCU ARM STM32 CPU FPGA/CPLD UNO MEGA3560
• PTZ CCTV IP camera
• Smart home / home automation
• WIFI Router Switch Network equipment
• LED Motor
• Battery powered equipment
• Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
