Specifications:

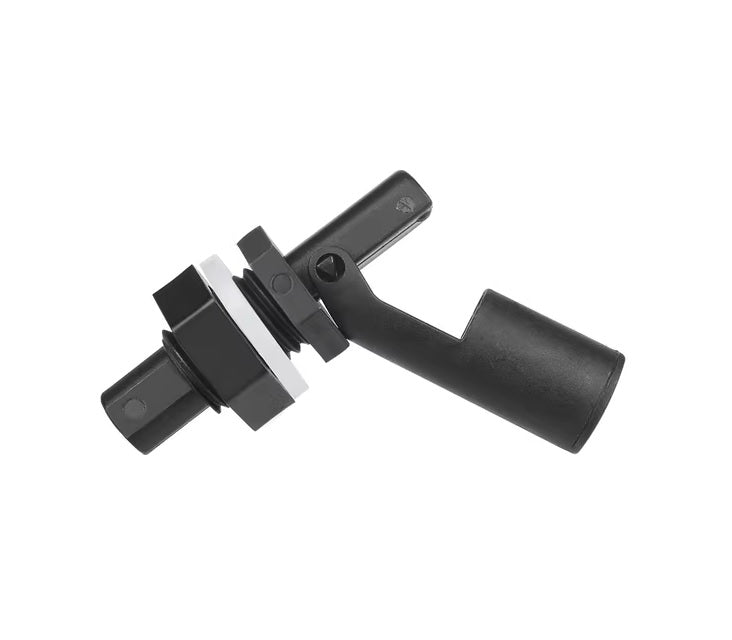

• Model NO.: LSYZ-1

• Installation : Side

• Switching Type: NO or NC

• Material: PP

• Working Temperature: -10~80℃

• Wire Gauge: UL 3266 22AWG

• Wire Length: 300mm

• Switching Voltage: 110 VDC

• Switching Current: 0.5A

• Contact Rating: 10W
• Float level switch is widely used in tank level auto control system, startup and shutdown the water pump or electric valve on the basis of liquid level.
• Vertical installation switch can be mounted on the top or bottom of liquid tank; side installation switch can be mounted on the wall of liquid tank.
• Switching type definition:

  • NO: Normally open,mounted switch on the top of tank, switching ON when float rising.
  • NC: Normally close,mounted switch on the top of tank, switching OFF when float rising.
