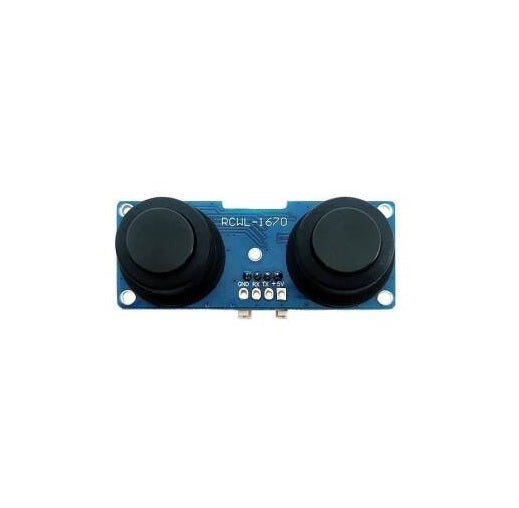

RCWL-1670 Waterproof Ultrasonic Distance Sensor 400cm

$5.99
Quantity
Pickup available at Robot Pi Shop
CWL-1670 is a waterproof transceiver ultrasonic measurement module. It can measure in the range of 2cm-400cm. This product, which can operate between 3-5V, has an ultra-low power consumption. External control software is compatible with the HC-SR04 module. It is also suitable for use in outdoor environments because it is resistant to water and dust.


Features:

  • Model: RCWL-1670
  • Operating voltage: 3-5V
  • Operating current: 6mA
  • Standby current: 3.5uA@5V 1.5uA@3.3V
  • Blind area: 2cm
  • Farthest distance: 4m
  • Measurement cycle: 50mS
  • Operating Temperature: -25 ℃ ~ 85 ℃
  • Operating Humidity: 5%~95% RH
  • Dimension: 57x23x11mm
