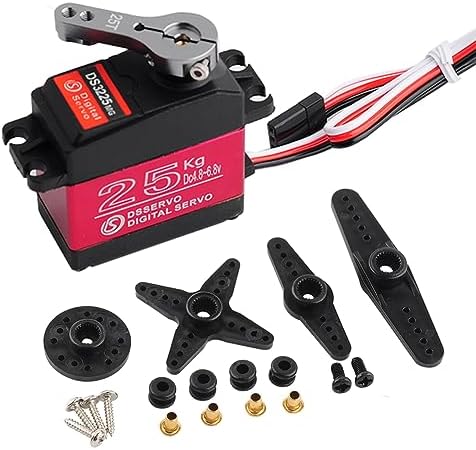

DS3225MG RC servos are designed for remotely operating model vehicles,such as cars, airplanes and robots. It provides the functionality of a light weight standard-sized servo, HV high torque, waterproof, sensitive and responsive. It is tailored for RC hobbyist to provide different experience and delight.

Features:

• Model: DS3225MG 25kg waterproof digital servo. Can be widely used for robots, mechanical arms, climbing cars, remote control boat, remote control aircraf etc.

• Large Torque: Maximum torque can up to 25kg.cm (6.8V)

• High Performance: Equipped with high precision potentiometers and high-resolution digital chip, ensure stable performance, fast response, strong anti-interference ability, low noise, fast heat dissipation.

• High Quality: Waterproof rubber seals screws, made of first-grade material ensure the longevity of the products. High-precision metal gear with hard anodizing for better accuracy and longer service life. CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well.

• Rotation: 180 degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precision control. Can be rotated within 360 degrees when power off, perfect for robot joint activities.

Electrical Specifications:

• Operating voltage range: 4.8-6.8V

• Operating speed ( 5.0V ): 0.15 sec/60 degree

• Operating speed ( 6.8V ): 0.13 sec/60 degree

• Stall torque ( 5.0V ): 21kg/cm

• Stall torque ( 6.8V ): 25kg/cm


Control Specification:

• Control System: PWM (Pulse width modification)

• Pulse width range: 500-2500/sec

• Neutral position: 1500/sec

• Running degree: 180/° (when 500-2500/sec)

• Dead band width: 3/sec

• Operating frequency: 50-330Hz

• Rotating direction: Counterclockwise (when 500~2500/sec)
