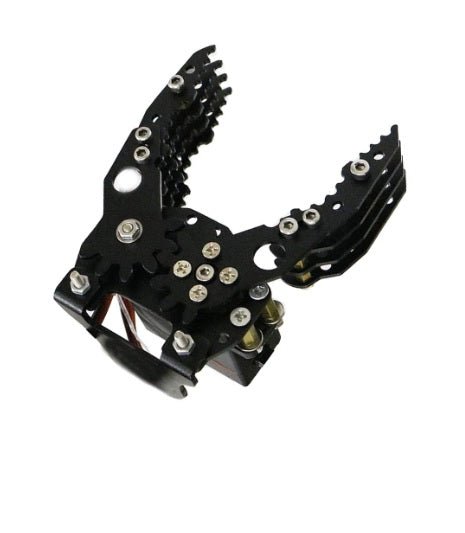

The G6 Aluminum Robotic Gripper with MG996R Servo is a durable mechanical gripping solution designed for robotic arms, pick-and-place systems, educational robots, and DIY automation projects.

The gripper is manufactured from hard aluminum alloy for a strong yet lightweight construction. Its double-sided toothed jaws help improve grip and reduce object slippage during lifting and manipulation.

The kit includes an MG996R high-torque metal gear servo, providing the mechanical force required to open and close the gripper. The servo can be controlled using Arduino, ESP32, Raspberry Pi, and other microcontroller platforms with an appropriate power supply and control signal.

Key Features

• Strong aluminum alloy construction
• Double-sided toothed gripping jaws
• Designed for stable object gripping
• Includes MG996R high-torque servo
• Metal gear servo mechanism
• Suitable for standard-size servo mounting
• Wide jaw opening
• Compact mechanical design
• Suitable for robotic arms and manipulators
• Easy integration into DIY robotics projects

Gripper Specifications

• Model: G6
• Material: Hard aluminum alloy
• Gripper Weight: Approx. 40 g without servo
• Maximum Jaw Opening: Approx. 86 mm
• Overall Length: Approx. 83 mm when closed
• Maximum Width (Open): Approx. 150 mm
• Maximum Width (Closed): Approx. 55 mm
• Maximum Thickness: Approx. 54 mm with servo installed
• Servo Compatibility: Standard-size servo

MG996R Servo Specifications

• Servo Model: MG996R
• Gear Type: Metal gear
• Operating Voltage: 4.8–7.2 V DC
• Stall Torque: Approx. 9.4 kg·cm at 4.8 V
• Stall Torque: Approx. 11 kg·cm at 6 V
• Operating Speed: Approx. 0.17 sec/60° at 4.8 V
• Operating Speed: Approx. 0.14 sec/60° at 6 V
• Servo Dimensions: Approx. 40.7 × 19.7 × 42.9 mm
• Servo Weight: Approx. 55 g
• Operating Temperature: 0°C to 55°C
• Dead Band: Approx. 5 µs

Typical Applications

• Robotic arms
• Pick-and-place robots
• Object sorting systems
• Educational robotics
• Arduino robot projects
• ESP32 robotics
• Raspberry Pi robotics
• Automation prototypes
• Mechanical manipulators
• STEM and engineering projects
• DIY robotics

Package Includes

• 1 × G6 Aluminum Gripper
• 1 × MG996R Metal Gear Servo

Power and Control Note

The MG996R servo should be powered from a suitable external power supply capable of providing sufficient current, especially when the gripper is under load. Avoid powering the servo directly from a microcontroller's 5V output when the available current is insufficient.

The servo control signal can be connected to a PWM-capable GPIO pin on a compatible microcontroller while maintaining a common ground between the servo power supply and controller.
