Overview

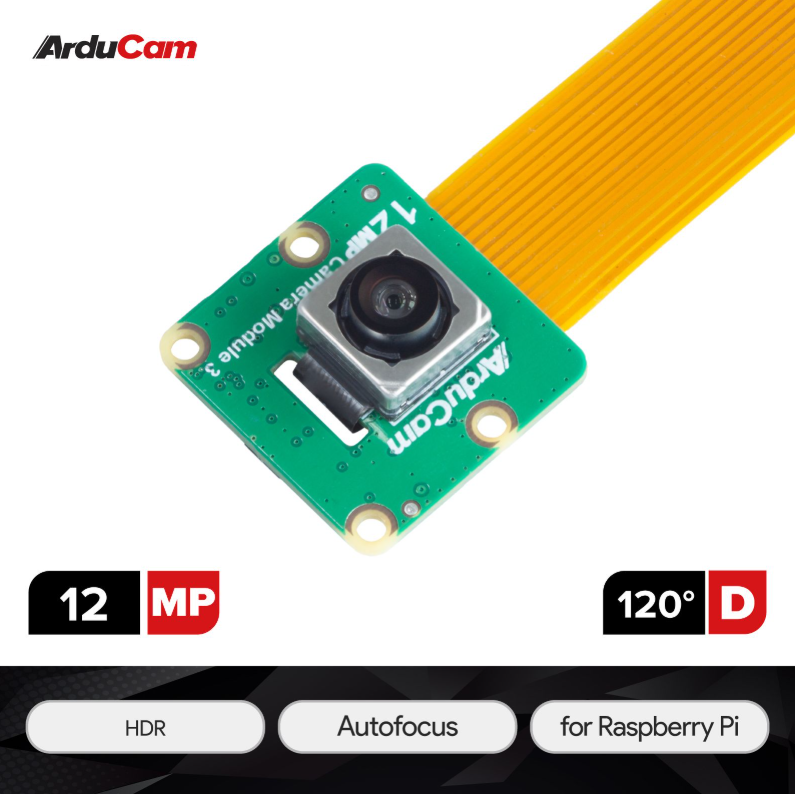

Arducam Camera Module 3 delivers high-quality images with its 12MP Sony IMX708 image sensor and HDR mode for up to 3MP output. Equipped with a 120° DFOV autofocus Lens, PDAF, and 2D DPC, this module offers excellent imaging performance. It is also compatible with Raspberry Pi 3, 4 A/B, 5, and Pi Zero, etc..Arducam is committed to creating diverse and convenient camera solutions. Also, we designed various accessories for the Raspberry Pi Camera Module 3. Among them, including Camera Extension solution, Quad-Vision stereo camera kit, UVC USB camera solution, and upcoming FPD-Link solution, etc. For details, please refer to our official website www.arducam.com
Applications
- Astrophotography
- Surveillance cameras
- FA cameras
- Industrial/Agricultural cameras
- Autonomous mobile robots, UGV/UAV, ADAS, etc.
Features
- Arducam Camera Module 3: Based on back-illuminated stacked CMOS 12-megapixel high-resolution Image Sensor (Sony IMX708) with HDR mode for up to the 3-megapixel output. Same basic functions as Raspberry Pi Official Camera Module 3.

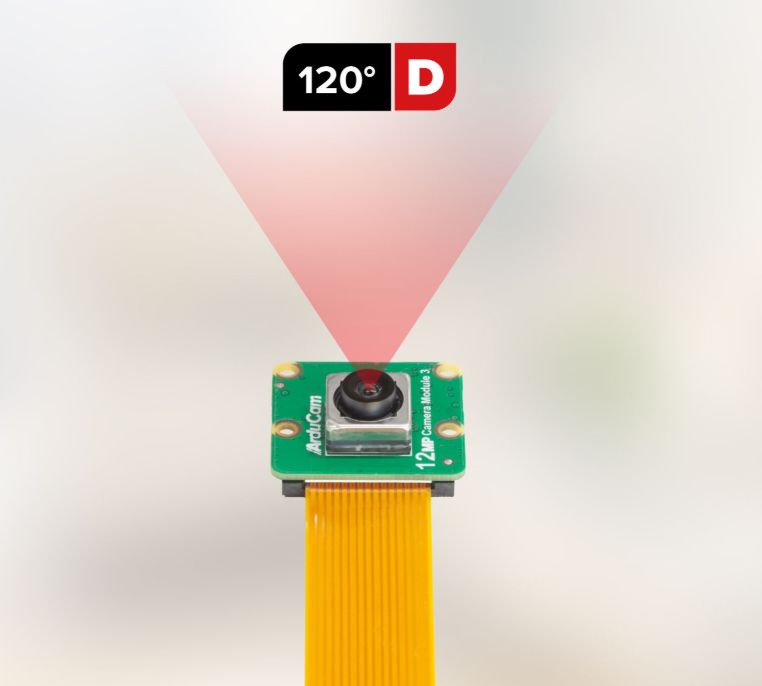

- High-Quality Images: Capture high-quality images with a 120° DFOV autofocus lens and max resolution of 4608×2592. Built-in 2D DPC and QBC Re-mosaic functions ensure a high SNR.
- Rapid Autofocus: Phase Detection Autofocus (PDAF) delivers rapid autofocus, ensuring that you never miss every shot.

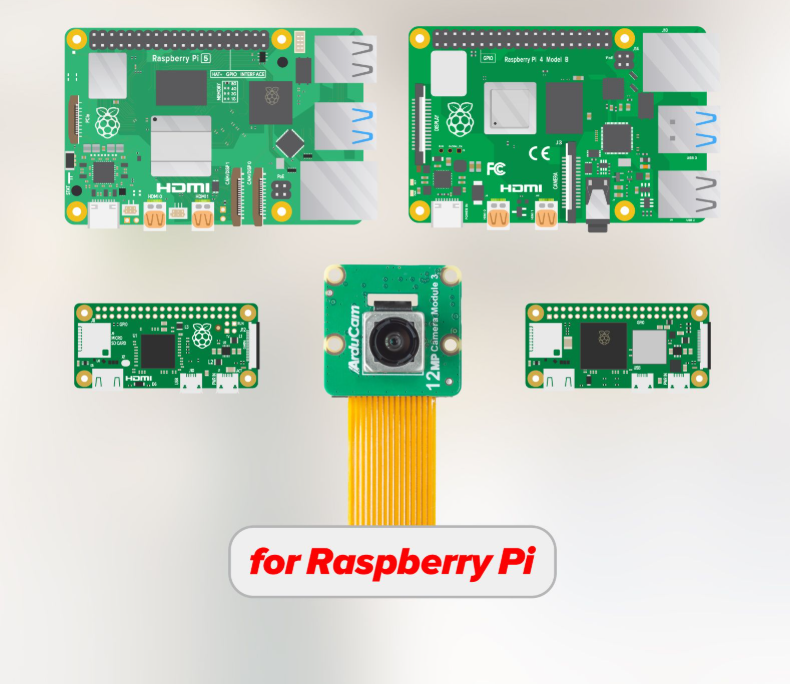

- Platform Compatibility: Supports Raspberry Pi 3, 4 A/B, 5, equipped with 15-22pin and 22-22pin FPC flexible cables. Supports application on Raspberry Pi Zero and RPI Compute Modules.
- Mass production and customization capabilities: Arducam offers much more than just standard product samples. We are committed to providing product features with greater practical value. Furthermore, we possess a robust production capacity to ensure long-term supply and long-term support.
Specifications
| Camera Module |
| Sensor |
IMX708 |
| Resolution |
11.9 Megapixels |
| Chroma |
Color |
| Shutter Type |
Rolling Shutter |
| Optical Format |
1/2.43" |
| Pixel Size |
1.4 µm x 1.4 µm |
| Sensor Active Area |
4608(H)×2592(V) |
| Sensor Image Area |
6.45 mm x 3.63 mm (7.4mm diagonal) |
| Output Format |
RAW |
| Resolution@fps |
2304 × 1296p56, 2304 × 1296p30 HDR, 1536 × 864p120 |
| Lens |
| Focus Type |
Autofocus |
| FOV |
120°(D)x100°(H)x72°(V) |
| Lens Mount |
Stock Lens Mount |
| F.NO |
F2.2 |
| IR Sensitivity |
Integral 650nm IR Filter |
| Default Focus Distance |
10cm~INF |
| Functional and Compatibility |
| HDR Mode |
Support |
| Supported Platform |
Raspberry Pi |
| Supported OS |
Bullseye/Bookworm/Trixie |
| Camera Interface |
MIPI CSI-2 |
| MIPI Lanes |
2-Lane Driver |
| Electrical and Mechanical |
| Operating Voltage |
3.3V |
| Power Consumption |
MAX:1.1W |

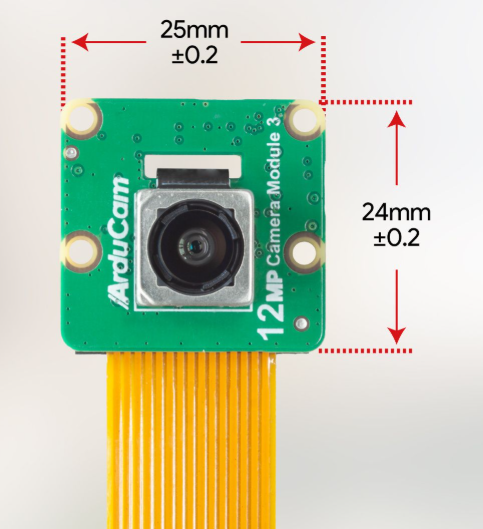

| Camera Board Size |
24×25 mm |
| Overall Weight (Net) |
13g |
| Standard and Certifications |
| Temperature range (Storage) |
-4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) |
32°F-122°F (0°C to +50°C) |
| Certification |
RoHS |
Package Including
- 1 x Arducam 12MP IMX708 120°DFOV Autofocus MIPI Camera Module

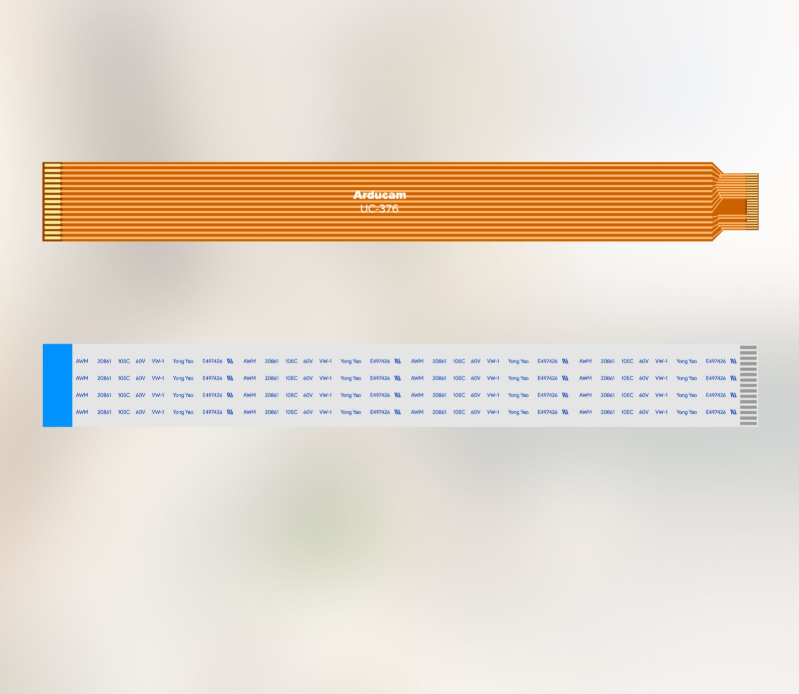

- 1 x 15cm 15-15pin FFC Cable
- 1 x 15cm 15-22pin FFC Cable
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion.
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
- No Raspberry Pi board is included in the package
