Overview

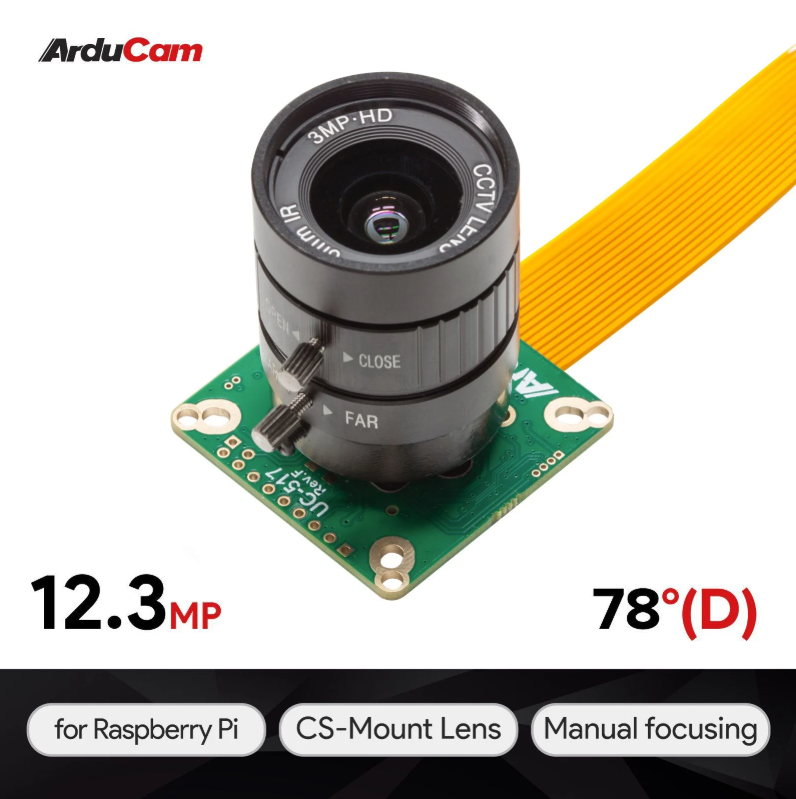

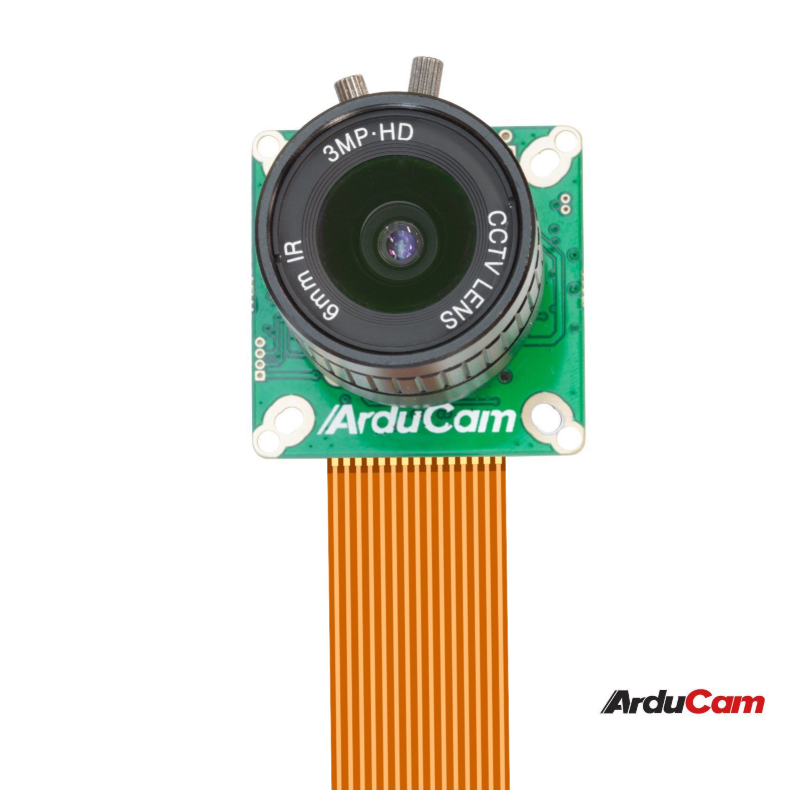

The official Pi HQ camera is only available in one model. It doesn't come with a lens and it is also not easy for the users to find a case. To solve these pain points, Arducam released this camera module, a customized 477P camera board with three-hole pitches and a 6mm CS lens. And you can download our 3D files to print your case as you like.
Arducam is committed to creating diverse and convenient camera solutions for embedded camera users. We are not only engaged in the production and development of optical products, but also strive to provide complete solutions for embedded cameras, optical components, etc.
Applications
- UAV/Drones/FPV camera
- Machine Vision
- Robotics
- Face Recognition
- Defect Detection
Features

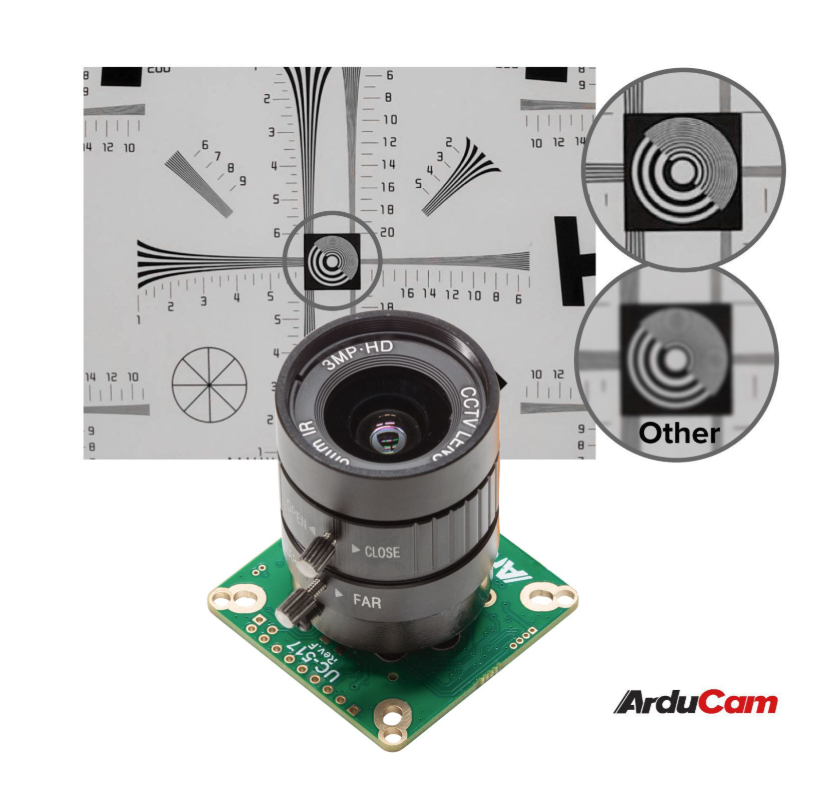

- High Quality Camera: Adopts a 1/2.3″ 12 Megapixel sensor for sharp image, max. still resolution 4056 x 3040.
- Less Hassle: Including 1/2.3″ 6mm focal length CS lens and the 3D file.
- More Than Ultra HD: Come with an interchangeable CS lens with a FOV of 65°(H), which can capture UHD images while maintaining reality.

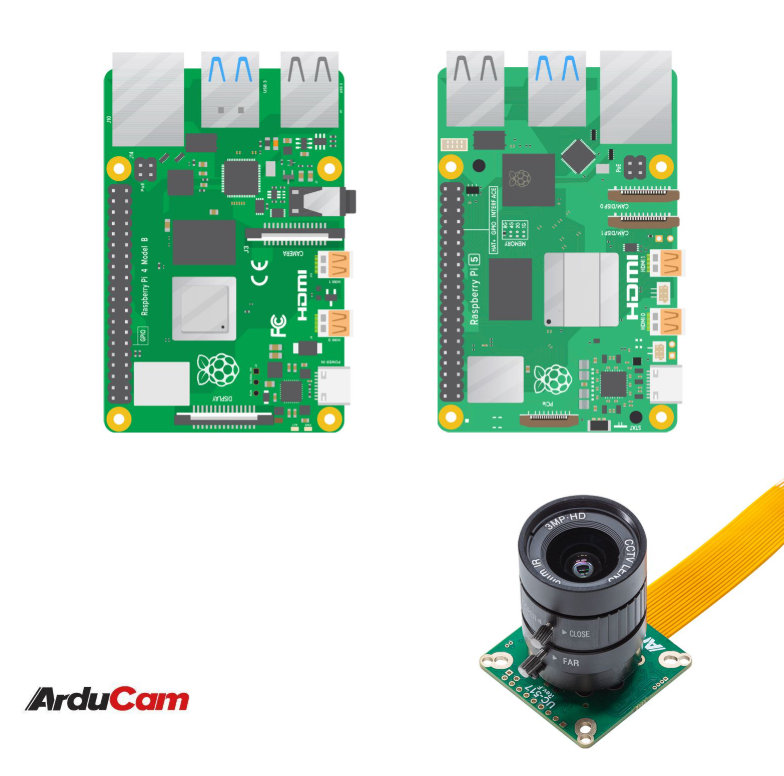

- Wide Compatibility: Not only compatible with Raspberry Pi 1, 2, 3, and 4, but also with Raspberry Pi Zero and Zero 2W.
- Native to Raspberry Pi: No need to install additional driver for this camera
Specifications
Camera
| Still Resolution |
12.3 Megapixels |
| Video Modes |
2028 × 1080p50, 2028 × 1520p40 and 1332 × 990p120 |
| Sensor Resolution |
4056 x 3040 pixels |
| Sensor image area |
6.287mm x 4.712 mm (7.9mm diagonal) |
| Pixel Size |
1.55 µm x 1.55 µm |
| Optical Size |
1/2.3" |
| IR Sensitivity |
Integral IR-cut Filter, visible light only |
| Supported Platform |
Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/CM5/Zero W/Zero 2 W |
Lens
| Focus Type |
Manual Focus |
| Focal Length |
6mm |
| F.NO |
F1.2 |
| Field of View(FOV) |
65°(H) |
| Lens Mount |
CS-Mount |
| MOD |
0.2mm |
| Back Focal Length |
7.53mm |
| Lens Dimension |
Φ30×31mm |
Electrical & Mechanical
| Camera Board Size |
38 × 38mm |
| Hole Pitch |
Compatible with 29mm, 30mm, 34mm |
| Peaking Current |
300mA |
Package Including

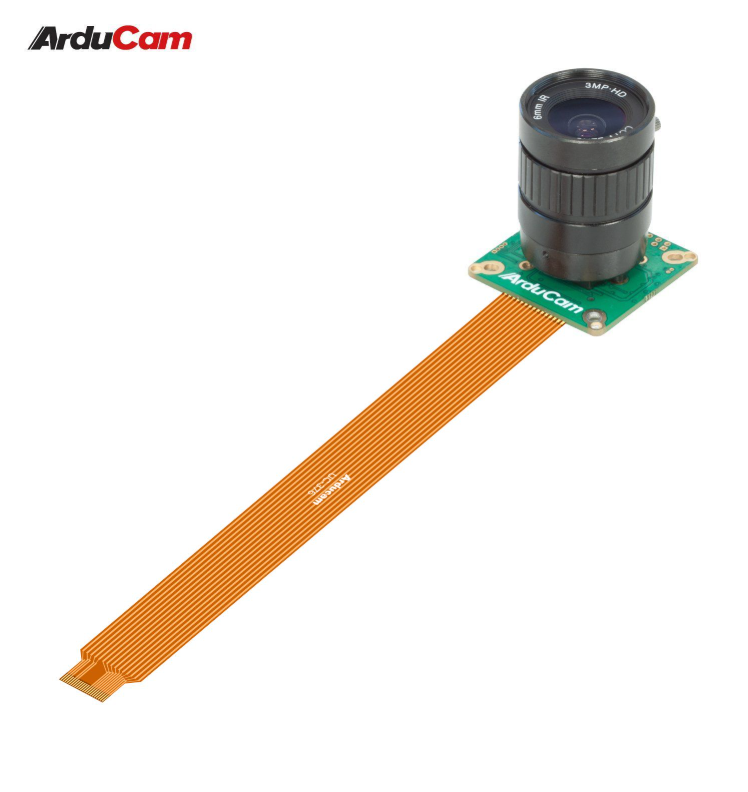

- 1 x 12MP Camera Module with 6mm CS Lens

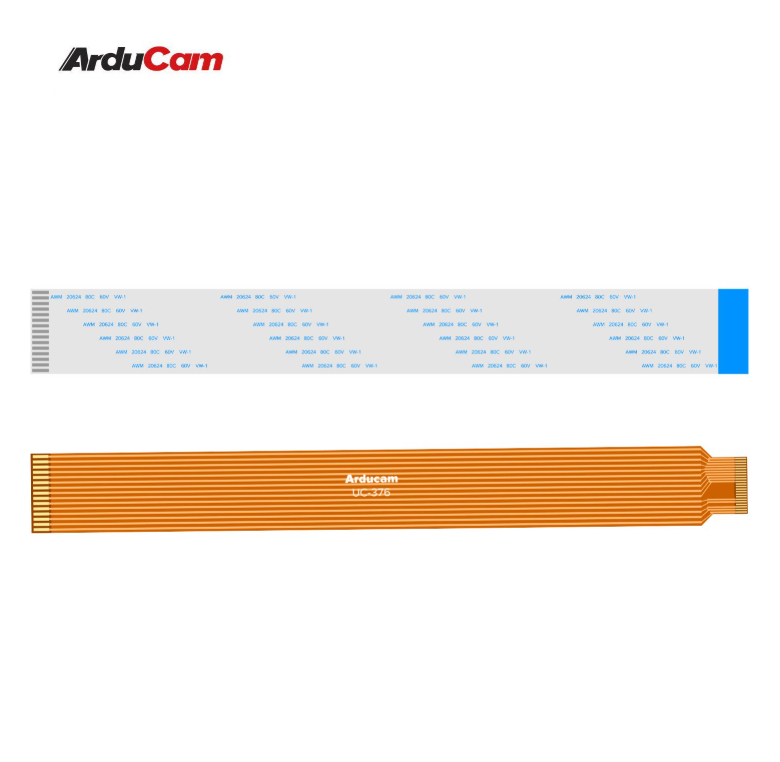

- 1 x 300mm/11.8inch 15pin to 15pin camera cable
- 1 x 300mm/11.8inch 15pin to 22pin camera cable
Note
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description
- No Raspberry Pi board is included in the package
