Robot Pi Shop

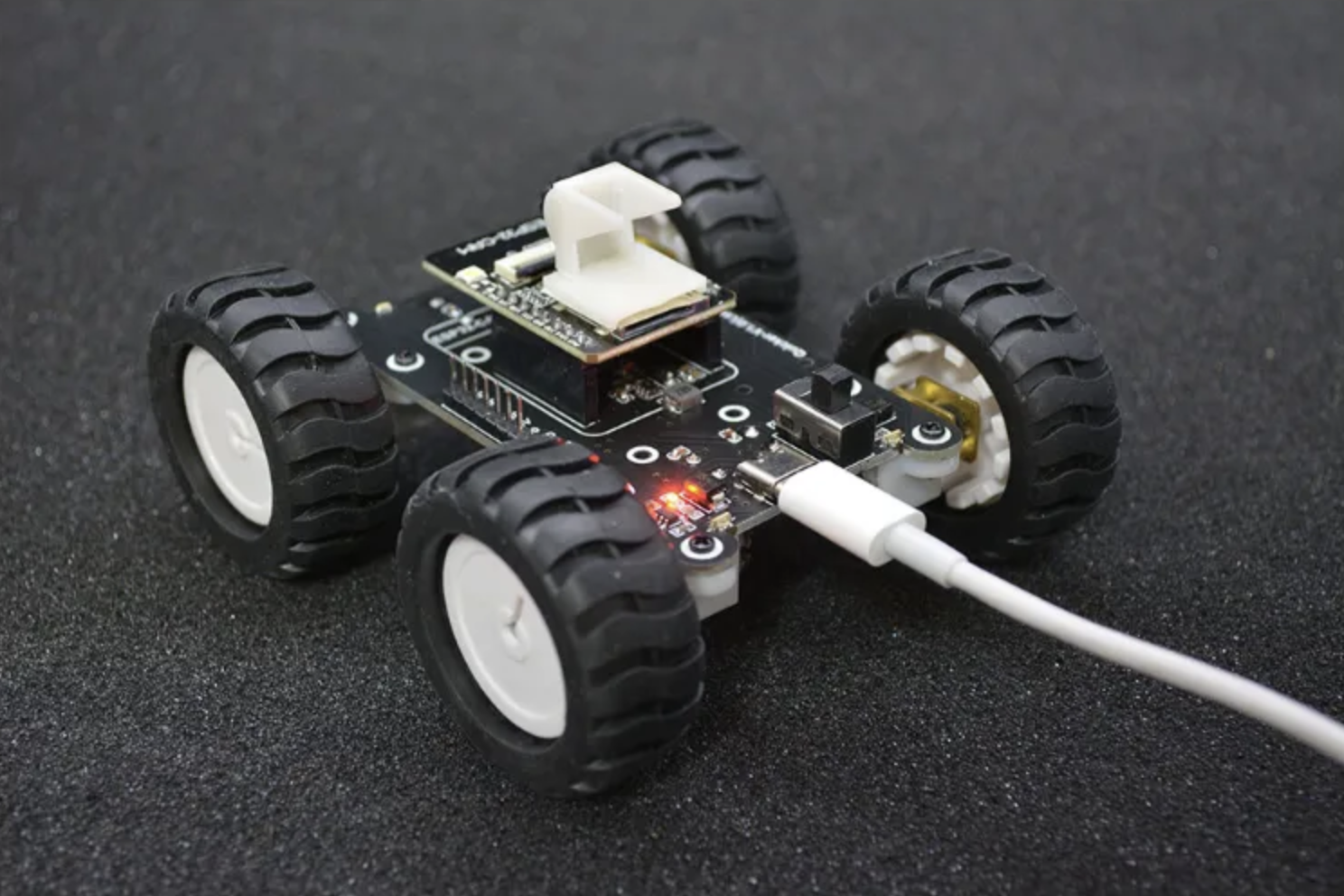

Arduino WIFI Video Robot Car

$59.99
Quantity

This assembled kit comes with a wireless WiFi remote control along with ESP32-CAM is a very small camera development board with an ESP32-S chip, an OV2640 camera, and a microSD card slot.OV2640 is a 1/4-inch CMOS UXGA (1632*1232) image sensor. The sensor is small in size and has low operating voltage providing all the features of a single UXGA camera and image processor.
These kits are assembled and do not need to solder the circuit, the components are simplified, and easy to assemble.

Features:

  • Low-power dual-core 32-bit CPU for application processors.
  • Main frequency up to 240MHz, computing power up to 600 DMIPS.
  • Built-in 520 KB SRAM, external 4M PSRAM.
  • Supports interfaces such as UART.
  • Support OV2640 and OV7670 cameras, built-in flash.
  • Support image WiFi upload.
  • Support TF card.
  • Support secondary development.

Specifications:

  • Rated power: 2W
  • Motor model: N20
  • Maximum power of single motor: 0.3W
  • Control: Web Wifi
  • Camera: OV2640
  • WIFI Module: ESP32
  • Maximum transmission distance: 30 meters (open field without
  • interference)
  • Battery voltage: 3.7v
  • Wheel Diameter: 45mm
  • Chassis Material: PCB
  • Dimensions(L*W*H): 105*95*58mm
  • Weight:150g

Package Includes:

  • 1 X Assembled Robot car
  • 1 X ESP32-CAM Module
  • 1 X micro USB cable
  • 1 X USB 2.0 to TTL UART Serial Converter Module
  • 1 X Screw Driver
  • 1 X 1300 mAh Battery
