Overview:
This breakout board can help you wire and know the status of the GPIO.
Just plug your Raspberry Pi Pico into this board to complete the installation.
We provide free technical support to help you with any questions and problems.

Compatible Models:
Raspberry Pi Pico / Pico H / Pico W

Main Features:

• Tutorial: Comes with tutorial to show how to use. http://freenove.com/fnk0081

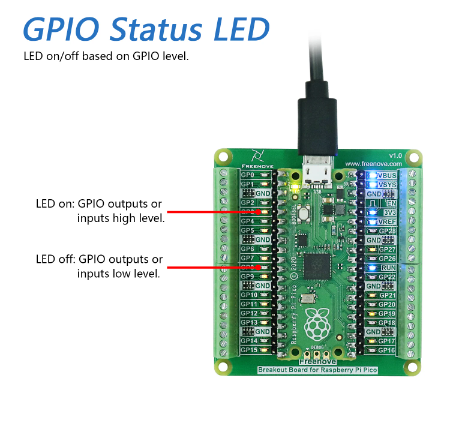

• GPIO status LED:LED on if GPIO outputs/inputs high level, LED off if GPIO outputs/inputs low level.

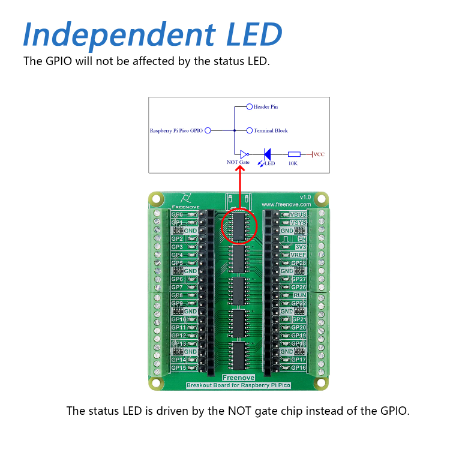

• Independent LED: The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.

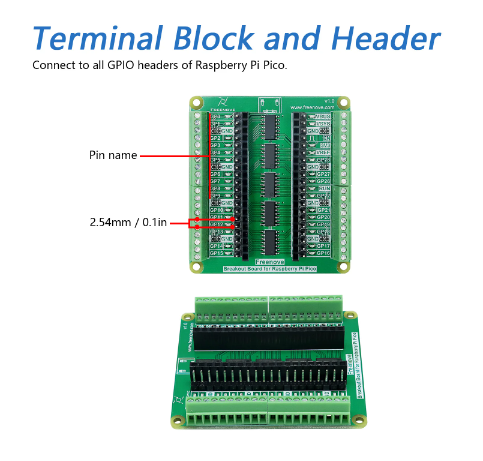

• Terminal block and header: Connect to all GPIO headers of Raspberry Pi Pico, 2.54mm / 0.1in pitch.

• GPIO name: The name of each GPIO is printed next to the port.
