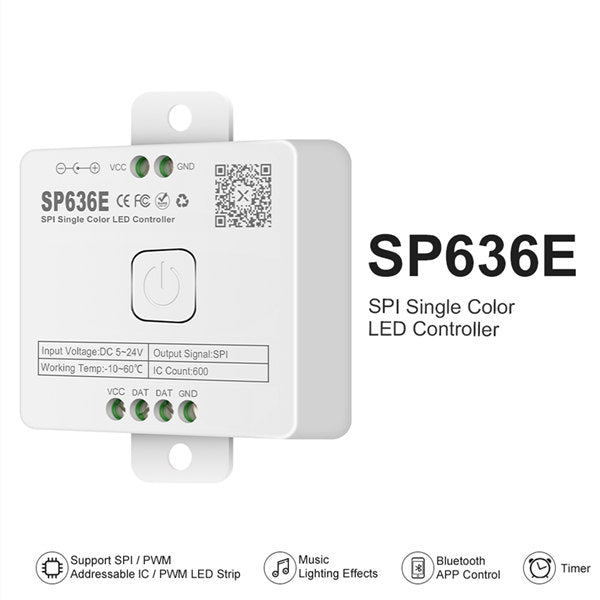

The SP636E SPI Single Color LED Controller is a smart lighting controller designed for single-color addressable LED strips using compatible WZ-series driver ICs.
It supports mobile app control, compatible 2.4GHz RF touch remote controls, and wall-mounted touch control panels. With built-in dynamic lighting effects, music synchronization, and adjustable parameters, the SP636E is ideal for decorative, architectural, and custom LED lighting installations.
The controller supports up to 1,800 LED driver channels and features an integrated microphone for sound-reactive lighting effects.
Key Features
-
App Control: Adjust lighting effects and settings through a compatible mobile application.
-
2.4GHz RF Remote Control: Supports compatible wireless touch remote controls.
-
Touch Panel Compatibility: Supports compatible 2.4GHz 86-type wall-mounted touch panels.
-
Up to 1,800 Channels: Controls compatible single-color WZ-series LED driver ICs.
-
Dynamic Lighting Effects: Multiple white-light animation and music effects.
-
Music Synchronization: Built-in microphone for sound-reactive lighting.
-
External Audio Support: Supports music input through a phone microphone or media player streaming.
-
Adjustable Effects: Customize supported lighting effect parameters.
-
Effect Collection: Save and access supported lighting effects.
-
ON/OFF Animations: Includes multiple switching animation effects.
-
Timer Function: Supports scheduled ON/OFF operation.
-
OTA Firmware Updates: Supports wireless firmware upgrades.
Technical Specifications
| Parameter |
Specification |
| Model |
SP636E |
| Product Type |
SPI Single Color LED Controller |
| Input Voltage |
DC 5–24V |
| Working Current |
1–10mA (specified controller consumption) |
| Operating Temperature |
-20°C to +60°C |
| Maximum Channels |
Up to 1,800 |
| LED Compatibility |
Compatible WZ-series single-color driver ICs |
| Wireless Remote |
2.4GHz RF touch remote |
| Wall Panel Support |
Compatible 2.4GHz 86-type touch panel |
| Audio Synchronization |
Built-in microphone, phone microphone, media streaming |
| Timer Function |
Supported |
| Firmware Upgrade |
OTA |
| Dimensions |
78 × 56 × 20mm |
Control Methods
1. Mobile App Control
Configure lighting effects, adjust supported parameters, and manage lighting functions through a compatible smartphone application.
2. 2.4GHz RF Touch Remote
Control supported lighting functions wirelessly using a compatible 2.4GHz touch remote.
3. Wall-Mounted Touch Panel
Supports compatible 86-type 2.4GHz touch control panels for convenient wall-mounted operation.
4. Music Synchronization
Create sound-reactive lighting effects using the built-in microphone or supported external audio sources.
Connection and Setup
- Connect a compatible single-color SPI LED strip to the controller's output terminals.
- Connect an appropriate DC 5–24V power supply matching the LED strip requirements.
- Install the compatible control application on your smartphone.
- Pair the controller according to the manufacturer's instructions.
- Select the appropriate LED driver configuration.
- Choose lighting effects, adjust settings, or enable music synchronization.
Applications
- Architectural LED Lighting
- Decorative White LED Installations
- Music-Reactive Lighting Projects
- Commercial Display Lighting
- Smart Home Lighting
- LED Animation Projects
- Exhibition and Stage Decorations
- Custom SPI LED Installations
Important Notes
-
Single-Color Controller: Designed for compatible single-color SPI LED strips, not conventional RGB or RGBW strips.
-
LED Compatibility: Verify the LED strip driver IC before connecting.
-
Power Supply: Requires an external DC 5–24V power supply matching the connected LED strip.
-
Controller Current: The specified 1–10mA is controller consumption, not the maximum LED load current.
-
Remote and Touch Panel: Compatibility does not mean these accessories are included.
-
App Compatibility: Confirm the supported mobile application before installation.
-
Installation: Disconnect power before wiring the controller or LED strip.
