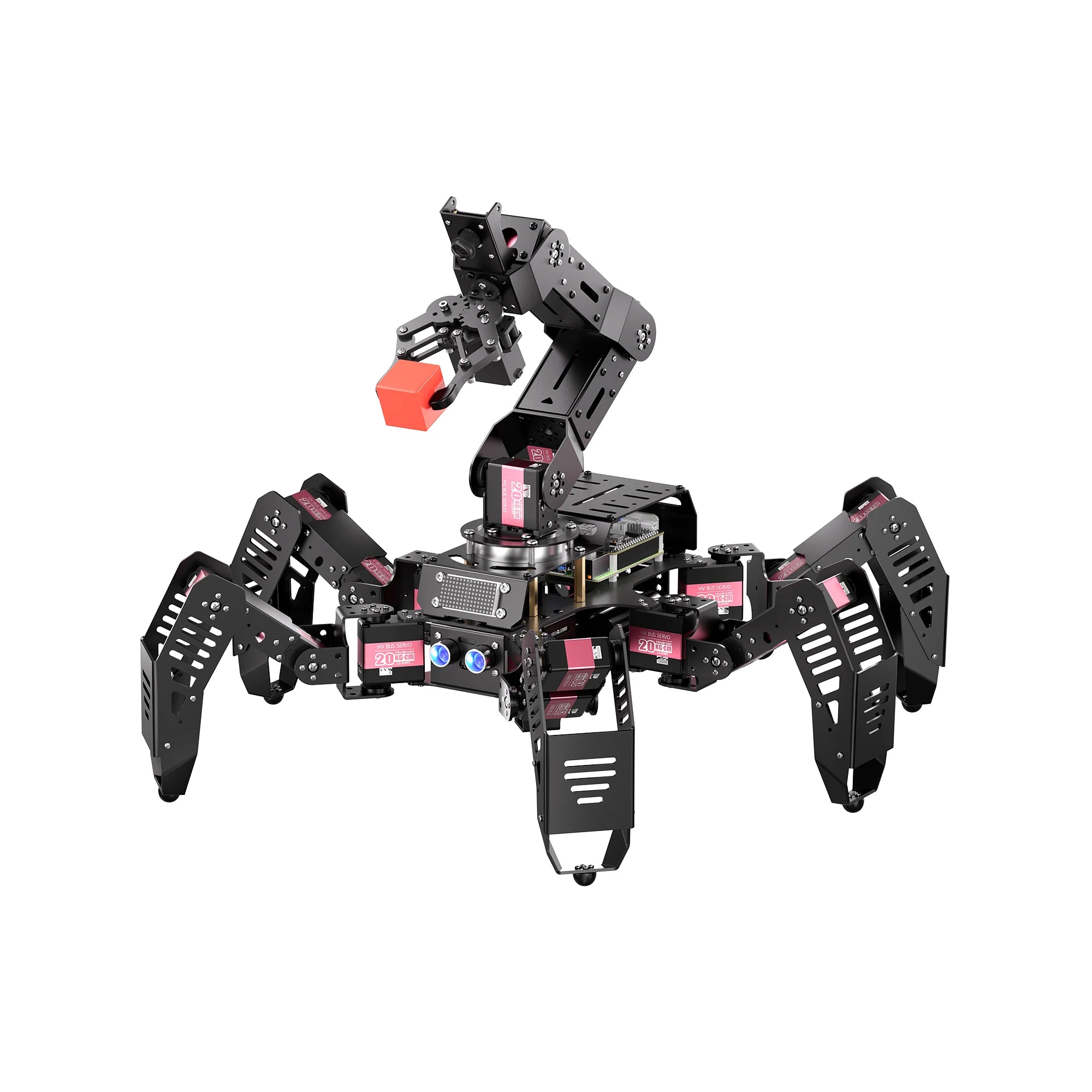

SpiderPi Pro: Hiwonder Hexapod Robot with AI Vision Robotic Arm Powered by Raspberry Pi 5

$0.00
Quantity
Product Description
Hiwonder SpiderPi Pro is an advanced hexapod robot integrated with AI vision and powered by Raspberry Pi. It features intelligent serial bus servos with a torque of 20KG, 5DOF robot arm, glowy ultrasonic sensor, IMU sensor and dot matrix module and can be programmed using Python. SpiderPi Pro serves as an ideal platform for conducting research in motion control for hexapod robots, machine vision, OpenCV, deep learning, and various other fields.

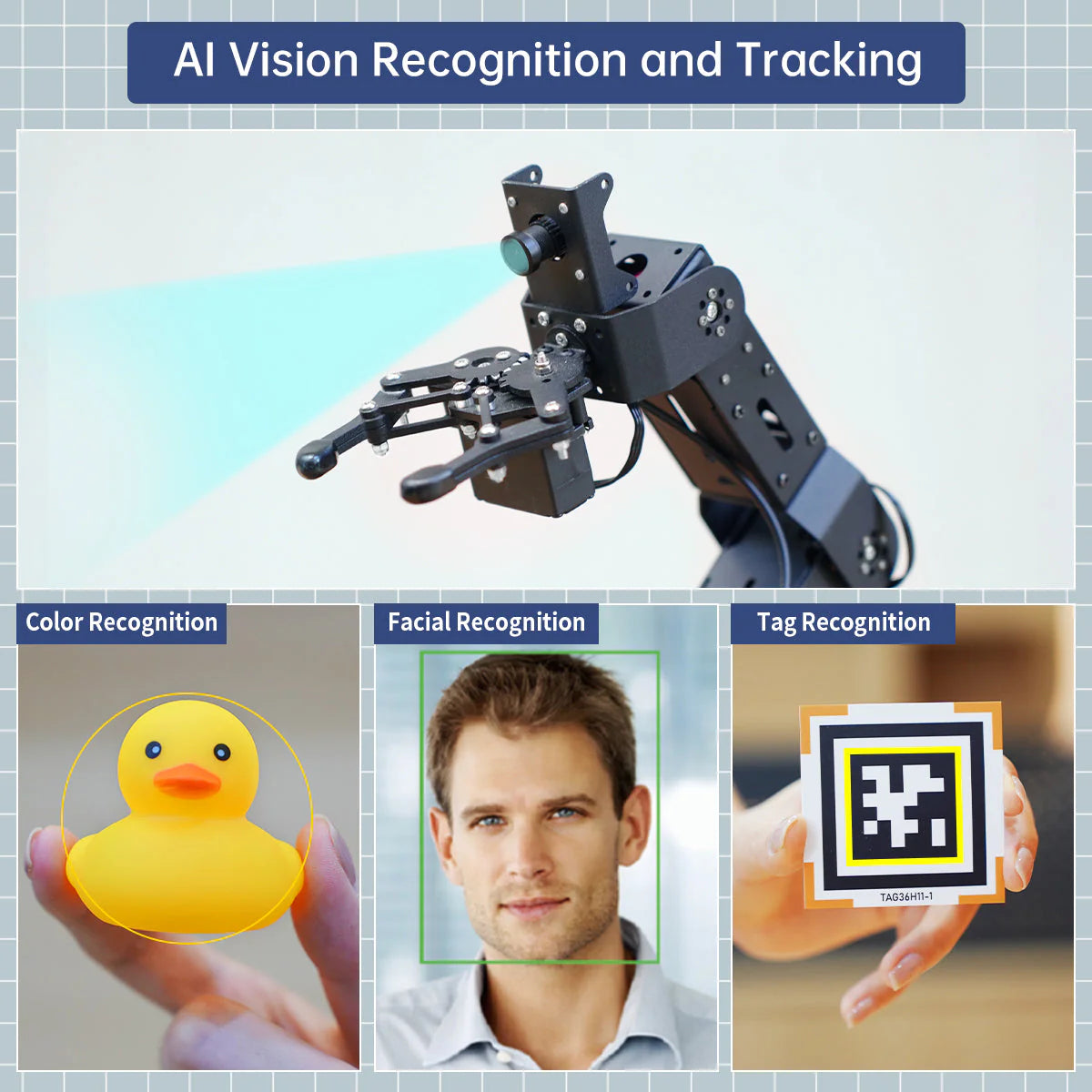

5DOF Vision Robot Arm
SpiderPi Pro hexapod robot is equipped with a HD wide-angle camera, which allows the robot's vision recognition range to be larger, and the camera supports manual focusing, which is more convenient to use.

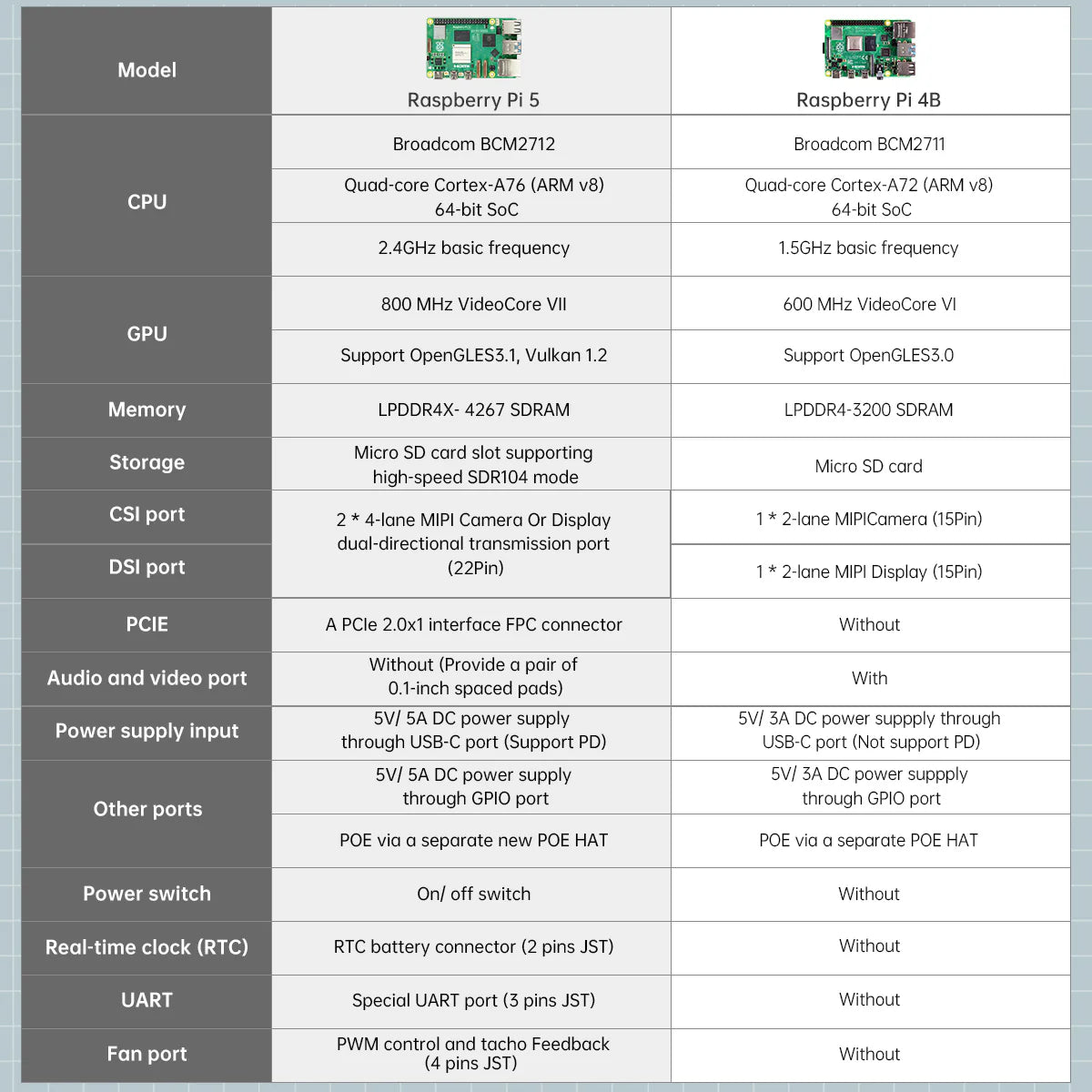

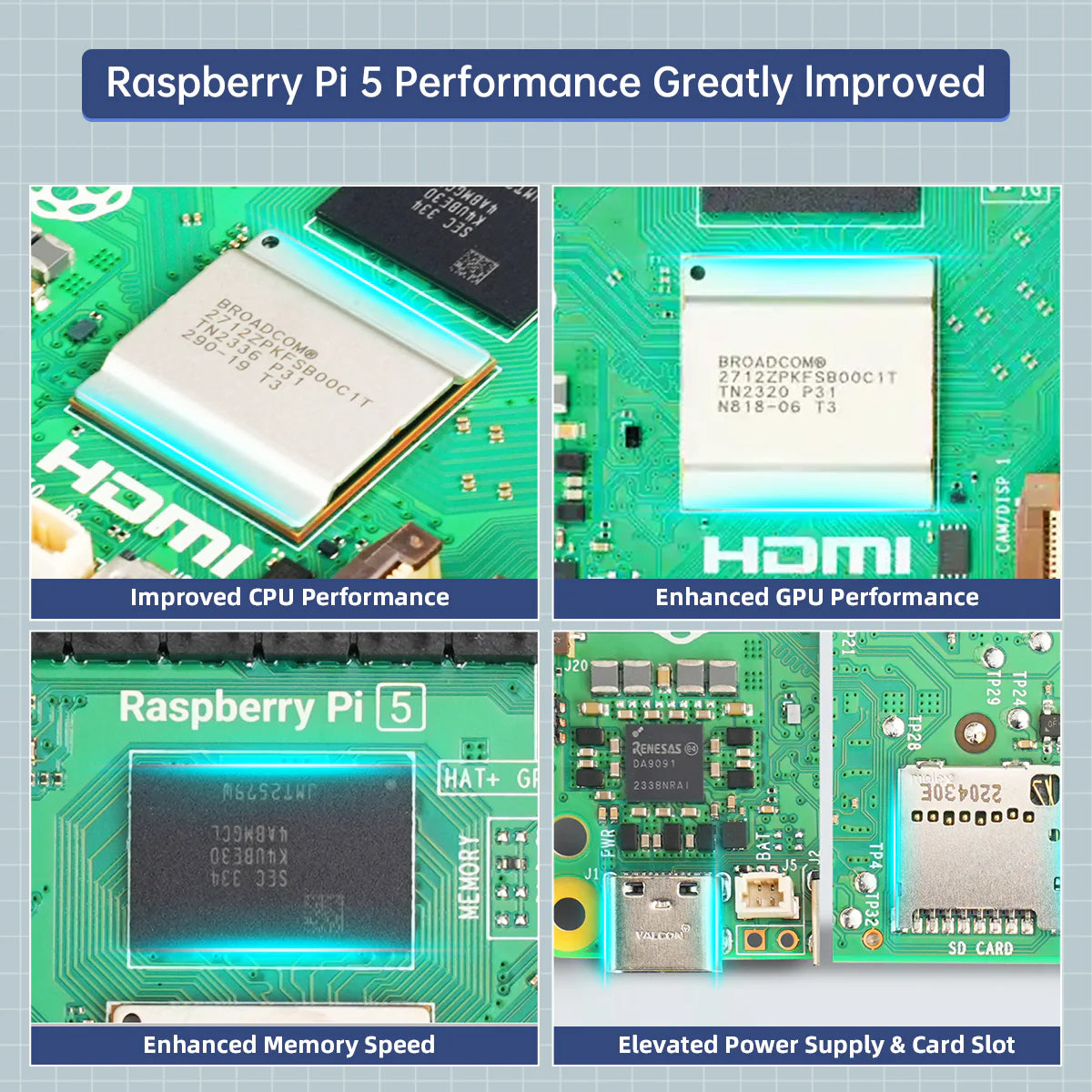

Powered by Raspberry Pi
SpiderPi Pro is powered by a Raspberry Pi 4B/5 controller that adjusts the body attitude. At the same time, we provide rich course materials to let you quickly experience motion control, machine vision and OpenCV projects.

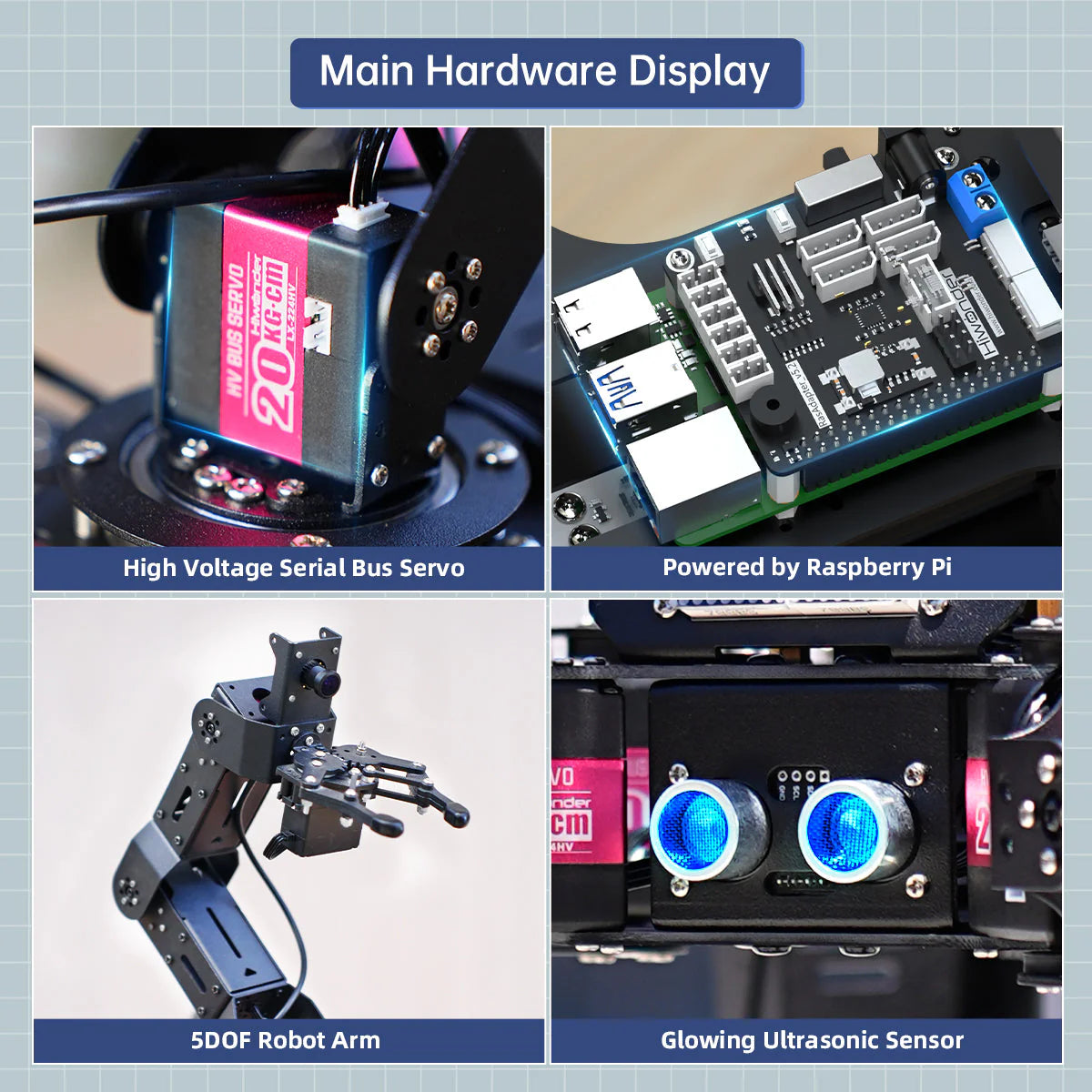

High Voltage Bus Servo

The 20kg.cm 11.1V high-voltage servo has longer service time and less power consumption.

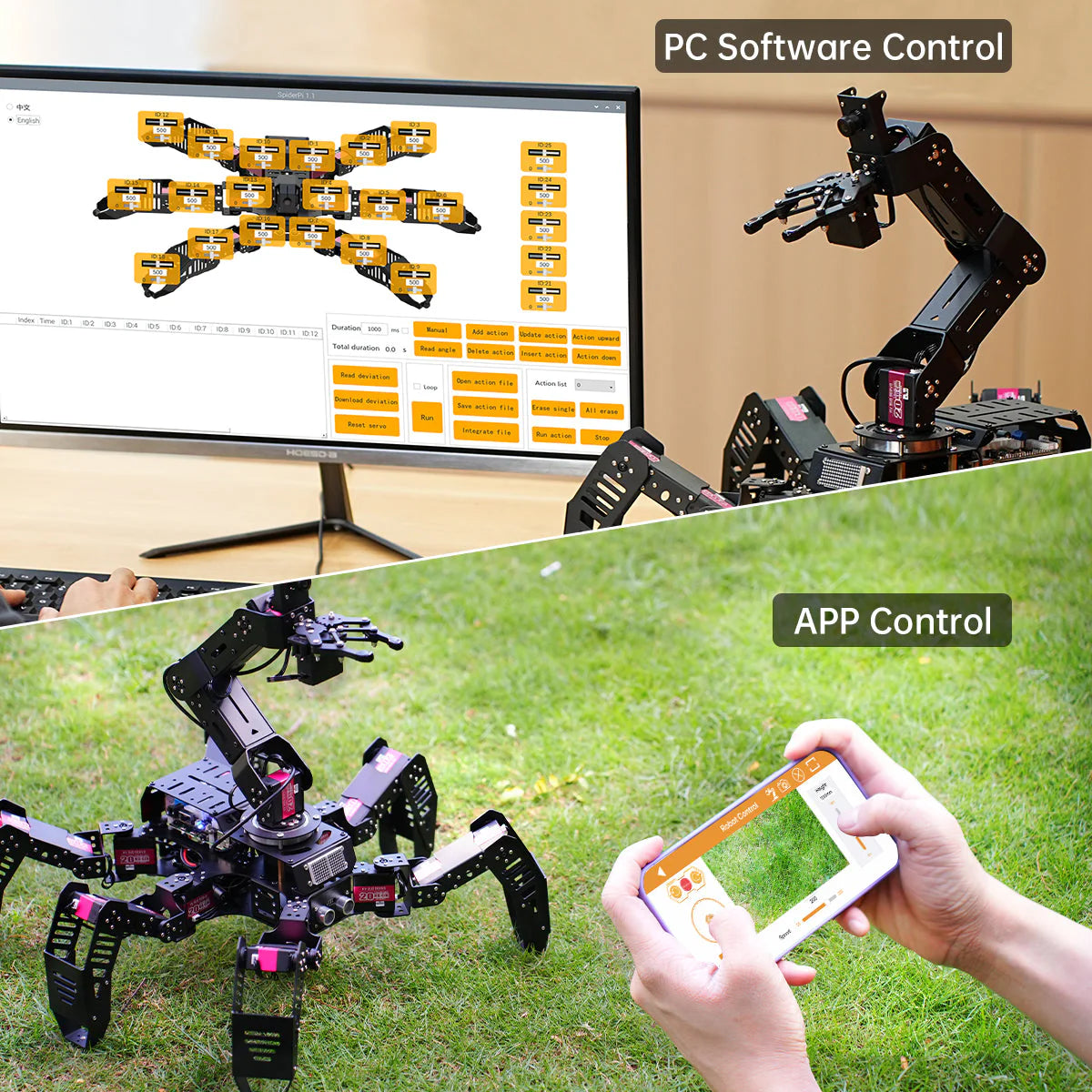

APP Control

WonderPi APP supports Android and iOS. Switch game modes easily and quickly to experience various AI games.

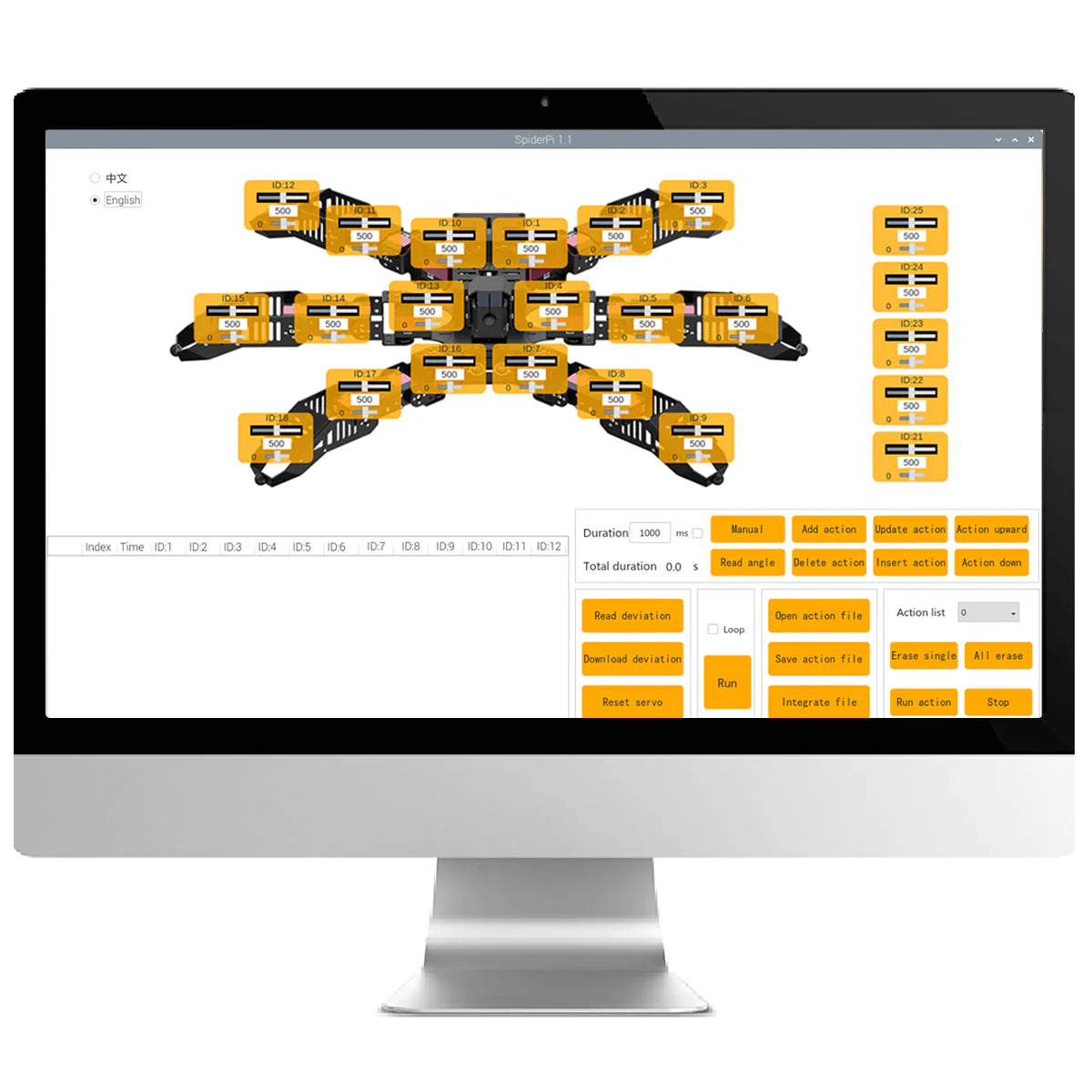

PC Software Control

With the graphical PC software, you can control the rotation of the robot servo by dragging the slider without code, and can edit the robot action group.

IMU Sensor

The core controller of the RPi spider robot robot is equipped with IMU sensors, which can sense the robot's body attitude in real time and detect the direction of travel.

HTS-20H Servo Parameters
LX-224HV Servo Parameters
Specification Parameters
Weight: About 3.1kg
Material: Metal and fiberglass panels
Camera pixel: 480P
Ultrasonic ranging distance: 2~400cm
Robotic arm DOF: 5DOF
Battery: 11.1V 3500mAh 5C lipo battery
Working hour: 40min(continuous working)
Leg 3DOF (each leg) x6
Hardware: Raspberry Pi 4B/5 and Raspberry Pi expansion board
Software: APP+PC software
Communication: WiFi, Ethernet
Servo: LX-224HV, HTS-20H
Package size: 40*40*17cm
Package weight: About 4.8kg
Product Parameters

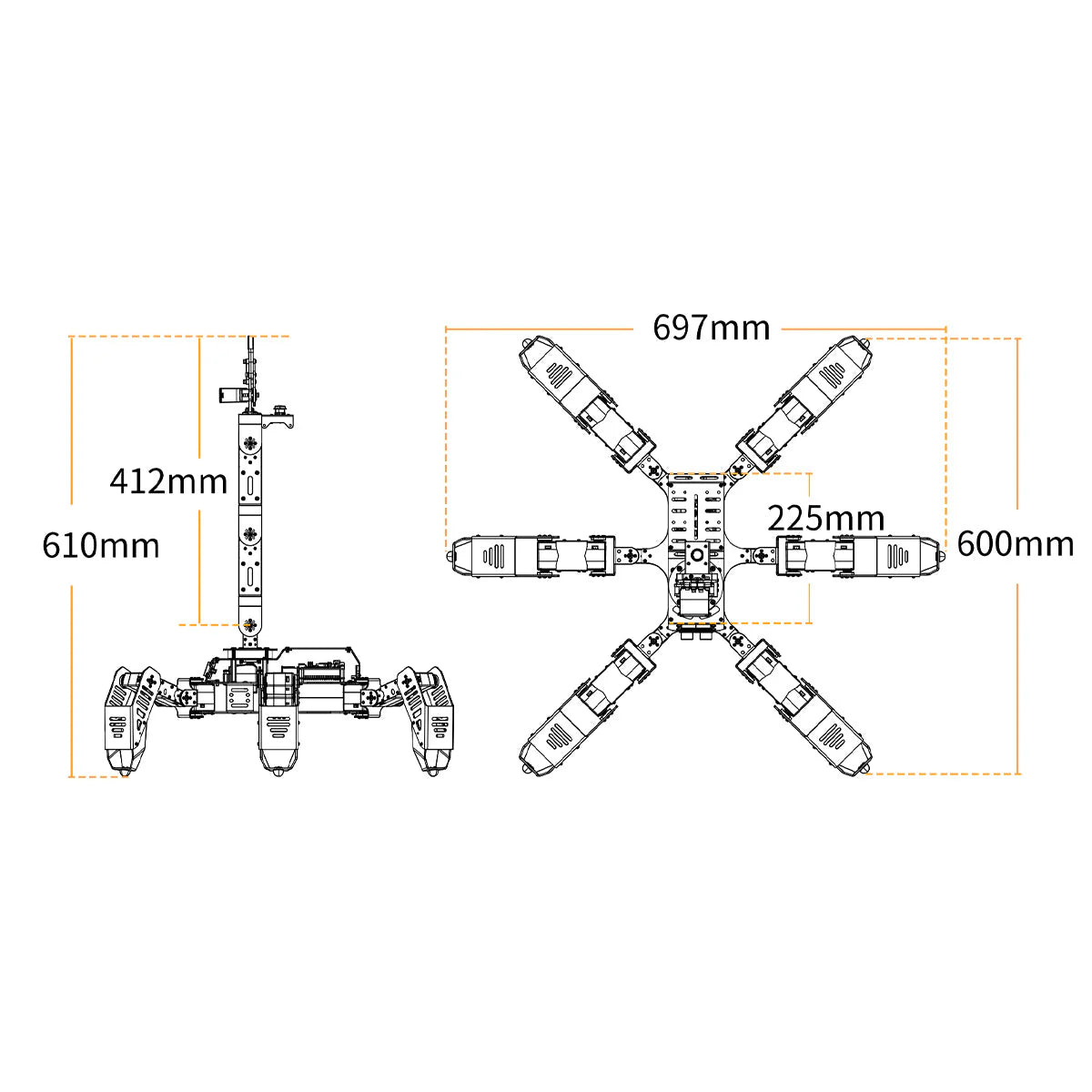

Dimensional Diagram
HD Wide Angle Camera
Course Materials

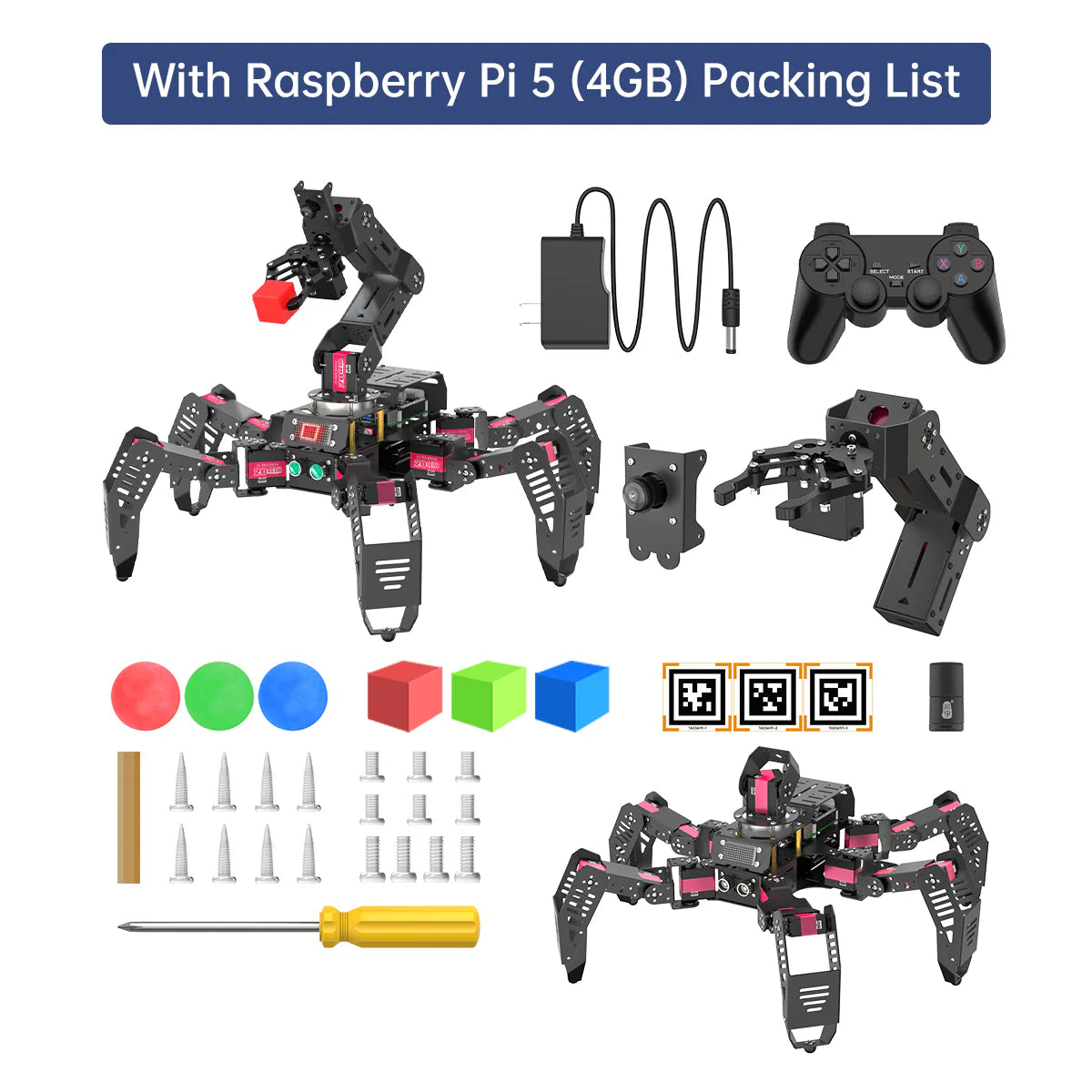

SpiderPi Pro Packing List
