SunFounder Arduino Uno Robotic Arm Kit DIY 4-Axis Wooden Mental Servo Rollarm

$75.99
Quantity

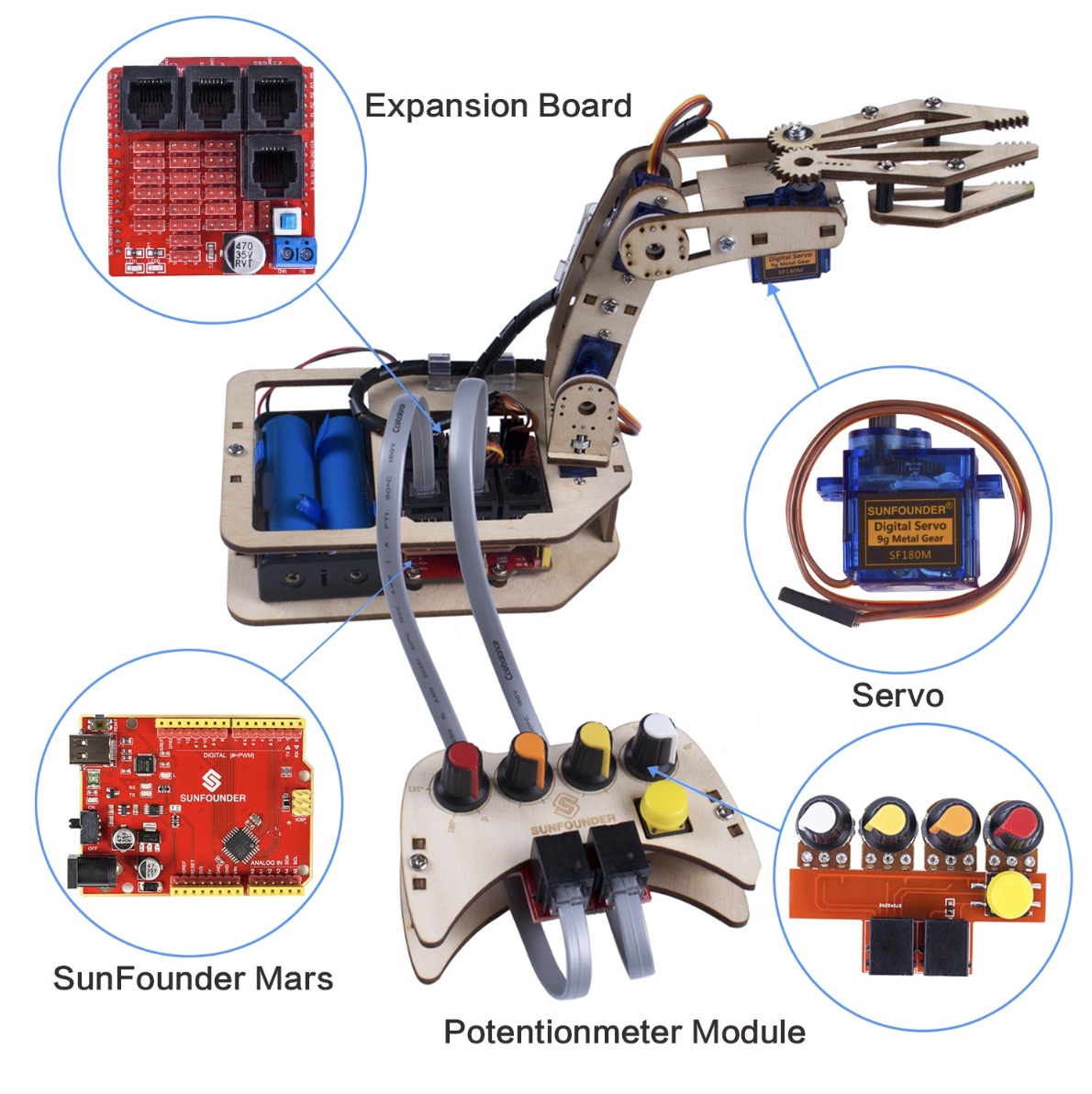

The Rollarm Kit for Arduino is designed for mass hobbyists to learn robot arm control. With the open source MCU Arduino UNO and a servo expansion board, the robot arm is easy to use and full of fun. You can control its four axes by the 4 potentiometers on the handle, as well as make them move on your computer. In addition, it can memorize the movements it's made and repeat again and again, making it a great tool for repeated tasks.
For more detailed information about assembly and application, please visit: https://www.sunfounder.com/learn/category/DIY-Control-Robot-Arm-kit-for-Arduino-Rollarm.html

Features:

  • The Rollarm is a 4-axis movement kit customized for robot hobbyists to learn to control the mechanical arm, with detailed user manual, code and introduction videos.
  • 2 controlling manners: manually (by handle) or by computer (Labview).
  • Able to memorize about 100 movements made.
  • Four servos compose and control the four joints, and grippers have double layers with pointed end and jagged edges – to grab objects firmly.
  • Made of wooden materials with light weight and fine texture, it brings you closer to nature.

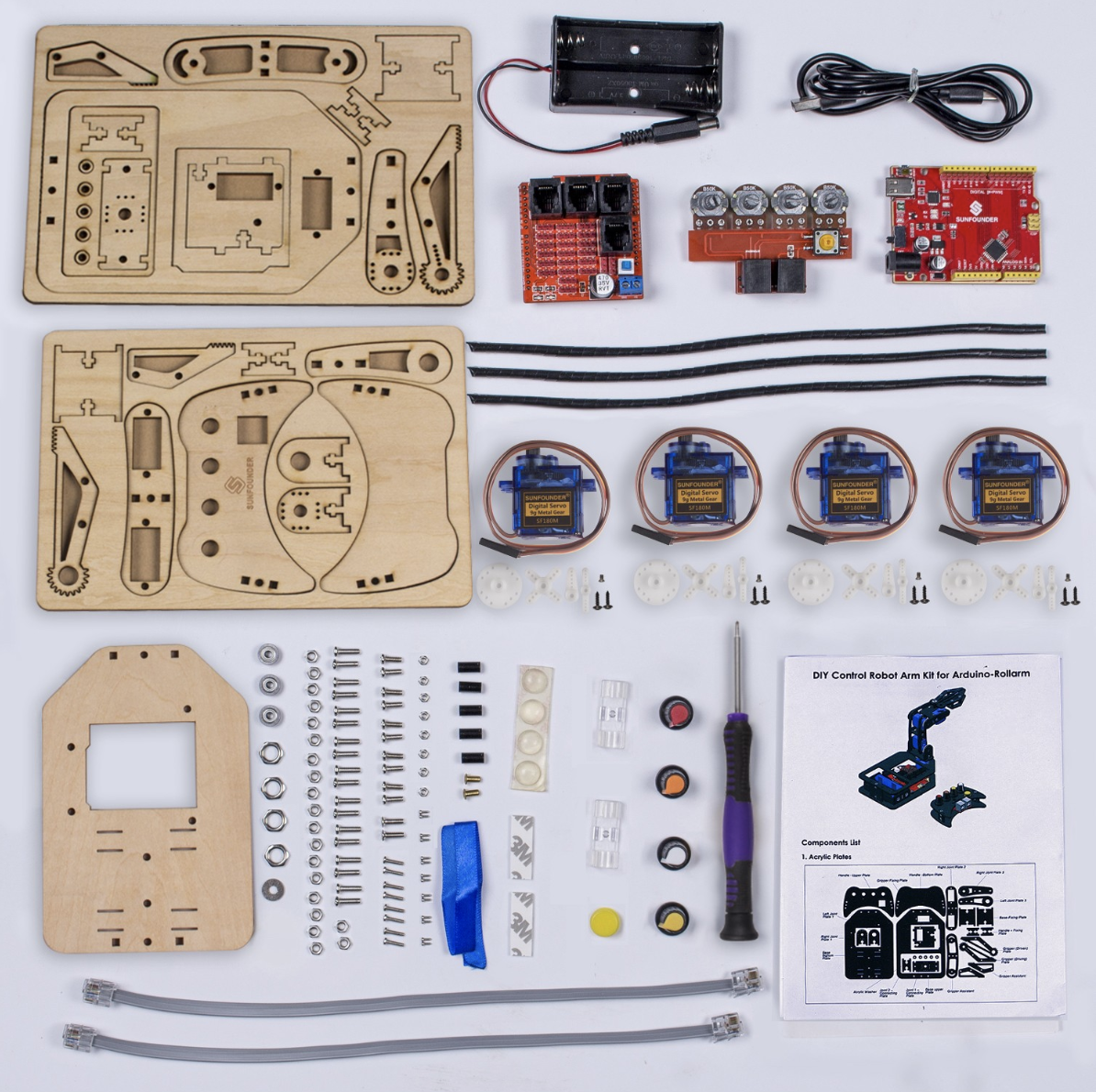

Kit include:

  • 1 Set x Wooden Plates
  • 14 x M1.2*4 Self-tapping Screw
  • 8 x M2*8 Screw
  • 8 x M2 Nut
  • 2 x M3*8 Flat-head Screw
  • 10 x M3*8 Screw
  • 18 x M3*10 Screw
  • 20 x M3 Nut
  • 4 x M7 Thin Nut
  • 1 x 3*10*1 Washer
  • 5 x M3*10 Aluminum Tube
  • 2 x M3*6 Corn Rivet
  • 3 x φ3*φ8*4 Band Edge Bearing
  • 4 x SunFounder Servo (9g)
  • 4 x Potentiometer Button
  • 1 x 18650 2-Battery Holder
  • 1 x SunFounder Mars Board
  • 1 x Expansion Board
  • 1 x Potentiometer Module
  • 1 x USB Type-C Cable
  • 2 x RJ11 Cable
  • 1 x Riband
  • 4 x 3M Non-skid Pad
  • 2 x Heat Shrink Tubing
  • 2 x Cable Clip
  • 1 x 3M Tape
  • 1 x Screw Driver
  • Self-provided Parts
    2 x 18650 Rechargeable Li-ion Battery (3.7V) without protection circuit board
