TCRT5000 Infrared Reflectance Sensor

$1.25

Shipping calculated at checkout.

Quantity

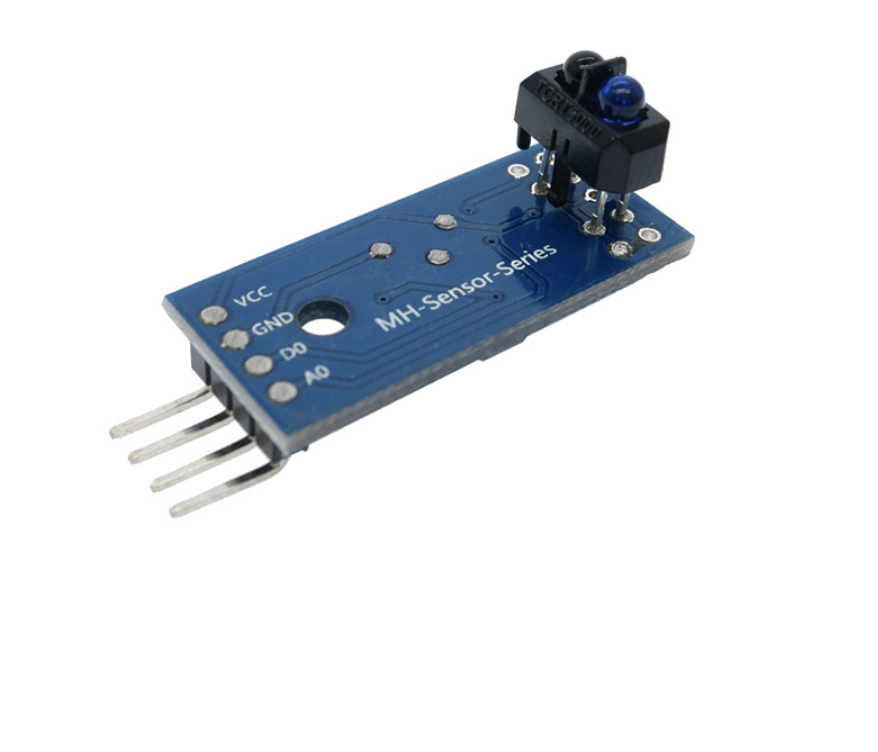

TCRT5000 Infrared Reflectance Sensor Module – IR Line Tracking & Object Detection

The TCRT5000 Infrared Reflectance Sensor Module is a compact infrared sensor designed for detecting nearby objects, surface reflectivity, and black-and-white line patterns.

The module uses a TCRT5000 reflective infrared sensor with an infrared emitter and phototransistor receiver. It detects changes in reflected infrared light, making it suitable for line-following robots, obstacle detection at short distances, and automatic detection systems.

Equipped with an LM393 comparator, adjustable sensitivity potentiometer, and analog and digital outputs, the module can be integrated with Arduino, ESP32, Raspberry Pi, and other microcontrollers.

Key Features

  • Infrared Reflective Detection: Detects nearby objects and changes in surface reflectivity.
  • TCRT5000 Sensor: Integrated infrared transmitter and phototransistor receiver.
  • Adjustable Sensitivity: Onboard potentiometer adjusts the digital detection threshold.
  • Analog and Digital Outputs: Provides both analog sensor readings and digital detection signals.
  • LM393 Comparator: Generates a digital output based on the adjustable threshold.
  • Short-Range Detection: Suitable for reflective sensing at close distances.
  • Status Indicators: Onboard power and digital output indicator LEDs.
  • Compact PCB: Easy to integrate into robotic and electronic projects.
  • Mounting Hole: Allows convenient installation on robot chassis and other structures.
  • Microcontroller Compatible: Can be interfaced with Arduino, ESP32, and other compatible controllers.

Technical Specifications

Parameter Specification
Product Type Infrared Reflectance Sensor Module
Sensor Model TCRT5000
Sensor Technology Reflective Infrared
Comparator IC LM393
Operating Voltage 3.3V–5V DC (module-dependent)
Detection Distance Approximately 0–30mm, depending on surface
Optimal Sensing Distance Approximately 2.5mm for the TCRT5000 sensor
Analog Output AO
Digital Output DO
Digital Output States HIGH / LOW
Sensitivity Adjustment Onboard Potentiometer
Power Indicator Red LED
Digital Output Indicator Green LED
PCB Dimensions Approximately 35 × 15mm
Mounting PCB Mounting Hole

Pin Configuration

Pin Description
VCC Module Power Supply
GND Ground
AO Analog Reflectance Signal
DO Digital Detection Output

Arduino Connection Example

TCRT5000 Module Arduino Uno
VCC 5V
GND GND
AO A0
DO D2

The analog output can be used to monitor changes in reflected infrared light, while the digital output provides threshold-based detection.

ESP32 Connection Example

TCRT5000 Module ESP32
VCC 3.3V, if supported by the module
GND GND
AO GPIO34
DO GPIO27

Important: ESP32 GPIO pins are not 5V tolerant. Ensure that the module's output signals do not exceed 3.3V.

Raspberry Pi Compatibility

The module can be used with Raspberry Pi through its digital output, provided the output voltage is limited to 3.3V.

For analog measurements, an external ADC module is required because Raspberry Pi GPIO pins do not provide native analog inputs.

Applications

  • Line-Following Robots
  • Black-and-White Surface Detection
  • Short-Range Object Detection
  • Robotic Navigation
  • Position Detection
  • Automatic Counting Systems
  • Educational Robotics Projects
  • Surface Reflectivity Monitoring
  • DIY Electronics and Automation

Important Notes

  • The TCRT5000 is a reflective infrared sensor, not a long-range distance sensor.
  • Detection performance depends on object distance, surface color, reflectivity, and ambient lighting.
  • The potentiometer adjusts the digital comparator threshold, not the infrared emitter's physical detection range.
  • Digital output polarity may vary depending on the module circuit.
  • The sensor generally provides stronger reflected signals from light-colored surfaces than dark, non-reflective surfaces.
  • For reliable line-following operation, adjust the sensor height and sensitivity according to the surface.
  • Raspberry Pi and ESP32 inputs must not be exposed to signals above their permitted voltage levels.

Package Includes

  • 1 × TCRT5000 Infrared Reflectance Sensor Module
