General

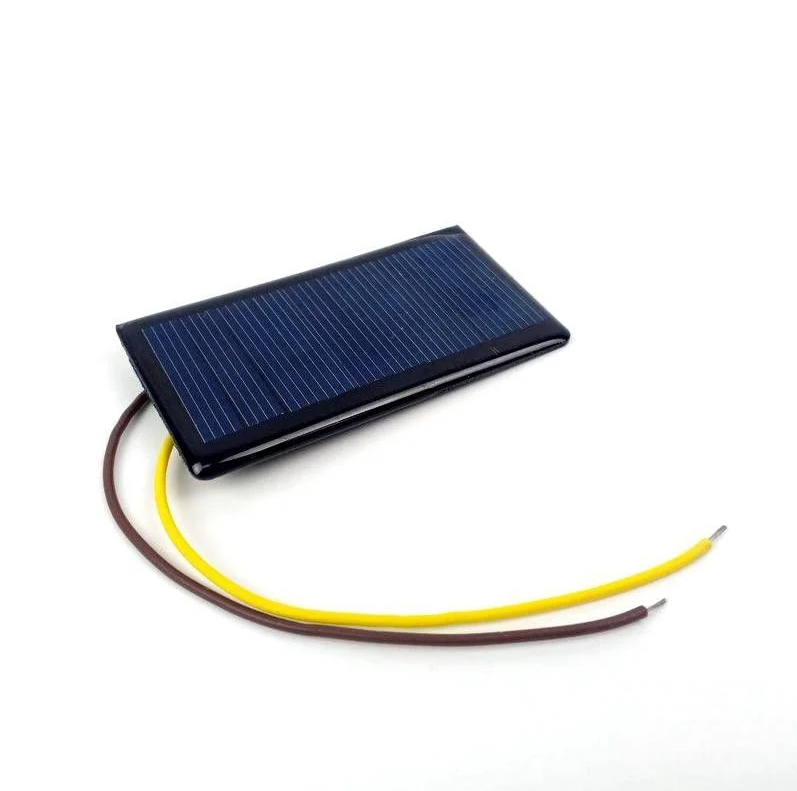

• Product Type: Mini Solar Panel
• Rated Power: 0.3W
• Technology: Polycrystalline Silicon

Electrical Specifications

• Operating Voltage (Vmp): 5V
• Operating Current (Imp): 60mA
• Open Circuit Voltage (Voc): ~6V
• Short Circuit Current (Isc): ~70mA

Output

• Output Type: Pre-soldered wires
• Polarity: Red (+) / Black (-)
• Cable Length: ~10–15cm (varies by batch)

Performance

• Efficiency: Standard for polycrystalline panels
• Best Performance: Direct sunlight
• Indoor Performance: Limited (low current output)

Features

• Compact and lightweight design
• Plug-and-play with pre-attached wires
• Eco-friendly renewable energy source
• Ideal for low-power electronics

Physical

• Material: Polycrystalline silicon + epoxy/resin surface
• Form Factor: Small rectangular panel
• Mounting: Can be glued or screwed (depending on version)

Applications

• DIY solar projects
• Battery trickle charging
• Small IoT / sensor nodes
• Educational kits
• Garden lights

Important Notes

• Output varies depending on sunlight intensity
• Not suitable for charging phones or high-power devices
• Use with a charging module/regulator for battery applications
