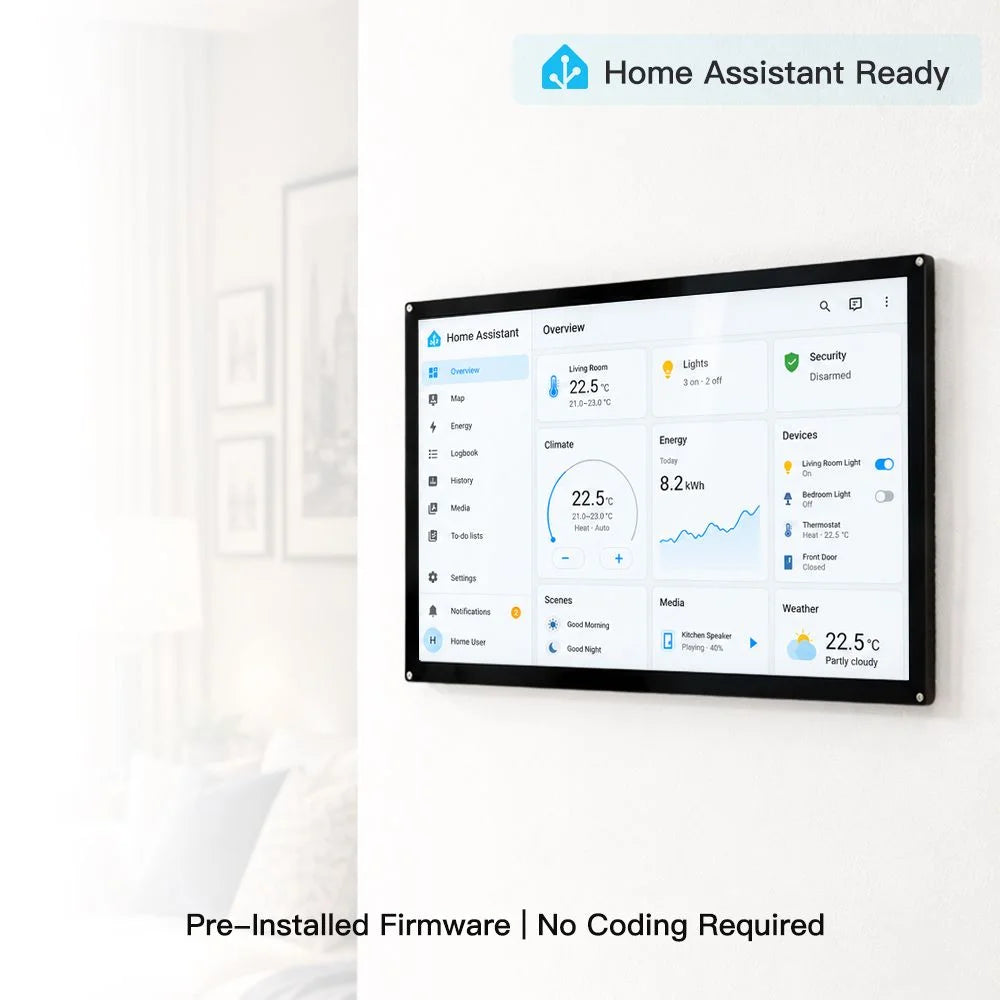

Your Home Assistant Dashboard, Always Within Reach
Turn your Home Assistant setup into a dedicated wall-mounted smart home control center.
Powered by the CrowPanel Advanced 10.1-inch ESP32-P4 HMI platform, this Home Assistant control panel comes with the Home Assistant firmware pre-installed, so you don't need to develop your own ESP32 firmware or build a touchscreen interface from scratch.
Simply connect the panel to your Wi-Fi network, link it to your existing Home Assistant server, and access your dashboards, devices, scenes, and automations directly from the 10.1-inch touchscreen.
No coding. No custom HMI development. Just connect, configure, and control.
Key Feature
✅ Home Assistant Ready: Pre-installed firmware for a quick, hassle-free smart home setup
✅ Ready Out of the Box: No ESP32 programming or HMI development required
✅ Wi-Fi Connected: Connect directly to your existing Home Assistant server.
✅ No Custom HMI Development: Use your existing dashboards, cards, scenes, and controls.
✅ Powerful ESP32-P4: Dual-core RISC-V processor for smooth and responsive HMI performance
✅ Wi-Fi 6 & Bluetooth: Fast and reliable wireless connectivity for smart home applications
✅ Built-in Audio: Dual speakers and microphone for interactive control and future voice applications
✅ Rich Expansion: GPIO, UART, I²C, USB-C, SD card, and optional wireless module support

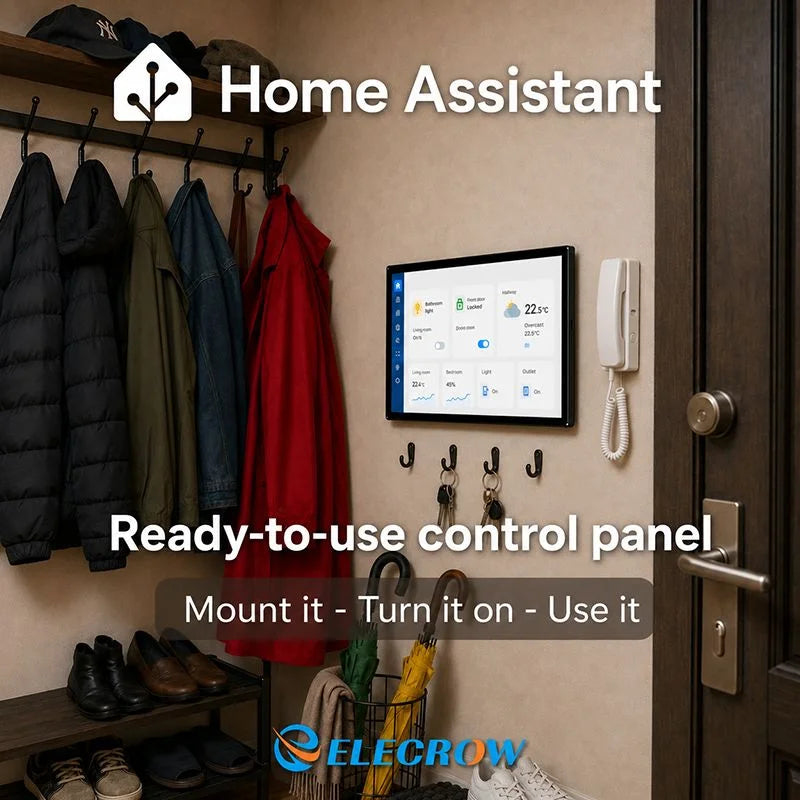

Designed for a Permanent Control Point
A dedicated panel removes the need to use a phone or tablet for frequently used Home Assistant controls.
It connects to your existing Home Assistant system over Wi-Fi and displays the interface you already use.

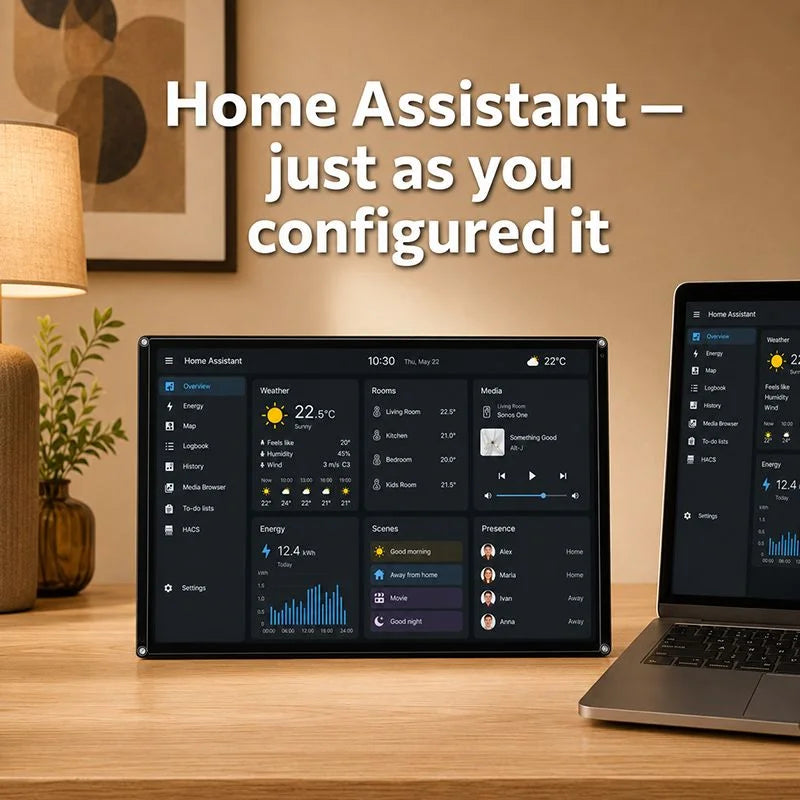

Dashboards, cards, entities, scenes and controls remain configured in Home Assistant, so changes to your dashboard are reflected on the panel without maintaining a separate interface.
Who Is It For?
For Home Assistant users who want a dedicated touchscreen without developing their own ESP32 firmware or maintaining a separate HMI application.
Perfect for
Smart Home Wall Panels
Lighting & Scene Control
Temperature & Climate Monitoring
Energy Monitoring
EV Charging Control
Solar Energy Dashboards
Security & Sensor Dashboards
Home & Building Automation

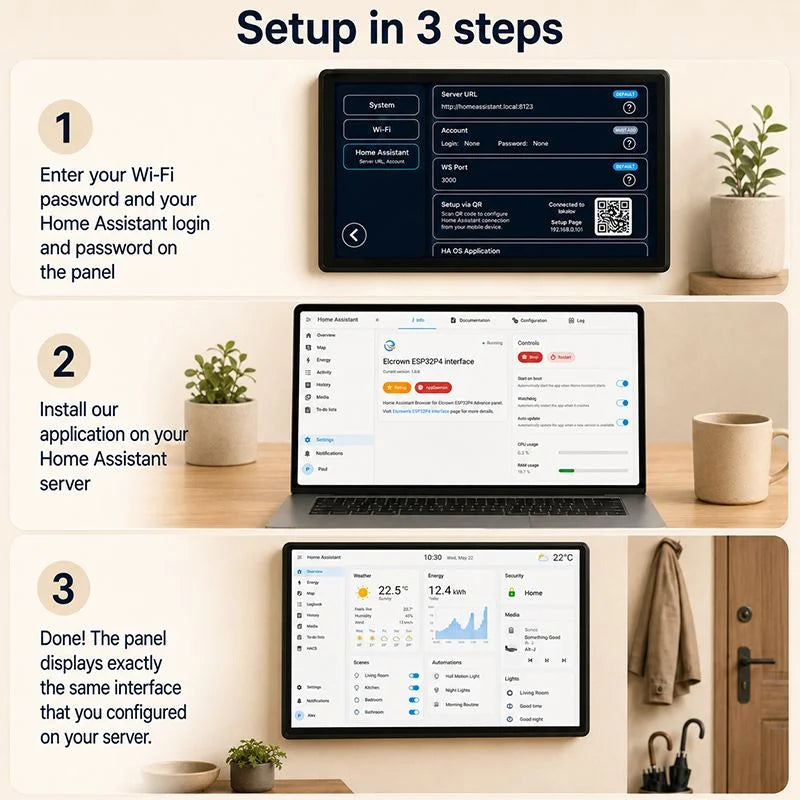

Setup
Initial setup requires only:
Connect the panel to your Wi-Fi network.
Enter your Home Assistant connection details on the panel.
Install the supplied companion application on the Home Assistant server.
No firmware development or LVGL interface development is required.
Requirements
Existing Home Assistant server
Wi-Fi access
Home Assistant access credentials
The panel does not replace the Home Assistant server and is not a standalone smart-home hub.
Specification
Main Chip-ESP32-P4NRW32
CPU/SoC
ESP32-P4
RISC-V 32-bit dual-core processor for HP systems, running at up to 400 MHz; RISC-V 32-bit single-core processor for LP systems, running at up to 40 MHz
System Memory
768 KB L2MEM(HP)
32 KB SRAM(LP)
·8 KB TCM
32 MB PSRAM
Memory
128 KB ROM(HP)
16 KB ROM(LP)
16 MB Flash
Development Environment
ESP-IDF, Arduino IDE
Firmware
Pre-installed Home Assistant Firmware (Ready-to-use)
Screen
Size
10.1 inch
Resolution
1024*600
Display Panel
IPS Panel
Touch Panel
Capacitive Touch, Single/5-point Touch
Viewing Angle
178°
Brightness
400 cd/m²(Typ.)
Color Depth
16.7M (8-bit)
Wireless Communication - Onboard Antenna
WiFi
Support 2.4GHz(Wi-Fi6), 802.11 b/g/n
Bluetooth
Supports Bluetooth 5.3 and BLE
Other
Zigbee、LoRa、nRF2401、Matter、Thread and Wi-Fi Halow (Optional)
Interface/Function
Interface
USB2.0, UART, I2C, GPIO female headers, SD card holder, battery socket, speaker jack, camera header, module female headers, etc.
Function
Audio amplifier, battery charge management, USB to UART, microphones, dual speakers, etc.
Speaker Connector
Model
BX-PH 2.0-2PWT
Number of Pins
1x2P
Pin Pitch
2mm
Dimensions(L*W*H)
8*8.5*5.6mm
Mounting Type
SMT Right Angle
Button/LED Indicator
Reset Button
Yes, press to reset the device
Boot Button
Yes, press and hold the power button to burn the program
Power Button
Switch On/Off
PWR
Device power on/off indication
CHG
Lithium battery charging status, Low battery state
Other
Installation method
All around mounting holes(M3 3.2mm)
Operating temperature
-20~70 °C
Storage temperature
-30~80 °C
Power Input
5V/2A, USB or UART terminal
Dimensions
248*147mm
What You Will Get
1x ESP32-P4 10.1inch display for Home Assistant (Without Case)
