Overview

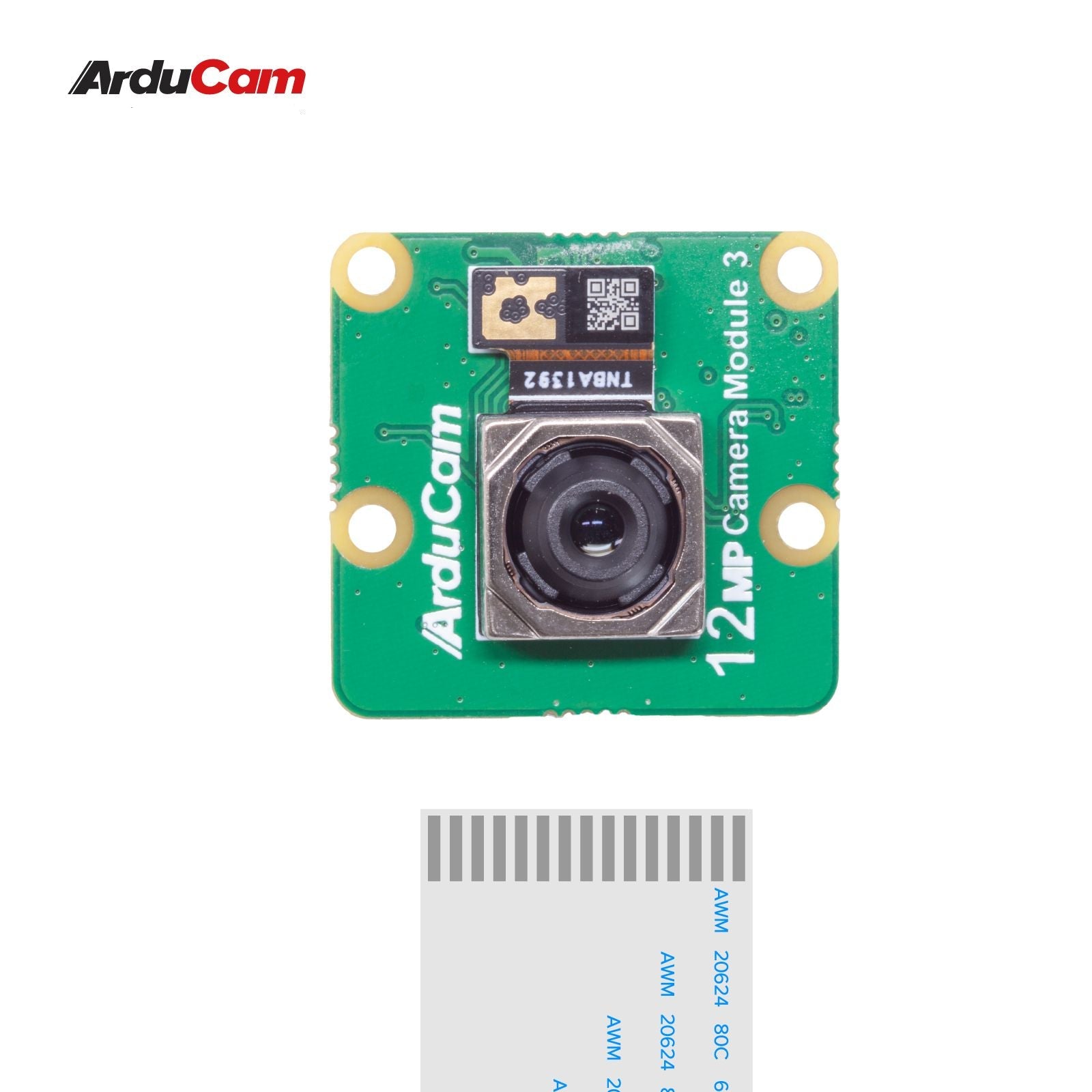

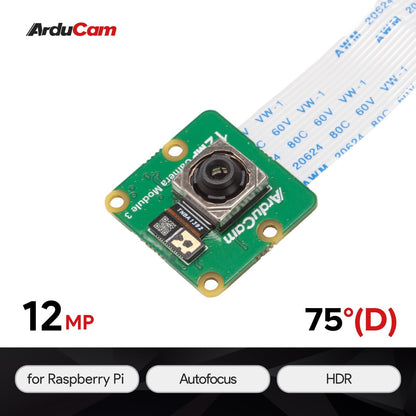

Arducam Camera Module 3 delivers high-quality images with its 12MP Sony IMX708 image sensor and HDR mode for up to 3MP output. Equipped with a 75° DFOV autofocus Lens, PDAF, and 2D DPC, this module offers exceptional SNR.
The camera module is native to Raspberry Pi and compatible with Raspberry Pi OS and libcamera command. It is also compatible with Raspberry Pi 3, 4 A/B, and Zero.
Arducam is committed to creating diverse and convenient camera solutions for embedded camera users. We are not only engaged in the production and development of optical products, but also strive to provide complete solutions for embedded cameras, optical components, etc.

Applications

• Astrophotography
• Surveillance cameras
• FA cameras
• Industrial/Agricultural cameras
• Autonomous mobile robots, UGV/UAV, ADAS, etc.

Features

• Arducam Camera Module 3: Based on a back-illuminated stacked CMOS, 2-megapixel high-resolution Image Sensor IMX708 with HDR mode for up to the 3-megapixel output.
• High-Quality Images: Capture high-quality images with a 75° DFOV autofocus lens and max resolution of 4608×2592.
• Quick Autofocus: Phase Detection Autofocus (PDAF) delivers rapid autofocus, ensuring that you never miss a shot.
• Native to Raspberry Pi: No additional driver is needed when using the camera on Raspberry Pi.

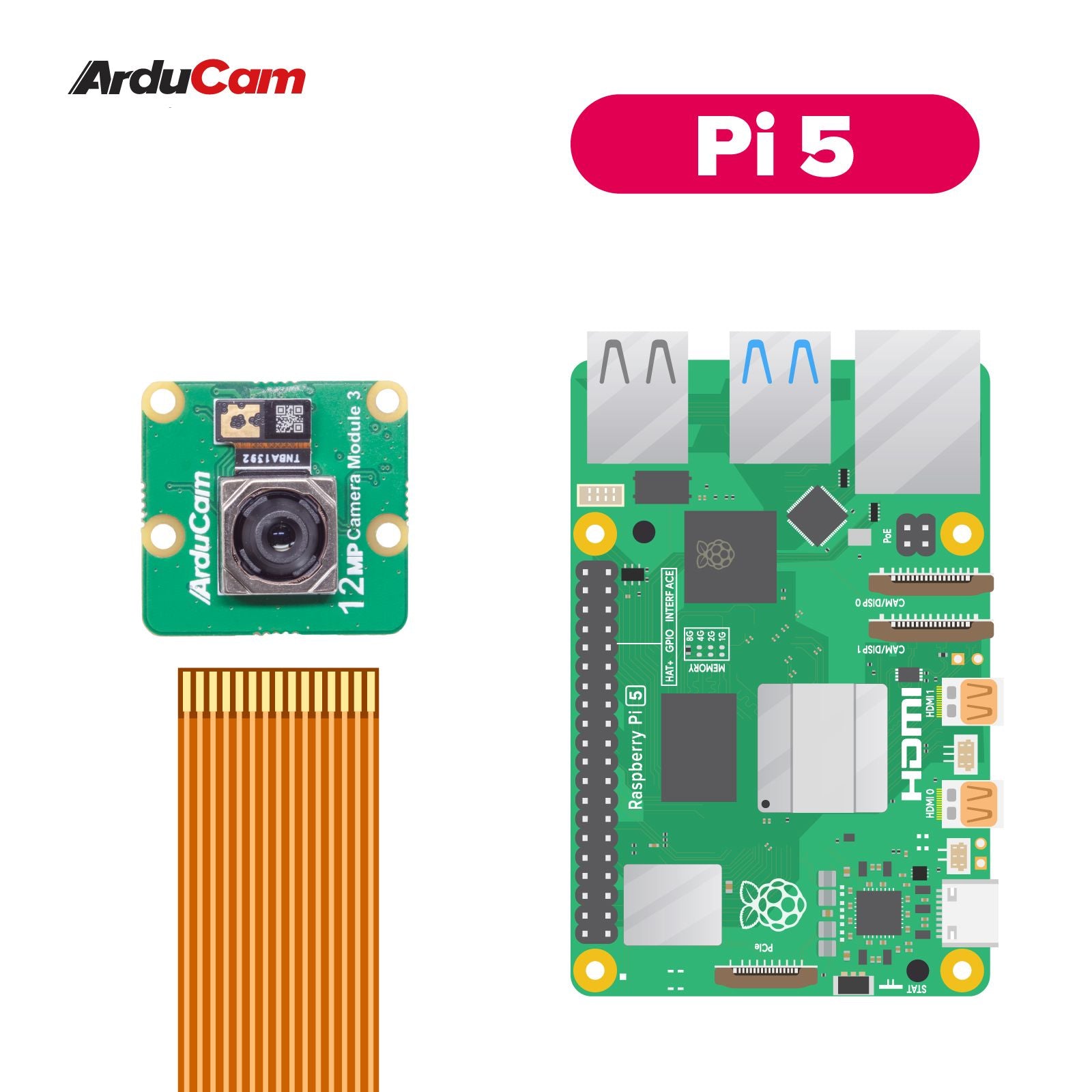

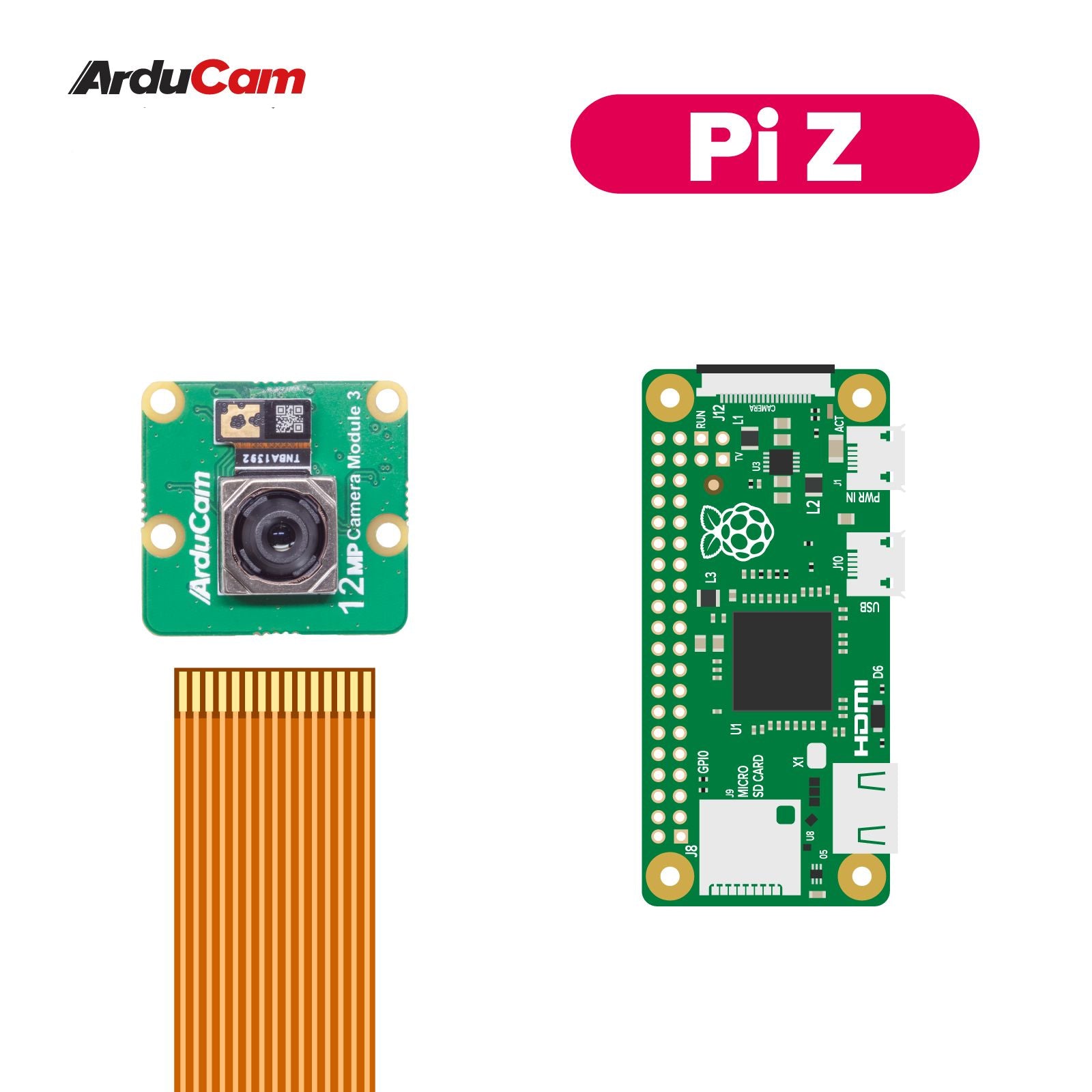

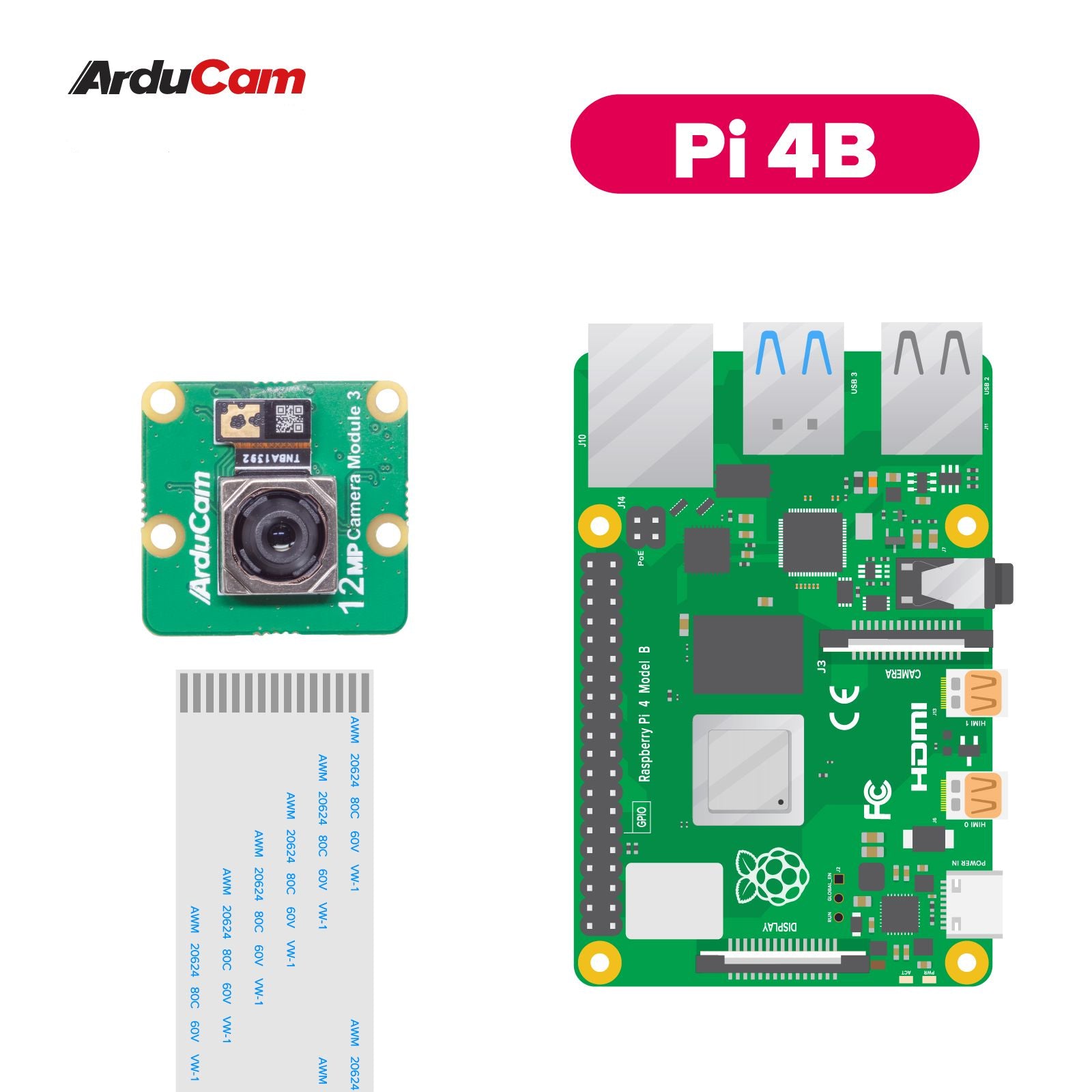

• Platform Compatibility: Supports Raspberry Pi 3, 4 A/B, equipped with 15-22pin and 22-22pin FPC flexible cables. Supports application on Raspberry Pi Zero.

Specifications

Camera

Lens

Electrical and Mechanical

Package Including

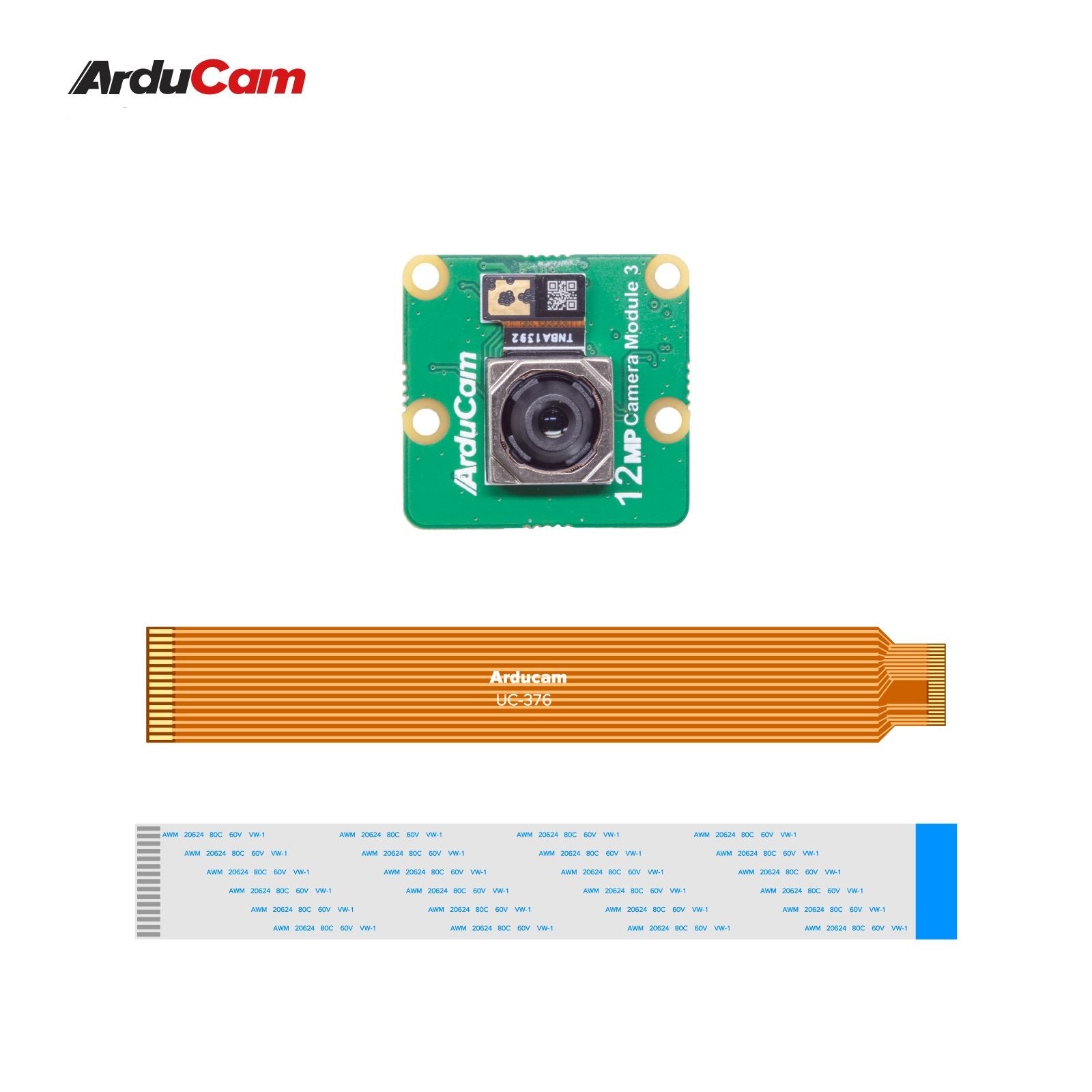

• 1 x IMX708 AF Camera Module
• 1 x15cm 22-22pin FPC cable
• 1 x15cm 15-22pin FPC cable
• 1 x Paper Quick Start Guide
