12V Access Controler

$17.99

Shipping calculated at checkout.

Quantity

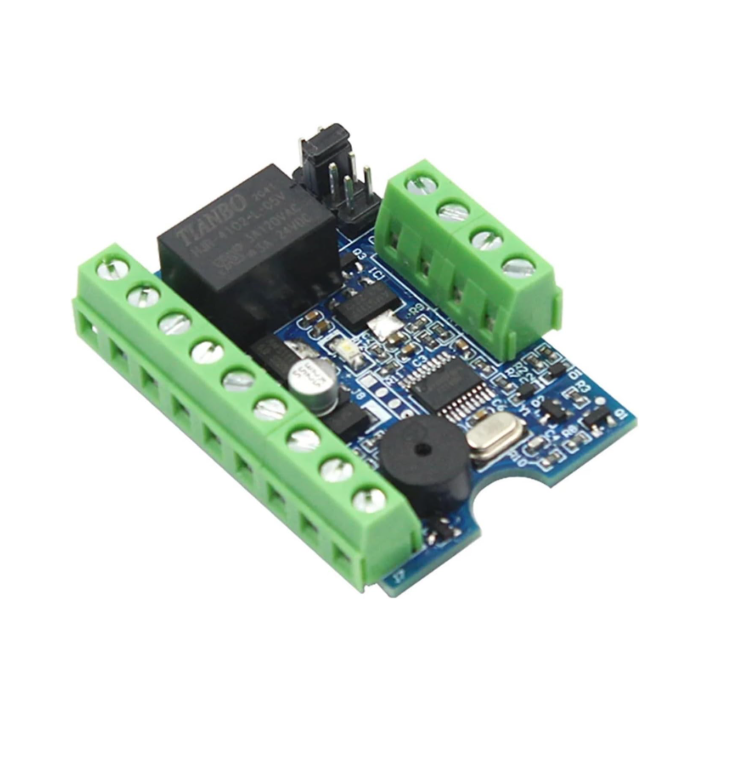

The Standalone Access Control Board is a compact door access controller designed to operate with compatible external Wiegand or Dallas / TM (Touch Memory / iButton) readers.

Supporting up to 1000 users/cards, the controller can manage an electronic door lock without requiring a computer or dedicated access-control server.

It operates from 12V DC and provides an onboard relay with NO, NC, and COM contacts for controlling compatible electric strikes, magnetic locks, and other access-control devices.

Dedicated connections for an exit button, door contact sensor, external reader, and lock make it suitable for office access, building entrances, gates, security systems, and custom electronic access-control projects.

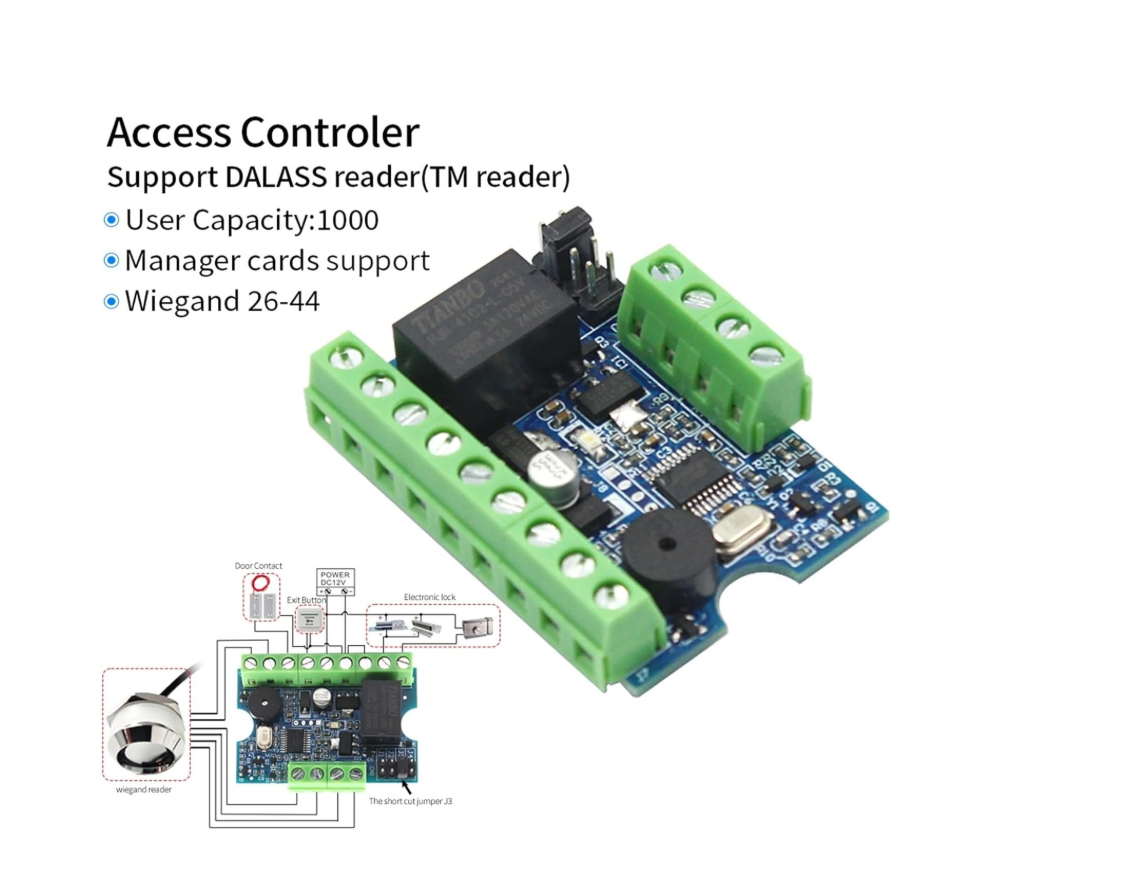

Key Features

  • Standalone access-control operation
  • Up to 1000 users/cards
  • Supports external Wiegand readers
  • Wiegand 26–44 bit support
  • Supports Dallas / TM Touch Memory / iButton readers
  • 12V DC operation
  • Built-in lock control relay
  • NO / NC / COM relay contacts
  • Exit button input
  • Door contact input
  • Manager / master card support
  • Built-in status buzzer
  • Adjustable door unlock delay
  • Screw-terminal connections
  • No PC required for normal standalone operation
  • Compact PCB design
  • Suitable for installation inside an enclosure or control panel

Up to 1000 Users

The controller can store up to:

1000 users/cards

This provides sufficient capacity for small and medium access-control installations such as:

  • Offices
  • Workshops
  • Laboratories
  • Apartment buildings
  • Storage rooms
  • Schools
  • Small businesses
  • Restricted equipment areas

External Reader Support

This board is an access controller, not a complete card reader.

A compatible external reader must be connected to the controller.

Supported reader types include:

  • Wiegand Readers
  • Dallas / TM Readers
  • Touch Memory / iButton Readers

Wiegand 26–44 Bit Support

The controller supports compatible Wiegand protocols from 26 to 44 bits.

Typical reader connections include:

  • D0 – Wiegand Data 0
  • D1 – Wiegand Data 1
  • GND – Ground
  • +12V – Reader Power

Always verify the voltage requirements of the external reader before connecting it to the controller's power output.

Dallas / TM / iButton Support

The board can also work with compatible Dallas / TM Touch Memory readers, commonly known as iButton readers.

This allows the controller to be used in systems where users authenticate using physical touch-memory keys instead of conventional proximity cards.

Built-In Door Lock Relay

An onboard relay provides:

  • NO – Normally Open
  • NC – Normally Closed
  • COM – Common

This allows the controller to interface with different types of electronic locking systems.

Typical compatible lock types include:

  • Electric strike locks
  • Magnetic locks
  • Electronic door releases

The correct NO or NC configuration depends on the type of lock and the required fail-safe or fail-secure behavior.

Exit Button Input

A dedicated exit button input allows an internal push button to be connected.

When activated, the controller can release the door without requiring a card or external credential.

This is commonly used as a:

  • Push-to-exit button
  • Request-to-exit button
  • Internal door release button

Door Contact Input

The controller includes an input for a compatible magnetic door contact.

This allows the access-control system to monitor the physical state of the door when configured appropriately.

Master / Manager Card Support

Compatible manager or master cards can be used for access-control configuration and user management.

Depending on the configured operating procedure, these can simplify tasks such as adding or removing authorized users without requiring a computer.

Adjustable Door Unlock Delay

The door release period can be adjusted according to the installation requirements.

This determines how long the relay remains activated after valid access is granted.

A short delay may be suitable for standard doors, while a longer period can be configured where users require additional time to enter.

Built-In Buzzer

An onboard buzzer provides audible status feedback during supported operations such as:

  • Card recognition
  • Programming
  • User management
  • Access granted
  • Status indication

12V DC Operation

The access controller operates from:

12V DC

Power is connected through the onboard screw terminals.

Use a properly regulated 12V DC power supply with sufficient current capacity for the controller, external reader, lock, and other connected equipment.

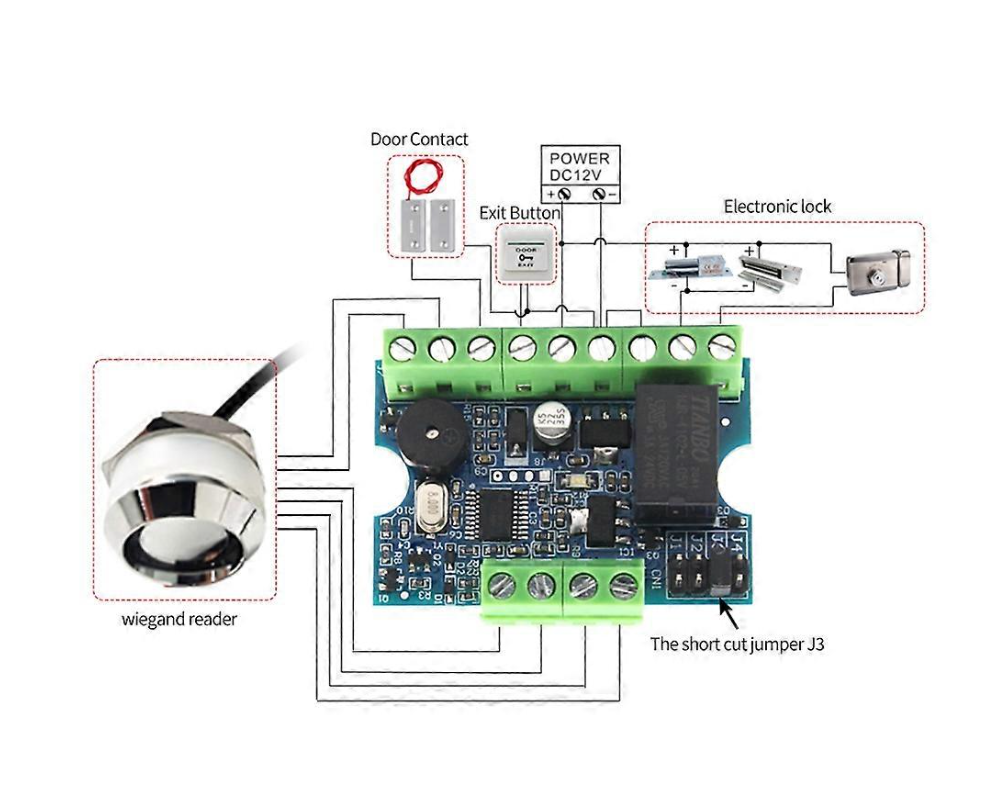

Connections

Typical board connections include:

Power

  • 12V DC
  • GND

Wiegand Reader

  • +12V
  • GND
  • D0
  • D1

Door Lock

  • NO
  • NC
  • COM

Exit Button

  • Dedicated exit / request-to-exit input

Door Sensor

  • Magnetic door contact input

Technical Specifications

  • Product Type: Standalone Access Control Board
  • Operation: Standalone
  • User Capacity: Up to 1000 Users / Cards
  • Operating Voltage: 12V DC
  • External Reader Support: Yes
  • Wiegand Support: 26–44 Bit
  • Dallas / TM Reader Support: Yes
  • Touch Memory / iButton Support: Yes
  • Lock Control: Onboard Relay
  • Relay Connections: NO / NC / COM
  • Exit Button Input: Yes
  • Door Contact Input: Yes
  • Master / Manager Card Support: Yes
  • Status Indicator: Built-In Buzzer
  • Door Unlock Delay: Adjustable
  • Connection Type: Screw Terminals
  • Installation: Panel / Enclosure Mounting Recommended
  • PC Required: No for Standalone Operation

Typical System Configuration

A typical access-control installation consists of:

External Reader → Access Control Board → Door Lock

Additional devices can include:

Exit Button → Access Control Board

and

Door Contact Sensor → Access Control Board

The controller receives the user's credential from the external reader, checks whether the user is authorized, and then activates the relay to release the connected door lock.

Typical Applications

  • Office access control
  • Building entrances
  • Electronic door locks
  • Gate access
  • Apartment access systems
  • Workshops
  • Laboratories
  • Storage rooms
  • Security systems
  • Employee access
  • Restricted areas
  • DIY access-control systems
  • Electronic security projects

Installation Notes

For a complete installation, additional equipment may be required, including:

  • Compatible Wiegand or Dallas / iButton reader
  • 12V DC power supply
  • Electric strike or magnetic lock
  • Exit button
  • Magnetic door contact
  • Access cards, tags, or iButtons
  • Wiring
  • Suitable enclosure

Important Relay Note

The exact relay contact voltage and current rating are not specified in the supplied information.

Before connecting a high-current lock directly to the onboard relay, verify the relay's contact rating.

If the lock current exceeds the onboard relay rating, use an appropriately rated external relay or access-control power interface.

Important Installation Note

The controller is supplied as a PCB and should be installed inside a suitable protective enclosure.

Correct wiring, power supply sizing, lock selection, and fail-safe/fail-secure configuration are important for a reliable access-control installation.

For building security and electrically controlled doors, professional installation is recommended.

Package Includes

  • 1 × Standalone 1000-User Access Control Board

External reader, cards/tags, iButton keys, 12V power supply, electronic lock, exit button, door sensor, enclosure, and wiring are not included.
