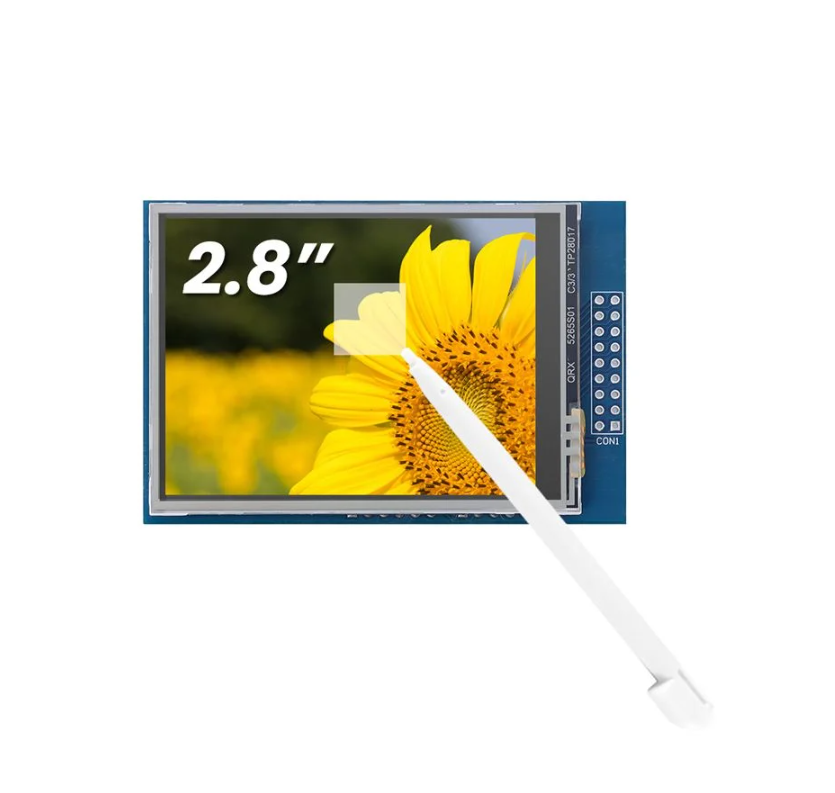

2.8 inch Arduino Display
This is a 2.8-inch Arduino TFT color screen with 320 * 240 resolution.
* Plug and play, strong compatibility. Supports plug and play use of development boards such as Arduino UNO and Mega2560, without additional wiring.
* High-definition display, touch experience. Equipped with a 320x240 resolution display, supporting touch function and a touch pen, users can interact with the device through intuitive touch operation.
* Supports 16-bit RGB 65K color display, which can present rich colors and meet various visual needs.
* Efficient data transmission. Using an 8-bit parallel bus, the data refresh speed is faster than the traditional serial port SPI.
* Onboard 5V/3.3V level conversion IC, compatible with 5V and 3.3V operating voltages, ensuring seamless docking with various development boards.
* Onboard SD card slot, convenient for users to expand storage, and provides more flexibility and convenience for experiments and project development.
* Rich development support. Provide Arduino libraries and rich sample programs to help users get started quickly and easily find development resources suitable for them.
* Provide underlying driver technical support to help users solve technical development process and ensure the smooth progress of the project.
Whether you are a beginner or an experienced developer, this Arduino display will be a great helper for your project, enabling you to realize greater creativity and functionality.

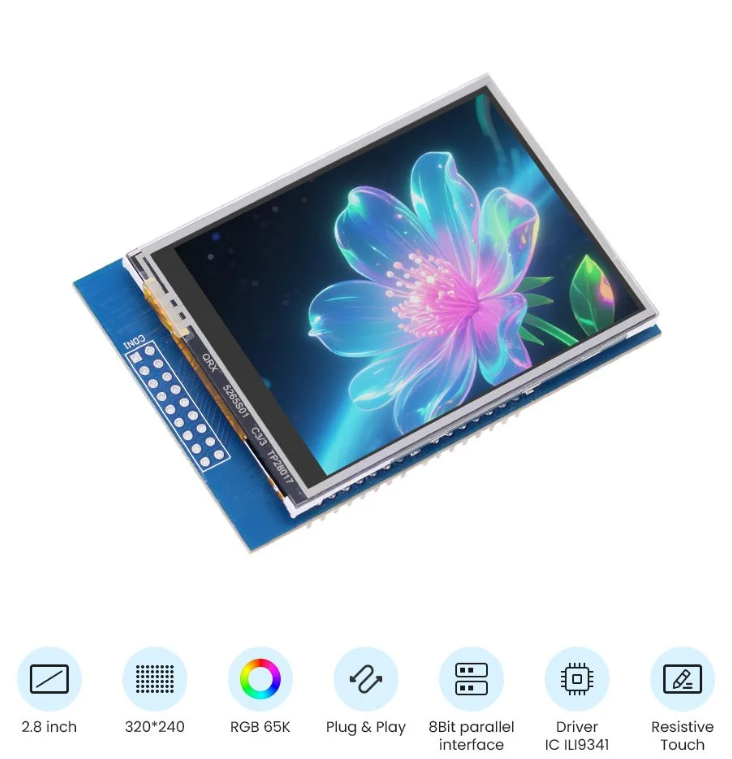

Feature
Supports direct plug-in use of development boards such as Arduino UNO and Mega2560, no wiring required
320x240 resolution, clear display effect
Supports 16-bit RGB 65K color display, rich display colors
Adopts 8-bit parallel bus, faster than serial port SPI refresh
Onboard 5V/3.3V level conversion IC, compatible with 5V/3.3V working voltage
With SD card slot for convenient expansion of experiments
Provides Arduino library and rich sample programs
Available for C51 and STM32 platforms and provides rich sample programs
Provides underlying driver technology support

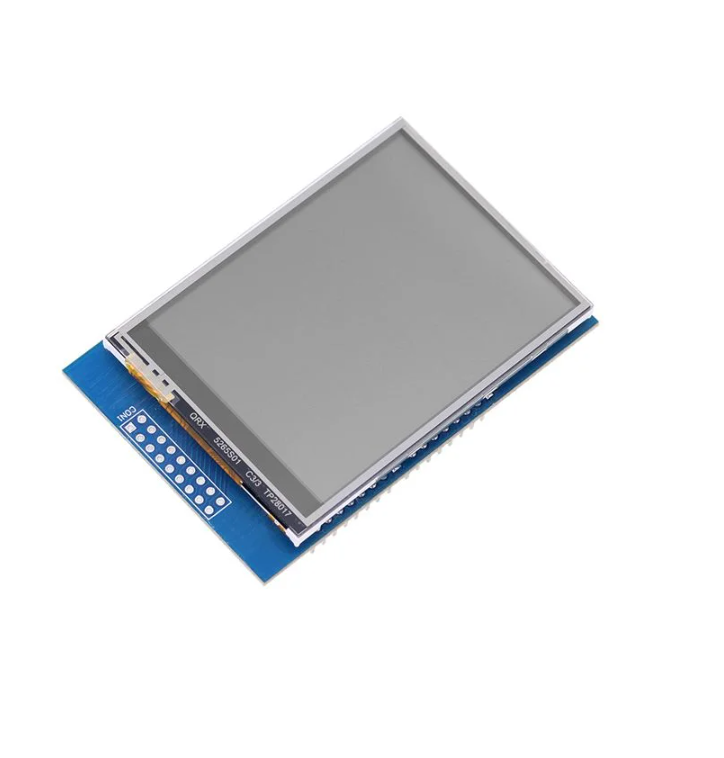

Specification
Screen Size
2.8(inch)
Display Color
RGB 65K color
Screen Type
TFT
Resolution
320x240(pixels)
Touch Screen Type
Resistive touch screen
Driver IC
ILI9341
Module Interface
8-bit parallel interface
Operating Voltage
5V/3.3V
Operating Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
Active Area
43.2*57.6(mm)

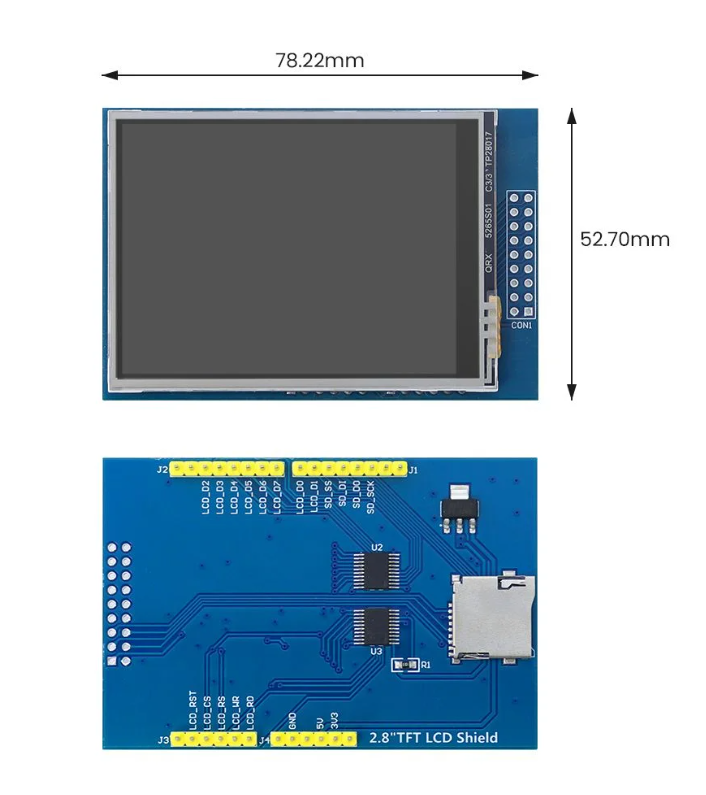

Module PCB Size
52.70*78.22(mm)

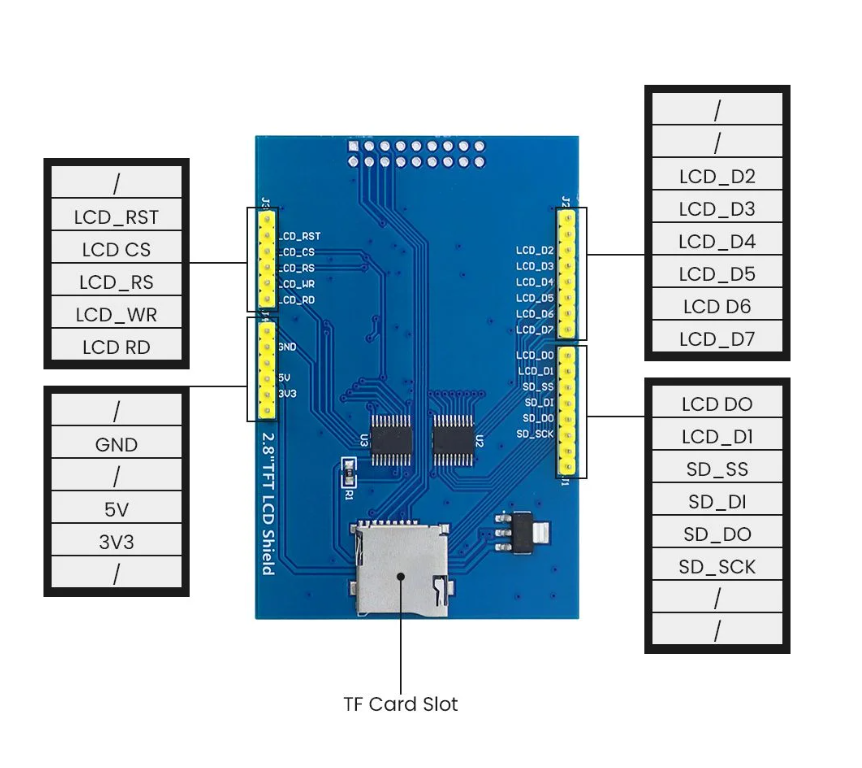

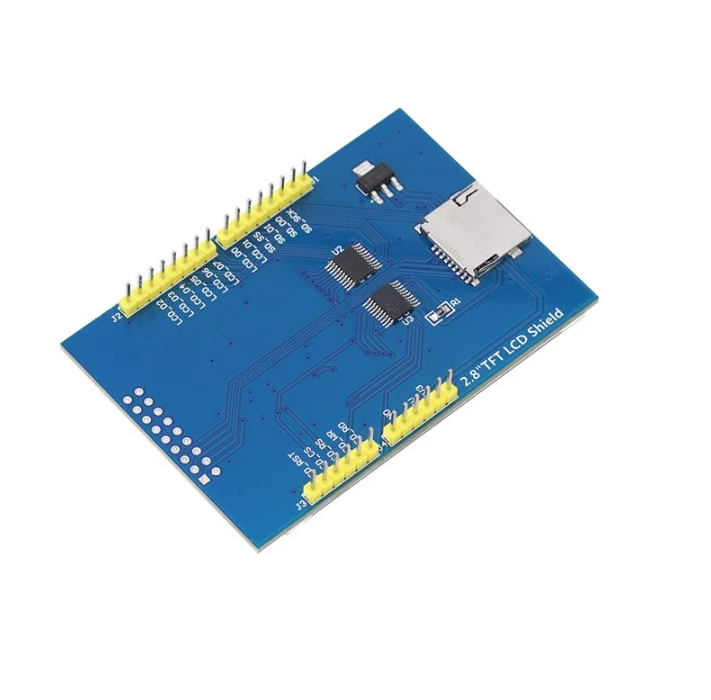

Interface Definition
Number
Pin Label
Pin Description
1
LCD_RST
LCD bus reset signal, low level reset
2
LCD_CS
LCD bus chip select signal, low level enable
3
LCD_RS
LCD bus command / data selection signal,
low level: command, high level: data
4
LCD_WR
LCD bus write signal
5
LCD_RD
LCD bus read signal
6
GND
Power ground
7
5V
5V power input
8
3V3
3.3V power input, this pin can be disconnected
9
LCD_D0
LCD 8-bit data Bit0
10
LCD_D1
LCD 8-bit data Bit1
11
LCD_D2
LCD 8-bit data Bit2
12
LCD_D3
LCD 8-bit data Bit3
13
LCD_D4
LCD 8-bit data Bit4
14
LCD_D5
LCD 8-bit data Bit5
15
LCD_D6
LCD 8-bit data Bit6
16
LCD_D7
LCD 8-bit data Bit7
17
SD_SS
SD card SPI bus chip select signal, low level enable
