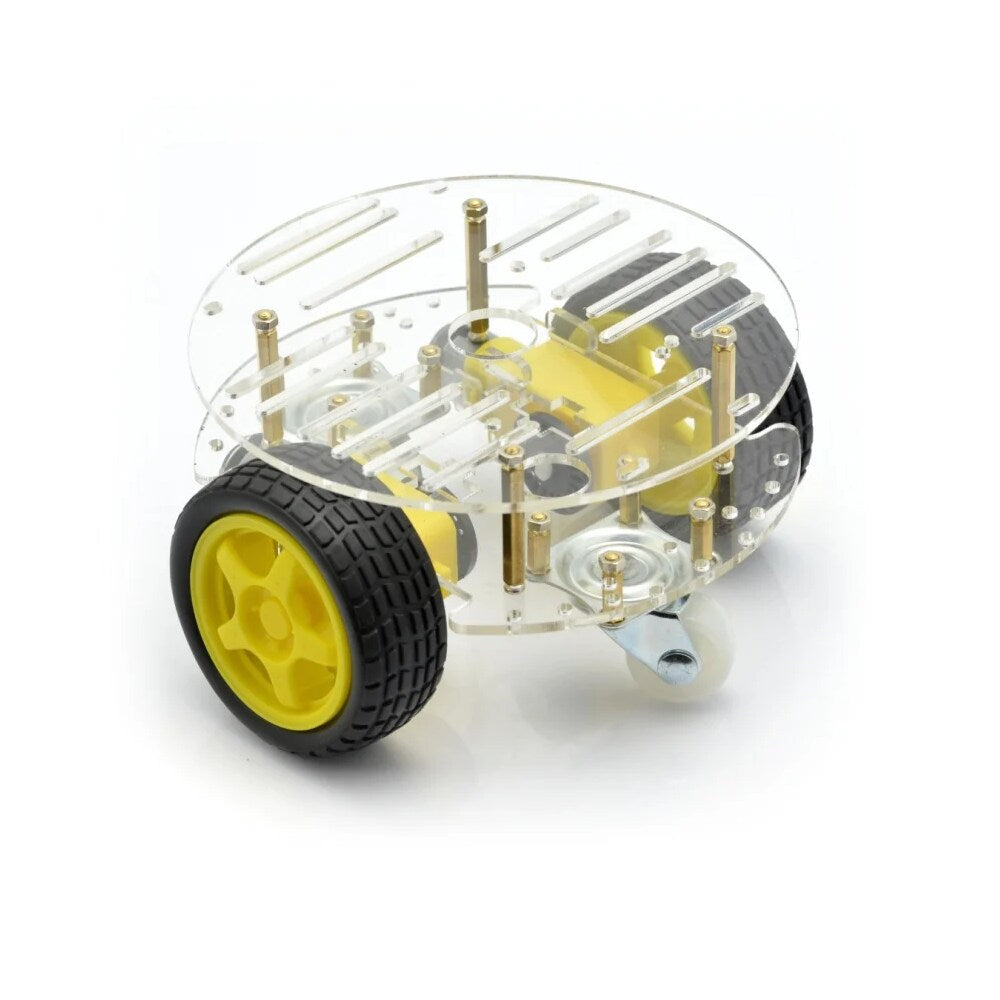

The 2WD Mini Round Double-Deck Smart Robot Car Chassis Kit is a compact DIY mobile robot platform designed for students, makers, and robotics hobbyists. Its double-deck acrylic construction provides space for installing a microcontroller, motor driver, battery, sensors, and other electronic modules.
The kit includes two geared DC motors, drive wheels, universal caster wheels, motor brackets, acrylic chassis plates, and the required assembly hardware. Simply add your preferred controller and electronics to build a programmable robot car.
Technical Specifications
-
Drive System: 2-Wheel Drive (2WD)
-
Chassis Design: Round Double-Deck
-
Overall Dimensions: Approx. 135 × 135 × 80mm
-
Round Acrylic Plate Diameter: 130mm
-
Second Acrylic Plate Size: 135 × 75mm
-
Chassis Material: Acrylic
-
Number of Drive Motors: 2
-
Motor Type: DC Geared Motor
-
Drive Wheel Diameter: 65mm
-
Number of Drive Wheels: 2
-
Number of Universal Wheels: 2
-
Motor Mounting: T-Type Motor Brackets
-
Assembly: DIY Kit
Applications
Ideal for Arduino robot cars, ESP32 mobile robots, Raspberry Pi robotics projects, obstacle-avoidance robots, line-following robots, Bluetooth or Wi-Fi controlled vehicles, autonomous robot experiments, STEM education, and programming projects.
The double-deck design provides additional mounting space for controllers, sensors, motor drivers, wireless modules, and other electronics.
Controller & Motor Driver Note
The included motors require a suitable DC motor driver and power supply. Do not connect the motors directly to Arduino, ESP32, Raspberry Pi, or other microcontroller GPIO pins.
Motor voltage, current, and RPM are not specified in the provided product information and should be verified before selecting the motor driver and power supply.
Package Includes
1 × Round Acrylic Plate
1 × Acrylic Baseboard
2 × 65mm Wheels
2 × Universal Caster Wheels
2 × DC Gear Motors
4 × T-Type Motor Brackets
16 × M3 × 10mm Screws
8 × M3 Nuts
4 × M3 × 12+6mm Brass Standoffs
4 × M3 × 30mm Assembly Hardware / Standoffs as supplied
