Features:
- Support for Arduino Mega2560 Directly inserted OnBorad level conversion chip for 5V/3.3V MCU
- Compatible with 3.3/5V operation voltage level
- Compatible with for Arduino-Series development Board.
- Compatible with UTFT / UTFT_ Buttons /Utouch Library for arduino. provided 12-
- examples with for Arduino,3-examples with STM32

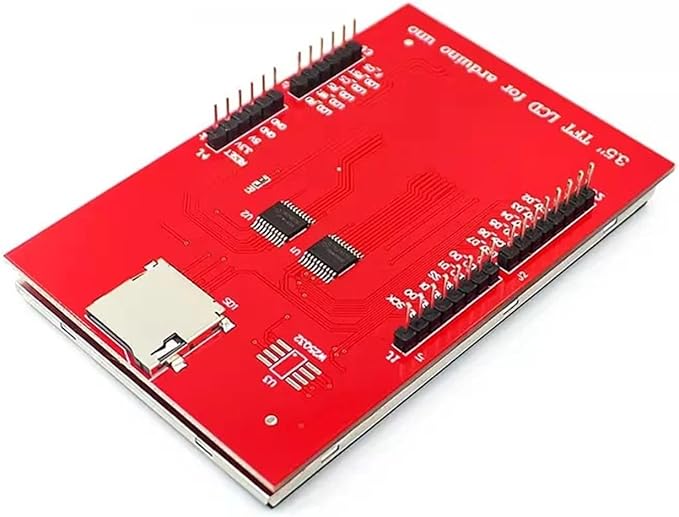

- With SD Card Socket
- With SPI FLASH circuit
Specifications:

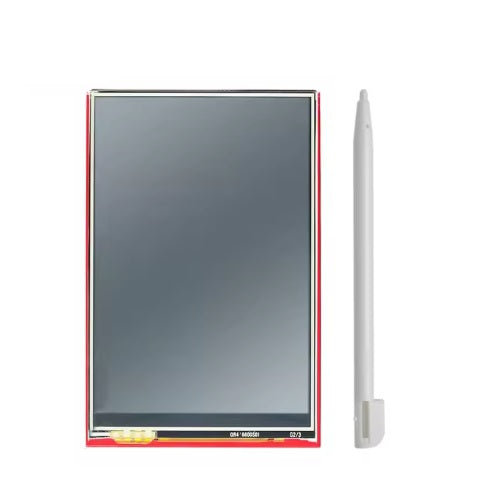

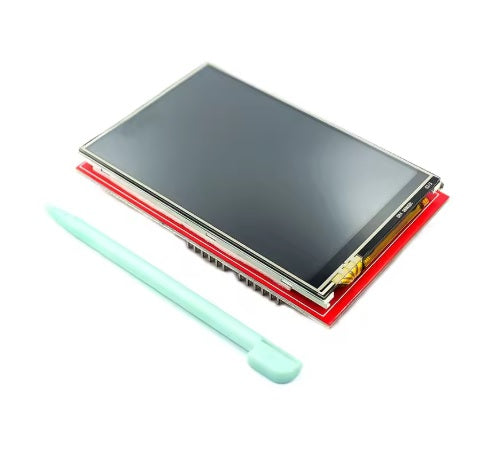

- Display Type: 3.5 inch TFT LCD Module
- Glass Type: TFT
- Display Resolution: 480XRGBX320 Pixels
-
Back light: 6 chip HighLight white LEDS
- Control IC: IL19486/IL19488
- Interface: 16Bit parallel interface

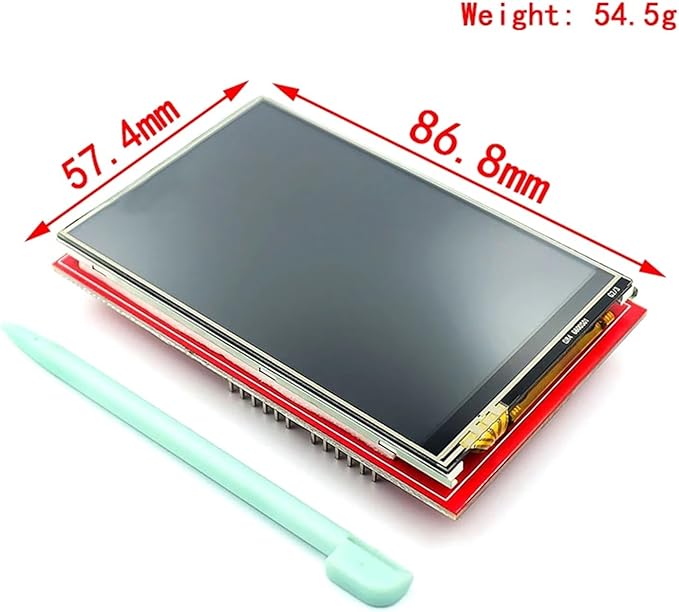

- PCB Module size: 96.60mmX60.30mm
- LCD Area(WxHxT): 84.96mmX55.5mmX2.55mm
- Active Area(WxH): 73.44mmX48.96mm
Electrical Characteristics:
