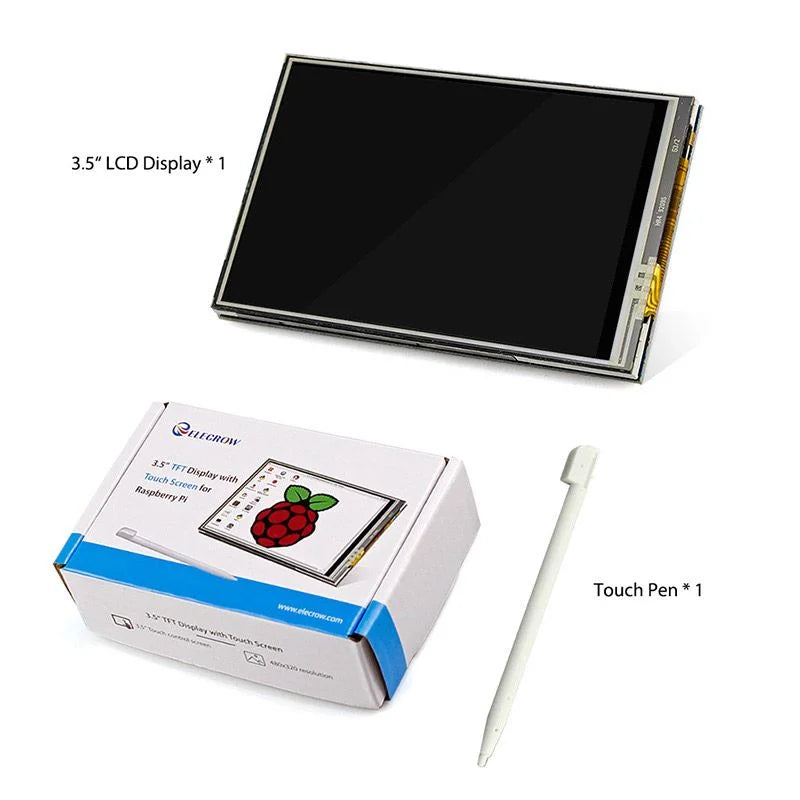

Features:

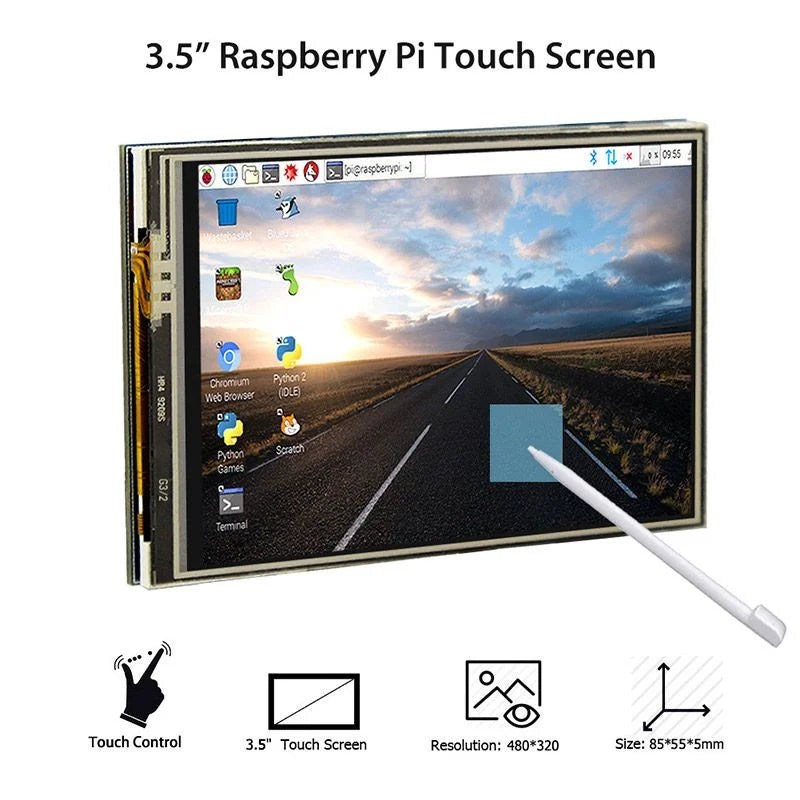

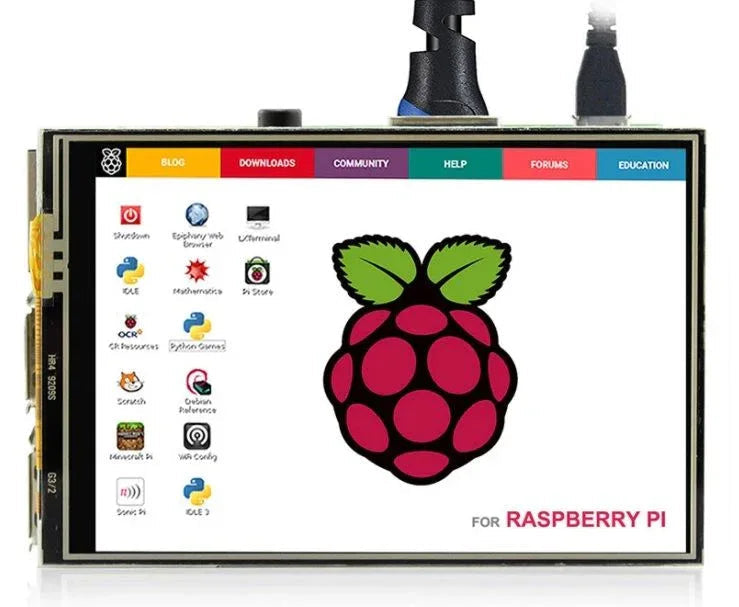

- 480x320 hardware resolution
- Resistive touch control

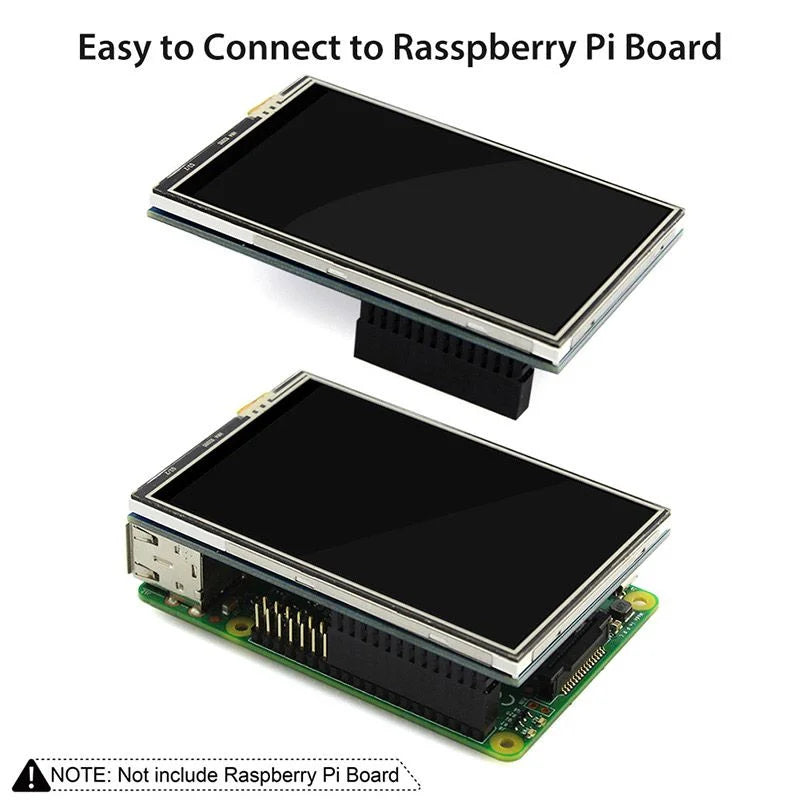

- Supports any revision of Raspberry Pi (directly-pluggable)
- Drivers provided (works with your own Raspbian/Ubuntu/Kali)
- Supports FBCP software driver as well, allows to config software resolution and set up dual-display
- Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
- High quality immersion gold surface plating

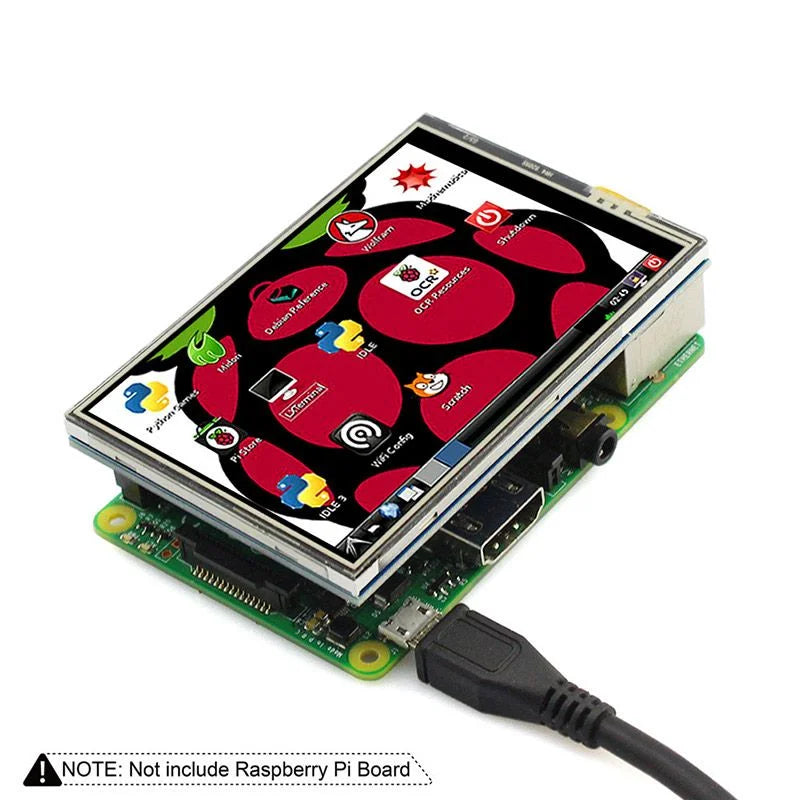

- Combined with the Raspberry Pi, allows you to:
- Take photos by touching (up to 17 camera modes)
- Use software keyboard (system interaction without keyboard/mouse)
It is hardware compatible with each other (uses different driver).
Key Parameters:
| LCD Type |
TFT |
| LCD Interface |
SPI |
| Touch Screen Type |
Resistive |
| Touch Screen Controller |
XPT2046 |
| Colors |
65536 |
| Backlight |
LED |
| Resolution |
320*480 (Pixel) |
| Aspect Ratio |
8:5 |
| Power Consumption |
TBD |
| Backlight Current |
TBD |
| Operating Temp. (℃) |
TBD |
Interface:
| PIN NO. |
SYMBOL |
DESCRIPTION |
| 1, 17 |
3.3V |
Power positive (3.3V power input) |
| 2, 4 |
5V |
Power positive (5V power input) |
| 3, 5, 7, 8, 10, 12, 13, 15, 16 |
NC |
NC |
| 6, 9, 14, 20, 25 |
GND |
Ground |
| 11 |
TP_IRQ |
Touch Panel interrupt, low level while the Touch Panel detects touching |
| 18 |
LCD_RS |
Instruction/Data Register selection |
| 19 |
LCD_SI / TP_SI |
SPI data input of LCD/Touch Panel |
| 21 |
TP_SO |
SPI data output of Touch Panel |
| 22 |
RST |
Reset |
| 23 |
LCD_SCK / TP_SCK |
SPI clock of LCD/Touch Panel |
| 24 |
LCD_CS |
LCD chip selection, low active |
| 26 |
TP_CS |
Touch Panel chip selection, low active |
