Features:

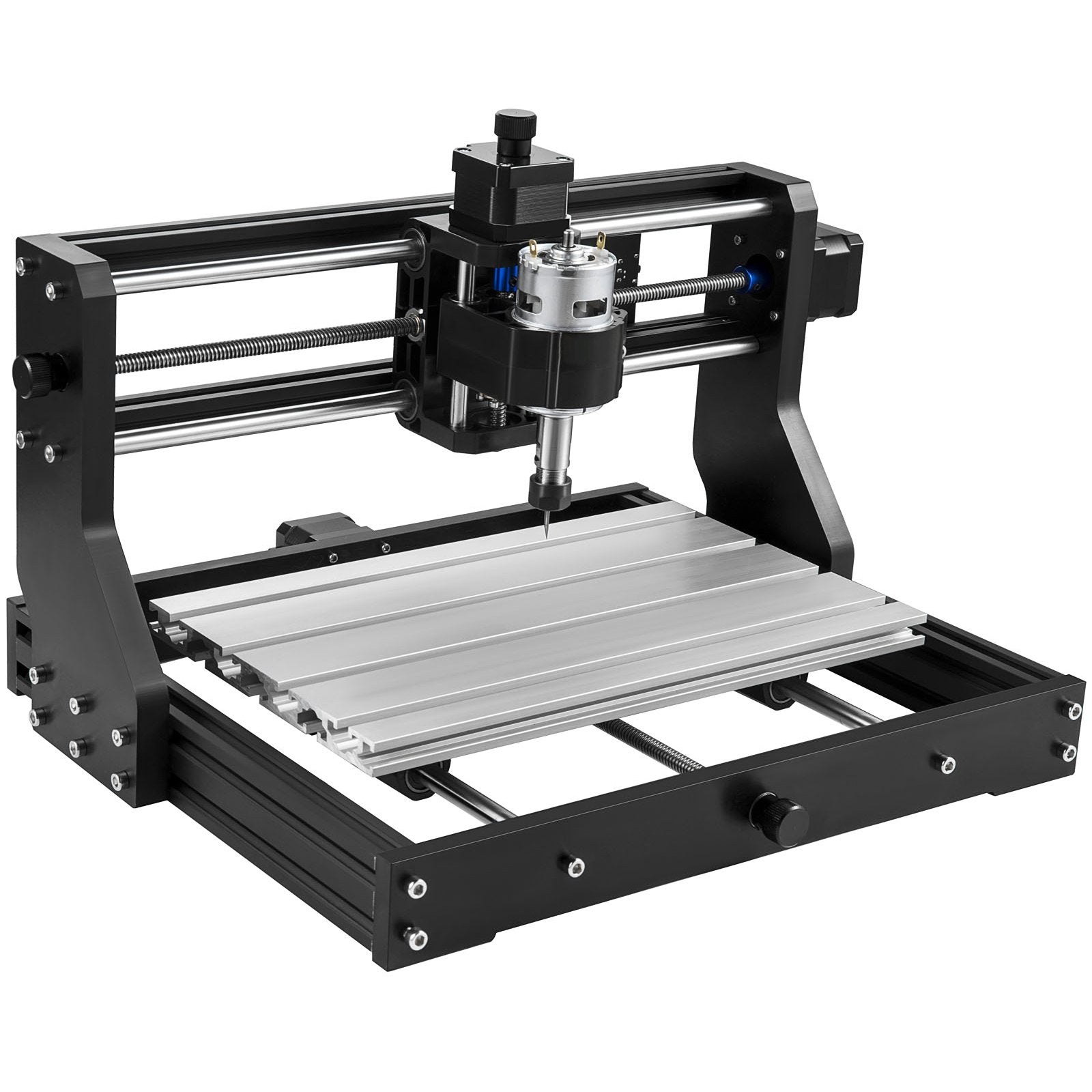

• CNC 3018 Router Machine: CNC 3018 PRO is an upgraded version of 3018 CNC. The 15000mW laser driver interfaces support PWM, TTL functions for full function laser engraving. We provide a detailed user manual, assembly instructions, and installation video for your convenience. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more.
• Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.
• Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
• Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.
• Sturdy Material: The frame is mainly made of aluminum alloy and bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.

15000mW Laser Module & Spindle Motor

The 15000mW laser module and 775 DC spindle motor on the Z-axis can realize a high speed. There are three stepper motors on three axes for smooth movement.

Large Working Area

The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.

Functional Control Board

The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.

Extraordinary Quality

Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.

Easy to Install

We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.

Wide Application

This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.

Specifications:

• Model: VG-S3018 Pro
• Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm
• Materials: Aluminum Profile & Bakelite
• Input Power: DC 24V 5A
• Driving Units: T8 Stainless Steel Screws
• Spindle Speed: 10000 rpm
• Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
• Control Software: GRBL Control
• Cutter Diameter: 0.125" / 3.175 mm
• Positioning Accuracy: 0.003 inch/ 0.07 mm
• Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm

Package Content:

• 1 x 3018 CNC Router Kit
• 1 x 15000mw Laser Module
• 1 x Spindle
• 1 x U-Disk (Software & Instruction)
• 1 x Set of Milling Cutter
• 1 x Pair of Protective Glasses
• 1 x USB Cable
• 1 x Power Supply
• 1 x Set of Tools
• 1 x Brush
• 1 x Card Reader
• 1 x Manual
