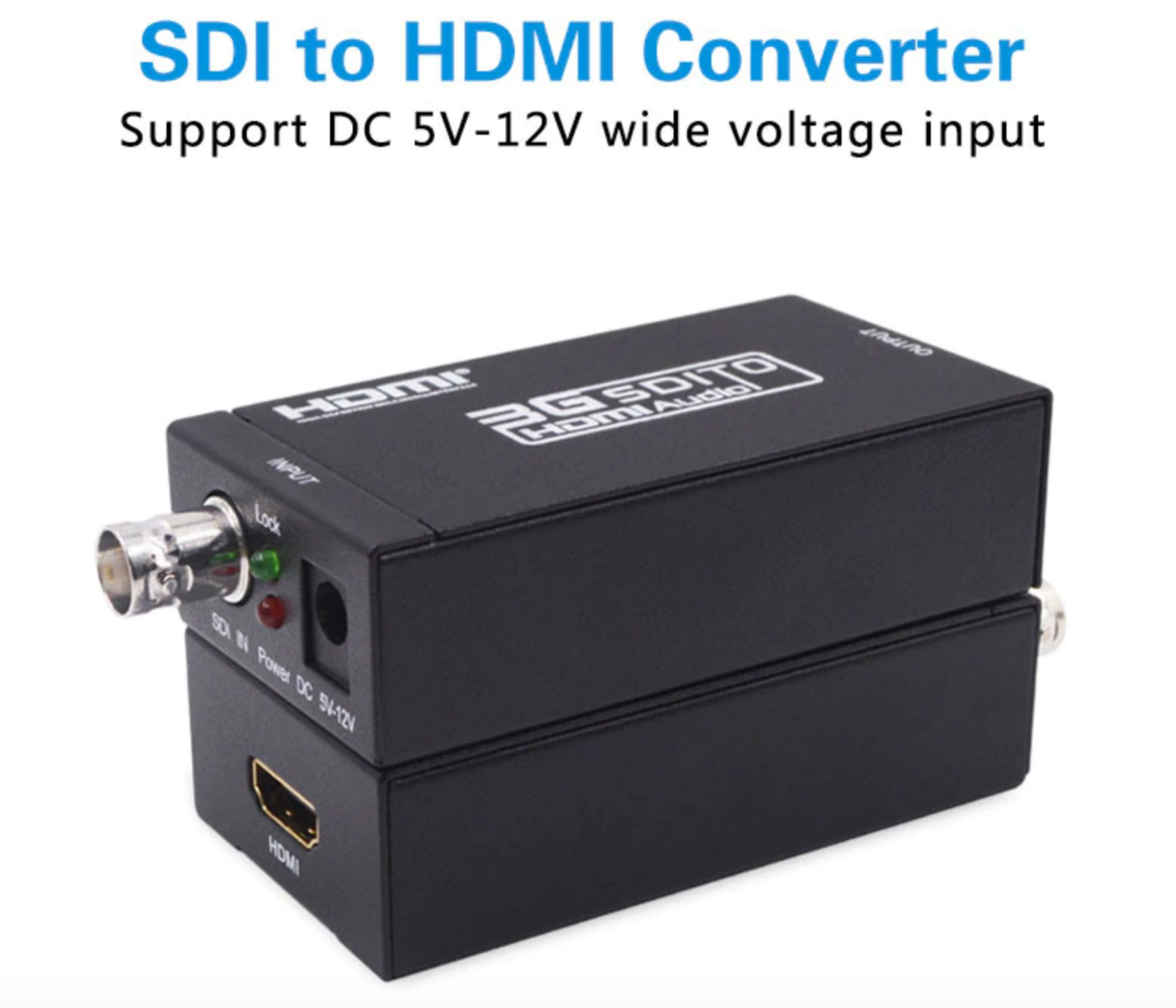

The Mini 3G-SDI / HD-SDI to HDMI Converter allows professional SDI video signals to be displayed on standard HDMI monitors, TVs, projectors, and other compatible HDMI displays.
Supporting 3G-SDI, HD-SDI, and SD-SDI transmission rates up to 2.970Gbit/s, the converter provides a convenient solution for integrating professional broadcast and video equipment with HDMI display systems.
The unit uses hardware-based signal processing and automatically detects compatible incoming SDI signals, making it suitable for broadcast, production, surveillance, studio, and professional AV applications.

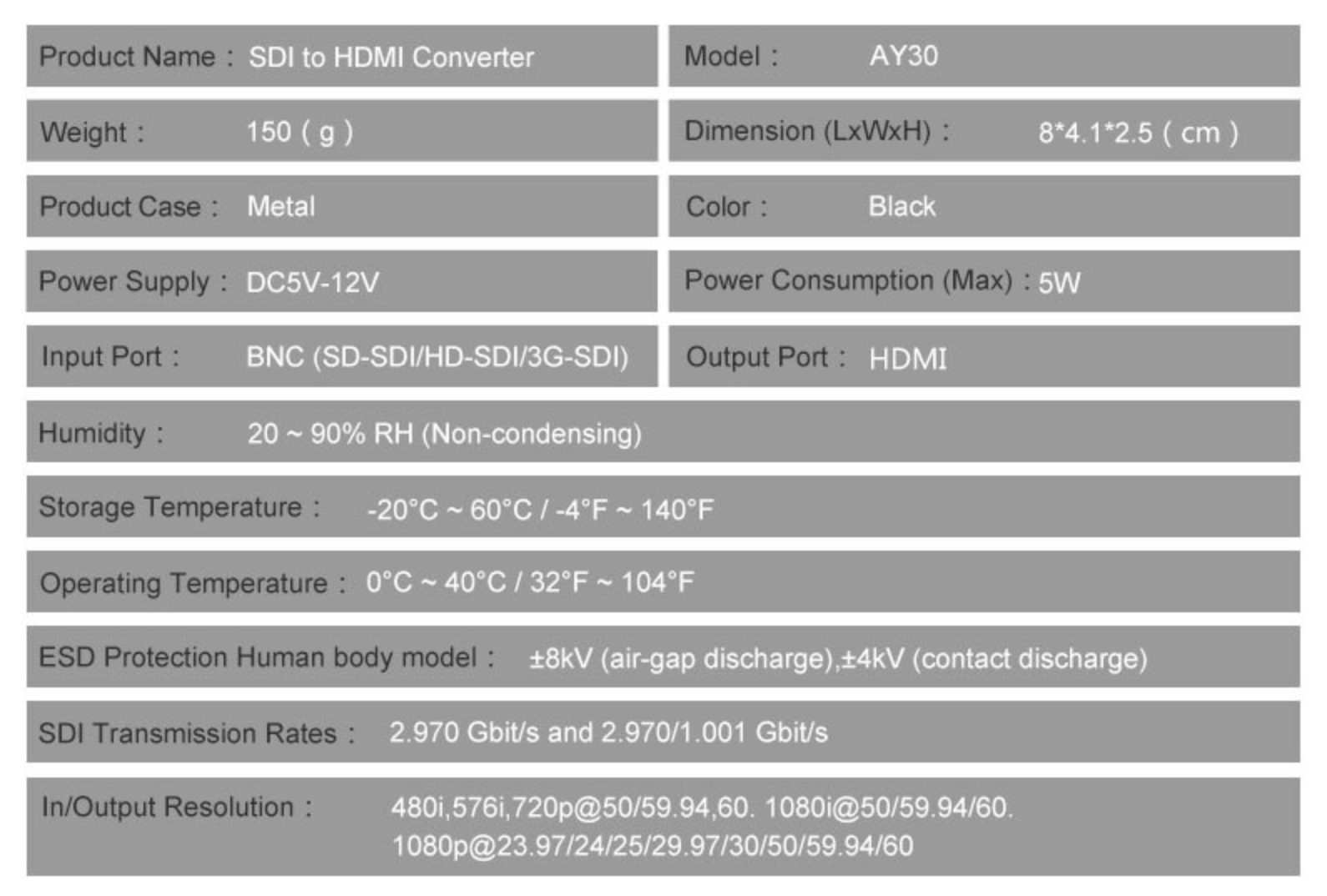

Technical Specifications
-
Converter Type: SDI to HDMI
-
Direction: SDI Input → HDMI Output
-

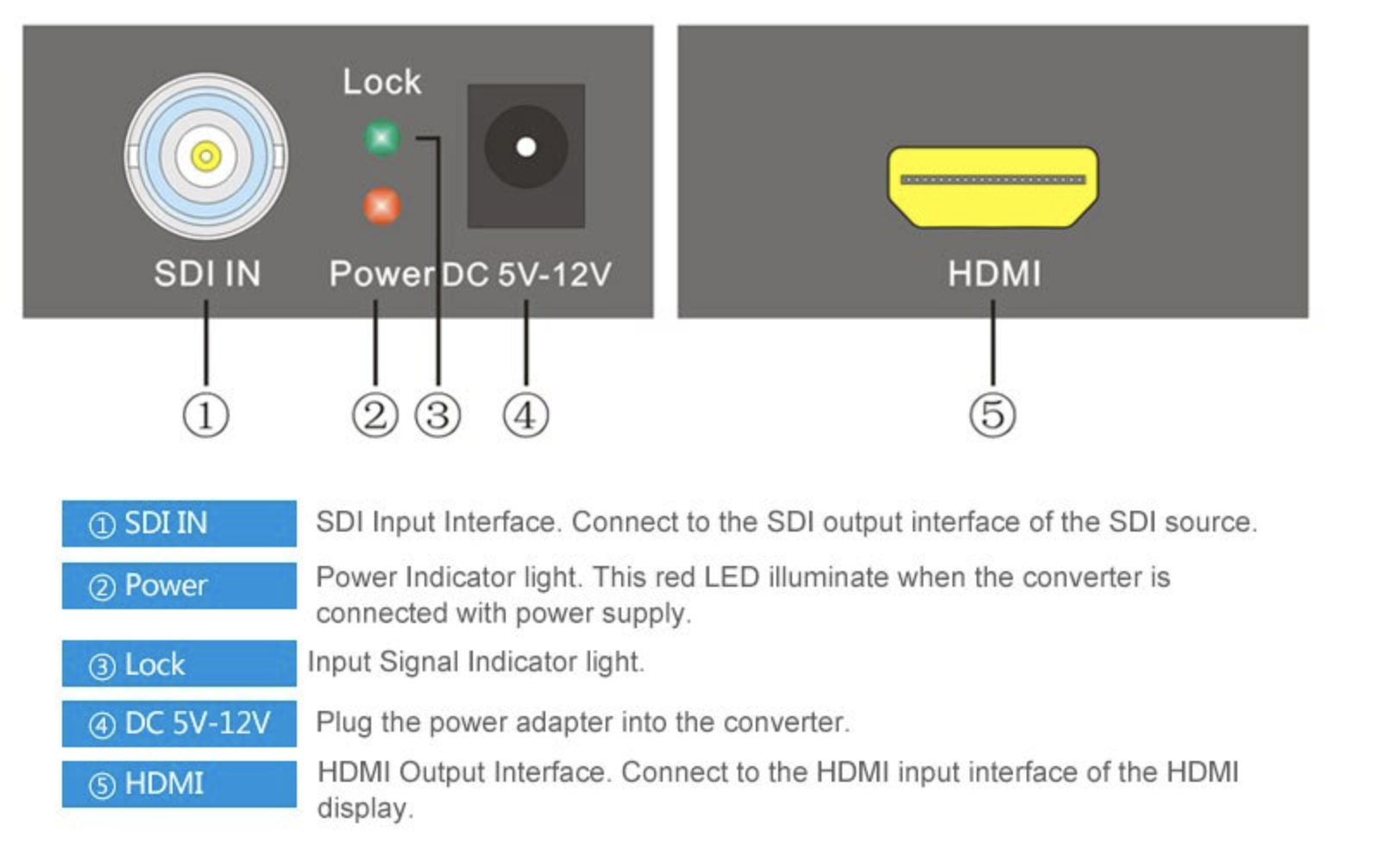

SDI Input: 1 × BNC SDI
-
HDMI Output: 1 × HDMI
-
Maximum Resolution: Full HD 1920 × 1080p
-
SDI Support: SD-SDI / HD-SDI / 3G-SDI
-
Maximum Data Rate: 2.970Gbit/s
-
Supported Data Rates: 270Mbit/s, 1.485Gbit/s and 2.970Gbit/s
-
3G-SDI Transmission Rates: 2.970Gbit/s and 2.970/1.001Gbit/s
-
Power Supply: DC 5-12V
-
Maximum Power Consumption: 5W
-
Dimensions: Approx. 80 × 41 × 25mm
-
Relative Humidity: 20-90% RH, non-condensing
Supported Video Resolutions
-
720p: 50 / 60Hz
-
1080i: 50 / 60Hz
-
1080p: 24 / 25 / 30 / 50 / 60Hz
Actual supported frame rates and formats depend on the incoming SDI signal and connected HDMI display.
SDI Standards
- SMPTE 259M-C
- SMPTE 292M
- SMPTE 424M
- SMPTE 425M
The converter also supports SMPTE 425M Level B to Level A conversion for compatible 1080p 50/60Hz 4:2:2 10-bit SDI signals as specified.
Automatic SDI Signal Detection
The converter uses hardware-based processing to automatically detect compatible SDI input formats. This simplifies installation when working with different SDI standards and video resolutions.
ESD Protection
-
Air Discharge: ±8kV
-
Contact Discharge: ±4kV
-
Test Model: Human Body Model as specified
Applications

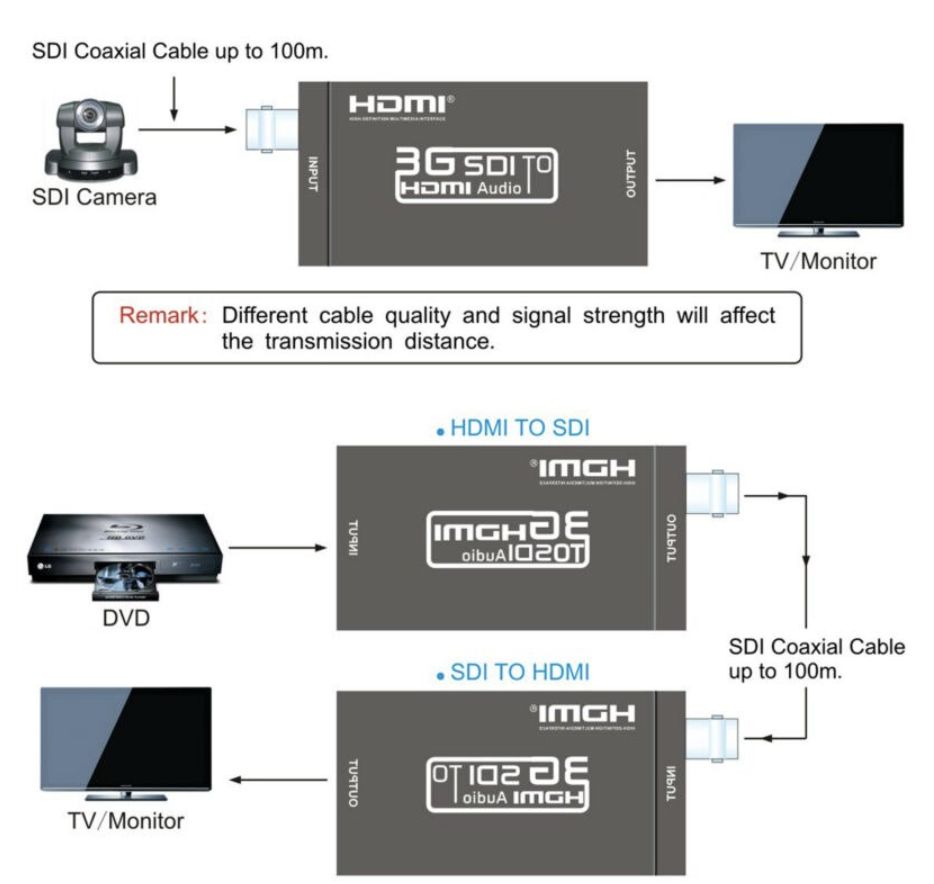

Suitable for broadcast systems, professional video cameras, SDI CCTV systems, production studios, video monitoring, live events, video switchers, SDI distribution systems, control rooms, and other professional AV installations where an SDI source needs to be displayed on an HDMI monitor.
For longer cable runs, SDI can be used to transport the video signal before conversion to HDMI near the display.
Important Note
This device performs SDI-to-HDMI conversion only. It does not convert an HDMI source into SDI.
The converter changes the signal interface but does not increase the resolution of the original video source. The final output quality and supported format depend on the incoming SDI signal and the capabilities of the connected HDMI display.
Package Includes
1 × Mini 3G-SDI / HD-SDI to HDMI Converter
