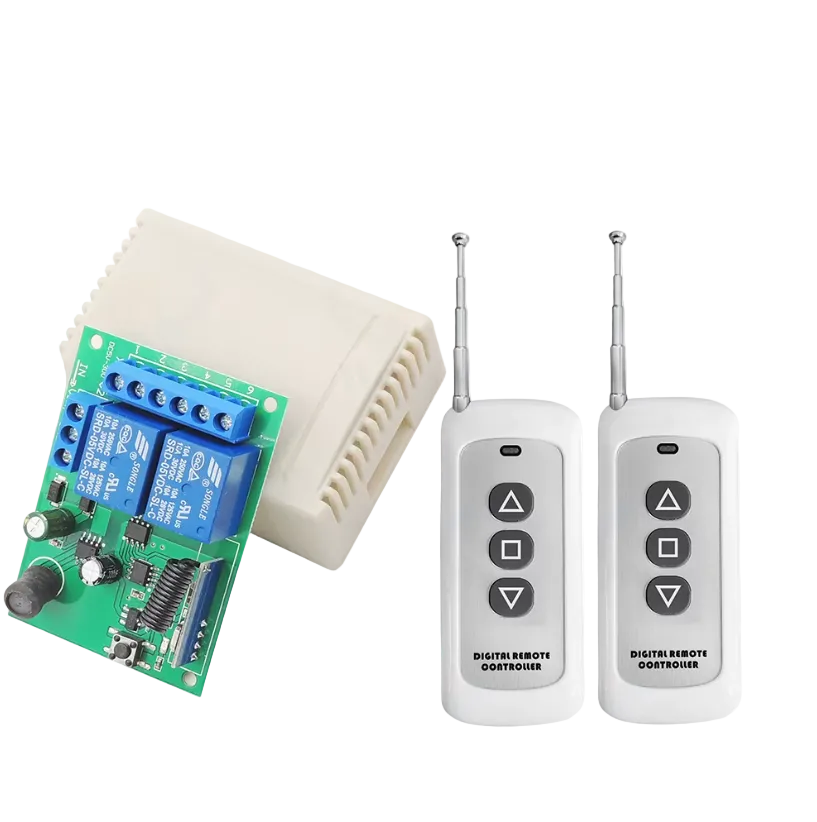

The 433MHz 2-Channel Wireless Relay Switch is a versatile RF remote-control system designed to wirelessly control up to two independent electrical devices or circuits.
The receiver operates from AC 90–250V, making it compatible with both 110V and 220V AC systems. Each channel features NO, NC, and COM relay terminals and supports loads up to 10A per channel for suitable resistive loads.
This version includes two 3-button 433MHz remote controls, making it particularly useful for shared-access applications such as garage doors, gates, lighting systems, pumps, and other remote-control installations.
Key Features
- 2 independent relay channels
- 2 wireless remote controls included
- 3 buttons per remote
- 433MHz RF wireless control
-
AC 90–250V operating voltage
- Compatible with 110V and 220V AC systems
-
Up to 10A per channel for suitable resistive loads
- NO / NC / COM relay contacts
- Multiple programmable operating modes
- Momentary / Jog mode
- Toggle / Self-Lock mode
- Latching / Interlock mode
- Easy pairing using onboard learning button
- Supports multiple compatible remote controls
- EV1527 / 1527 learning-code support
- Settings retained after power loss
- External spring antenna
- Screw-terminal connections
- Protective enclosure
Three Operating Modes
Momentary / Jog Mode
The relay can be configured for momentary operation, making this mode suitable for applications that require a short switching command.
Common applications include:
- Garage doors
- Gate motors
- Door release systems
- Access control
- Momentary switching
Toggle / Self-Lock Mode
Press the programmed remote button to activate the relay and press it again to deactivate it.
This mode is ideal for:
- Lighting
- Fans
- Pumps
- General ON/OFF switching
Latching / Interlock Mode
The channels can be configured for interlocked operation so that activating one output switches the other configured output off.
This can be useful for equipment requiring mutually exclusive control directions or functions.
Receiver Specifications
| Specification |
Details |
| Channels |
2 Independent Channels |
| Working Voltage |
AC 90–250V |
| 110V / 220V Compatible |
Yes |
| Maximum Load |
Up to 10A Per Channel, Resistive Load |
| Relay Contacts |
NO / NC / COM |
| RF Frequency |
433MHz |
| Control Modes |
Momentary / Toggle / Interlock |
| Encoding |
EV1527 / 1527 Learning Code |
| Maximum Paired Remotes |
Approx. 20 Compatible Transmitters |
| Antenna |
External Spring Antenna |
| Memory |
Retains Settings After Power Loss |
| Operating Temperature |
-20°C to +70°C |
| Connections |
Screw Terminals |
| Enclosure |
Included |
Wireless Operating Range
Wireless range depends on the installation environment and surrounding interference.
Typical stated operating distances are:
-
Indoor: Approx. 30–100m
-
Open Area: Up to approximately 100–200m or more under favorable conditions
Walls, metal structures, electrical interference, antenna position, remote battery condition, and other RF devices can reduce the actual operating distance.
Remote Control Specifications
| Specification |
Details |
| Quantity |
2 Remotes |
| Buttons |
3 Buttons Per Remote |
| Frequency |
433MHz |
| Encoding |
1527 Learning Code |
| Modulation |
ASK |
| Battery Type |
12V 23A Battery |
| Indicator |
LED Status Indicator |
| Typical Open-Area Range |
Up to Approx. 100–200m |
Two Remotes for Shared Access
This version includes two remote controls, allowing two users to operate the same receiver without purchasing or programming an additional transmitter.
This is particularly useful for:
- Two-car households
- Shared garage access
- Residential gates
- Offices
- Shops
- Warehouses
- Workshops
- Multi-user access systems
Relay Connections
Each relay channel provides:
- COM – Common
- NO – Normally Open
- NC – Normally Closed
This provides flexibility for integrating the receiver with different switching and control systems.
Applications
Ideal for:
- Garage door control
- Garage open / stop / close applications
- Gate motors
- Automatic gates
- Lighting control
- Pumps
- Fans
- Access control
- Electric doors
- Home automation
- Workshops
- Remote equipment switching
- DIY automation projects
Package Includes
- 1 × 2-Channel 433MHz Relay Receiver
- 2 × 433MHz 3-Button Remote Controls
Important Safety Note
This receiver can operate directly from 110V/220V AC mains voltage. Installation should be performed by a qualified person using appropriate electrical protection, insulation, wiring, and enclosure practices.
The stated 10A relay rating applies to suitable resistive loads. Motors, pumps, fans, transformers, and other inductive loads can produce significantly higher startup and switching currents and should be appropriately rated and protected.
The 433MHz 2-Channel Wireless Relay Switch with 2 Remote Controls provides a simple solution for controlling two electrical circuits from multiple locations without requiring WiFi, internet access, or a smart-home hub.
