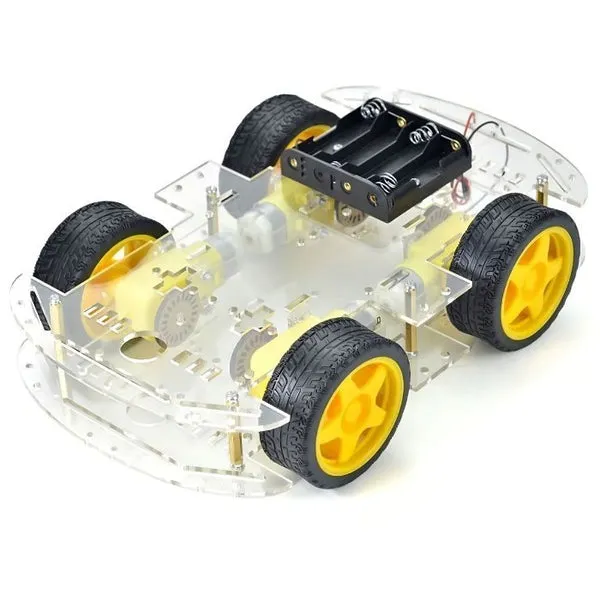

The 4WD 4-Wheel Robotic Smart Car Chassis Kit is a versatile and durable platform designed for building advanced robotic projects. Featuring a sturdy acrylic body, four powerful DC gear motors, and large rubber wheels, this kit is ideal for creating autonomous or remote-controlled robots. With ample space for sensors, controllers, and additional modules, it is perfect for students, hobbyists, and professionals exploring robotics and automation.

Specifications

• Chassis Material: High-strength acrylic
• Number of Wheels: 4
• Motors: 4 x TT Gear Motors (DC 3-6V)
• Wheel Diameter: Approx. 65mm
• Chassis Dimensions: 220mm x 160mm x 50mm (L x W x H)
• Weight: Approx. 400g (assembled without additional components)
• Power Source: Supports battery packs (not included)
• Motor Specifications:
  • Voltage: 3-6V DC
  • Speed: Approx. 150-200 RPM at 6V
  • Torque: High enough for climbing slight inclines
• Assembly: Comes with screws, spacers, and tools for easy assembly

Installation steps:

STEP 1: Insert the fastener into hte chassis after tearing off the yellow protection wrap of the chassis,the fastener and the code wheel

STEP 2: Install the code wheel and fix the motor to the chassis .(Attention,the copper sheet of the leading wire of the motor should face outward,the same side of the wheel)

STEP 3: Fix the motor to the chassis ,then insert and tighten the screws.

STEP 4: Insert the screws and fix the battery container.

STEP 5: Insert the spacer and tighten the 8 screws to fix the hammer caster.Hold tight and insert the motor(protection fastener) to the wheel .

Key Features

• Durable Chassis: Made from robust acrylic material to withstand wear and tear during operation.
• 4WD Configuration: Four motors and wheels provide excellent traction and maneuverability on various terrains.
• Large Wheels: Rubber wheels with good grip for stable movement and improved performance.
• Easy to Assemble: Includes all required hardware and an assembly guide for hassle-free setup.
• Expandable Design: Spacious platform to accommodate sensors, cameras, microcontrollers, and other add-ons.
• Wide Compatibility: Compatible with Arduino, Raspberry Pi, and other microcontrollers.
• Flexible Power Options: Supports various power sources like battery packs or external power supplies.
• Transparent Chassis: Offers a clear view of wiring and components for educational purposes.

Applications

• Autonomous Robotics: Ideal for building self-driving robots with navigation and obstacle avoidance capabilities.
• Line-Following Robots: Suitable for projects where the robot follows a predefined path using line sensors.
• Remote-Controlled Cars: Can be used for creating RC robots controlled via Bluetooth, RF, or Wi-Fi modules.
• Obstacle Avoidance Robots: Easily integrates with ultrasonic or IR sensors for collision detection.
• STEM Education: A great tool for teaching robotics, programming, and electronics to students.
• IoT Projects: Useful in IoT applications requiring mobile platforms, such as environmental monitoring.
• Surveillance & Monitoring: Serves as a base for surveillance robots with cameras or other sensors.

The 4WD 4-Wheel Robotic Smart Car Chassis Kit is a robust and adaptable platform that empowers users to explore and create innovative robotic solutions. Whether you're a beginner or an experienced maker, this kit provides an excellent starting point for developing a variety of robotic projects.

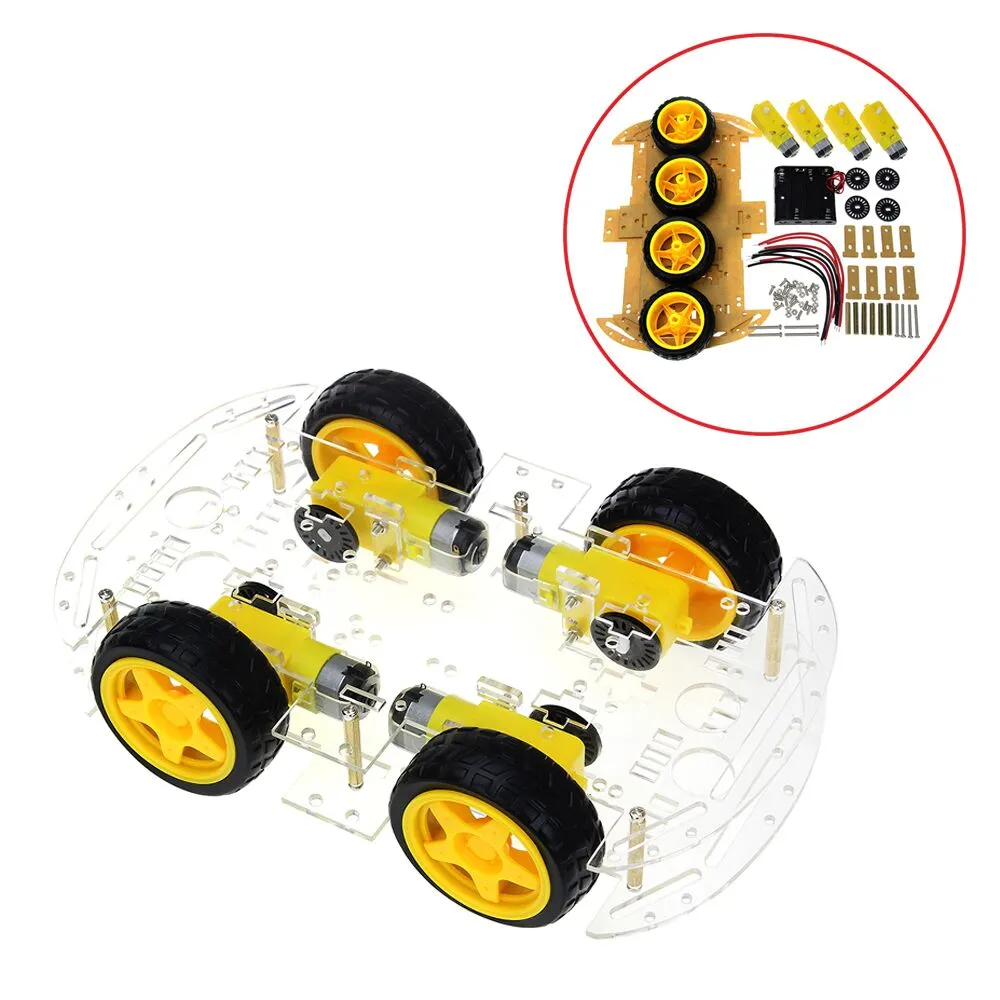

The package includes the following items:

• 2 x Car chassis
• 4 x Gear Motor (1:48)
• 4 x Tire Wheel
• 4 x Speed encoder
• 1 x AA Battery Case, Batteries not included
• 1 x Set of Screws, Nut and Copper Pillar
