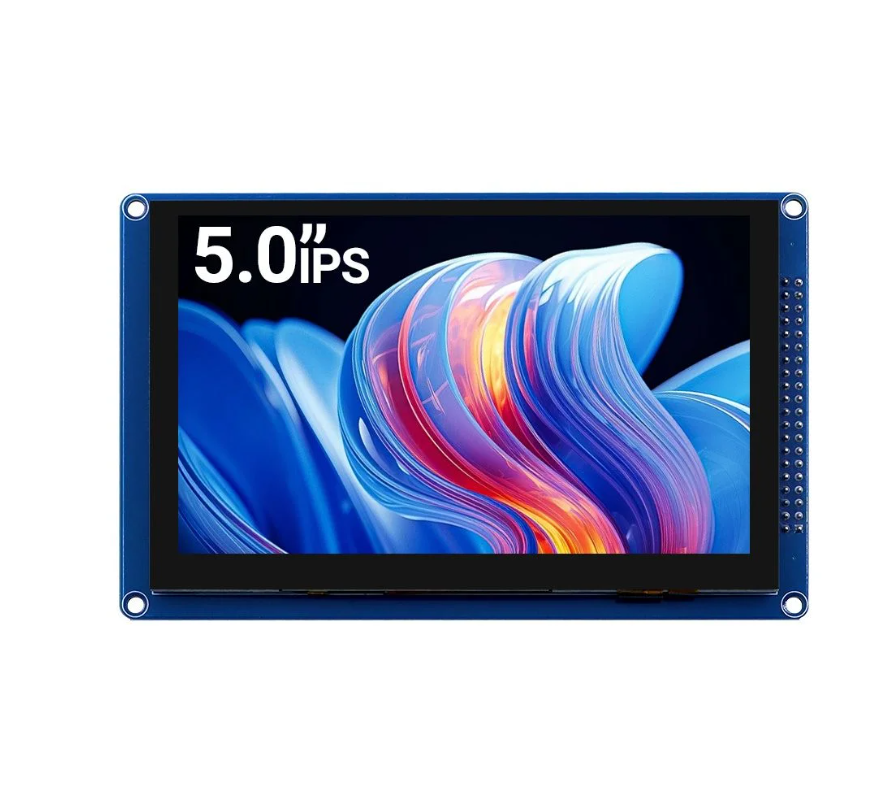

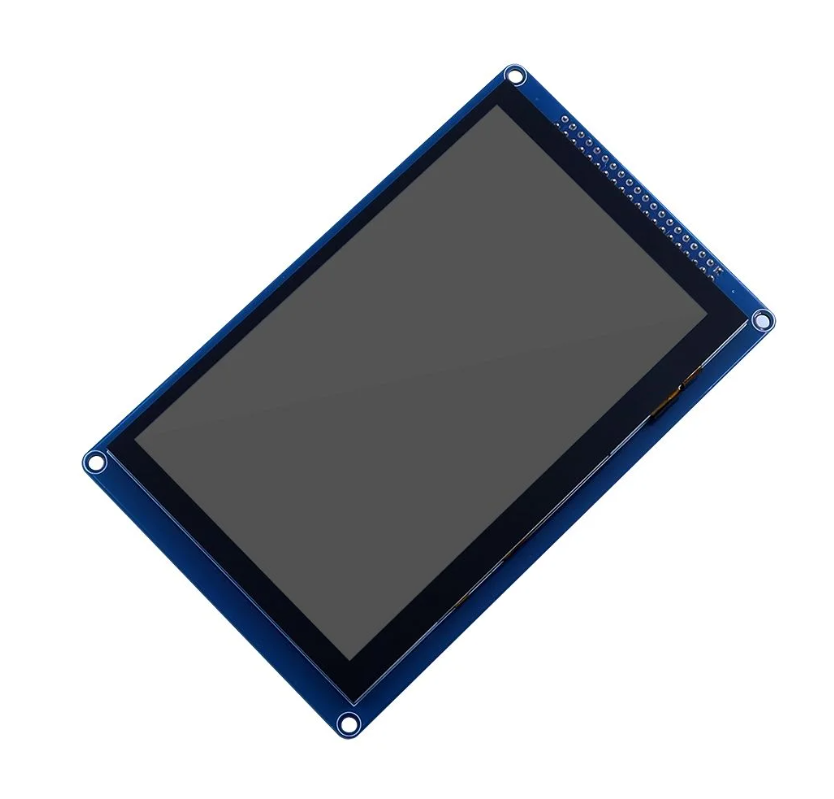

This 5.0-inch module is equipped with an IPS screen, provides a high resolution of 800x480, supports 16BIT RGB 65K color display, and can present colorful and delicate images and text.
This display has a capacitive touchscreen that provides accurate and flexible touch response.
Its 16-bit parallel bus design ensures the high speed and stability of data transmission, improving system response and operation efficiency.

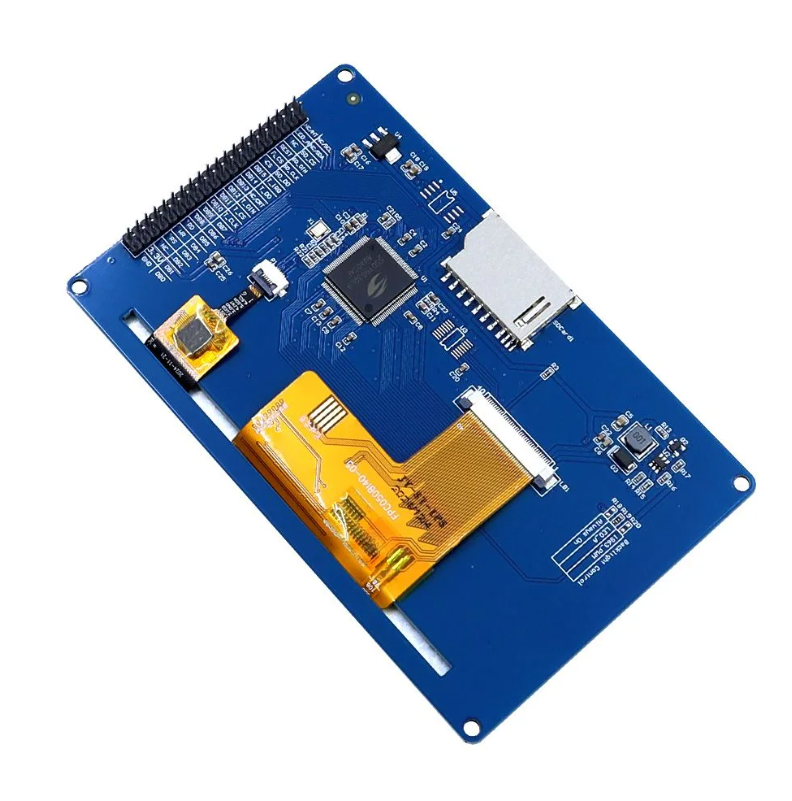

The module supports SPI FLASH and SD card expansion, and comes with an SD card slot, providing users with a flexible storage solution to meet the storage space requirements of different projects.
It also supports two backlight control methods: GPIO and PWM control. Users can choose according to specific requirements to balance energy efficiency and functionality.
No matter you are a beginner or a senior developer, you can quickly get started and easily start the project development journey.
We provide rich example learning programs, covering a variety of mainstream development platforms such as STM32 and C51.
We also provide underlying driver technology support, making it ideal for applications in intelligent hardware development and industrial automation applications.
This 5.0-inch module offers a stable, efficient, and convenient display solution, perfect for your development needs.
Application Scenario

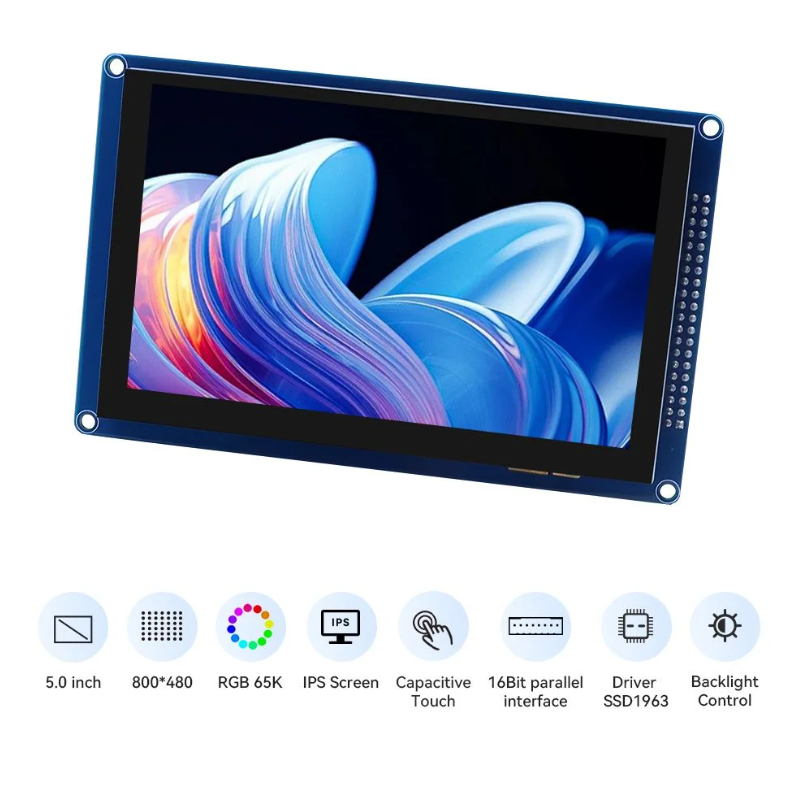

Feature
5.0-inch color screen, supporting 16bit RGB 65K color display
IPS screen with 800x480 resolution, provides clear display
Capacitive touch supports a sensitive response
Support 16-bit parallel bus transmission with fast transfer speed
Support SPI flash
With an SD card slot, convenient for expanding storage
Support two backlight control modes (GPIO control, PWM control)
Provides a rich sample program for STM32 and C51 platforms
Provide underlying driver technical support
Specification
Screen Size
5.0(inch)
Display Color
16BIT RGB 65K color
Screen Type
IPS TFT
Resolution
800x480(pixels)
Touch Screen Type
Capacitive touch screen
Driver IC
SSD1963
Touch IC
GT911
Module Interface
16Bit parallel interface
Operating Voltage
3.3V
IO Voltage
3.3V
Operating Temperature
-10℃~60℃
Storage Temperature
-20℃~70℃
Active Area
108.00x64.80(mm)
Module PCB Size
133.50x84.00(mm)
ESP32 Pin Assignment
Number
Pin Name
Pin Name
1
GND
power ground pin
2
3.3V
power positive pin(connected to 3.3V)
3
NC
Undefined, reserved
4
RS
LCD register / data selection control pin (high level: register, low level: data)
5
WR
LCD write control pin
6
RD
LCD read control pin
7~14
DB8 ~ DB15
LCD data bus high 8-bit pin
15
CS
LCD reset control pin( low level enable)
16
F_CS
SPI FLASH chip select control pin( low level enable)
17
REST
LCD reset control pin( low level reset)
18
NC
Undefined, reserved
19
LED_A
LCD backlight control pin(it needs to be used according to the selection)
20
NC/INT
Used as interrupt pin when connected to capacitive touch screen
