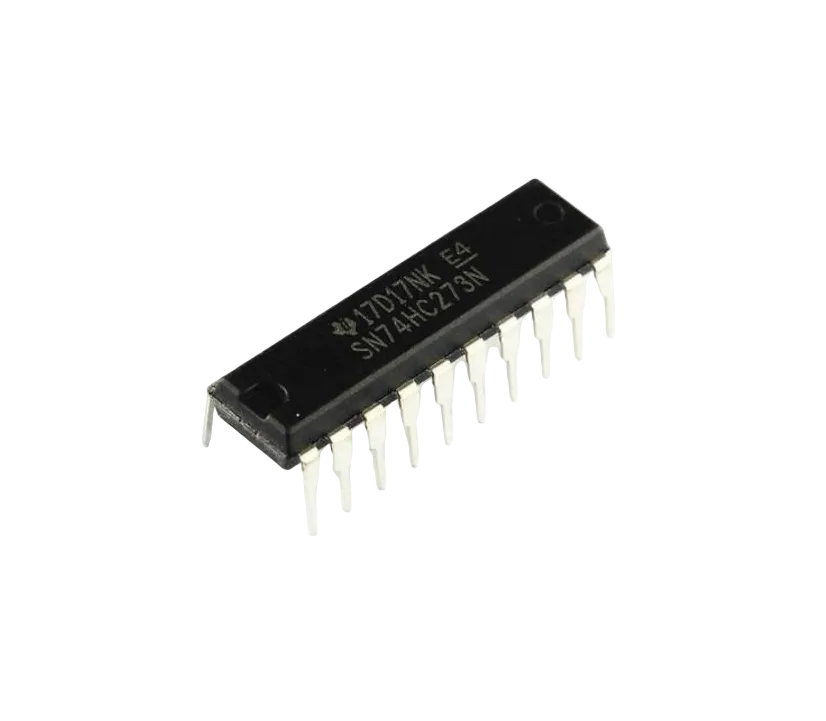

The 74HC273 is an Octal D-type flip-flop with reset, designed for efficient data storage and transfer. It features eight positive-edge-triggered flip-flops with a clear (CLR) input for quick data clearing. Operating within a 2V to 6V range (typically 5V), it offers low power consumption (80 µA ICC) and can drive up to 10 LSTTL loads. With a propagation delay of 12 ns and ±4 mA output drive, it is ideal for bus interfacing.

Features :

1. Operating Voltage Range: 2V to 6V
2. Operating Temperature Range: -40°C to +85°C
3. Power Consumption: Maximum 80 µA ICC
4. Propagation Delay: 12 ns
