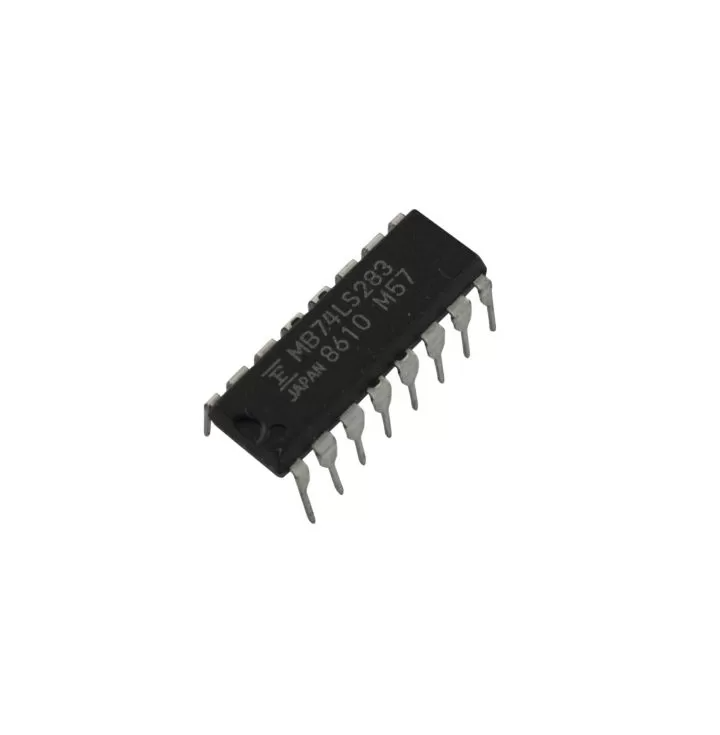

Features:

• Adds Two Binary Numbers

• Full Internal Lookahead

• Fast Ripple Carry for Economical Expansion

• Operates with Both Positive and Negative Logic

• Fanout (Over Temperature Range)

  • Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads

  • Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads

• Wide Operating Temperature Range . . . -55oC to 125oC

• Balanced Propagation Delay and Transition Times

• Significant Power Reduction Compared to LSTTL

  • Logic ICs

• HC Types

  • 2V to 6V Operation

  • High Noise Immunity: NIL = 30%, NIH = 30% of VCC

  • at VCC = 5V

• HCT Types

  • 4.5V to 5.5V Operation

  • Direct LSTTL Input Logic Compatibility,

  • VIL= 0.8V (Max), VIH = 2V (Min)

  • CMOS Input Compatibility, Il ≤ 1µA at VOL, VOH
