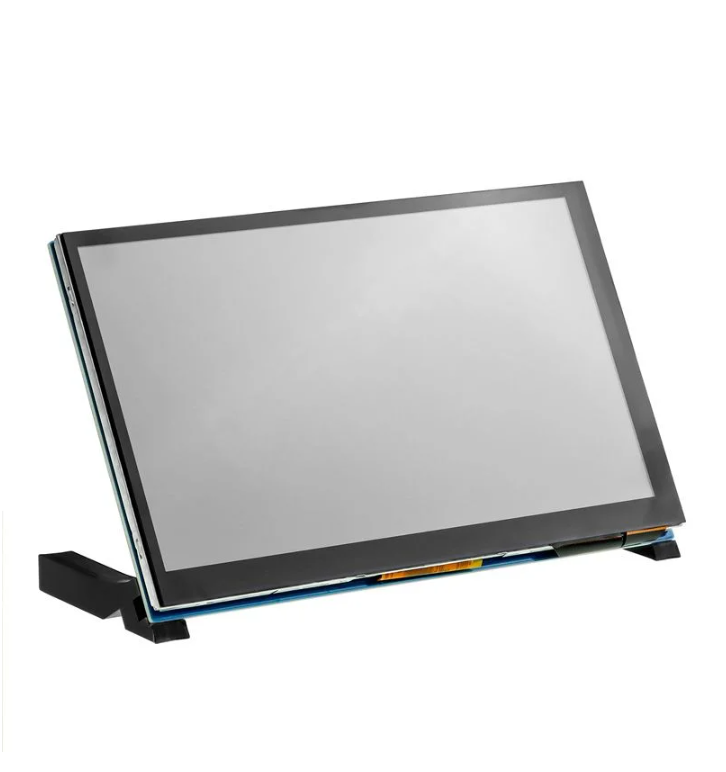

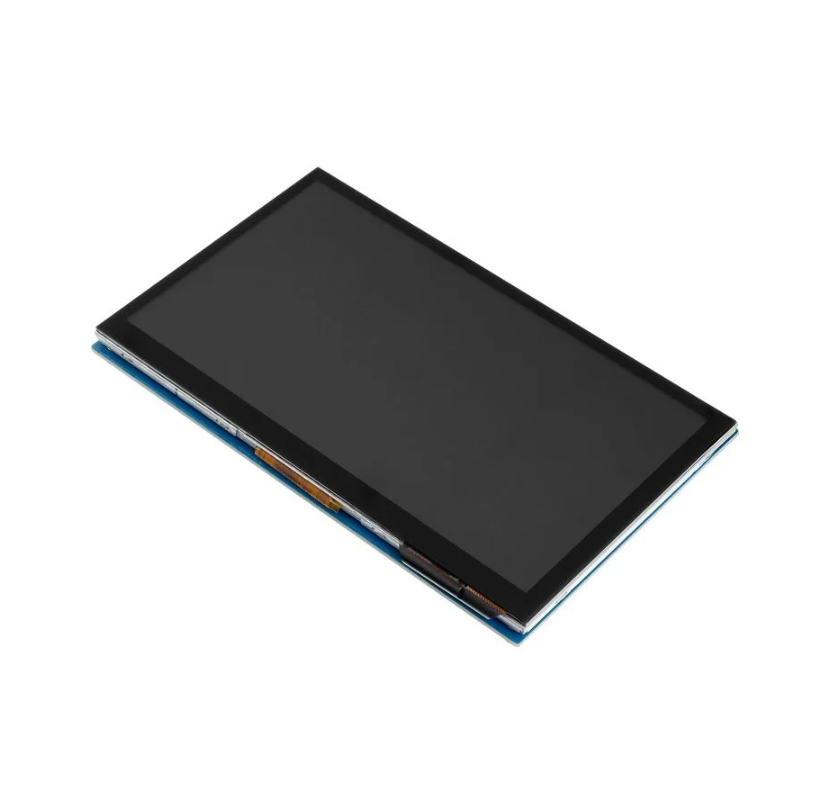

7-inch DSI Touch Display for Raspberry Pi

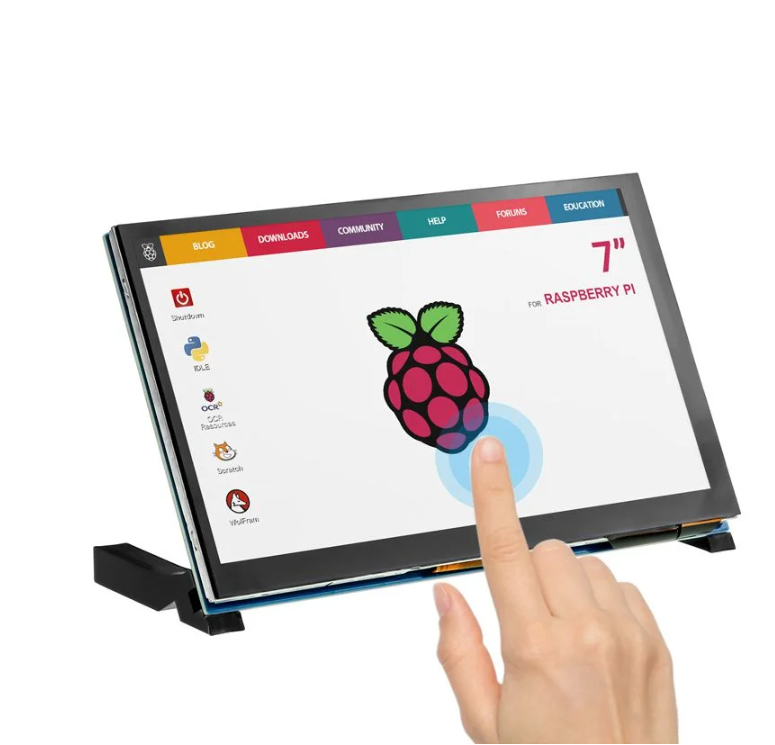

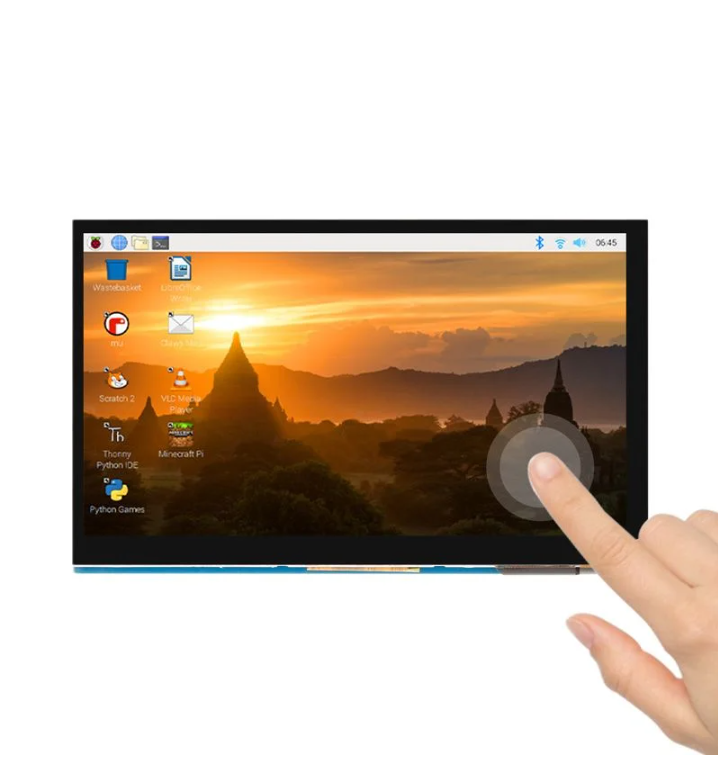

This is a 7-inch DSI touchscreen monitor with a resolution of 800*480 and a display area of 153.84*85.63mm. It supports direct output of the Raspberry Pi MIPI DSI interface, plug and play, no need to install drivers. The 7 inch DIS small display also supports multiple systems, Ubuntu, Kali, etc. For example, it has a backlight brightness adjustment button, supports PWM backlight brightness adjustment, and adapts to different use environments.

Note: If you connect with Raspberry Pi 5,  a 15-pin to 22-pin FPC cable is needed.

OEM customization requests can be discussed for projects.

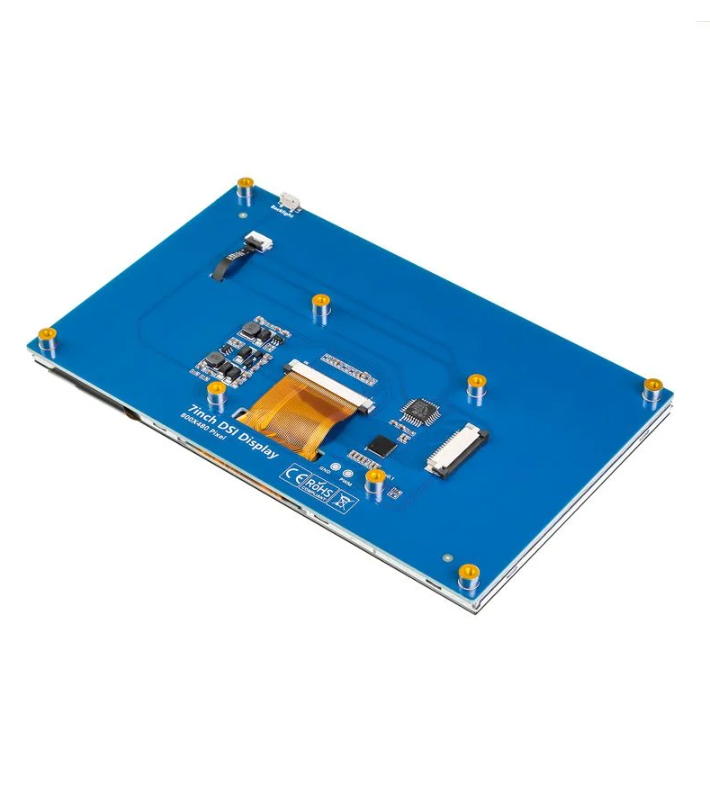

Connect the FPC cable

MIPI DSI 15-pin definition

Feature

Specification

• Size：7 inch
• Resolution：800*480
• LCD Interface Type: RGB888 Port
• Module Interface Type: MIPI DSI
• Refresh Rate: 60Hz
• Touch Type: Capacitive Touch Screen
• View Angle: Normal Viewing Angle
• Active Area: 153.84*85.63mm
• Operating Voltage: 3.3v
• Maximum operating current: 510mA
• Maximum Brightness: 300cd/m²
• Operating temperature: -20℃-70℃
• Appearance Size：89*102*12.25mm
• Package Size：212*149*54mm
• Weight：236g

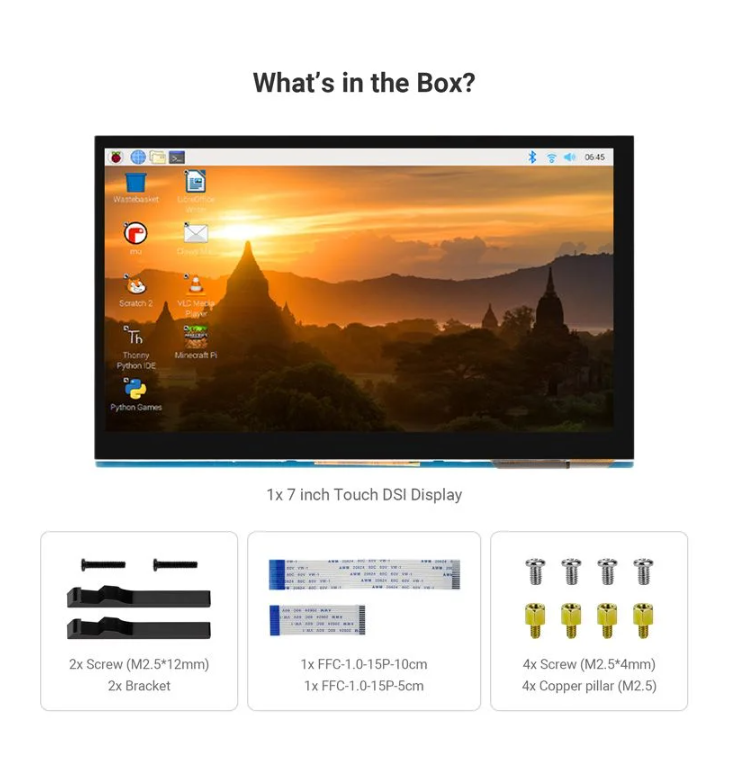

Package List

• 1x 7 inch Touch DSI Display
• 1x FFC-1.0-15P-20cm
• 1x FFC-1.0-15P-10cm
• 1x FFC-1.0-15P-5cm
• 4x Screw(M2.5*4mm)
• 2x Screw(M2.5*12mm)
• 4x Copper pillar(M2.5)
• 2x bracket
