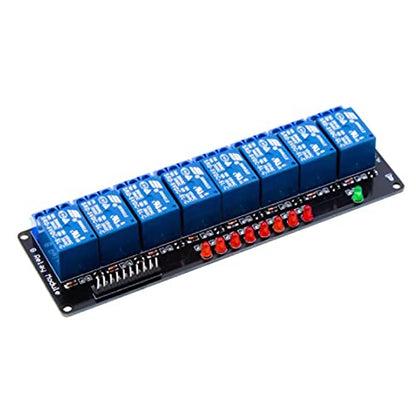

8 Channel 5V Low Level Relay Module

$5.99
Quantity

Features:

  • The 8550 transistor drive, drivability.
  • A fixed bolt holes for easy installation.
  • It has a relay status indicator led Power LED(Green), 8 relay status indicator LED(Red)
  • Relay control interface by single-chip IO. Low-level suction close, high-level release.
  • Easy to use, simple 3 line structure.
  • It is a 5V 8 Channel Relay Module.
  • The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A.
  • It has a trigger current of 5mA, and module working voltage of DC 5V.
  • Each channel of the module can be triggered by a jumper to set a high level or a low level.
  • Fault-tolerant design, even if the control line is disconnected, the relay will not move.
  • With status indicator: power (green), 6-channel relay status indicator (red).
  • All module size interfaces can be directly connected through the terminal block, which is convenient and practical.
