Overview
No less than the Raspberry Pi official camera V2, this camera module is also equipped with a high-definition IMX219 8MP sensor for shooting HD video and still images. It is excellent in image quality, color fidelity, and low light.

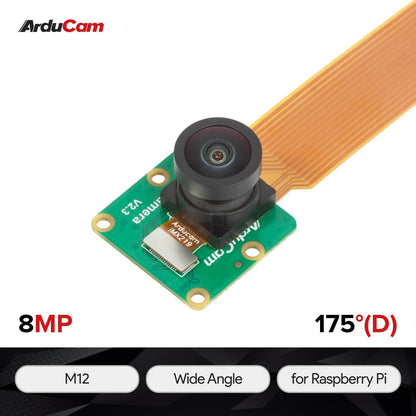

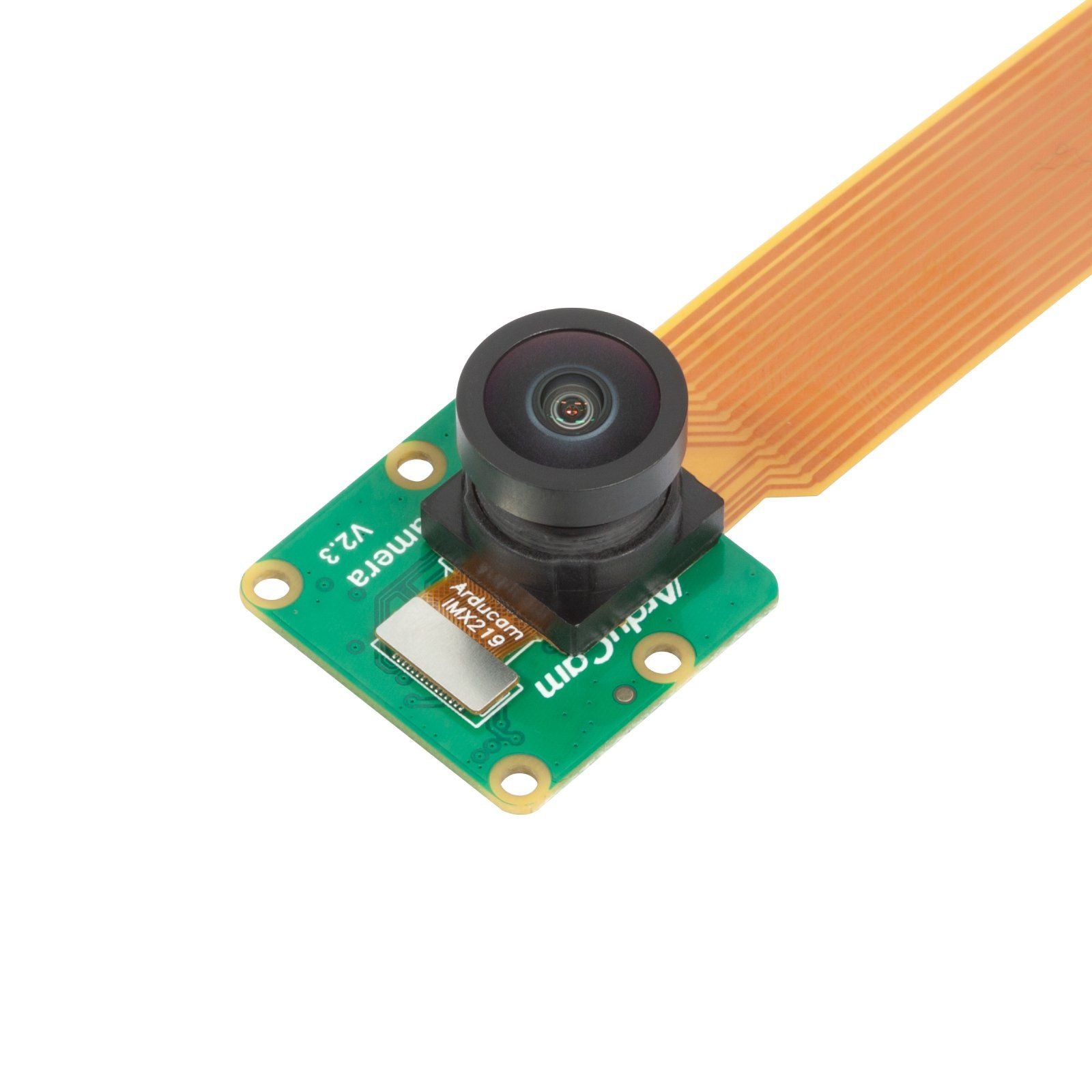

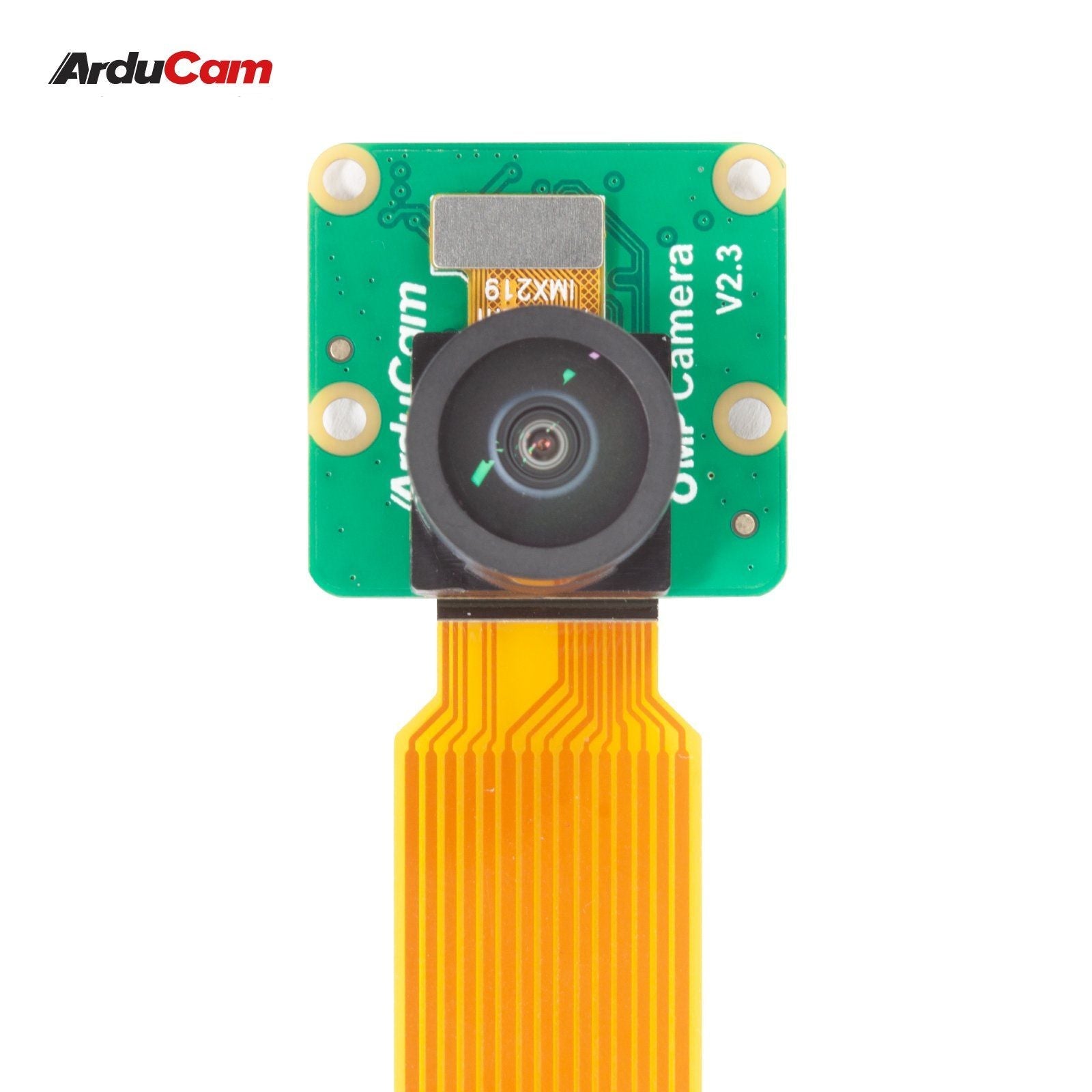

This camera module has a 175°(D) wide-angle M12 Lens, which provides a much wider Field of View compared to the stock lens on V2 camera module.
For beginners, this is a very easy camera module to get started; for advanced players, this camera module has more knowledge that you should explore and DIY.
Applications
- Astrophotography
- Surveillance cameras
- FA cameras
- Industrial/Agricultural cameras
- Autonomous mobile robots, UGV/UAV, ADAS, etc.
Features
- High-Speed Data Interface: Standard 2-lane MIPI CSI-2 interface with configurable 4-lane high-performance mode. Delivers maximum bandwidth for high-resolution sensor data transmission while maintaining compatibility with mainstream embedded platforms.
- Raspberry Pi Camera: Designed for Raspberry Pi, this 8MP HD camera module has a Sony IMX219 8MP pixel sensor with a wide-angle M12 lens.
- 8MP More than HD: Supports 3280 × 2464 pixel still images, and still captures. The Raspberry Pi Camera Board v2 – 8 Megapixels is a leap forward in image quality, color fidelity, and low light over the camera v1.

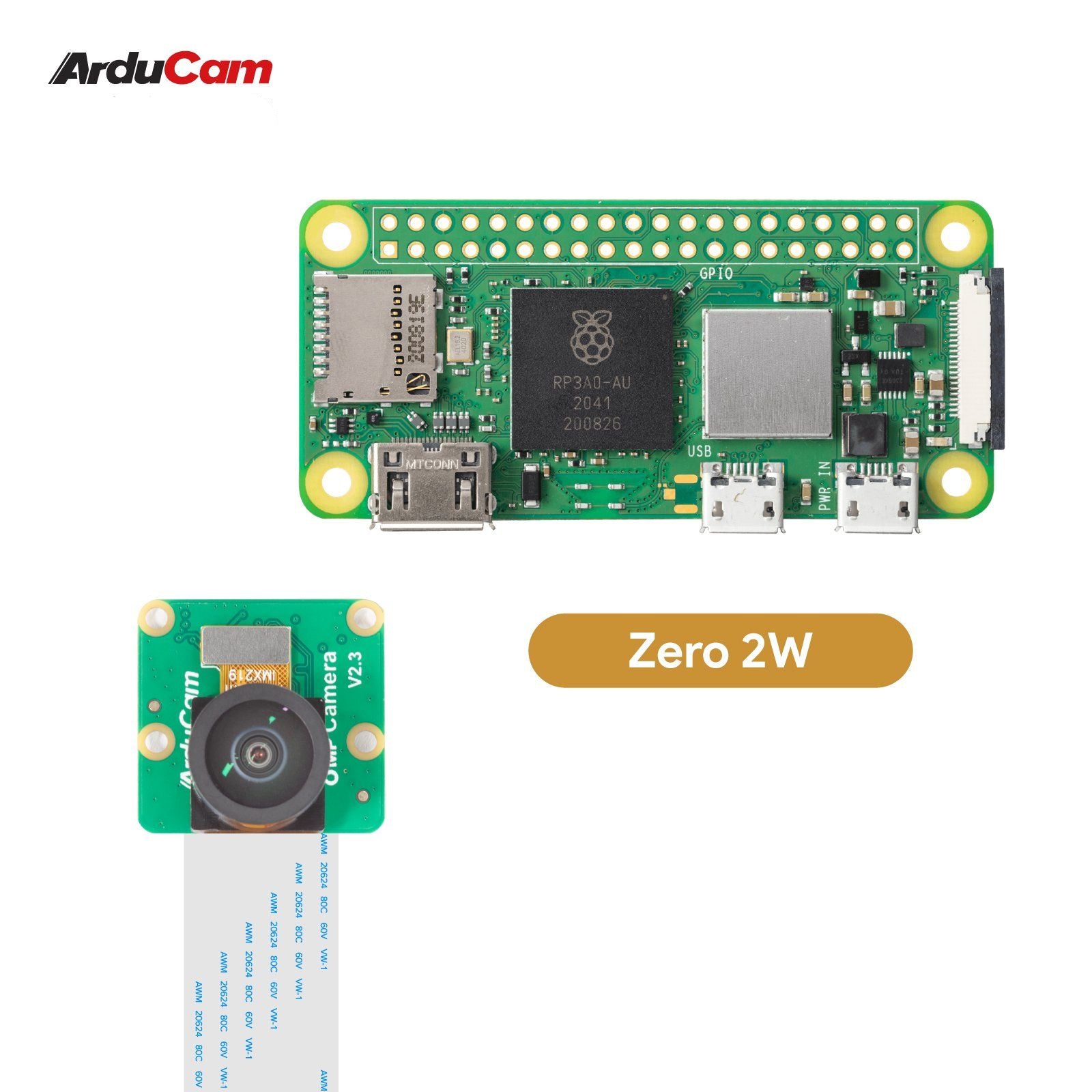

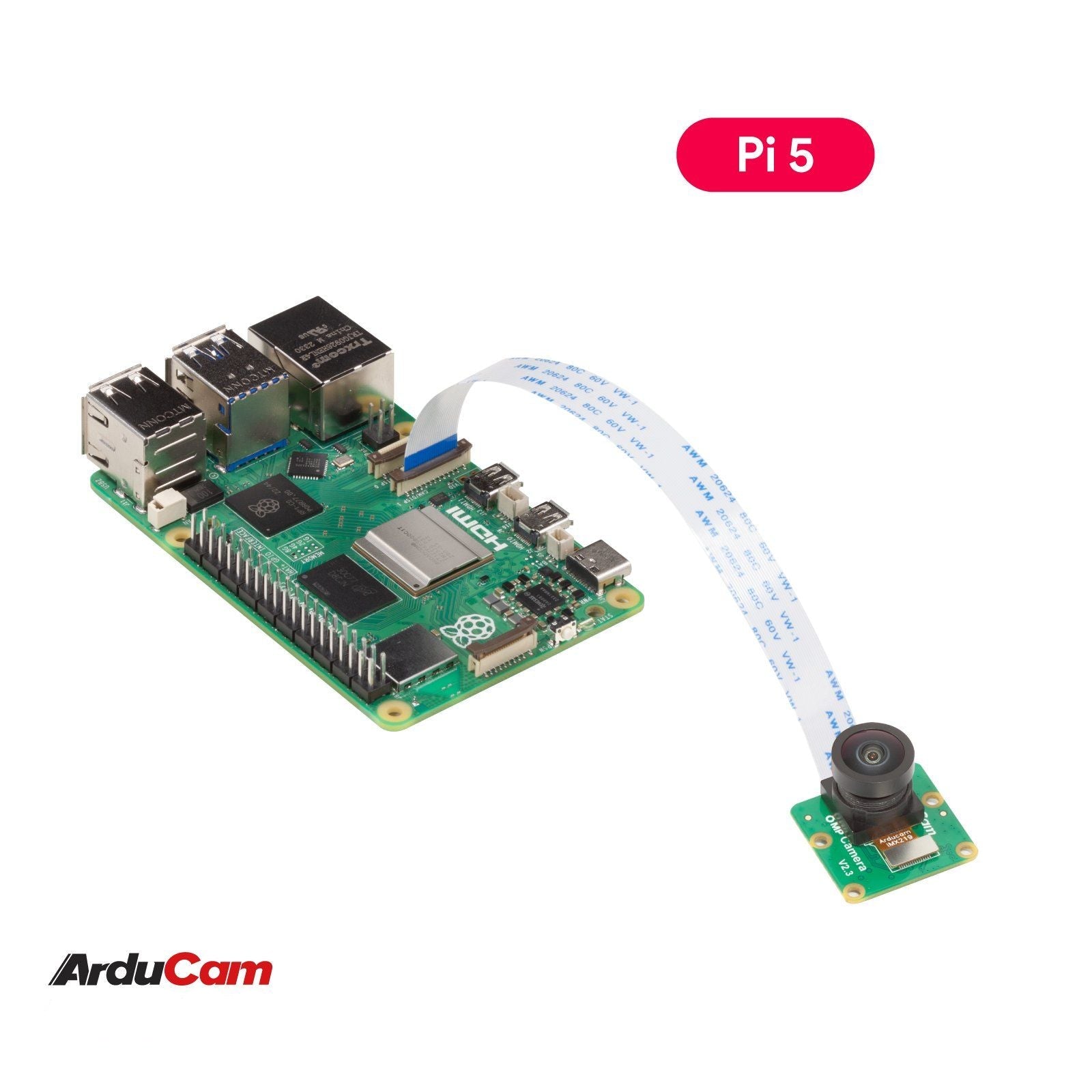

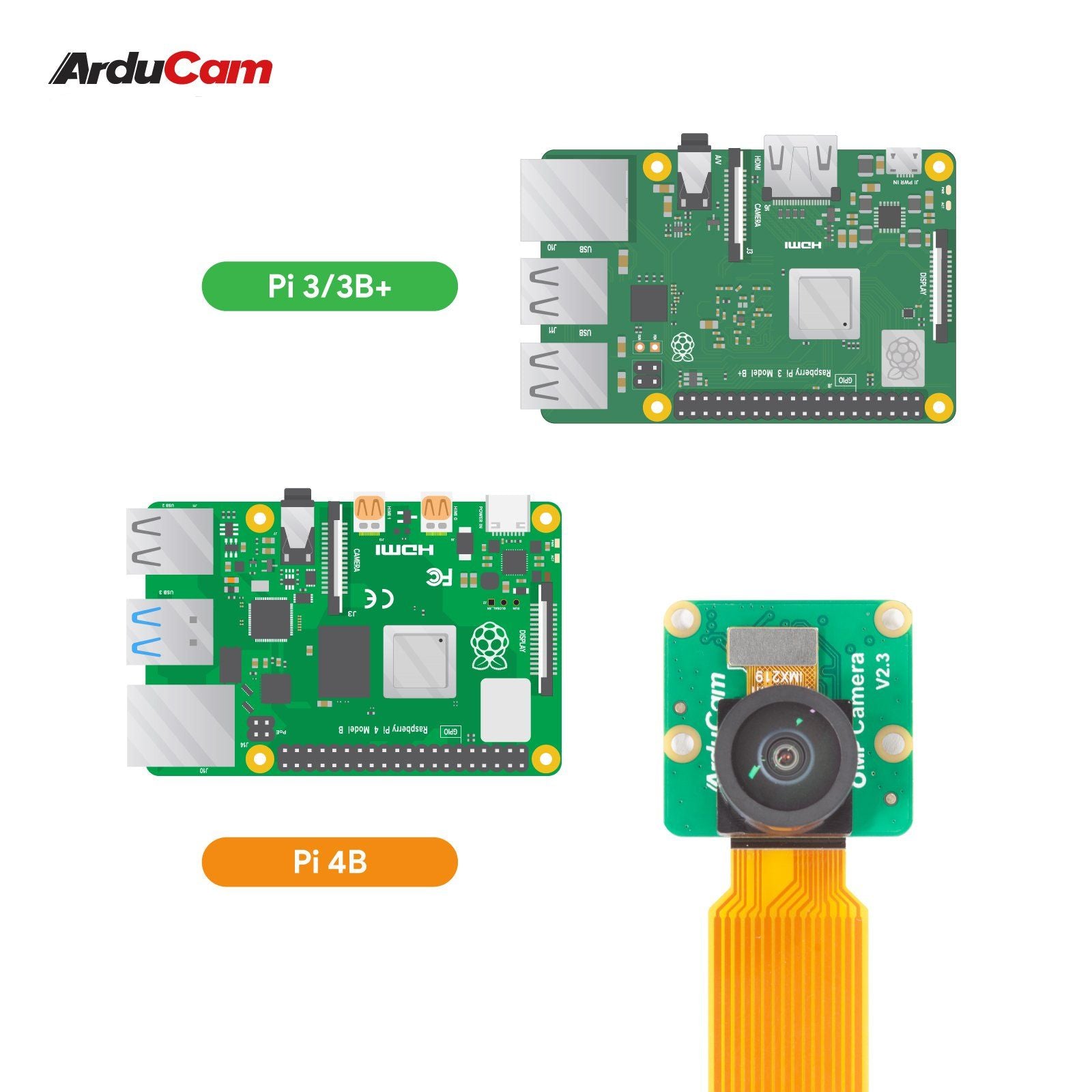

- Wide Compatibility: The camera is not only compatible with all models of Raspberry Pi 1, 2, 3 and 4, but also with Raspberry Pi Zero and Zero 2W, which can be easily used with a simple configuration.
- Easy to Setup: The package comes with a 15cm and 50cm 15pin FPC cable, and a 15cm yellow 15-22pin FPC cable for Raspberry Pi Zero and Zero 2W. Simply connect the Raspberry Pi board and camera with the FPC cable and you can easily use this 8MP high-quality camera.
- Application: Easy to use for beginners, and for advanced gamers, it offers more to explore. Perfect for time-lapse, slow motion, home security applications, monitoring Octoprint 3D Printer, and wildlife camera trap applications.
Specifications
Camera
| Image Sensor |
IMX219 |
| Still Resolution |
8 Megapixels |
| Video Modes |
1080p47, 1640 × 1232p41 and 640 × 480p206 |
| Sensor Resolution |
3280 × 2464 pixels |
| Sensor image area |
3.68 x 2.76 mm (4.6 mm diagonal) |
| Pixel Size |
1.12 µm x 1.12 µm |
| Optical Size |
1/4" |
| IR Sensitivity |
Integral IR-cut Filter, visible light only |
Lens
| Focus Type |
Manual Focus |
| Focal Length |
1.3mm |
| F.NO |
F2.0 |
| Field of View(FOV) |
155°(H)×115°(V)×175°(D) |
| Lens Mount |
M12 Mount |
Electrical & Mechanical
| Interface |
MIPI CSI-2 |
| Data Lanes |
2-lane (default), configurable to 4-lane |
| Camera Board Size |
25 x 24mm |
| Peaking Current |
300mA |
Package Including
- 1 x 8MP IMX219 Camera Module with Wide Angle M12 Lens
- 1 x 15cm 15-22pin FPC cable
- 1 x 15cm 22-22pin FFC cable
