Arducam

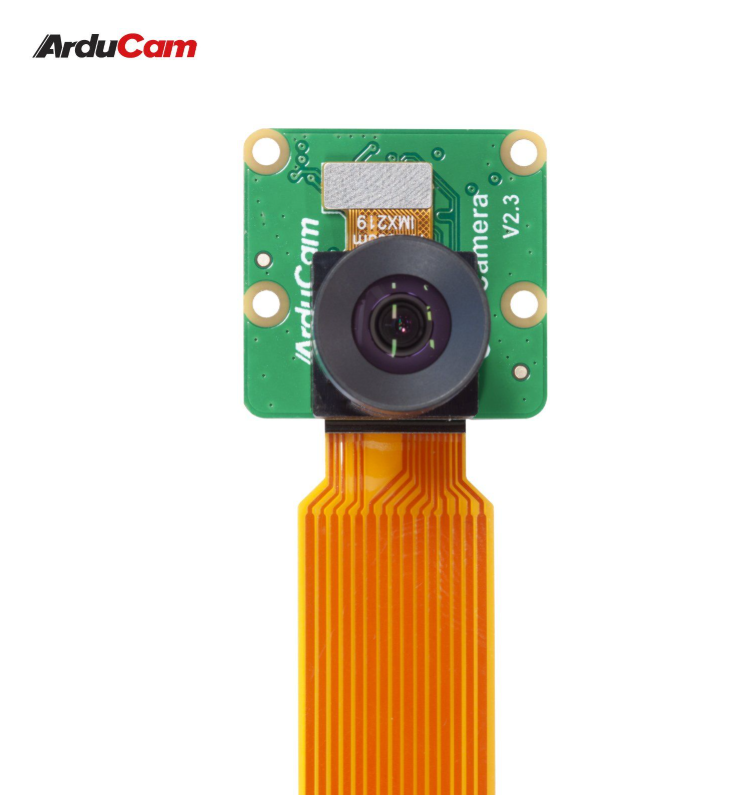

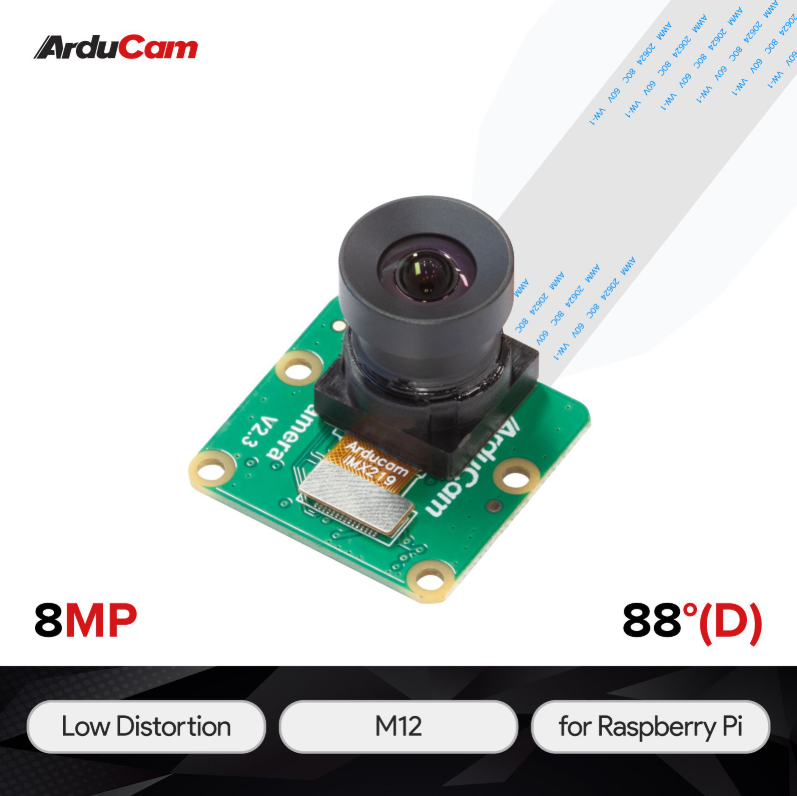

8MP IMX219 Camera Module for Raspberry Pi, with Low Distortion 88°(D) FOV M12 Lens

$0.00
Quantity

Overview

This Arducam IMX219 camera module is mainly designed for Raspberry Pi. The highlight of this camera is its very low distortion (<3%) of the lens. No less than the Raspberry Pi official camera V2, this camera module is also equipped with a high-definition IMX219 8MP sensor for shooting HD video and still images.It is excellent in image quality, color fidelity, and low light, and supports still capture.For beginners, this is a very easy camera module to get started; for advanced players, this camera module has more knowledge that you should explore and DIY.

Applications

  • Astrophotography
  • Surveillance cameras
  • FA cameras
  • Industrial/Agricultural cameras
  • Autonomous mobile robots, UGV/UAV, ADAS, etc.

Features

  • High-Speed Data Interface: Standard 2-lane MIPI CSI-2 interface with configurable 4-lane high-performance mode. Delivers maximum bandwidth for high-resolution sensor data transmission while maintaining compatibility with mainstream embedded platforms.
  • Raspberry Pi Camera: Designed for Raspberry Pi, this 8MP HD camera module has a Sony IMX219 8MP pixel sensor with low distortion (<3%) M12 lens. EFL: 2.8mm, F.NO: 2.8, View Angle: 75 Deg. (Horizontal).
  • 8MP More than HD: Supports 3280 × 2464 pixel still images, and still captures. The Raspberry Pi Camera Board v2 - 8 Megapixels is a leap forward in image quality, color fidelity, and low light than the camera v1.

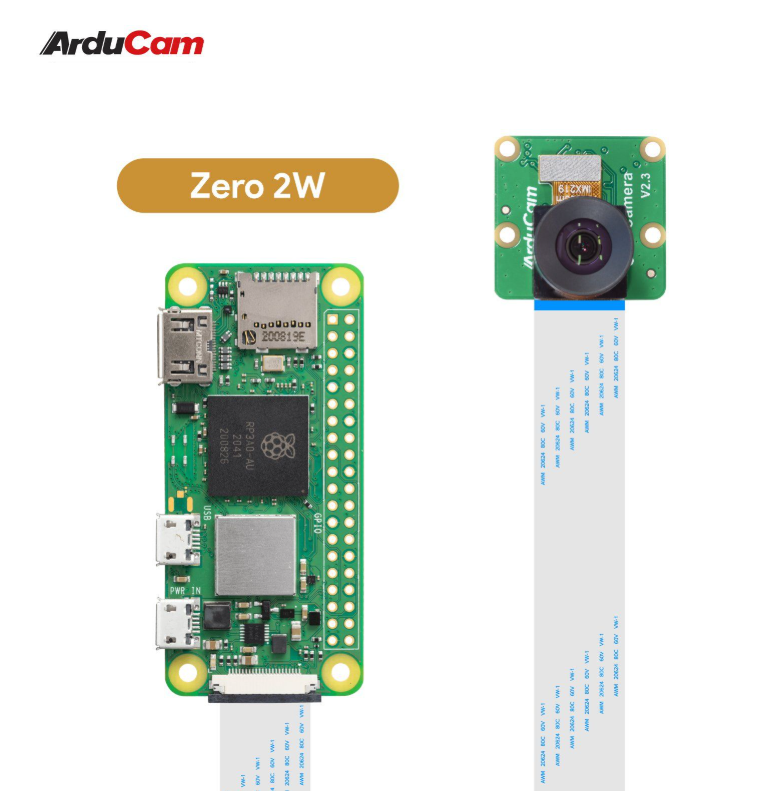

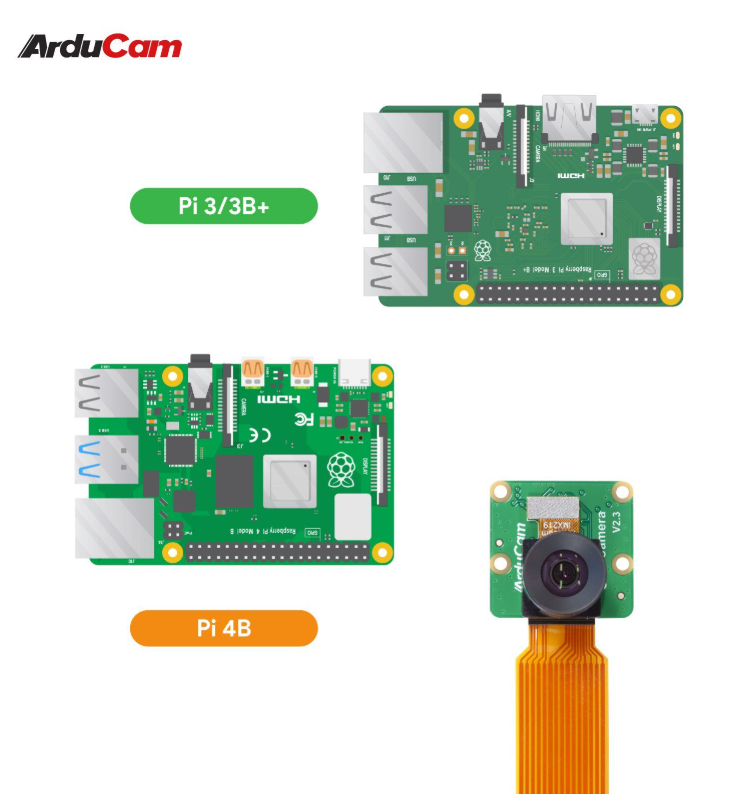

  • Wide Compatibility: The camera is compatible with all Raspberry Pi 1, 2, 3, and 4 models, and with Raspberry Pi Zero and Zero 2W, which can be easily used with a simple configuration.

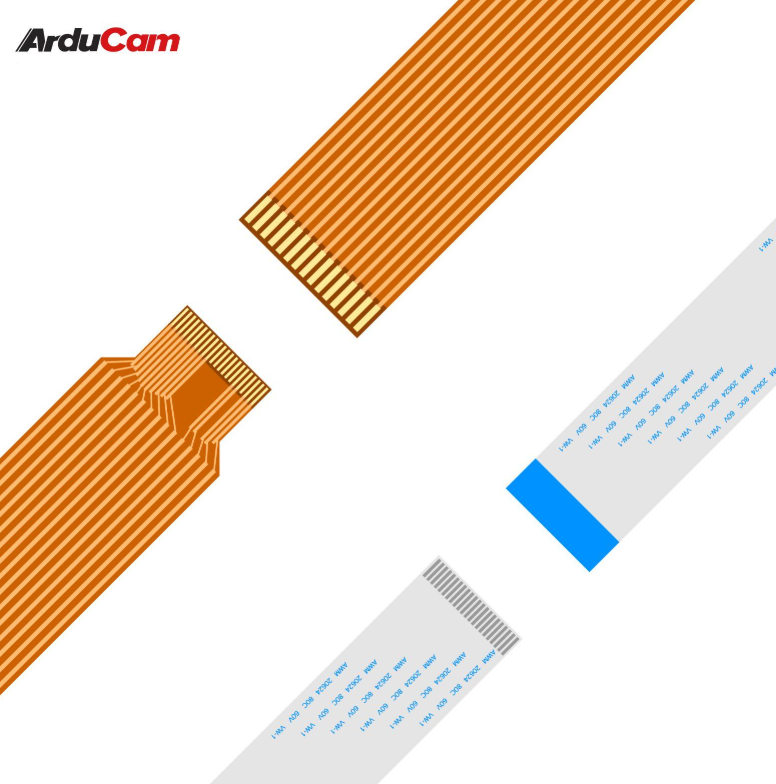

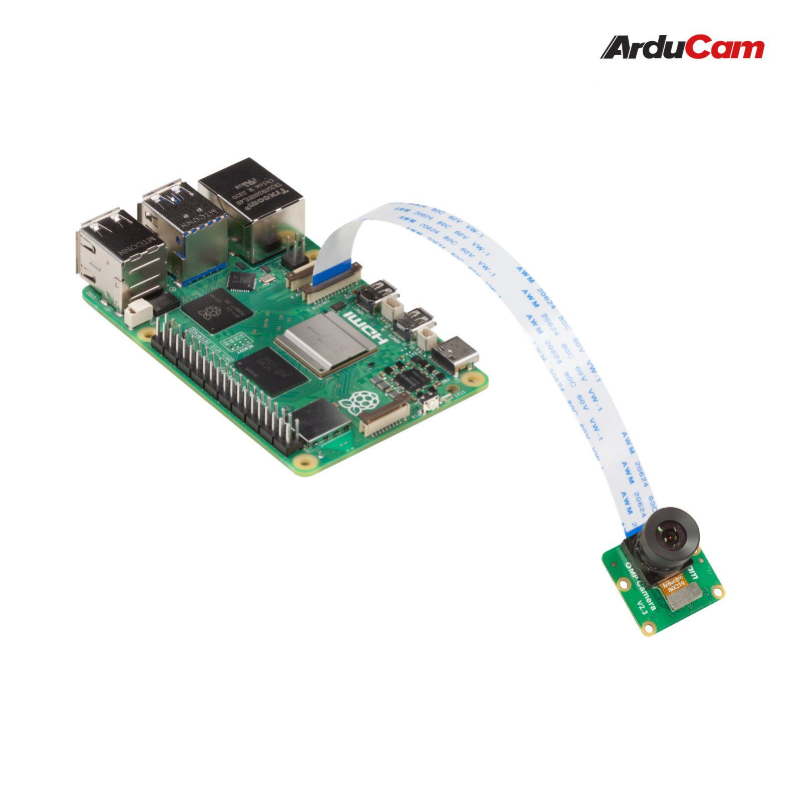

  • Easy to setup: The package comes with a 15cm 22-22pin FPC cable, and a 15cm yellow 15-22pin FPC cable. Simply connect the Raspberry Pi board and camera with the FPC cable and you can easily use this 8MP high-quality camera.
  • Application: Easy to use for beginners, and for advanced gamers, it offers more to explore. Perfect for time-lapse, slow motion, home security applications, monitoring Octoprint 3D Printer, and wildlife camera trap applications.

Specifications

Camera

Image Sensor IMX219
Still Resolution 8 Megapixels
Video Modes 1080p47, 1640 × 1232p41 and 640 × 480p206
Sensor Resolution 3280 × 2464 pixels
Sensor image area 3.68 x 2.76 mm (4.6 mm diagonal)
Pixel Size 1.12 µm x 1.12 µm
Optical Size 1/4"
IR Sensitivity Integral IR-cut Filter, visible light only

Lens

Focus Type Manual Focus
Focal Length 2.8mm
F.NO F2.8
Field of View(FOV) 88°(D)x75°(H)x60°(V)
Lens Mount M12 Mount
Distortion <3%



Electrical & Mechanical

Interface MIPI CSI-2
Data Lanes 2-lane (default), configurable to 4-lane
Camera Board Size 24mm x 25mm
Peaking Current 300mA

Package Including

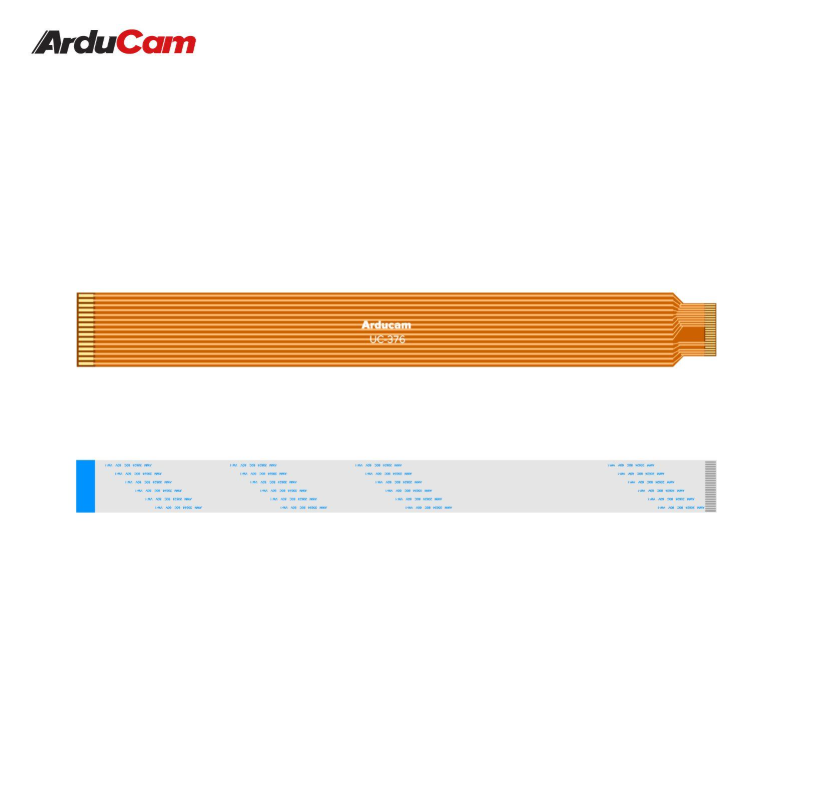

  • 1 x 15cm 15-22pin FPC cable
  • 1 x 15cm 22-22pin FFC cable
  • 1 x IMX219 Camera Module with Low Distortion M12 Lens

Note

  • The package does not include any Raspberry Pi motherboard.
  • The drop-in replacement module does not include FPC cables and any camera boards. And it requires the use of the Raspberry Pi V2 camera board to function properly.
  • The lenses of all camera modules are not interchangeable.
Note on Supported Raspberry Pi Boards and OS
Platform Trixie(rpicam) Bookworm(rpicam) Bullseye(libcamera) Buster(raspistill)
Raspberry Pi 5 √ √
Raspberry Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W √ √ √
Raspberry Pi CM3 / CM3+ / CM4 / CM5
(extra carrier board required)		 √ √ √ √
