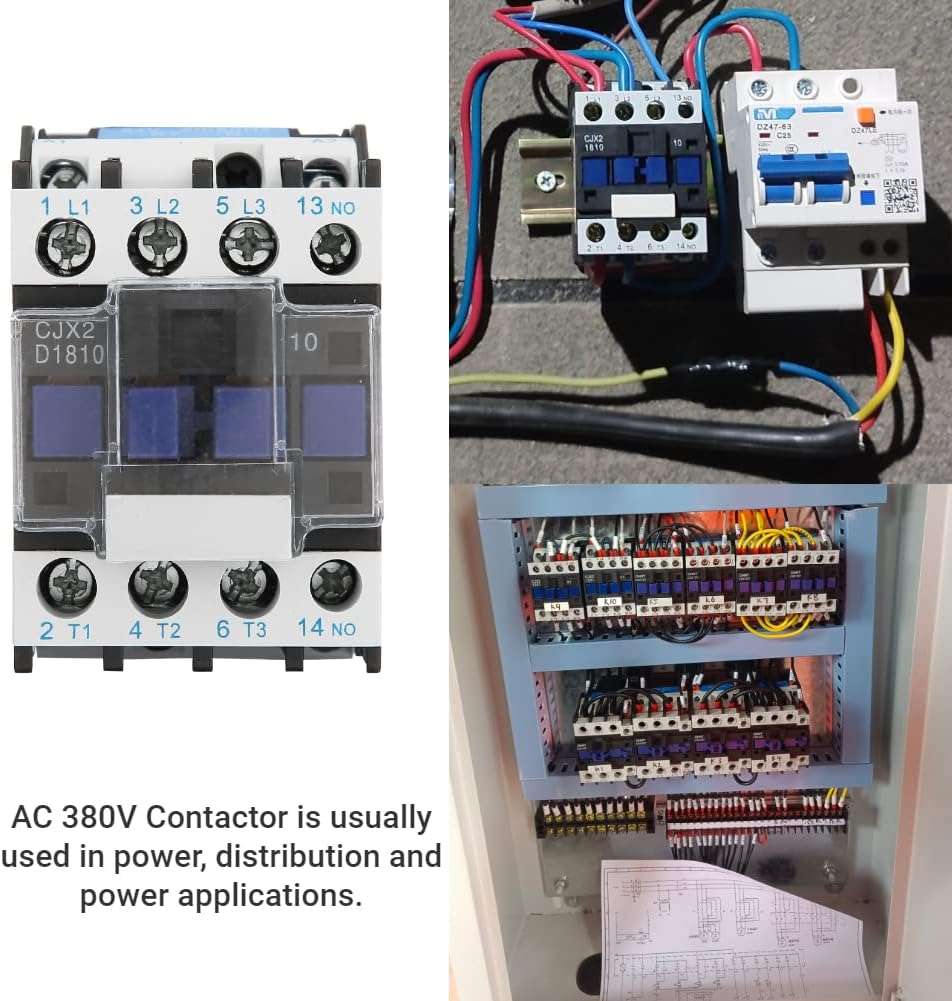

CJX2-1810 AC Contactor – 18A, 380V Coil
The CJX2-1810 AC Contactor is an electromagnetic switching device designed for remote control and frequent switching of AC electrical loads. This version features a 380V AC control coil and is commonly used in motor-control panels, industrial equipment, pumps, compressors, HVAC systems, and automation applications.
The contactor allows a relatively low-current control circuit to operate a higher-current load circuit, making it suitable for use with push buttons, control relays, timers, PLC systems, and other industrial control equipment.
Technical Specifications
-
Model: CJX2-1810
-
Device Type: AC Electromagnetic Contactor
-
Rated Current Class: 18A
-
Control Coil Voltage: 380V AC
-
Main Contacts: 3-Pole
-
Main Contact Configuration: 3 Normally Open (3NO)
-
Built-In Auxiliary Contact: 1 Normally Open (1NO), as commonly specified for CJX2-1810
-
Application: AC Load / Motor Control
-
Operation: Electromagnetic
-
Switching: Remote / Automatic Control
-
Mounting: Suitable for Electrical Control Panels
How It Works

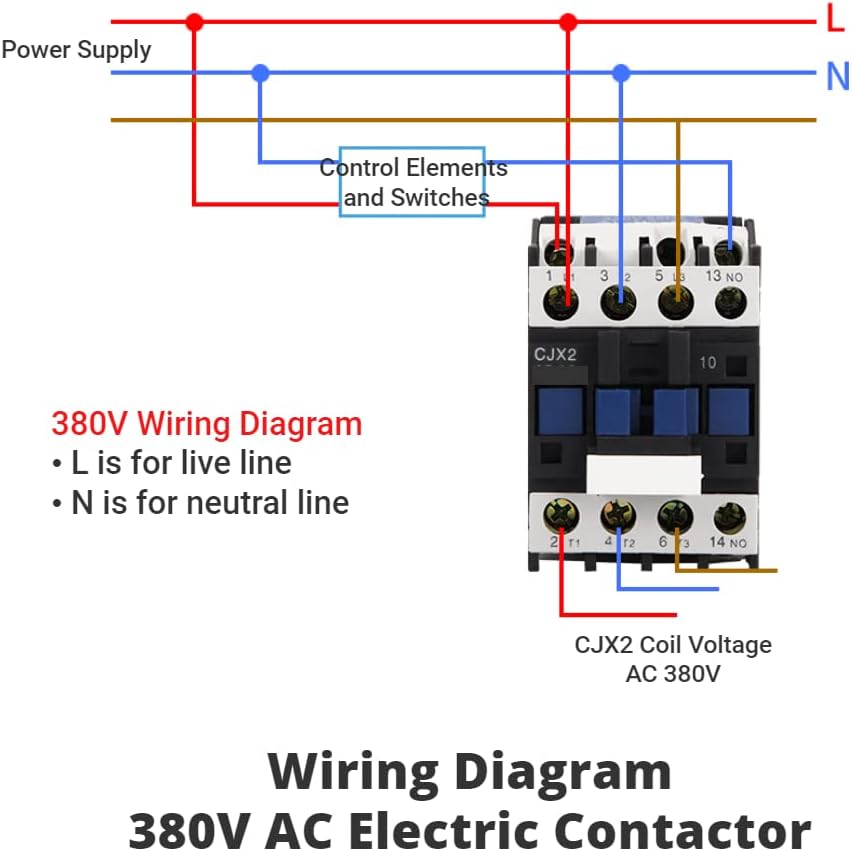

When the specified 380V AC control voltage is applied to the contactor coil, the electromagnetic mechanism pulls the main contacts closed.
This allows power to flow through the three main poles to the connected load.
When the coil voltage is removed, the contactor releases and the main contacts return to their normal open state, disconnecting the load.
3-Phase Load Control
The CJX2-1810 provides three main switching poles, making it particularly suitable for controlling three-phase electrical loads.
It can be incorporated into circuits for:
Start / Stop Control
Motor Switching
Forward / Reverse Control
Automatic Equipment Control
Interlocking Systems
Additional protection and control components may be required depending on the application.

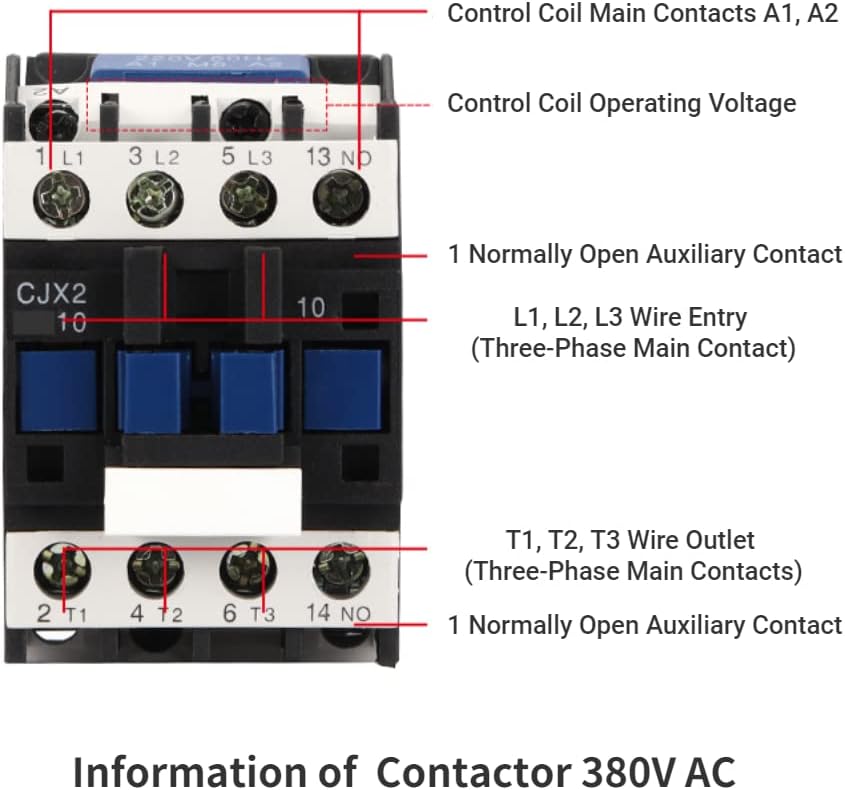

Auxiliary Contact
The CJX2-1810 designation commonly indicates one normally-open auxiliary contact (1NO).
The auxiliary contact can be used for control functions such as electrical holding circuits, status feedback, interlocking, indicator circuits, or PLC input signals.
Always verify the terminal markings on the actual contactor before wiring.
Applications
Suitable for industrial motor control, pumps, compressors, fans, HVAC systems, machinery, automation panels, three-phase equipment, electrical control cabinets, remote load switching, and industrial power-control systems.
Important Note
The 380V rating in this product title refers to the contactor's control coil voltage. A 380V-coil contactor requires the appropriate control voltage to operate correctly.
The maximum permissible load depends on factors including utilization category, operating voltage, motor type, switching frequency, ambient temperature, and load characteristics. The 18A designation should therefore not be used by itself to determine motor power compatibility.
A contactor also does not replace overload, short-circuit, or branch-circuit protection. Use appropriately rated circuit breakers, fuses, and motor overload protection where required.
Safety Warning
This device is intended for mains and industrial electrical systems where potentially lethal voltages and high fault currents may be present.
Installation, wiring, and servicing should be performed by a qualified electrician or appropriately trained technician using correctly rated wiring, terminals, protective devices, and enclosures.
Always isolate and verify power is OFF before installing or servicing the contactor.
Package Includes
1 × CJX2-1810 AC Contactor – 18A, 380V CoilElectrical life: �� ��600,000 times
