Fingerprint & RFID Door Access Control Kit with Electromagnetic Lock, Exit Button & Power Supply
The Fingerprint & RFID Door Access Control Kit provides the main components required to build a standalone electronic door-entry system for offices, shops, warehouses, laboratories, residential buildings, and other controlled-access areas.

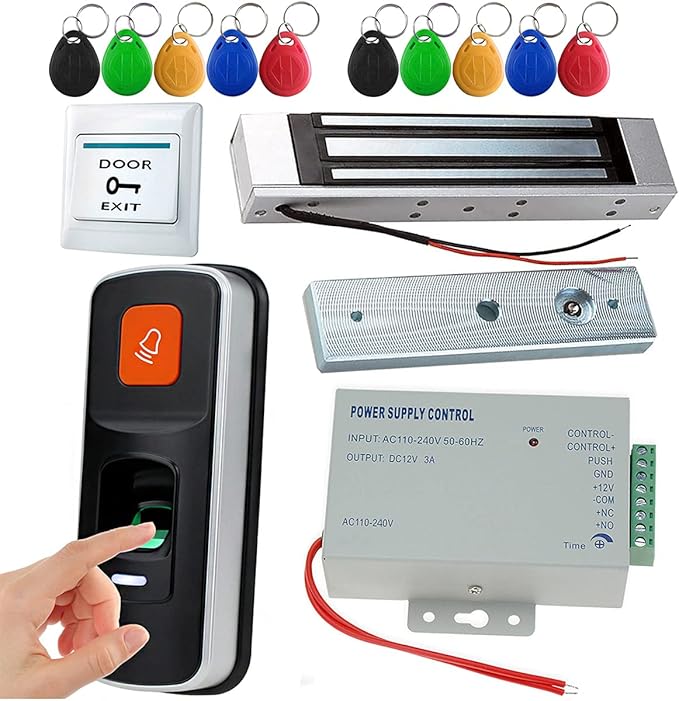

The kit combines a fingerprint and RFID access controller, electromagnetic door lock, mounting bracket, exit button, access-control power supply, and RFID key fobs to provide convenient keyless entry and controlled door release.
Users can gain access using a registered fingerprint or compatible RFID key fob, while people inside the secured area can release the door using the included exit button.
Main Components
-
Fingerprint & RFID Access Controller: Standalone door-entry controller with fingerprint reader and RFID proximity-card/key-fob support
-
Electromagnetic Lock: Fail-safe magnetic door-locking system
-
Lock Mounting Bracket: Metal bracket for mounting the electromagnetic lock to a suitable door and frame
-
Exit Button: Push-to-exit button for releasing the door from inside
-
Access Control Power Supply: Dedicated power and lock-control unit
-
RFID Key Fobs: Multiple proximity key fobs included for user access
Access Control Power Supply
-
Input Voltage: AC 110–240V
-
Input Frequency: 50/60Hz
-
Output Voltage: 12V DC
-
Output Current: Up to 3A as indicated on the supplied unit
-
Lock Control: Integrated
-
Exit Button Input: Supported
-
Adjustable Delay: Time adjustment provided
-
Connections: PUSH, GND, +12V, COM, NC and NO terminals as indicated on the unit
Fingerprint & RFID Access
The access controller allows authorized users to unlock the door without using a conventional mechanical key.
Depending on configuration, access can be granted using a registered fingerprint or compatible RFID proximity key fob.
This makes the system suitable for applications where multiple users require controlled access without distributing traditional keys.
Electromagnetic Door Lock
The included electromagnetic lock secures the door using magnetic force when energized.
Electromagnetic locks normally operate as fail-safe locks, meaning the door is held locked while power is supplied and releases when power is removed. This behavior should be considered when designing emergency-exit and backup-power arrangements.
The included mounting bracket helps install the magnetic lock and armature plate on a compatible door and frame.
Exit Button
The included DOOR EXIT push button allows users inside the secured area to release the electromagnetic lock without presenting a fingerprint or RFID credential.
Pressing the exit button sends the release command to the access-control power supply, which temporarily disconnects or switches the lock according to the configured system.
Typical System Operation
Entry:
User presents an authorized fingerprint or RFID key fob → Access controller verifies the credential → Door lock is released → User opens the door.
Exit:
User presses the exit button → Power supply releases the electromagnetic lock → Door can be opened.
Applications
Ideal for offices, electronics shops, laboratories, warehouses, apartment buildings, staff entrances, equipment rooms, server rooms, workshops, schools, small businesses, restricted rooms, and other controlled-access locations.
Important Note
The exact fingerprint capacity, RFID user capacity, RFID operating frequency, communication interface, electromagnetic lock holding force, unlock delay range, and advanced programming functions depend on the specific hardware version supplied.
These values should be confirmed from the markings or manual of the actual controller and lock rather than assumed from the appearance of the kit.
Professional installation is recommended to ensure correct lock alignment, power-supply wiring, door operation, and access-controller configuration.
Safety Note
The access-control power supply connects directly to 110–240V AC mains electricity. Installation and mains wiring should be performed by a qualified electrician or appropriately trained technician.
Because an electromagnetic lock is normally a fail-safe locking device, applicable fire-safety, emergency-egress, and building regulations should be considered when installing the system.
Package Includes
1 × Fingerprint & RFID Access Controller
1 × Electromagnetic Door Lock
1 × Electromagnetic Lock Mounting Bracket / Armature Assembly
1 × Exit Push Button
1 × 12V DC Access Control Power Supply
RFID Key Fobs as supplied
