ACR122U-A9 13.56MHz USB NFC Reader

$39.99

Shipping calculated at checkout.

Quantity

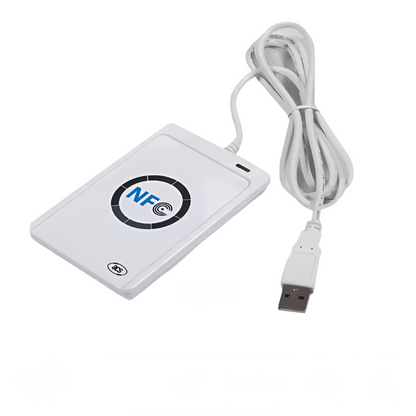

ACR122U-A9 13.56MHz USB NFC RFID Smart Card Reader/Writer

The ACR122U-A9 USB NFC Reader/Writer is a PC-connected contactless smart card reader based on 13.56MHz RFID and NFC technology. It provides a convenient solution for reading and writing compatible NFC tags and contactless smart cards through a standard USB connection.

With support for ISO 14443 Type A and Type B, MIFARE, FeliCa, and NFC tags, the ACR122U is suitable for access-control development, identification systems, attendance systems, NFC programming, loyalty applications, electronic ticketing, and other contactless smart-card projects.

Its CCID and PC/SC compatibility makes it easy to integrate with a wide range of computer applications and development environments.

Technical Specifications

  • Model: ACR122U-A9
  • Device Type: USB NFC / Contactless Smart Card Reader & Writer
  • Operating Frequency: 13.56MHz
  • Host Interface: USB
  • USB Speed: Up to 12Mbps Full Speed
  • USB Supply Voltage: 5V DC
  • Maximum Supply Current: 200mA
  • Normal Supply Current: Approx. 100mA
  • Standby Current: Approx. 50mA
  • Contactless Read/Write Speed: 106 / 212 / 424kbps
  • Reading Distance: Up to approximately 50mm, depending on card/tag type
  • Supported Standards: ISO/IEC 18092 NFC, ISO 14443 Type A & B
  • MIFARE Support: Yes
  • FeliCa Support: Yes
  • NFC Tag Support: Yes
  • PC/SC Compatible: Yes
  • CCID Compliant: Yes
  • Built-In Indicator: Red / Green Bi-Color LED
  • Built-In Buzzer: Yes
  • Dimensions: Approx. 98 × 65 × 12.8mm
  • Weight: Approx. 70g
  • USB Cable Length: Approx. 1m
  • Operating Temperature: 0°C to +50°C
  • Operating Humidity: 10–90%

NFC & RFID Card Support

The ACR122U-A9 is designed to communicate with a variety of 13.56MHz contactless cards and NFC tags, including compatible:

ISO 14443 Type A Cards
ISO 14443 Type B Cards
MIFARE Cards
FeliCa Cards
NFC Tags

The built-in antenna provides a reading distance of up to approximately 50mm, although the actual range depends on the size, antenna design, orientation, and type of card or NFC tag being used.

USB Plug-and-Play Interface

The reader connects to a computer through USB and receives its power directly from the USB port, so a separate external power adapter is normally not required.

Its CCID and PC/SC compatibility makes it suitable for integration into existing smart-card applications and custom software projects.

Reader & Writer Functionality

Unlike simple RFID UID readers, the ACR122U is designed as a contactless smart card reader/writer.

With appropriate software and compatible cards or tags, it can be used to communicate with NFC/RFID memory and applications rather than simply detecting the presence of a card.

Actual read/write functionality depends on the card technology, memory structure, security configuration, authentication keys, and software being used.

Applications

Ideal for NFC development, RFID projects, smart-card applications, access-control software, employee attendance systems, membership systems, customer loyalty programs, electronic ticketing, contactless identification, NFC tag programming, authentication systems, educational projects, and POS-related applications.

Important Note

The ACR122U-A9 operates at 13.56MHz and should not be confused with 125kHz RFID readers.

A 125kHz RFID card or key fob will not work simply because it is described as an RFID device. The card/tag must use a technology and protocol supported by the ACR122U.

Also note that compatibility with a card does not automatically mean that all protected data can be read or modified. Secure cards may require the correct authentication keys, application software, and permissions.

Package Includes

1 × ACR122U-A9 13.56MHz USB NFC Reader/Writer
