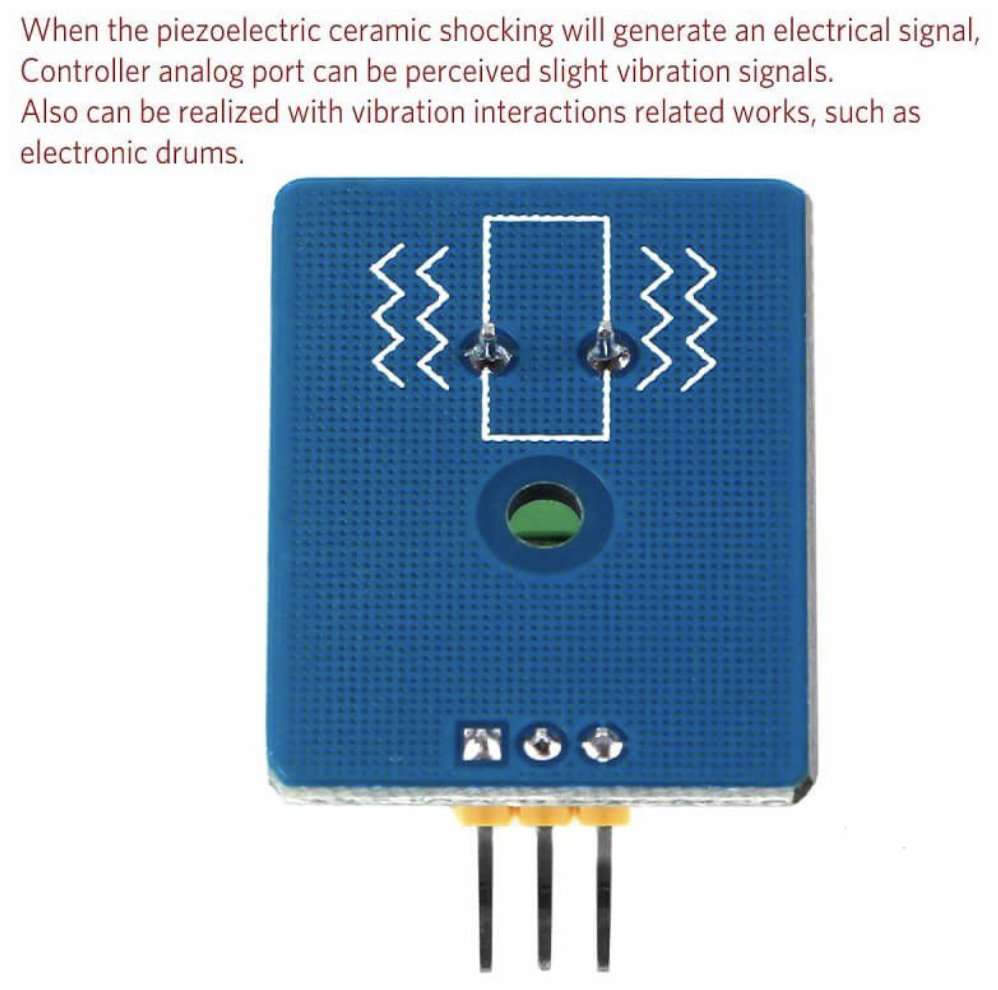

Analog Piezoelectric Ceramic Vibration Module

$1.45

Shipping calculated at checkout.

Quantity

Analog Piezoelectric Ceramic Vibration Sensor Module – 3.3V/5V

The Analog Piezoelectric Ceramic Vibration Sensor Module is a compact sensor designed to detect vibration, impact, tapping, knocking, and mechanical movement using the piezoelectric effect.

Unlike a digital vibration sensor that simply provides an ON/OFF indication, this module produces an analog output that changes according to the intensity of the vibration. This allows a microcontroller to measure and compare different levels of vibration rather than only detecting whether vibration occurred.

It is ideal for Arduino, ESP32, Raspberry Pi Pico, STM32, electronic drums, impact detection, vibration monitoring, interactive projects, and educational electronics.

Technical Specifications

  • Sensor Type: Piezoelectric Ceramic Vibration Sensor
  • Operating Voltage: 3.3V or 5V DC
  • Operating Current: <1mA
  • Output Type: Analog Voltage Signal
  • Operating Temperature: -10°C to +70°C
  • Module Dimensions: Approx. 30 × 23 × 17mm
  • Interface: Analog
  • Sensor Element: Piezoelectric Ceramic
  • Output Response: Varies with vibration/impact intensity
  • Microcontroller Connection: Analog ADC Input

How It Works

The module uses a piezoelectric ceramic element that generates an electrical signal when subjected to mechanical stress, bending, vibration, or impact.

Stronger mechanical vibration generally produces a larger electrical response, allowing the connected controller's ADC to estimate the relative intensity of the vibration.

This makes the module useful for applications where simply knowing that vibration occurred is not enough.

Pin Configuration

The standard module uses a simple three-pin controller interface:

S – Analog Signal Output
+ – VCC, 3.3V or 5V
– – GND

The S output should be connected to an analog input/ADC pin on the microcontroller.

The piezoelectric ceramic element itself connects to the corresponding sensor input terminals on the module.

Arduino & ESP32 Compatibility

The analog output makes the sensor easy to use with development boards equipped with an ADC, including:

Arduino UNO / Mega / Nano
ESP32
ESP8266
Raspberry Pi Pico
STM32

For an Arduino UNO, for example, the signal output can be connected to an analog input such as A0, allowing vibration intensity to be monitored through ADC readings.

When using an ESP32 or another 3.3V ADC, make sure the signal presented to the ADC remains within the microcontroller's permitted input-voltage range.

Analog vs. Digital Vibration Sensors

A digital vibration module normally reports only whether vibration has crossed a predefined threshold.

This analog piezoelectric module provides a varying signal instead, making it possible to distinguish between relatively light taps, stronger impacts, and different vibration levels through software.

This makes it particularly useful for interactive applications such as electronic percussion and vibration analysis experiments.

Applications

Ideal for vibration detection, knock detection, impact sensing, electronic drums and percussion, robotics, alarm systems, machine vibration experiments, interactive installations, Arduino projects, ESP32 projects, educational electronics, mechanical movement detection, and DIY sensor projects.

Important Note

This module measures the relative strength of vibration or mechanical impact. It should not be considered a calibrated vibration measurement instrument and does not directly provide engineering units such as acceleration in g or vibration velocity in mm/s.

The actual analog reading depends on the piezo element, mounting method, direction and strength of the vibration, mechanical structure, ADC resolution, and software processing.

For accurate industrial vibration measurement or frequency/acceleration analysis, a calibrated accelerometer or dedicated vibration sensor is more appropriate.

Package Includes

1 × Analog Piezoelectric Ceramic Vibration Sensor Module
