Overview

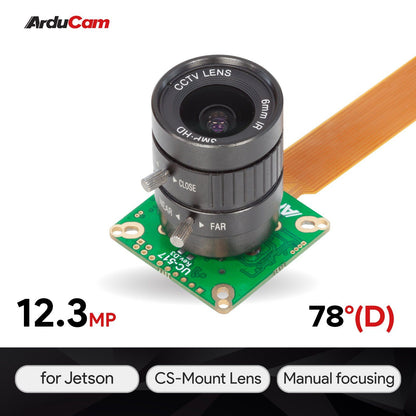

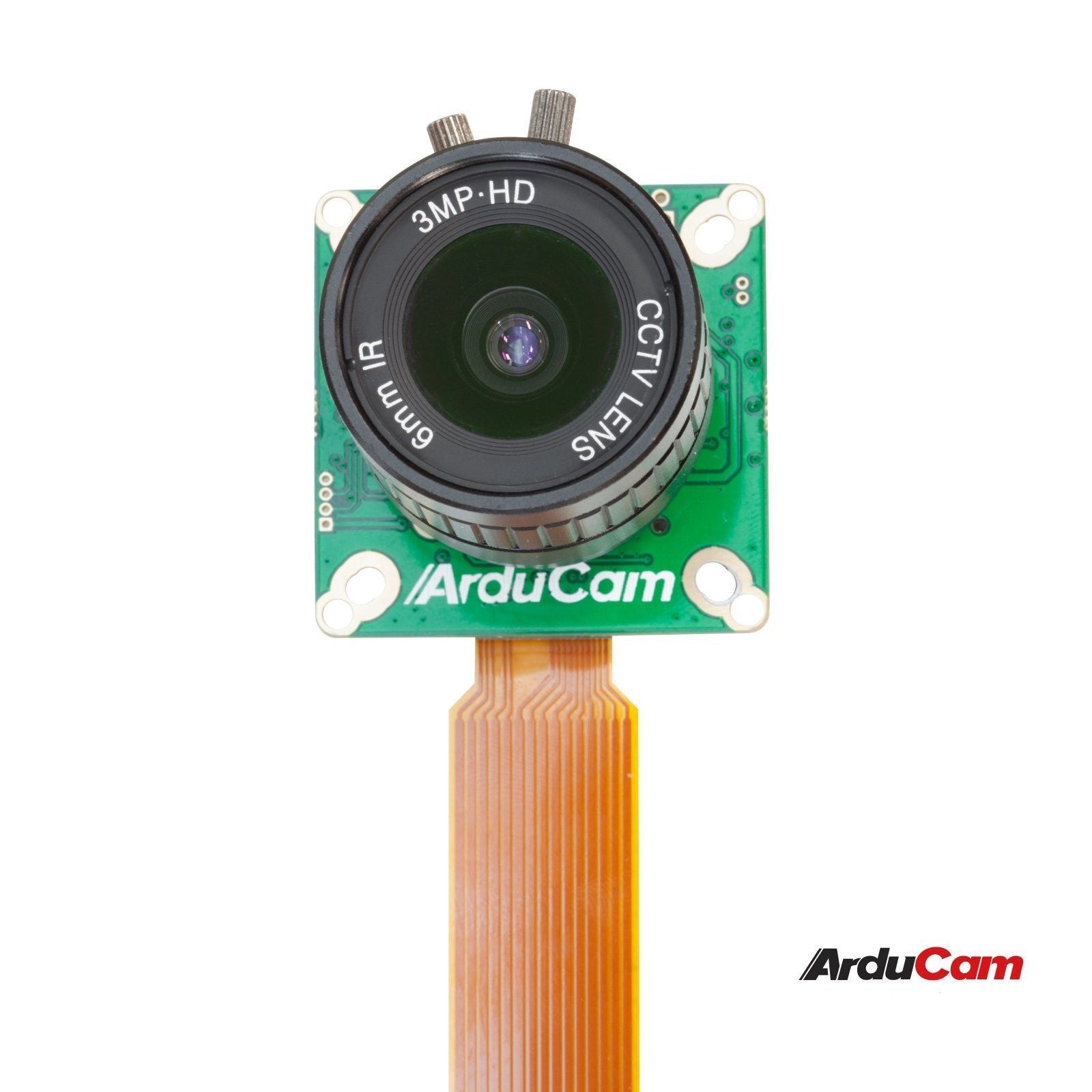

Arducam 477P high-quality camera module features a three-hole pitch camera board with a 6mm CS lens. With natively hardware ISP capability, customers can use this camera module on the Jetson Board/Raspberry Pi Compute Module CM4, CM3, and CM3+.Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. We have also adapted the camera into the NVIDIA Jetson Orin kernel based on it.
Applications
- UAV/Drones/FPV camera
- Machine Vision
- Robotics
- Face Recognition
- Defect Detection
Features

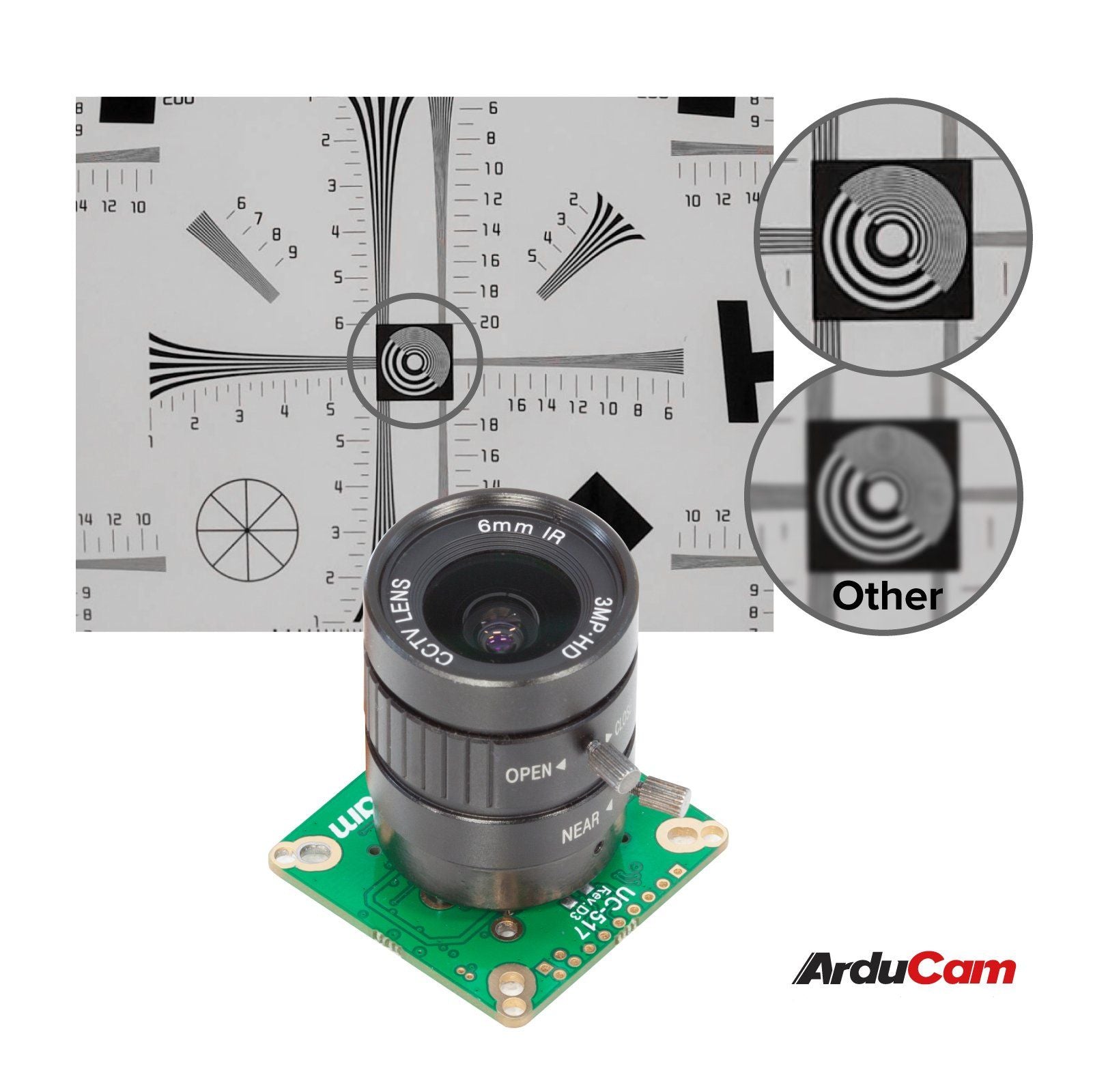

- Get Clearer Images: This camera adopts a 1/2.3" 12.3 Megapixel sensor for sharp image, max. still resolution 4056(H) x 3040(V).
- Less Hassle: No more wasting time looking for the CS lens and camera case. A 1/2.3" 6mm focal length CS lens is included.
- More Lanes: The Arducam high-quality camera module has a 4-lane MIPI CSI-2 interface to make it possible to get more data through.
- Wide Compatibility: Specially designed for Jetson NVIDIA Orin NX/AGX Orin
Specifications
Camera
| Still Resolution |
12.3 Megapixels |
| Video Modes |
NVIDIA Jetson Orin NX/Orin Nano/AGX Orin:
L4t 32.x: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps
L4t 35.x: 4032x3040@20fps, 3840x2160@30fps, 1920x1080@60fps |
| Sensor Resolution |
4056 x 3040 pixels |
| Sensor image area |
6.287mm x 4.712 mm (7.9mm diagonal) |
| Pixel Size |
1.55 µm x 1.55 µm |
| Optical Size |
1/2.3" |
| IR Sensitivity |
Integral IR-cut Filter, visible light only |
Lens
| Focus Type |
Manual Focus |
| Focal Length |
6mm |
| F.NO |
F1.2 |
| Field of View(FOV) |
78°(D)×65°(H)×51°(V) |
| Lens Mount |
CS-Mount |
| MOD |
0.2mm |
| Back Focal Length |
7.53mm |
| Lens Dimension |
Φ30×31mm |
Electrical & Mechanical

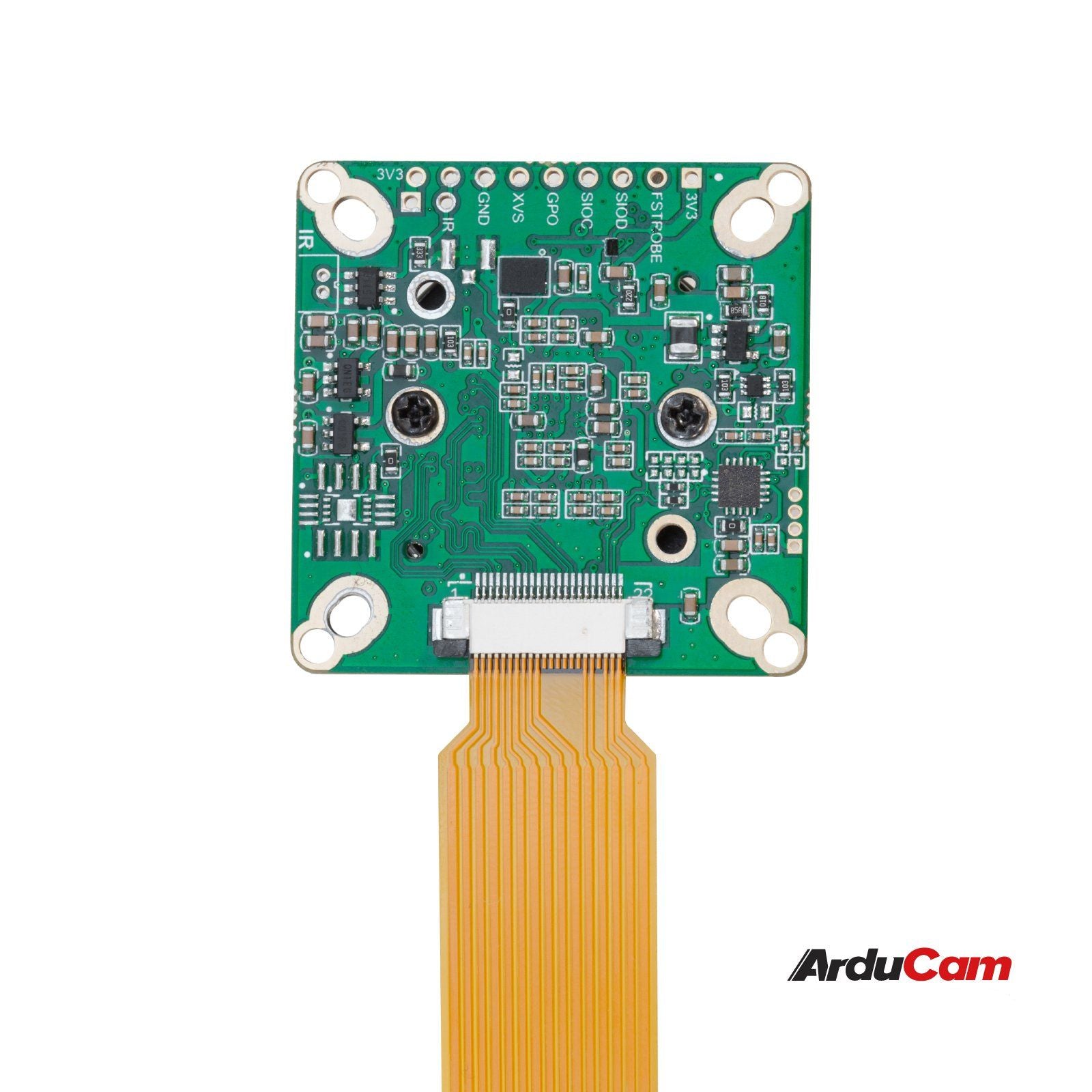

| Camera Board Size |
38 × 38mm |
| Hole Pitch |
Compatible with 29mm, 30mm, 34mm |
| Peaking Current |
300mA |
Package Including

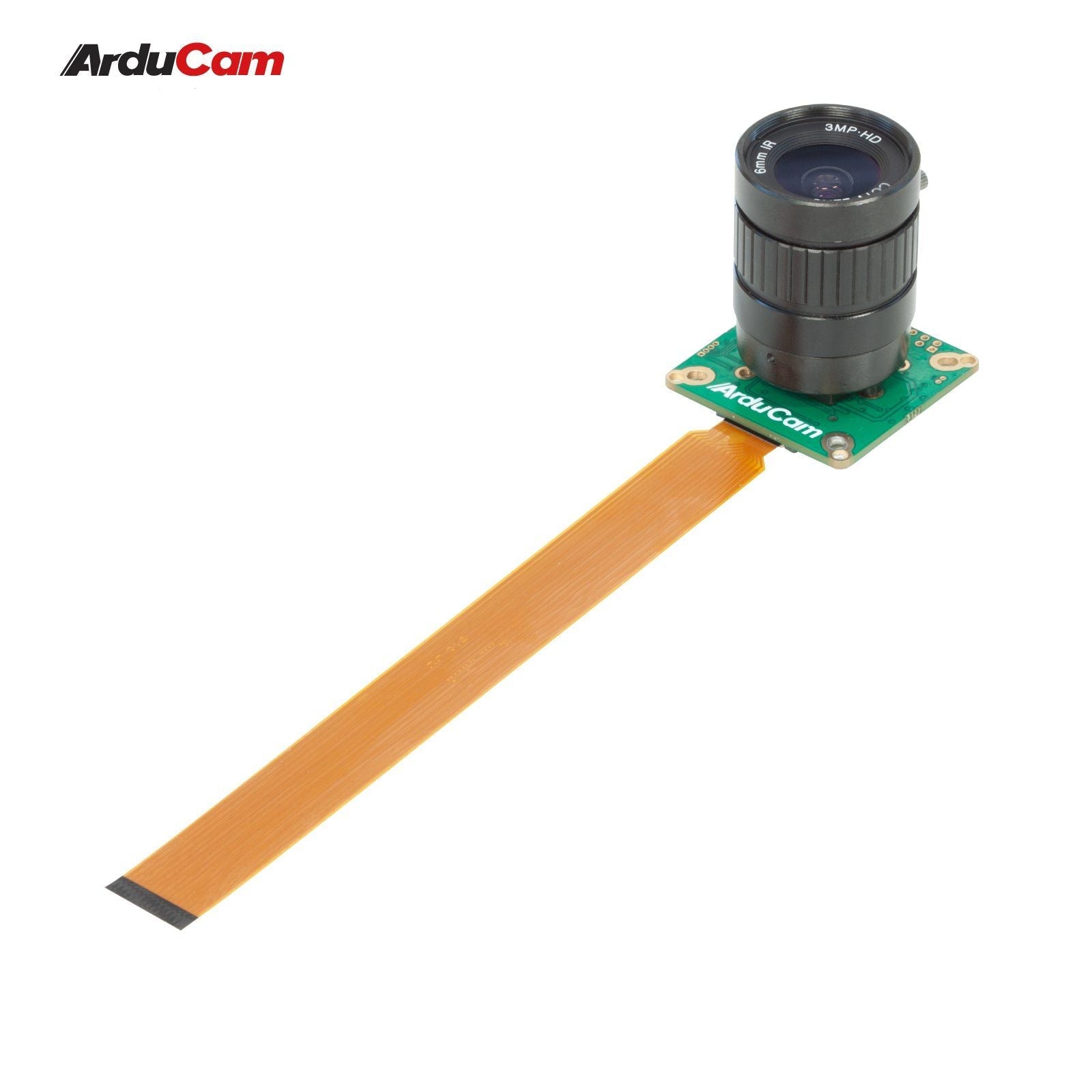

- 1 x 12MP Camera Module with 6mm CS Lens

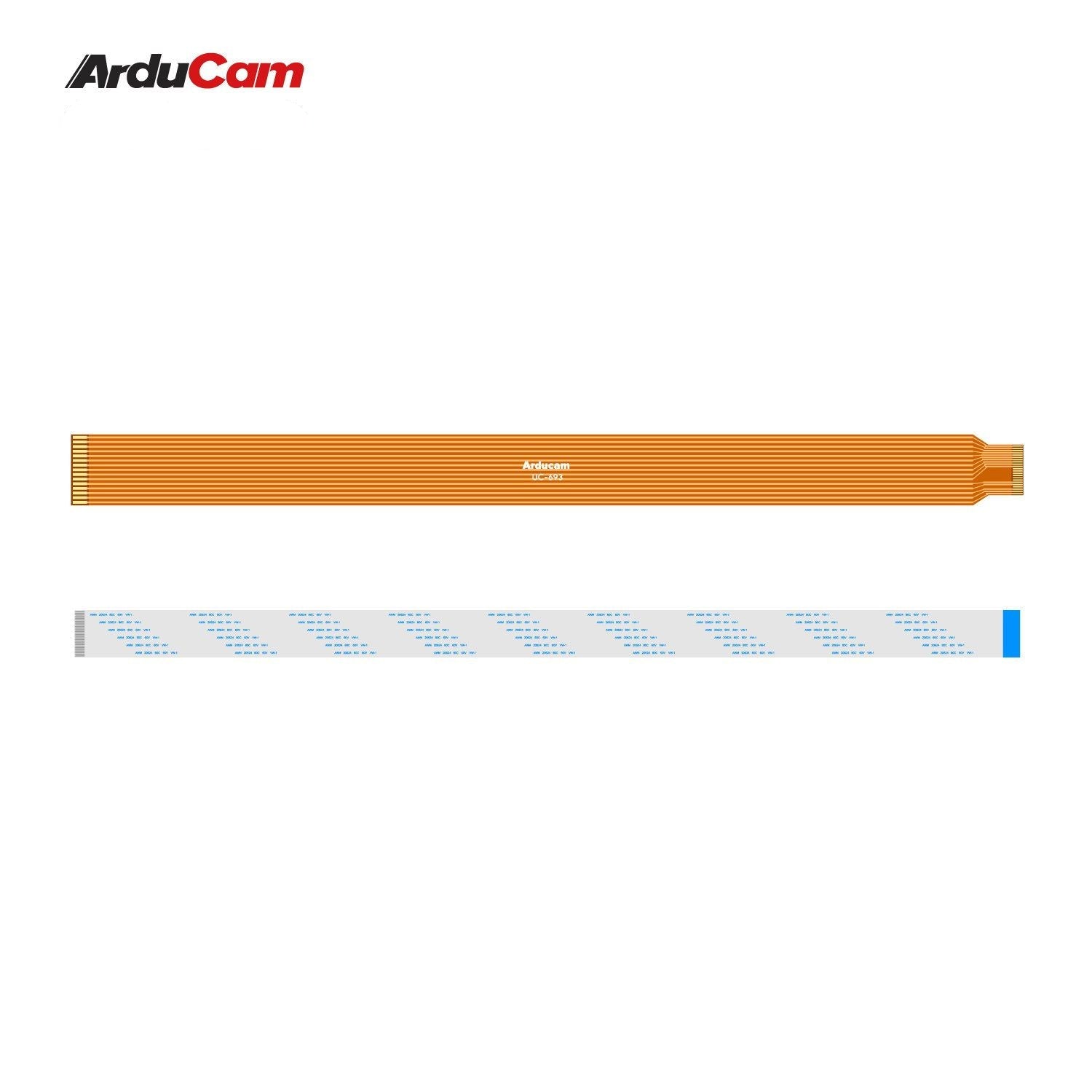

- 1 x 15-22pin FPC Cable
- 1 x 22-22pin FPC Cable
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description
- No SBC board is included in the package
