Overview
No less than the Raspberry Pi official camera V2, this camera module is also equipped with a high-definition IMX219 8MP sensor for shooting HD video and still images. It is excellent in image quality, color fidelity, and low light, supports video modes, and still captures.
For beginners, this is a very easy camera module to get started; for advanced players, this camera module has more knowledge that you should explore and DIY.
Application
- Unmanned Aerial Vehicles (UAVs)
- Building Drones
- Autonomous Robotic Systems
- Mobile Medical Imaging
- Intelligent Video Analytics (IVA)
Features
- High-Speed Data Interface: Standard 2-lane MIPI CSI-2 interface with configurable 4-lane high-performance mode. Delivers maximum bandwidth for high-resolution sensor data transmission while maintaining compatibility with mainstream embedded platforms.

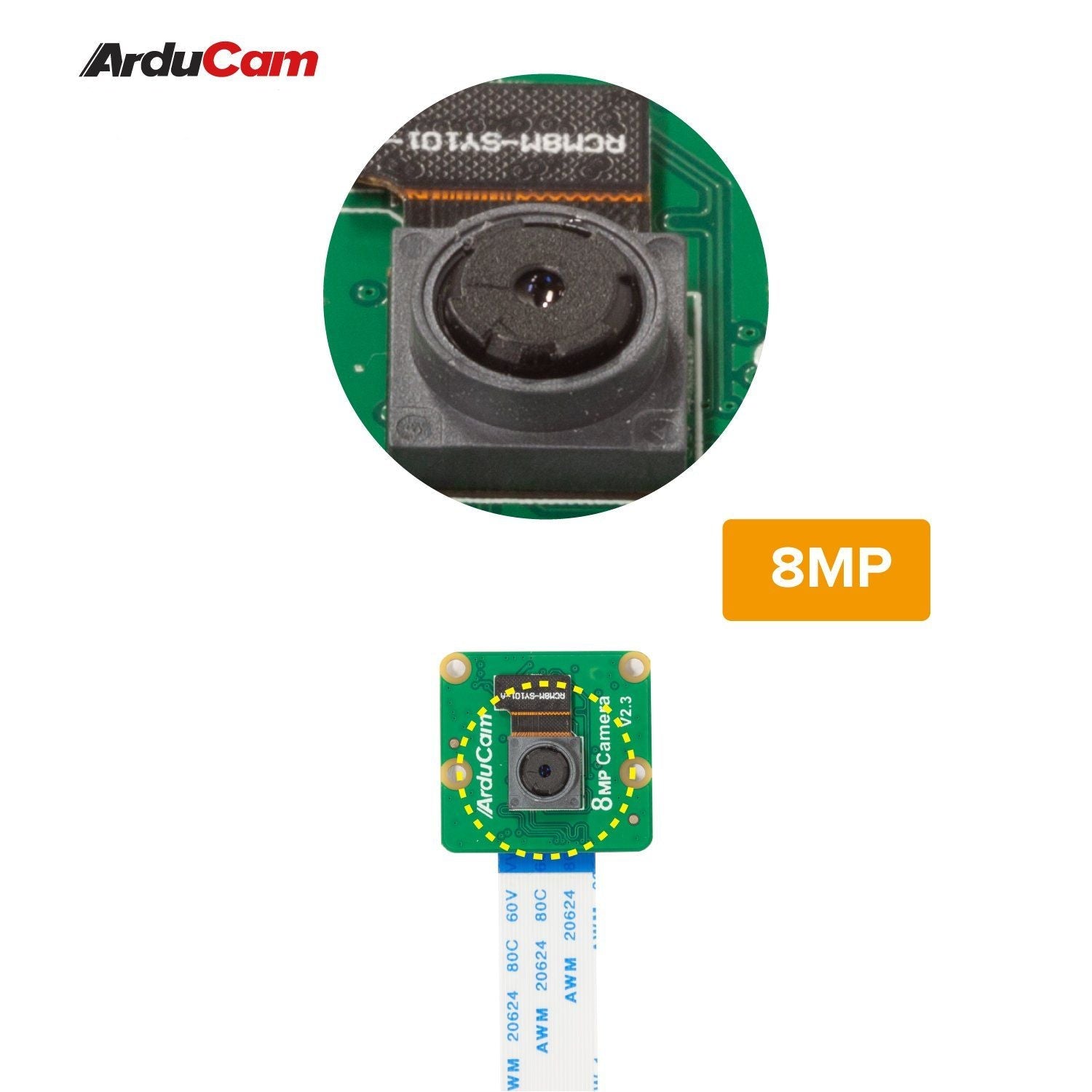

- 8MP HD Camera: Designed for Raspberry Pi, based on Sony 8MP IMX219 Sensor.
- Higher quality: Compared with the official Raspberry Pi Camera v1, not only the resolution is improved, but its image quality, color fidelity, and low light performance are all upgraded by leap.
- 1080P High resolution: Supports 3280 × 2464 pixel still images, as well as video modes, and still captures.

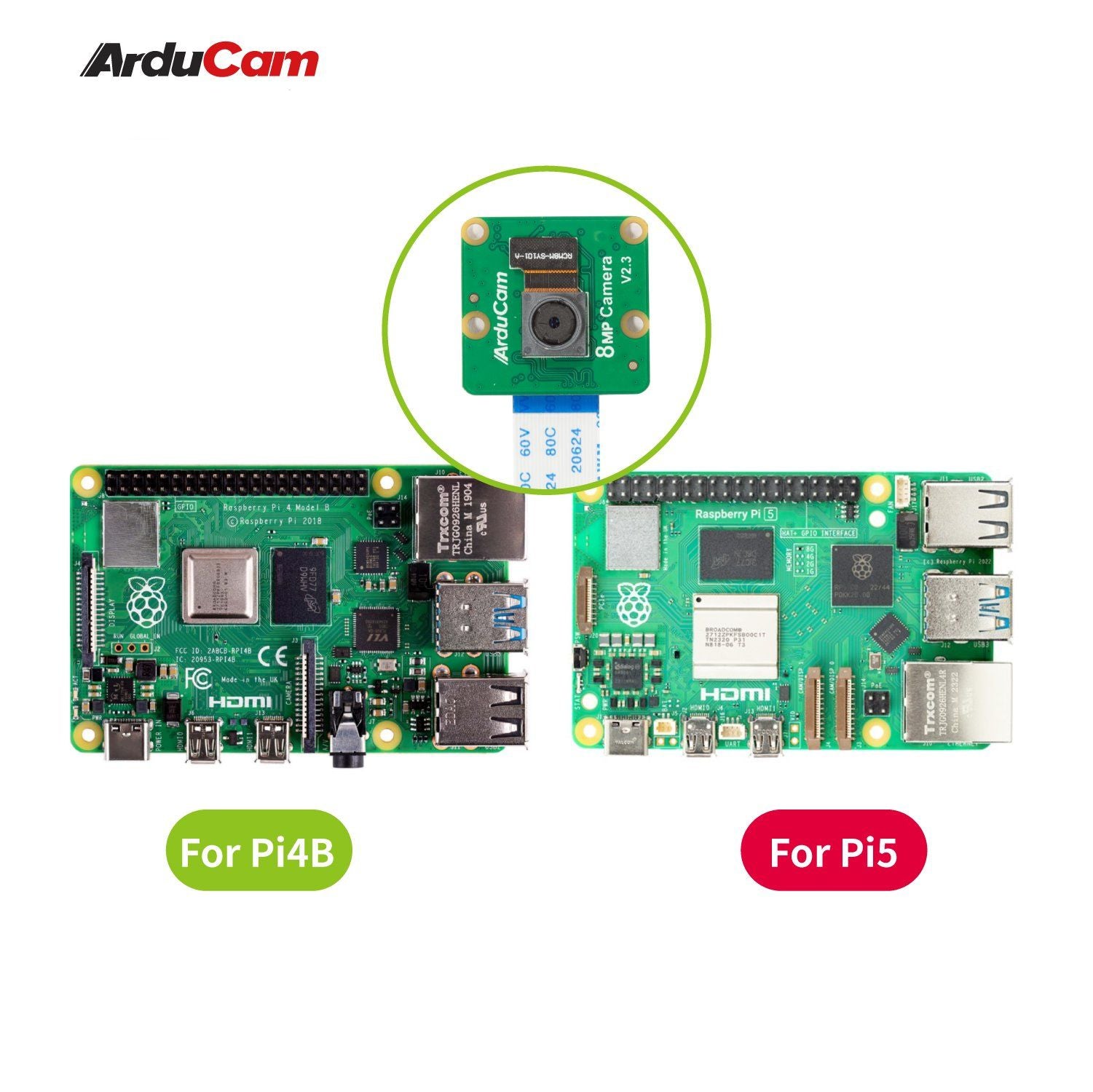

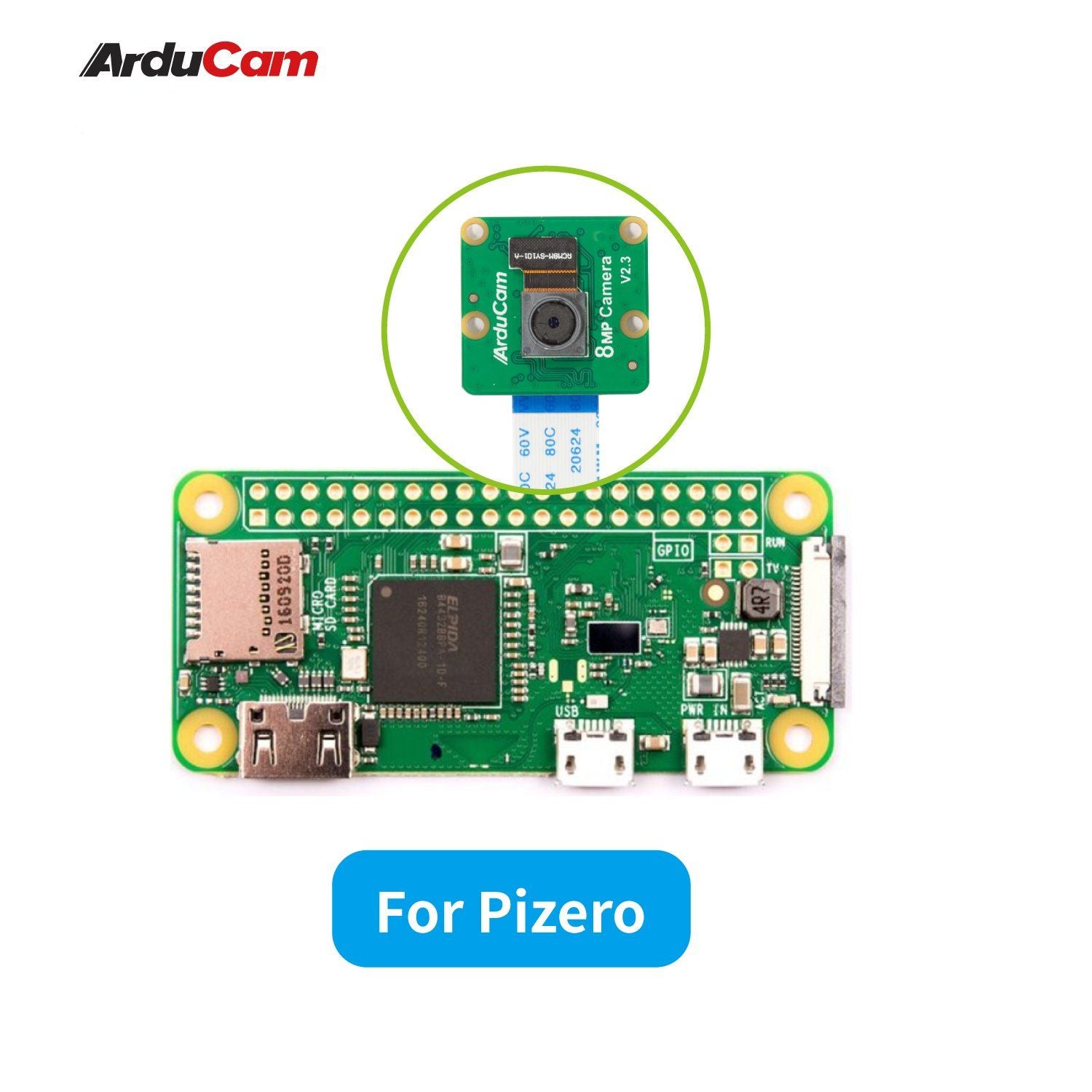

- Easy to setup: Simply use the ribbon cable to attach the CSI port on the Raspberry Pi, then make a simple configuration and you are ready to use the camera.
- Easy to use for beginners, and for advanced gamers, it offers more to explore.
- Wide Application: Perfect for time-lapse, slow motion, home security applications, monitoring Octoprint 3D Printer, and wildlife camera trap applications.
Specifications
Camera
| Image Sensor |
IMX219 |
| Still Resolution |
8 Megapixels |
| Video Modes |
1080p47, 1640 × 1232p41 and 640 × 480p206 |
| Sensor Resolution |
3280 × 2464 pixels |
| Sensor image area |
3.68 x 2.76 mm (4.6 mm diagonal) |
| Pixel Size |
1.12 µm x 1.12 µm |
| Optical Size |
1/4" |
| IR Sensitivity |
Integral IR-cut Filter, visible light only |
Lens
| Focus Type |
Fixed Focus |
| Focal Length |
3.04mm |
| F.NO |
F2.0 |

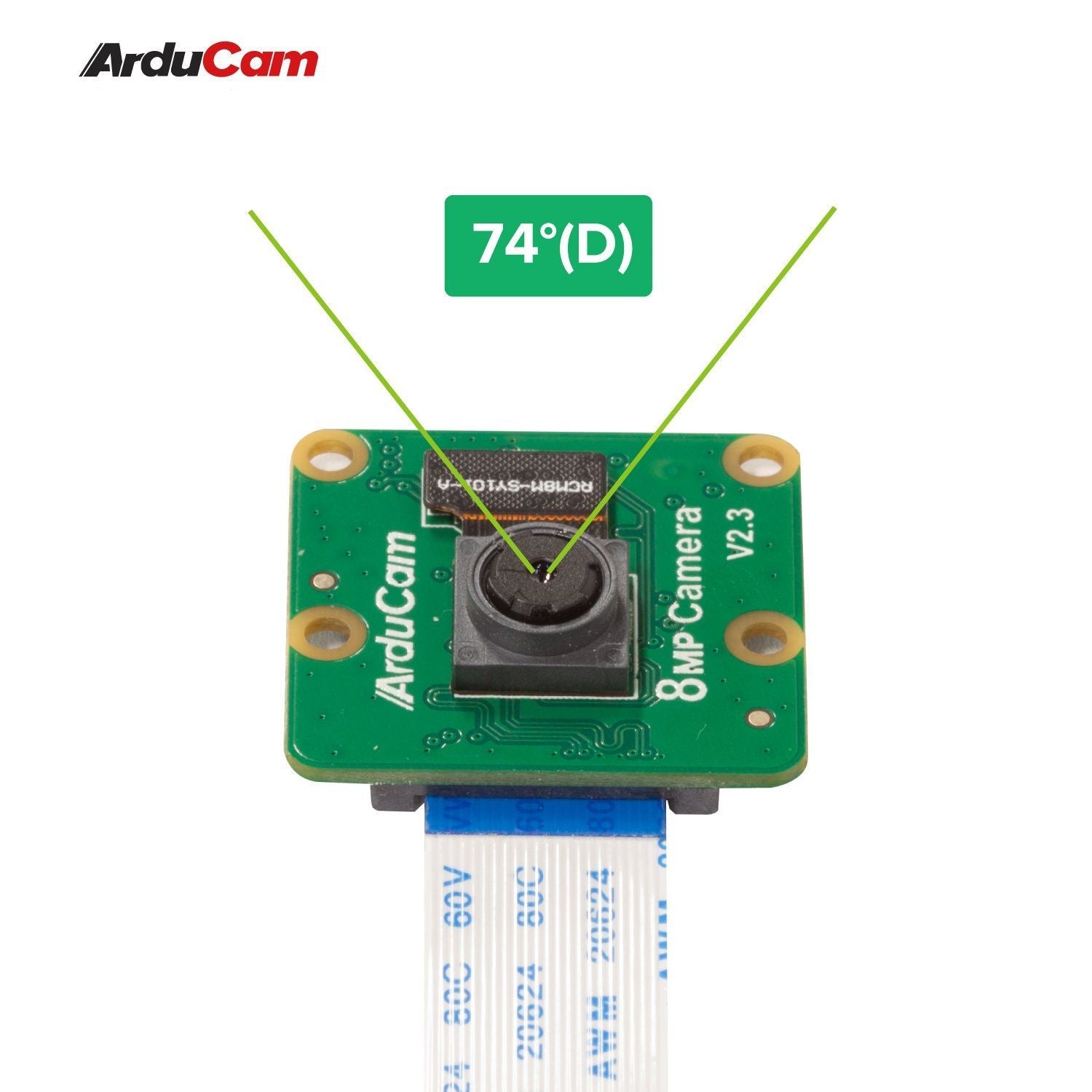

| Field of View(FOV) |
62.2°(H)×48.8°(V) |
| Lens Type |
Stock Lens |
| Focus Distance |
200mm to infinity |
Electrical & Mechanical
| Interface |
MIPI CSI-2 |
| Data Lanes |
2-lane (default), configurable to 4-lane |

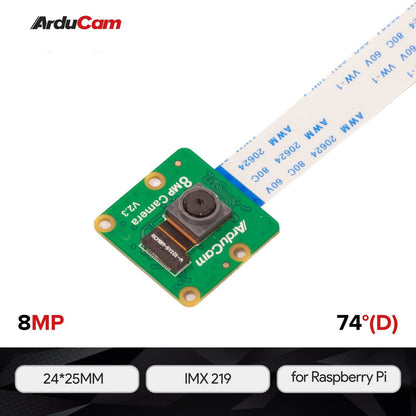

| Camera Board Size |
25 × 24mm |
| Peaking Current |
300mA |
Package Including

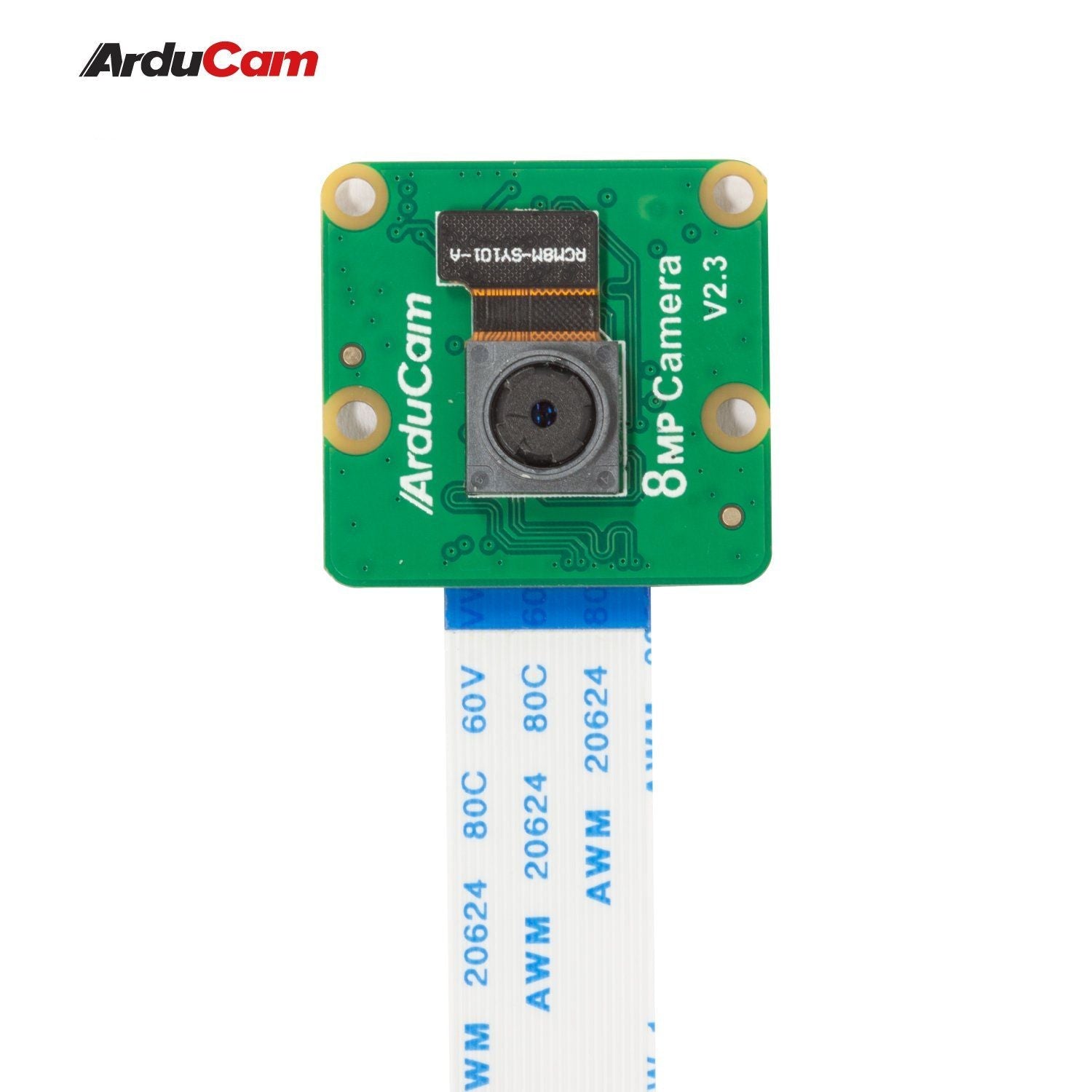

- 1pcs Arducam IMX219 Visible Light Fixed Focus Camera Module
- 1pcs 15cm 22-22pin FPC cable
- 1pcs 15cm 15-22pin FPC cable
