Overview
A 16MP autofocus high-resolution camera board that takes what Raspberry Pi V1, V2, and HQ have to offer, and excels in every single aspect. It takes zero compromises in specs. With a resolution of 16 megapixels (compared to 8MP and 12MP), an autofocus lens, a V2-like form factor, and boatloads of improvements, the camera provide a better choice for a whole world of industrial/consumer/etc. applications, it’s compatible with any existing Pi models, work with the latest software from the foundation, and leverages the same tuning algorithms used in the official camera modules. Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera into NVIDIA Jetson Orin kernel.
Applications
- Time-lapse Machine
- DSLR Camera Control
- Security System
- Smart Video Doorbell
- Face Recognition
- Instant (Polaroid-Style) Camera, etc.
Features
- High-Resolution Camera: Utilizes the IMX519 CMOS sensor with a 16MP capacity, ensuring exceptional sharpness and clarity for both images and videos.
- Crisp Imaging: Delivers stunning still images at a maximum resolution of 4656*3496 pixels and supports various frame rates, including 1080p60, 4656x3496 at 9fps, and 3840x2160 at 20fps, providing flexibility for different recording needs.
- Compact Design: Featuring a mini camera board size of 24x25mm, this module offers a compact form factor that seamlessly integrates into various projects, providing versatility without compromising on quality.
- Tailored Compatibility: Compatible with Raspberry Pi and NVIDIA Jetson platforms, this IMX519 camera module ensures effortless integration with these devices, allowing users to fully utilize its capabilities without compatibility issues.
- User-Friendly Setup: Requires only straightforward driver installation, making the setup process hassle-free and convenient for both beginners and experienced users alike.
Specifications
| Image Sensor |
| Sensor |
IMX519 |
| Still Resolution |
16 Megapixels |
| Color Filter Type |
Color |
| Shutter Type |
Rolling Shutter |
| Optical Size |
1/2.53" |
| Sensor Output Format |
RAW |
| Platform Output Format |
JPEG/YUV/RGB/RAW10 |
| Pixel Size |
1.12 µm x 1.12 µm |
| Sensor Active Area |
4656 × 3496 pixels |
| Frame Rate |
4656x3496@9fps, 3840x2160@20fps, 1920x1080@60fps, 1280x720@80fps |
| Lens Specs |
| Focus Type |
Auto Focus |
| FOV |

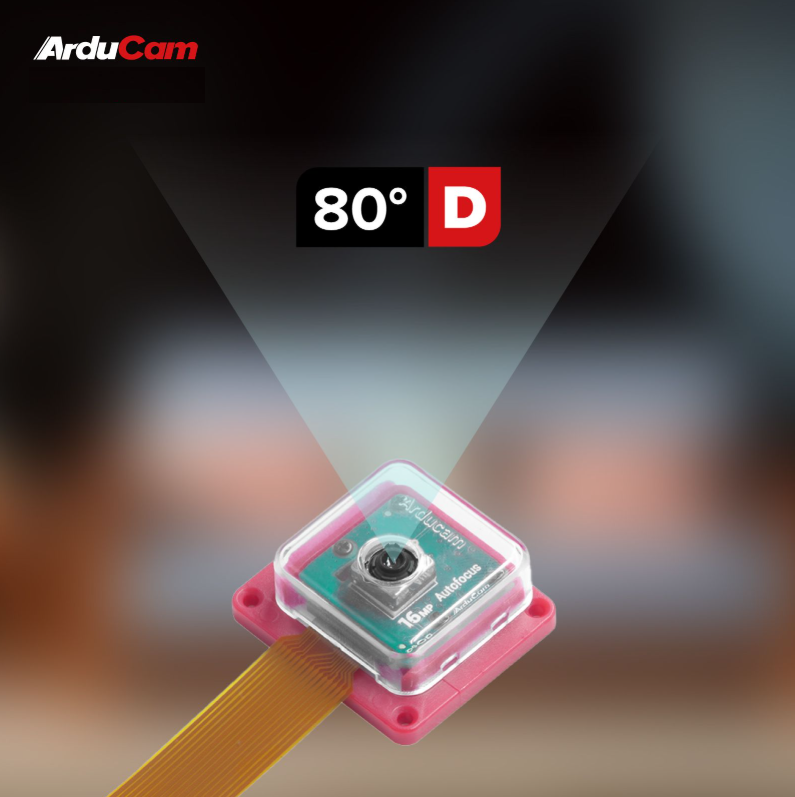

80°(D)×67°(H)×53°(V) |
| Lens Mount |
Stock Lens Mount |
| F.NO |
F1.75 |
| E.F.L |
4.28 |
| Default Focus Range |
10cm to infinity |
| IR Sensitivity |
Integrated 650nm IR filter |
| Electrical and Mechanical |
| Operating Voltage |
3.3V |
| Temperature Range(Operating) |
-4°F-167°F (-20°C to +75°C) |
| Temperature Range(Stable Image) |
32°F-122°F (0°C to +50°C) |
| Power Requirements(Kit) |
1W |
| Overall Size |
25x24 mm |
| Functionality and Compatibility |
| Interface |
MIPI CSI-2 |
| Supported OS |
Linux OS |
| Supported Platform |
Raspberry Pi, NVIDIA Jetson |
Package Including
- 1 x Arducam 16MP-AF Camera Module
- 1 x 22pin to 22pin FFC Cable (15cm)
- 1 x 15pin to 22pin FFC Cable (15cm)
Notes
- Raspberry Pi board is not included in the package.
- This camera is released for the official NVIDIA® Jetson™ Developer Kit, and it does not guarantee to support other third-party boards.
