ASUS Tinker Board SBC – RK3288 Quad-Core 1.8GHz, 2GB RAM, WiFi & Gigabit Ethernet
The ASUS Tinker Board is a compact and powerful Single Board Computer (SBC) designed for makers, developers, IoT applications, multimedia systems, education, robotics, and embedded computing projects.
Powered by the Rockchip RK3288 quad-core ARM Cortex-A17 processor running at up to 1.8GHz, the Tinker Board combines 2GB of dual-channel LPDDR3 memory with a Mali-T764 graphics processor, providing a capable platform for Linux and Android applications.
Its Raspberry Pi-style form factor, 40-pin GPIO header, Gigabit Ethernet, WiFi, Bluetooth, HDMI, four USB ports, MIPI camera/display interfaces, and high-definition audio make it suitable for both embedded development and desktop-style applications.
Technical Specifications
-
Brand: ASUS
-
Model: Tinker Board
-
Product Type: Single Board Computer (SBC)
-
SoC: Rockchip RK3288
-
CPU: Quad-Core ARM Cortex-A17
-
CPU Frequency: Up to 1.8GHz
-
GPU: ARM Mali-T764 MP4
-
Memory: 2GB Dual-Channel LPDDR3
-
Storage: MicroSD Card Slot
-
Ethernet: Gigabit Ethernet
-
WiFi: IEEE 802.11 b/g/n
-
Bluetooth: Bluetooth 4.0 + EDR
-
USB: 4 × USB 2.0 Ports
-
Display Output: HDMI
-
Camera Interface: 15-Pin MIPI CSI
-
Display Interface: 15-Pin MIPI DSI
-
GPIO: 40-Pin Expansion Header
-
Available GPIO: Up to 28 GPIO Pins
-
SPI: Up to 2 Buses
-
I2C: Up to 2 Buses
-
UART: Up to 4
-
PWM: Up to 2
-
PCM/I2S: Supported
-
Audio: Up to 24-Bit / 192kHz HD Audio
-
Audio Connector: Integrated Audio Jack with Output & Microphone Input
-
S/PDIF: Supported
-
Power Input: Micro USB
-
Recommended Power: 5V DC, 2–2.5A
-
Board Dimensions: Approx. 85.5 × 54mm
-
Weight: Approx. 55g
-
Operating System Support: Linux / TinkerOS & Android
Rockchip RK3288 Quad-Core Processor

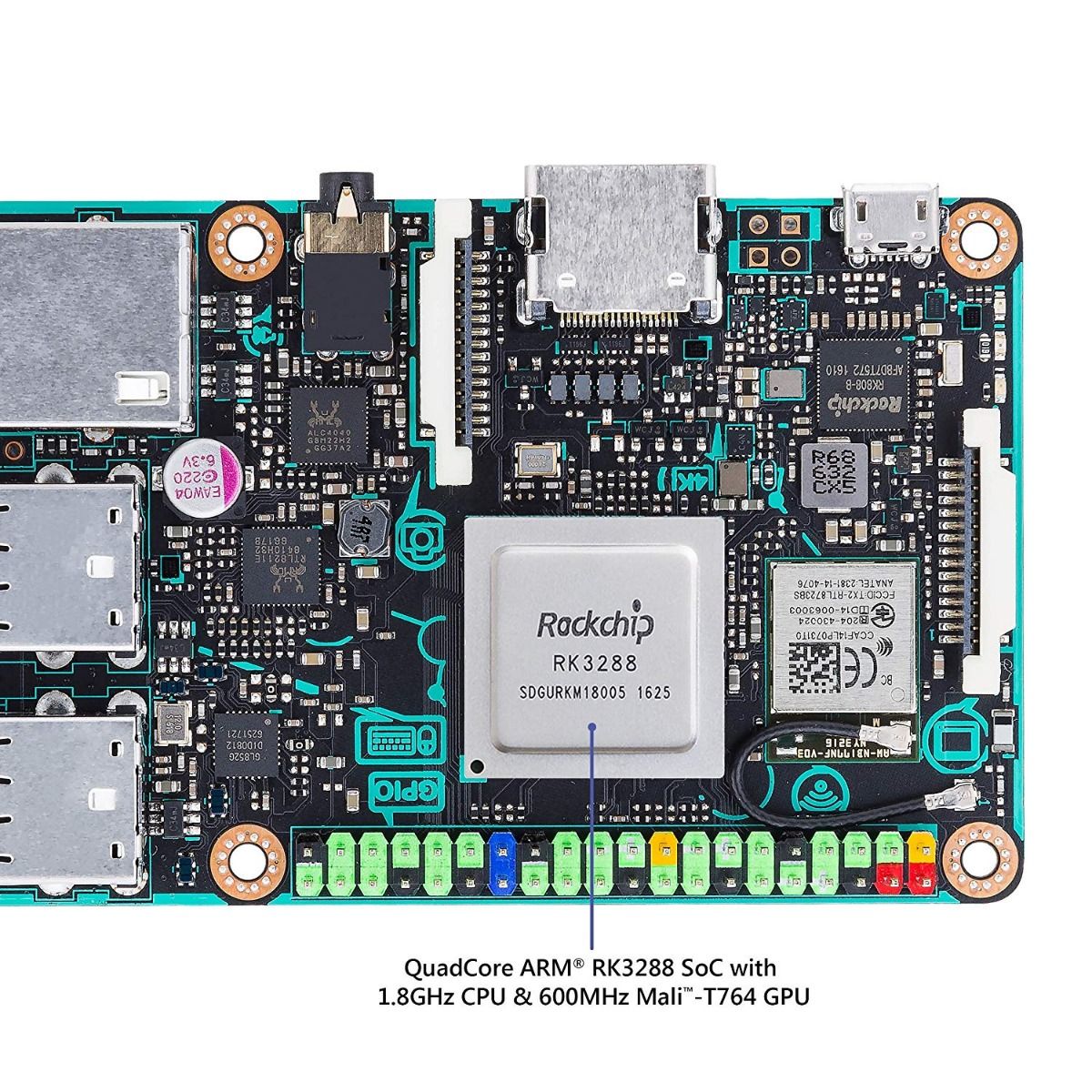

At the heart of the Tinker Board is the Rockchip RK3288, featuring four ARM Cortex-A17 processor cores operating at frequencies up to 1.8GHz.
The quad-core architecture provides enough processing capability for applications including programming, IoT gateways, robotics, multimedia, automation, education, embedded computing, and lightweight desktop applications.
Mali-T764 Graphics
Graphics processing is handled by the integrated ARM Mali-T764 MP4 GPU, providing hardware graphics acceleration for compatible applications.
The platform supports multimedia playback and hardware decoding for compatible H.264 and H.265 video content.
ASUS specifies support for display output up to 4K at 30Hz, although actual playback performance depends on the operating system, software, codec, hardware acceleration support, and source material.
2GB Dual-Channel Memory
The Tinker Board includes 2GB of onboard dual-channel LPDDR3 memory.
Unlike many microcontroller development boards, the Tinker Board operates as a complete Linux/Android computer capable of running an operating system, graphical applications, networking services, programming environments, and multiple processes.
The RAM is soldered to the board and is not intended to be upgraded by the user.
Gigabit Ethernet
The board includes a dedicated Gigabit Ethernet interface, making it useful for applications requiring faster and more stable wired networking.
ASUS specifically designed the Ethernet interface so that it operates independently rather than sharing bandwidth with the USB bus.
This is useful for applications such as:
IoT Gateways
Network Projects
Home Automation Servers
Data Logging
Remote Monitoring
Embedded Network Systems
WiFi & Bluetooth
Integrated wireless connectivity includes:
802.11 b/g/n WiFi
Bluetooth 4.0 + EDR
This allows the Tinker Board to communicate with wireless networks, Bluetooth peripherals, sensors, and other compatible devices without requiring an additional USB wireless adapter.
40-Pin GPIO Header
The Tinker Board includes a maker-friendly 40-pin GPIO expansion header.
Available interfaces include:
GPIO
I2C
SPI
UART
PWM
PCM / I2S
3.3V Power
5V Power
Ground
This makes the board suitable for interfacing with sensors, displays, motor controllers, relays, ADC modules, communication modules, and other embedded electronics.
Camera & Display Interfaces
In addition to HDMI, the board provides dedicated MIPI interfaces:
15-Pin MIPI CSI – Camera Interface
15-Pin MIPI DSI – Display Interface
These interfaces allow compatible camera and display hardware to be integrated directly into embedded systems.
Compatibility should always be verified for the specific camera or display before connection.
High-Definition Audio
The Tinker Board includes an integrated HD audio codec supporting audio quality up to 24-bit / 192kHz.
The integrated audio jack supports both audio output and microphone input, eliminating the need for an external USB sound card in many applications.
S/PDIF functionality is also available through the board's expansion connections.
Operating System Support
The ASUS Tinker Board was designed to support operating systems including:
TinkerOS / Debian-Based Linux
Android
Other community-supported operating systems may also be available.
Operating-system compatibility and available software packages depend on the specific Tinker Board revision and OS image being used.
Raspberry Pi-Style Form Factor
With dimensions of approximately 85.5 × 54mm, the Tinker Board uses a compact form factor similar to popular Raspberry Pi boards.
ASUS designed the platform with a high degree of mechanical compatibility, and many Raspberry Pi-style cases and accessories may physically fit.
However, physical compatibility does not mean complete electrical or software compatibility. GPIO pin functions, camera/display interfaces, operating systems, drivers, and accessories should be checked before use.
Applications
Ideal for IoT gateways, robotics, home automation, embedded Linux development, programming education, multimedia systems, digital signage, network applications, smart-home controllers, industrial prototypes, computer vision projects, data logging, electronics development, automation, and DIY single-board computer projects.
Important Note
The ASUS Tinker Board, Tinker Board S, Tinker Board R2.0, Tinker Board S R2.0, and Tinker Board 2 are different products.
This description is specifically for the original ASUS Tinker Board based on the Rockchip RK3288 with 2GB RAM and MicroSD storage.
The original Tinker Board does not include the 16GB eMMC storage found on the Tinker Board S.
A good-quality 5V power supply capable of approximately 2–2.5A is recommended, especially when USB peripherals and other accessories are connected.
Package Includes
- 1 × ASUS Tinker Board Single Board Computer
- 1 × Passive Heatsink
- 1 × User Documentation
