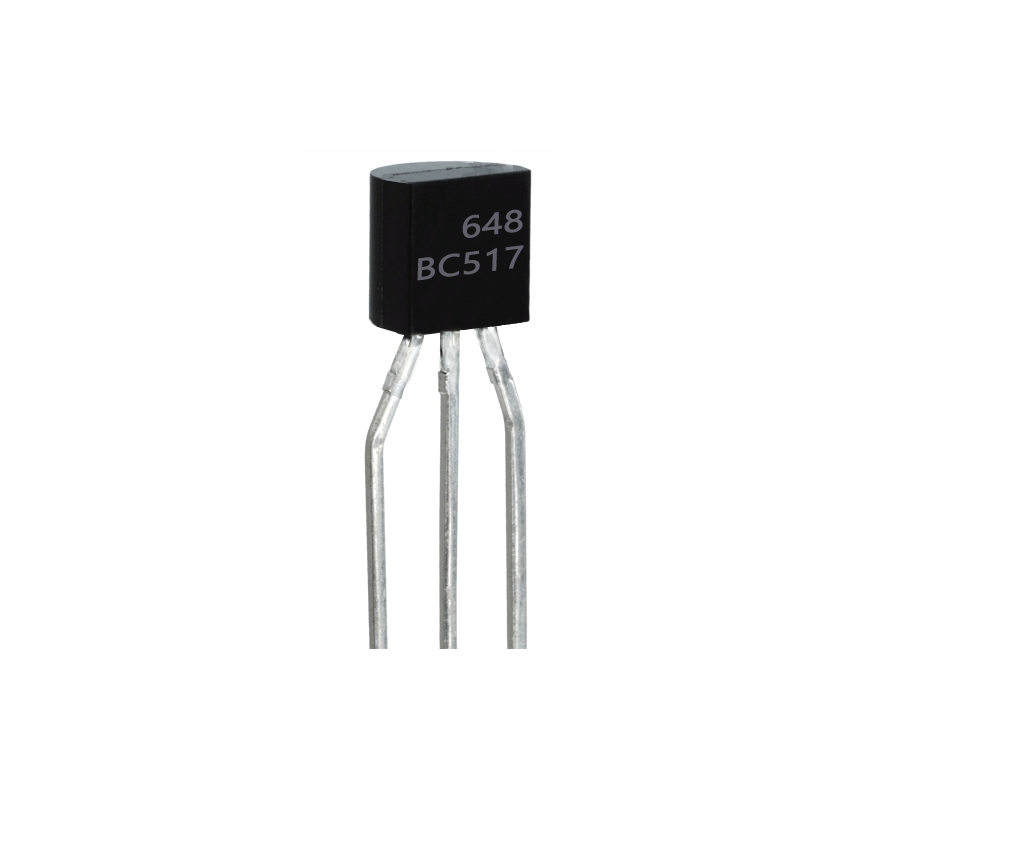

BC517 NPN Darlington Transistor – 30V, 1.2A, High Gain, TO-92
The BC517 is a high-gain NPN Darlington transistor designed for switching and amplification applications where a very high current gain is required from a relatively small base current.
Unlike a conventional single BJT, the BC517 integrates two transistors in a Darlington configuration, providing a DC current gain of at least 30,000 under specified test conditions.
With a 30V collector-emitter rating, collector current capability up to 1.2A, and compact through-hole TO-92 package, the BC517 is suitable for relay drivers, LED drivers, small loads, signal amplification, microcontroller interfaces, and general electronics projects.
Technical Specifications
-
Part Number: BC517
-
Transistor Type: NPN Darlington BJT
-
Polarity: NPN
-
Collector-Emitter Voltage (VCEO): 30V Max
-
Collector-Base Voltage (VCBO): 40V Max
-
Emitter-Base Voltage (VEBO): 10V Max
-
Continuous Collector Current (IC): Up to 1.2A*
-
DC Current Gain (hFE): 30,000 Minimum at IC = 20mA, VCE = 2V
-
Collector-Emitter Saturation Voltage (VCE(sat)): Up to 1V at IC = 100mA, IB = 0.1mA
-
Base-Emitter On Voltage: Up to 1.4V at IC = 10mA, VCE = 5V
-
Maximum Power Dissipation: Approx. 625mW under specified thermal conditions
-
Junction Temperature: Up to +150°C
-
Operating / Storage Junction Range: -55°C to +150°C
-
Package: TO-92
-
Number of Pins: 3
-
Mounting Type: Through-Hole
-
Typical onsemi Pinout: Collector – Base – Emitter
Darlington Transistor Design
The BC517 contains two NPN transistor stages internally connected in a Darlington configuration.
This arrangement multiplies the current gain of the transistor stages, allowing a relatively small base current to control a significantly larger collector current.
The BC517 therefore provides much higher current gain than conventional general-purpose NPN transistors such as the BC337 or 2N3904.
Extremely High Current Gain
One of the main advantages of the BC517 is its very high DC current gain.
The device specifies a minimum:
hFE = 30,000
at the specified test condition of IC = 20mA and VCE = 2V.
This high gain makes the BC517 useful when the available control current is limited.
However, current gain varies with collector current, temperature, operating voltage, and individual device characteristics.
Microcontroller Load Driver
The BC517 can be used as a driver between a low-current microcontroller output and an external load.
It can be interfaced with controllers such as:
- Arduino
- ATmega
- PIC
- STM32
- ESP32
- Raspberry Pi GPIO
A suitable base resistor should always be used between the GPIO output and transistor base.
The load current, transistor power dissipation, GPIO voltage, and required switching performance should also be checked during circuit design.
Relay & Inductive Load Control
The high current gain makes the BC517 useful for driving compatible relays and other inductive loads.
When switching a relay coil, solenoid, small motor, or another inductive load, a suitable flyback diode should normally be connected across the load.
The diode protects the transistor from the high reverse-voltage spike generated when current through an inductive load is switched off.
Switching Applications
The BC517 can be used in applications including:
- Relay Drivers
- LED Drivers
- Buzzer Drivers
- Small Solenoids
- Low-Power Motor Control
- High-Gain Switching Circuits
- Logic-Level Interface Circuits
- Microcontroller Output Drivers
For larger loads or applications requiring high switching efficiency, a suitable logic-level MOSFET may be a better choice.
Amplification Applications
In addition to switching, the BC517 can be used where very high current amplification is required.
Possible applications include:
- High-Gain Amplifier Stages
- Sensor Interface Circuits
- Signal Amplification
- Driver Stages
- Low-Current Trigger Circuits
- Darlington Amplifier Circuits
Because of its Darlington construction, the BC517 has a higher base-emitter voltage and saturation voltage than a conventional single NPN transistor.
Important Note
The 1.2A collector-current rating is an absolute maximum rating for the current onsemi BC517-D74Z specification and should not be interpreted as a recommended continuous operating current in every circuit.
Actual safe load current depends on collector-emitter voltage, base drive, ambient temperature, switching duty cycle, power dissipation, PCB design, and thermal conditions.
Also note that historical BC517 specifications from other manufacturers can differ. For example, older Philips/NXP documentation specifies 500mA continuous collector current and 800mA peak. Therefore, if the manufacturer of your stock is unknown, avoid guaranteeing 1.2A without checking the actual manufacturer marking or datasheet.
The Darlington configuration also produces a higher saturation voltage than a conventional transistor. This means the BC517 may dissipate more power when switching higher currents.
Pin configuration can vary between manufacturers. Always verify the Collector, Base, and Emitter arrangement for the exact component supplied before installation.
Applications
Ideal for relay drivers, LED drivers, microcontroller interfaces, high-gain switching, sensor circuits, signal amplification, small solenoid control, low-power motor control, Arduino projects, educational electronics, electronics repair, prototyping, automation, and DIY electronics.
Package Includes
1 × BC517 NPN Darlington Transistor – TO-92
