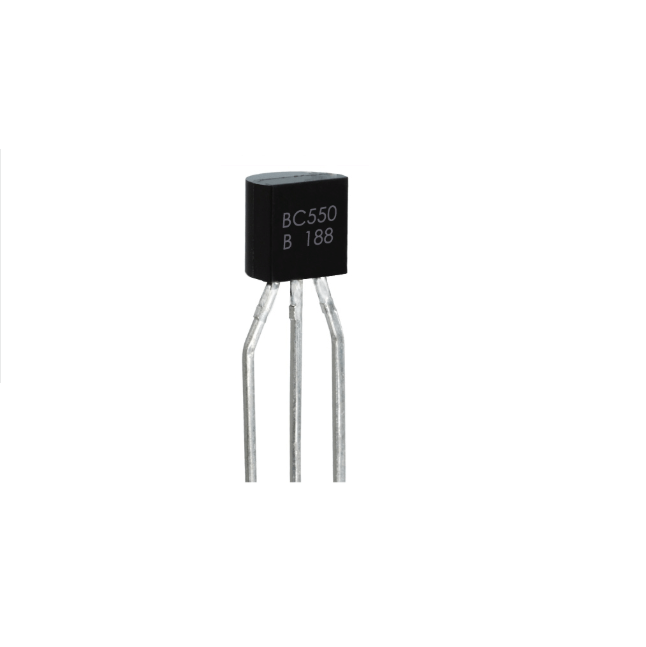

BC550 Low-Noise NPN Transistor – 45V, 100mA, TO-92
The BC550 is a low-noise NPN bipolar junction transistor (BJT) designed for small-signal amplification, audio circuits, sensor interfaces, analog electronics, and low-current switching applications.
With a 45V collector-emitter rating, collector current up to 100mA, high current gain, and low-noise characteristics, the BC550 is particularly suitable for audio-frequency circuits, microphone preamplifiers, sensor amplifiers, signal-conditioning circuits, and other applications where low electrical noise is important.
Its compact TO-92 through-hole package makes it convenient for breadboards, prototyping, educational electronics, repairs, and custom PCB designs.
Technical Specifications
-
Part Number: BC550
-
Transistor Type: NPN Bipolar Junction Transistor (BJT)
-
Polarity: NPN
-
Application Type: General-Purpose / Low-Noise
-
Collector-Emitter Voltage (VCEO): 45V Max
-
Collector-Base Voltage (VCBO): 50V Max
-
Emitter-Base Voltage (VEBO): 5V Max
-
Continuous Collector Current (IC): 100mA Max
-
Peak Collector Current: Up to 200mA on Common BC550 Specifications
-
DC Current Gain (hFE): 110–800, Depending on Gain Grade
-
Transition Frequency (fT): Approx. 300MHz Typical
-
Noise Figure: Approx. 1.2dB Typical at Specified Test Conditions
-
Collector-Emitter Saturation Voltage: Approx. 90mV Typical at IC = 10mA, IB = 0.5mA
-
Maximum Collector Power Dissipation: Approx. 500mW under Specified Conditions
-
Maximum Junction Temperature: +150°C
-
Package: TO-92
-
Number of Pins: 3
-
Mounting Type: Through-Hole
-
Complementary PNP Transistor: BC560
Low-Noise Transistor
The BC550 is specifically designed for low-noise stages in audio-frequency equipment.
This makes it particularly useful when working with small analog signals where unwanted transistor-generated noise could affect signal quality.
Typical low-noise applications include:
- Microphone Preamplifiers
- Audio Input Stages
- Low-Level Sensor Amplifiers
- Audio Preamplifiers
- Signal Conditioning
- Analog Measurement Circuits
BC550 Gain Grades
The BC550 family may be available in different current-gain classifications:
-
A Grade: hFE 110–220
-
B Grade: hFE 200–450
-
C Grade: hFE 420–800
The exact available grades depend on the manufacturer.
For example, a transistor marked BC550C belongs to the high-gain C classification.
If your component is marked simply BC550, avoid guaranteeing a specific gain class unless the manufacturer and complete part number are known.
Signal Amplification
The BC550 is particularly suitable for amplifying small electrical signals.
A relatively small signal applied to the base controls a larger collector current, allowing the transistor to be used in analog amplification stages.
Applications can include:
- Audio Amplifiers
- Microphone Circuits
- Sensor Amplifiers
- Analog Signal Processing
- Preamplifier Stages
- Oscillators
- Signal Conditioning
Its combination of high gain, low noise, and useful frequency response makes it a popular choice for low-level analog circuitry.
Switching Applications
Although particularly useful for amplification, the BC550 can also operate as a low-current electronic switch.
It can be used for controlling compatible:
- LEDs
- Buzzers
- Small Signal Relays
- Logic Circuits
- Sensor Outputs
- Low-Current Loads
- Driver Stages
When controlled from a microcontroller, an appropriate base resistor should always be used.
For inductive loads such as relay coils, a suitable flyback diode should normally be installed across the load.
BC550 vs BC549
The BC549 and BC550 are closely related low-noise NPN transistors.
BC549: 30V VCEO, 100mA, Low-Noise
BC550: 45V VCEO, 100mA, Low-Noise
The BC550 therefore provides a higher collector-emitter voltage rating while retaining the low-noise characteristics desirable for sensitive analog and audio circuits.
BC550 vs BC547
The BC547 and BC550 both have a maximum collector-emitter voltage of approximately 45V and collector-current capability of 100mA.
However:
BC547: General-Purpose Small-Signal NPN
BC550: Low-Noise Small-Signal NPN
The BC550 is therefore particularly attractive for low-level audio and analog applications where noise performance is important.
Complementary PNP Transistor
The complementary PNP transistor for the BC550 is the BC560.
The BC550 and BC560 can be used together in complementary analog circuits, audio stages, and other applications requiring matching NPN and PNP transistor families.
Microcontroller Applications
The BC550 can also be used for low-current switching with controllers such as:
Arduino
ATmega
ESP32
STM32
PIC
Raspberry Pi GPIO
An appropriate base resistor is required, and the transistor's voltage, current, and power-dissipation limits must be respected.
For higher-current switching, a BC337 or suitable logic-level MOSFET may be a better choice.
Important Note
The 100mA collector-current rating is an absolute maximum, not a recommended continuous operating current under every condition.
Actual safe operation depends on collector-emitter voltage, base current, ambient temperature, power dissipation, PCB design, and thermal conditions.
The BC550 is primarily intended for small-signal and low-current applications. It should not be used to directly drive high-current motors, large relays, high-power LEDs, or other loads that exceed its electrical and thermal limits.
Pin configuration can vary between manufacturers. Always verify the Collector, Base, and Emitter pinout from the datasheet for the exact manufacturer supplied before installing the transistor.
Applications
Ideal for audio preamplifiers, microphone amplifiers, low-noise analog circuits, sensor amplification, signal conditioning, low-current switching, oscillators, LED drivers, microcontroller interfaces, Arduino projects, educational electronics, electronics repair, breadboard prototyping, laboratory experiments, and DIY electronics.
Package Includes
1 × BC550 Low-Noise NPN Transistor – TO-92
