BFD-1000 Five Channel Infrared Tracking Module

$2.99

Shipping calculated at checkout.

Quantity

BFD-1000 5-Channel Infrared Line Tracking Sensor Module – Obstacle & Touch Detection

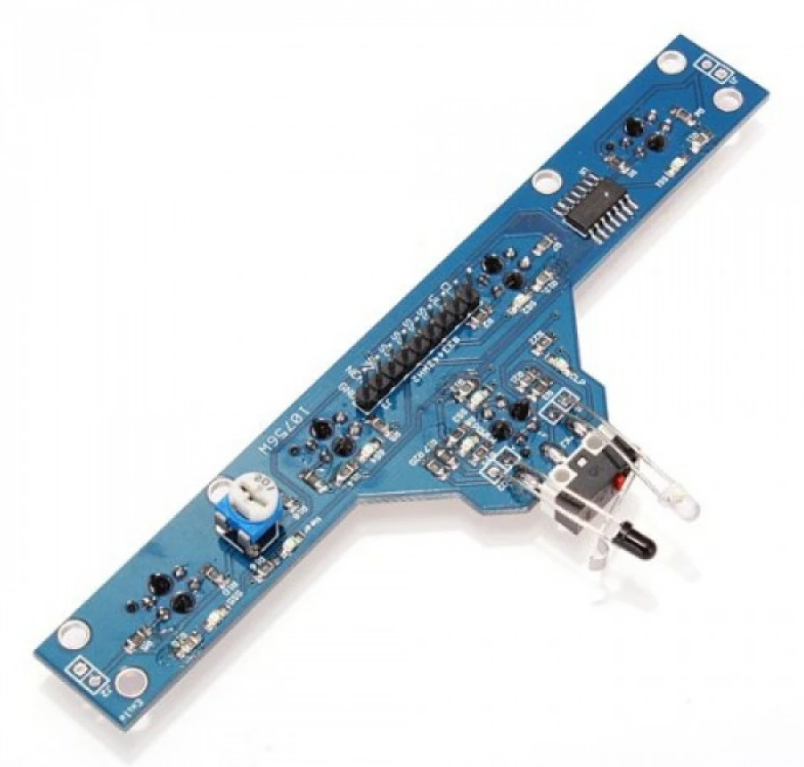

The BFD-1000 is a multifunction infrared sensor module designed for line-following and autonomous mobile robots. It combines five high-sensitivity infrared tracking sensors with an adjustable infrared obstacle sensor and a touch/collision detection switch, allowing a robot to detect lines, obstacles, and physical contact using a single sensor board.

The five-channel arrangement provides more information than a basic single or dual line sensor, making it particularly useful for robots that need smoother steering and reliable detection of curves, intersections, and more complex black-and-white tracks.

Technical Specifications

  • Model: BFD-1000
  • Sensor Type: Infrared Line Tracking / Obstacle Detection
  • Line Tracking Channels: 5
  • Additional IR Obstacle Sensor: 1
  • Touch / Collision Sensor: 1
  • Operating Voltage: 3.0–5.5V DC
  • Output Type: Digital HIGH / LOW
  • Line Detection Distance: 0–4cm
  • Recommended Tracking Range: Approximately 0.5–40mm
  • Obstacle Detection Distance: 0–5cm Adjustable
  • Obstacle Adjustment: Onboard Potentiometer
  • Status Indicators: Onboard LED Indicators
  • Detection: Black / White Surface Contrast
  • Interface: Individual Digital Sensor Outputs
  • Typical Board Size: Approximately 129 × 33mm
  • Mounting: PCB Mounting Holes
  • Suitable Controllers: Arduino, ESP32, STM32, Raspberry Pi Pico, AVR, PIC and Other Microcontrollers

5-Channel Line Tracking

The BFD-1000 uses five infrared tracking sensors positioned across the front of the robot.

Instead of detecting a line at only one point, the five sensors allow the controller to determine whether the line is:

  • Far Left
  • Left
  • Center
  • Right
  • Far Right

This additional positional information can be used by the robot's control algorithm to make smoother and faster steering corrections.

The module can be used for conventional black-line-on-white-background tracking and, with suitable software logic, opposite-contrast tracks.

Adjustable Obstacle Detection

In addition to the five downward-facing tracking sensors, the BFD-1000 includes a forward-facing infrared obstacle/barrier sensor.

The obstacle-detection distance can be adjusted using the onboard potentiometer, with a typical detection range of approximately 0–5cm.

This allows a line-following robot to detect an object in front of it and respond by stopping, turning, or performing another programmed action.

Touch / Collision Detection

The module also incorporates a touch or collision detection switch.

This provides a secondary method of detecting an obstacle if the robot physically contacts an object.

Using infrared obstacle detection together with physical contact detection can make a mobile robot more adaptable during autonomous operation.

Digital Outputs

The BFD-1000 provides digital HIGH/LOW output signals, making it straightforward to interface with common microcontrollers.

Each tracking channel can be connected to a digital GPIO input, allowing the controller to read the position of the line and determine the required motor response.

Onboard LED indicators provide visual feedback from the sensors, which is particularly useful during setup, testing, and troubleshooting.

Typical Robot Setup

A complete line-following robot can combine the BFD-1000 with:

  • Arduino / ESP32 / Other Microcontroller
  • Dual DC Motor Driver
  • 2 × DC Geared Motors
  • Robot Chassis
  • Wheels
  • Battery Pack
  • BFD-1000 Tracking Module

The microcontroller reads the sensor outputs and adjusts the left and right motor speeds through the motor driver to keep the robot centered on the track.

Applications

Ideal for line-following robots, smart robot cars, autonomous mobile robots, robotics competitions, obstacle-detection projects, educational robotics, Arduino projects, ESP32 robots, STEM training, navigation experiments, AGV prototypes, and DIY robotic vehicles.

Important Note

The actual infrared detection distance depends on surface color, reflectivity, sensor height, ambient lighting, and mounting angle. The stated 0–4cm range should therefore be considered a nominal detection range rather than a guaranteed operating distance under all conditions.

For reliable line following, the sensors are normally positioned much closer to the track surface.

The outputs are digital rather than analog, so the module reports detected states rather than providing a continuous analog reflectance measurement.

When using the module with a 3.3V microcontroller such as an ESP32, verify the output voltage levels of the specific BFD-1000 board before connecting its outputs directly to GPIO pins.

Package Includes

1 × BFD-1000 5-Channel Infrared Line Tracking Sensor Module
