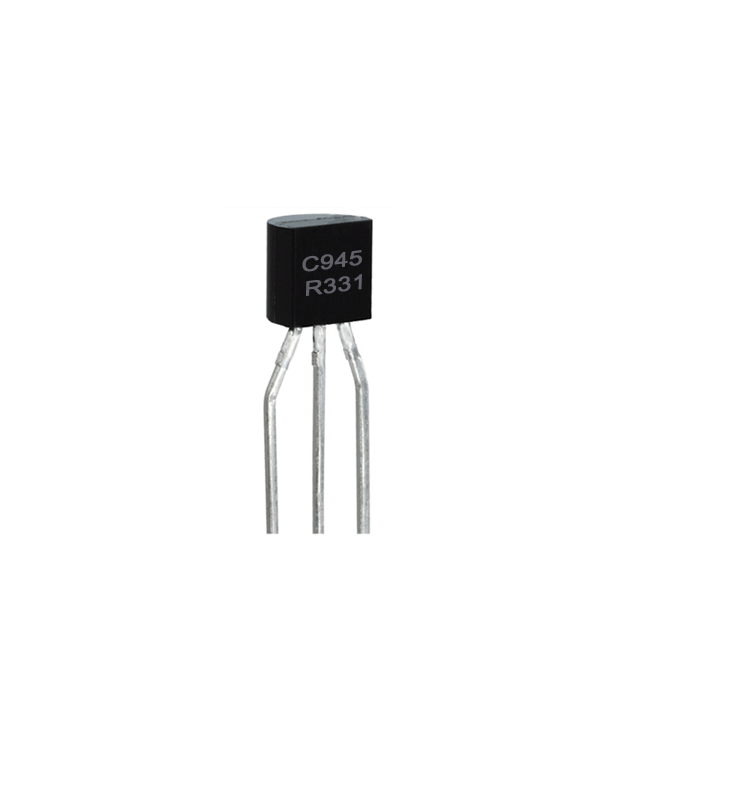

NPN general purpose transistor comes in TO-92 plastics packaging. This transistor is using in many electronic circuits as a mid range transistor because of cheap in price and availability. The transistor has low noise while it working as an amplifier and it can able to handle maximum of collector emitter voltage of 50V.
C945 Transistor Pinout
The transistor is comes in TO-92 packaging with three legs. The transistor flat surface is facing your front and the legs is counted from left to right as 1 to 3, The pin number 1 is Emitter, pin 2 is collector and third pin is Base. For more understanding the pinout diagram and table for pin configuration is given below,
Pin Number
Pin Name
1
Emitter (E)
2
Collector (C)
3
Base (B)
Table 1: Pinout configuration
Specifications
Parameter
Value
Unit
Collector-Base Voltage
60
V
Collector-Emitter Voltage
50
V
Emitter-Base Voltage
5
V
Collector Current (Continuous)
100
mA
Base Current (Continuous)
20
mA
Collector Power Dissipation
250
mW
Junction Temperature
125
°C
Storage Temperature Range
-55 to +125
°C
Hfe
90 – 600
Table 2 : Transistor specifications
Equivalent Transistors
The equivalent transistors of C945 is given below, you must verify the pinout of these transistor before replacing with the equivalent one:
BC547, is a general purpose NPN transistor with similar voltage and current ratings.
2N3904is widely used NPN transistor, good for switching and amplifier applications.
S8050, The NPN transistor with comparable characteristics.
C1815is commonly used in low-noise amplifier circuits.
2SC1815This is another close Japanese equivalent.
2N2222is more robust but functionally replaceable in many circuits (check pinout and specs).
C945 Transistor Uses
Audio Signal Amplification
Switching circuits.
Voltage Amplification in pre amp.
Oscillator Circuits.
Driver stages of audio amplifiers.
Tone control and equalizer circuits.
Microphone preamps.
LED switching and control circuits.
Relay driver circuits (for small relays).
Sensor signal amplifiers (like temperature or IR sensors).
Battery level indicators.
DIY electronics projects and learning kits.
C945 Transistor vs BC547
Parameter
C945
BC547
Type
NPN
NPN
Maximum Collector Current
100 mA
100 mA
Maximum Collector-Emitter Voltage
50 V
45 V
Maximum Collector-Base Voltage
60 V
50 V
Maximum Emitter-Base Voltage
5 V
6 V
Power Dissipation
250 mW
500 mW
DC Current Gain (hFE)
90 to 600
110 to 800
Transition Frequency
150-450 MHz
300 MHz
Package
TO-92
TO-92
Application Areas
Audio, switching, general purpose
Signal amplification, switching
C945 transistor supports slightly higher voltage than the BC547 transistor, so it is a better and well suited for circuits with higher voltage demands.
The BC547 can handles double the power dissipation (500 mW vs 250 mW), which is crucial for thermally demanding applications.
Both transistors are offer wide DC gain ranges, but BC547 may be more stable at low currents. In frequency response, both are suitable for general audio and signal processing but BC547 is more consistent around frequency of 300 MHz.
Noise: The C945 has a broader noise figure of 0.8 -15 dB, while BC547 keeps it lower, so it slightly better in low-noise amplifier designs.
