7inch ESP32 HMI Display: Your new option, rather than CYD(cheap yellow display)

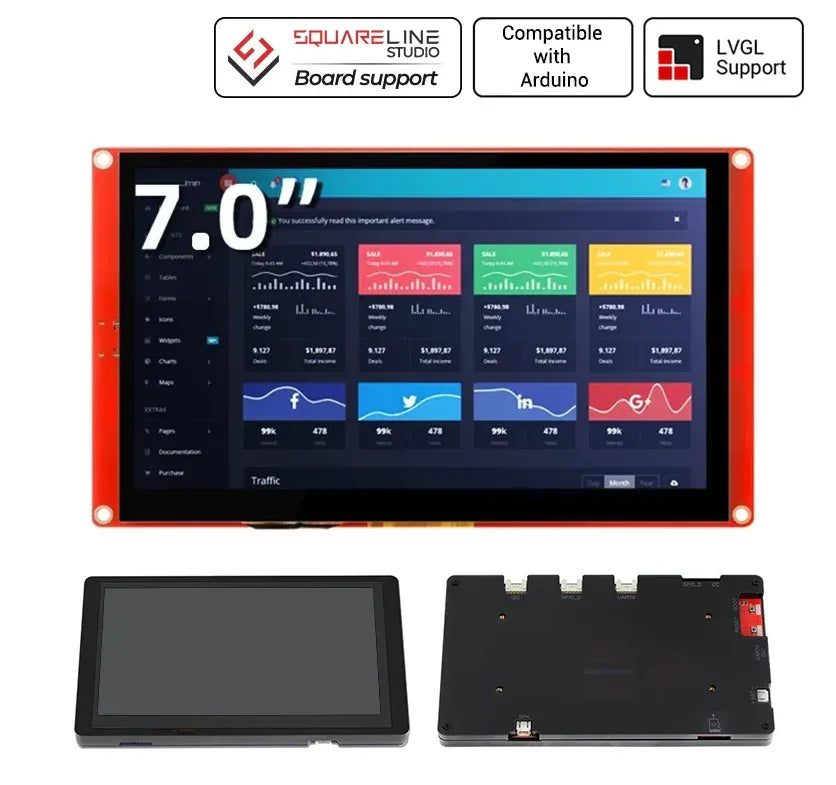

CrowPanel ESP32 Display 7.0-inch module is a powerful HMI touch screen with an 800*480 resolution LCD. It uses the ESP32-S3-WROOM-1-N4R8 module as the main control processor, with a dual-core 32-bit LX7 microprocessor, integrated WiFi and Bluetooth-compatible wireless functions, a main frequency of up to 240MHz, providing powerful performance and versatile applications, suitable for IoT application devices and other scenes.
The module includes a 7.0-inch LCD display and a driver board. The display screen uses a capacitive touch technology, and the board has reserved a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with the LVGL graphics library, supporting openHASP. Additionally, it provides 16 learning tutorials and a wealth of open-source learning materials. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.
The CrowPanel ESP32 Display 7.0-inch module is suitable for a wide range of scenes such as automotive HMI, medical equipment, smart home, industrial control, power, civil electronics, home automation, new energy, and IoT application devices. Its various interfaces and expansion functions enable it to meet the needs of different fields, providing users with a more comprehensive solution.
Note: The version with the case needs to be assembled by the user.
Designed and manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com.
Support multiple development environments.
It supports a variety of development environments such as Arduino IDE, Espressif IDF, PlatformIO, and Micro Python, to meet the needs of different developers and make every project possible.
Support open-source Graphics Library-LVGL
It supports the LVGL graphics library. You can design a variety of UIs.
Human-Machine Interface
With Human-Machine interface, you can use SquareLine Studios to design and implement your own LVGL UI and export ready-to-use projects with one click.
It is suitable for various scenes such as automotive HMI, medical equipment, smart home, home automation, industrial control, civil electronics, and IoT application devices.
Hardware Overview
Feature
Integrated ESP32-S3 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;
Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro Python and compatible with LVGL graphics library;
Built-in LVGL demo interface and Arduino example, plug and play;
LCD 800*480 7.0 inchesCapacitive TFT-LCD with driver IC EK9716BD3 + EK73002ACGB;
Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.
Specification
Model: 7.0 inch -CrowPanel ESP32 display
Main Processor: ESP32-S3-WROOM-1-N4R8
Resolution: 800*480
Flash: 4MB
PSRAM:8MB
Touch Type: Capacitive Touch Screen
Display Type: TN Panel
Screen: TFT-LCD Screen
Display driver: EK9716BD3 & EK73002ACGB
External power supply: DC5V-2A
Battery voltage: 3.7-4.2V
Interface: 2*UART0,2*GPIO,2*I2C,1*Battery
Button: BOOT Button and Reset Button
Active Area: 153.84*85.63mm(W*H)
Working Temperature: -20℃~70℃
Storage Temperature: -30℃~80℃
Pin Specification
Name
SPEC
SPK
PY2.0-2P
GPIO_D
HY2.0-4P
UART0
HY2.0-4P
I2C
HY2.0-4P
BAT
PH2.0-2P
