CrowPanel Advance 3.5“ HMI|ESP32-S3 AI-Powered IPS Touch Screen (480x320) With acrylic case

$39.99

Shipping calculated at checkout.

Quantity

A Compact Edge AI Display: Packing Vision, Voice, and Versatile Connectivity

Building on the success of the CrowPanel Basic series, we proudly introduce the CrowPanel Advance Series—designed to deliver superior performance and richer features for demanding applications.

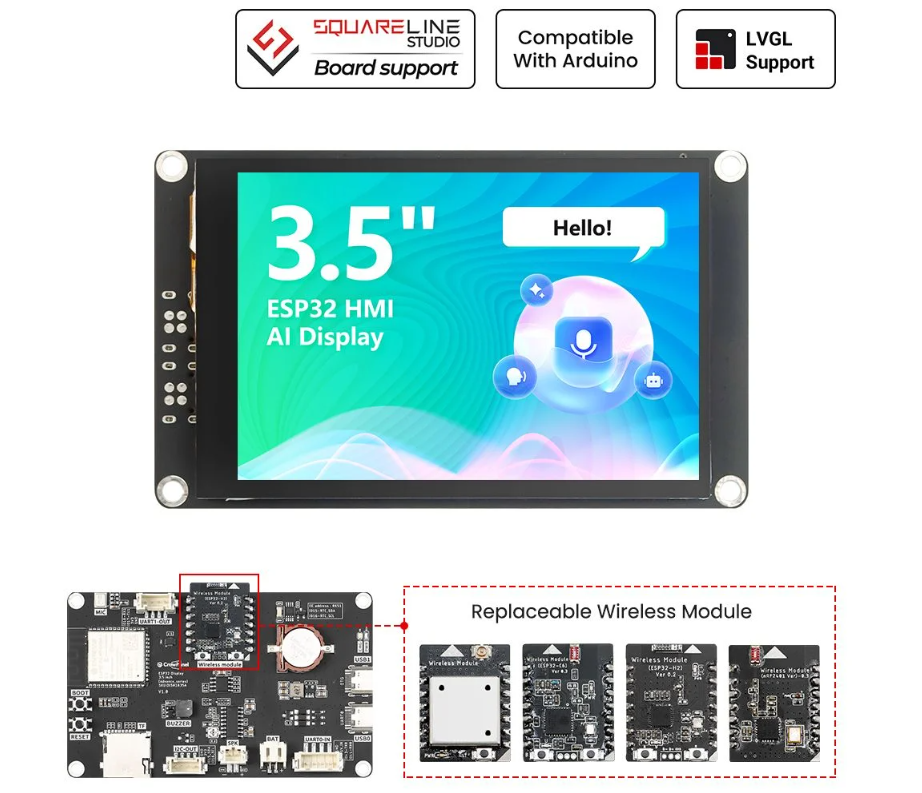

The CrowPanel Advance 3.5-inch Display is a significant upgrade in our HMI lineup.  It combines a vibrant 480*320 IPS touch screen with the powerful ESP32-S3 chip, which features a dual-core Xtensa LX7 processor running at up to 240MHz. With 512KB SRAM, 8MB PSRAM, and 16MB Flash, this display offers robust data processing capabilities, ideal for complex interactive interfaces.

The integrated 2.4GHz Wi-Fi and BLE functions, combined with the built-in RF antenna, ensure the stability and reliability of the wireless connection. Also, the diverse interfaces and low power make this 3.5-inch screen ideal for HMI applications that need strong wireless connectivity. It supports the Arduino IDE, Espressif IDF, and PlatformIO. It is compatible with the LVGL graphics library and supports C++.

This 3.5-inch screen uses an IPS panel, and the 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle. Capacitive touch technology enables smooth, responsive interactions. It makes every touch accurate and intuitive.

A notable feature of the CrowPanel Advance 3.5-inch display is its integrated AI function. Users can interact by using the microphone and speaker. This includes voice recognition and speech synthesis. They can have seamless conversations with smart assistants to get information. Another highlight of this screen is that its modular design provides diversified wireless communication options. Users can replace modules as needed. They support multiple protocols: Zigbee, LoRa, nRF2401, Matter, Thread, Wi-Fi HaLow, and Wi-Fi 6. In addition, when paired with the SX1262 wireless module, it can support access to the Meshtastic network(An open source, off-grid, decentralized, mesh network built to run on affordable, low-power devices). One screen and different modules can meet the wireless connection needs of different scenarios.

This upgrade integrates the latest wireless tech, an optimized port layout, a great touch display, and larger storage. These improvements make connectivity more flexible and reliable. They provide users with a wider range of options and applications, capable of meeting the rigorous demands of modern intelligent remote monitoring and control systems, while also presenting new opportunities for Industry 4.0. This 3.5" display also supports tactility.

Note: The LoRa module purchased on this page does not include the Meshtastic firmware and is intended solely for LoRa communication.

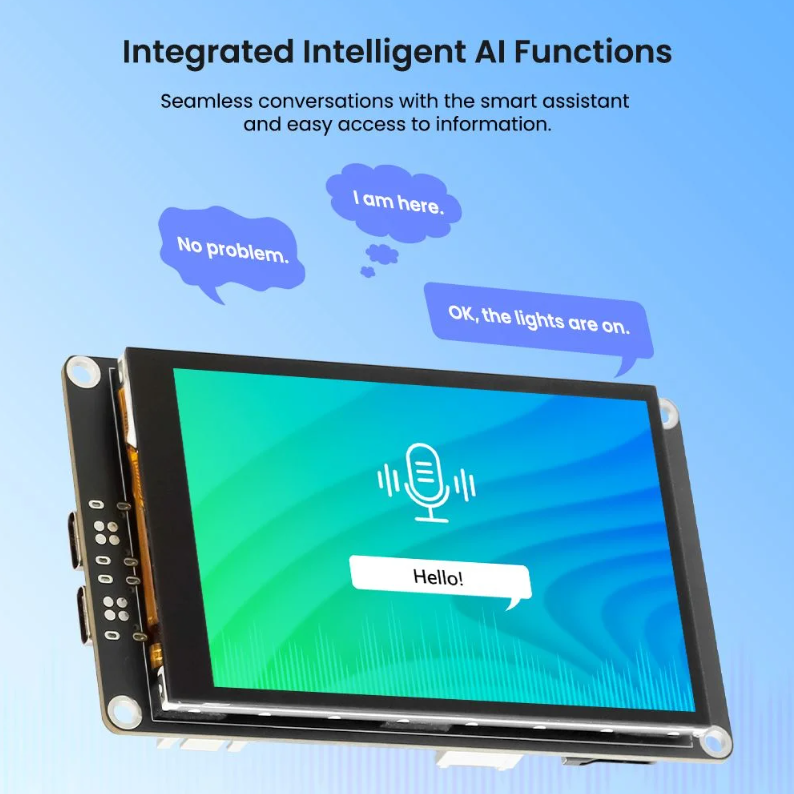

Integrated Intelligent AI Functions

Voice interaction is achieved through the microphone and speaker, allowing seamless conversations with the smart assistant and easy access to information.

ESP32 Advance 3.5inch HMI Touchscreen with AI function

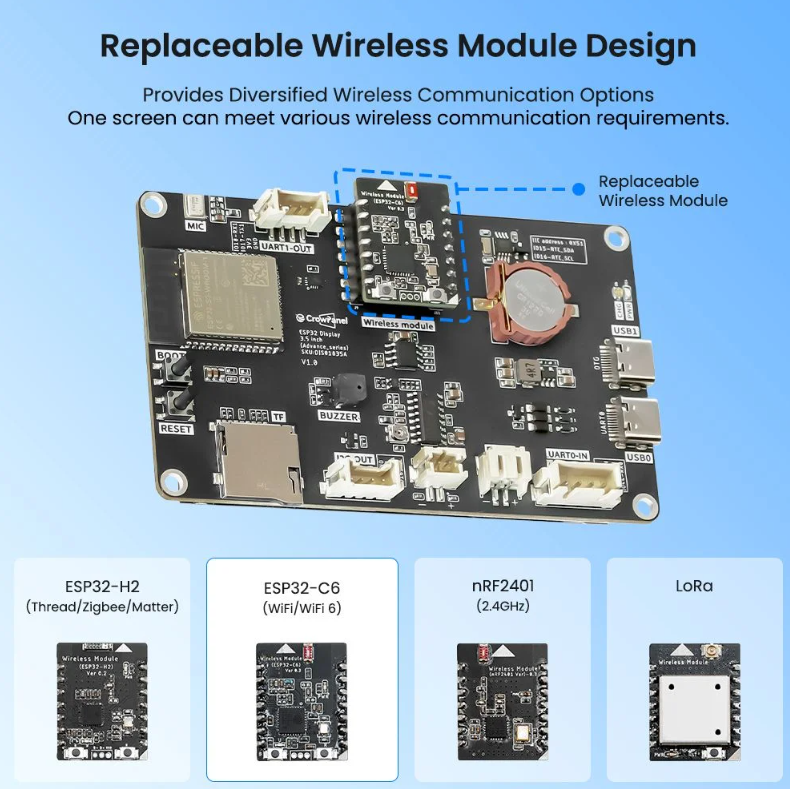

Replaceable Wireless Module Design, Provides Diversified Wireless Communication Options

By replacing the module, the display supports multiple communication protocols such as Zigbee, LoRa, nRF2401, Matter, Thread, Wi-Fi HaLow, and Wi-Fi 6. One screen can meet various wireless communication requirements.

ESP32 Advance 3.5inch HMI Touchscreen with replaceable module design

ESP32 advanced module purchasing guide

IPS Panel With 178°Wide Viewing Angle

The 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle.

ESP32 Advance 3.5inch HMI Touchscreen with IPS Panel

Support Multiple Development Environments

It supports multiple development environments, such as Arduino IDE, Espressif IDF, and PlatformIO, and development languages, such as C++, to meet the needs of different developers and make every project possible.

ESP32 Advance 3.5inch HMI Touchscreen support multiple development environments

Support Open Source Graphics Library - LVGL

It supports the LVGL graphics library, and you can design various UIs.

ESP32 Advance 3.5inch HMI Touchscreen support LVGL

Design And Build UI Easily With SquareLine Studio

You can easily design and build your own LVGL UI on SquareLine Vision — now with LVGL 9.5 support, a redesigned component system that exposes parameters and supports instance-level overrides, plus global variables and collections.

ESP32 Advance 3.5inch HMI Touchscreen support SquareLine Studio

Connect With More Than 150+ Crowtail SensorsESP32 Advance 3.5inch HMI Touchscreen can connect crowtail sensors

What can it build?

It is suitable for various scenes such as automotive HMI, medical equipment, drone control, camera control, smart home, home automation, industrial control, civil electronics,  smart agriculture, environmental monitoring and IoT application devices.

Wide applications of ESP32 Advance 3.5inch HMI Touchscreen

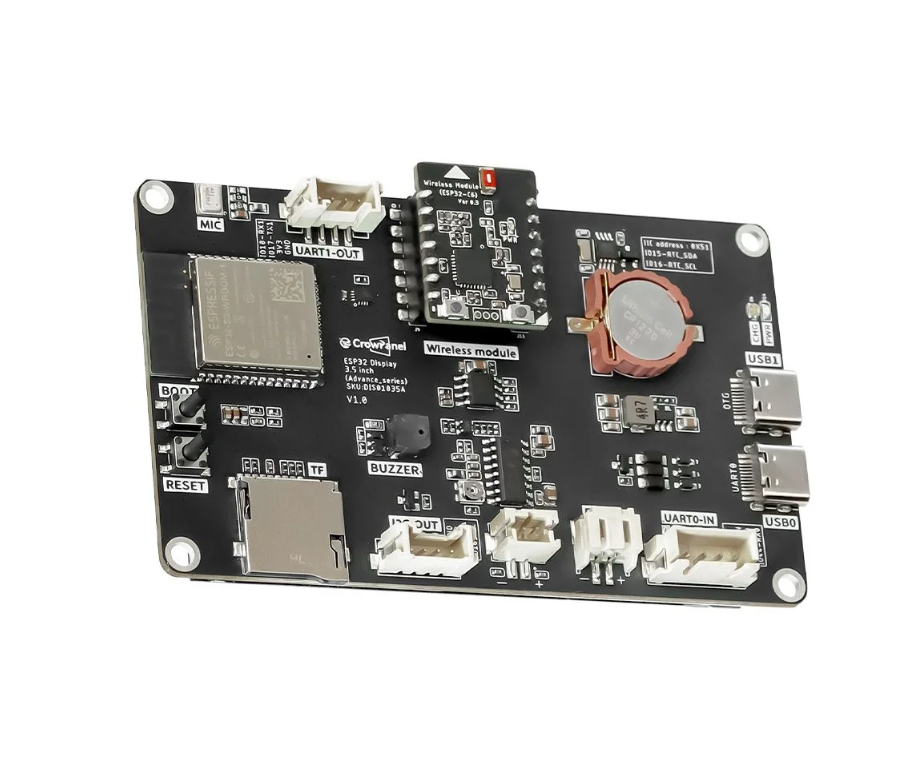

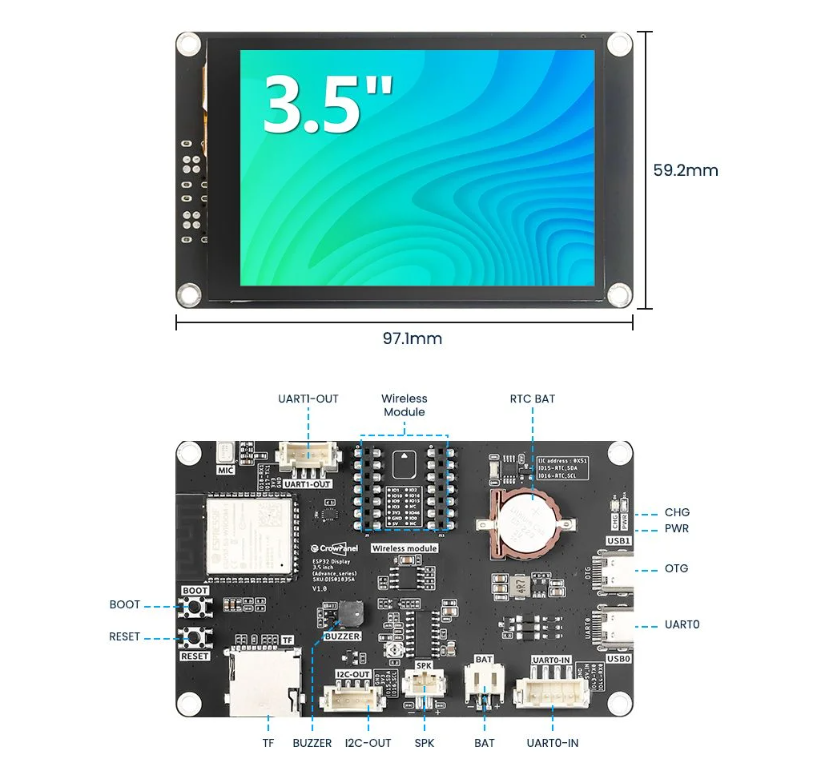

Hardware OverviewHardware overview of ESP32 Advance 3.5inch HMI Touchscreen

Feature

  • Equipped with the ESP32-S3-WROOM-1 module as the core controller, it provides excellent performance.
  • Main frequency up to 240MHz, equipped with 512KB SRAM, 8M PSRAM, and 16M Flash;
  • 480*320 3.5”, with driver IC ILI9488;
  • IPS panel, 178°wide viewing angle, supports capacitive touch;
  • Intelligent AI function, equipped with speaker port and high-performance microphone, users can have seamless conversations with smart assistants through voice command interaction, voice recognition and speech synthesis;
  • The Replaceable wireless communication module can support multiple communication protocols by replacing different modules;
  • Built-in LVGL demonstration interface and Arduino examples, plug and play;
  • Real-time clock function, ensuring the continuity and accuracy of system time in the event of power failure;
  • The peripheral port adopts vertical and built-in terminal design, which is more in line with the compact and integrated design requirements of embedded devices.

Application scenarios

  • Industrial automation
  • Smart city
  • Smart home
  • Medical equipment
  • Agricultural technology
  • Environmental monitoring
  • Environmental monitoring
  • Energy management
  • Logistics and warehousing
  • Retail and catering
  • Education and research



Target Group

Engineers and technicians, system integrators, facility managers, R&D personnel, agricultural workers, environmental scientists, medical professionals, retailers and restaurant owners, educational institutions, energy companies, etc.



Specification

Main Chip-ESP32-S3-WROOM-1-N16R8

CPU/SoC

high-performance Xtensa 32-bit LX7 dual-core processor, with up to 240MHz

System Memory

512KB SRAM、8M PSRAM

Memory

16M Flash,384KB ROM

Development Language

C/C++

Development Environment

ESP-IDF、Arduino IDE、PlatformIO、LVGL

Screen

Size

3.5 inch

Diver IC

ILI9488

Resolution

480*320

Display Panel

IPS Panel

Touch Panel

Capacitive Single Touch

Viewing Angle

178°

Brightness

400 cd/m²(Typ.)

Color Depth

16-bit

Wireless Communication - Onboard Antenna

WiFi

Support 2.4GHz, 802.11b/g/n

Bluetooth

Support Bluetooth 5.0 and BLE

Other

Zigbee、nRF2401、Matter、Thread, Wi-Fi HaLow, and Wi-Fi 6 (Optional)

Interface/Function

Interface

USB port, UART, I2C, SD card slot, battery socket, speaker port, microphone, etc. (MIC and SD Card Simultaneous use is not possible.)

Function

RTC clock, audio amplifier, volume control, battery charge management, USB to UART, etc.

Button/LED Indicator



Reset Button

Yes, press to reset the device

Boot Button

Yes, press and hold the power button to burn the program

PWR

Power indicator

CHG

Lithium battery charging status, completion indication

Other

Installation method

Back hanging, fixed hole

Operating temperature

-20~70 °C

Storage temperature

-30~80 °C

Power Input

5V/2A, USB or UART terminal

Dimensions

101.4*63.3*15.8mm

Package List

  • 1x CrowPanel Advance ESP32 Display-3.5 inch
  • 1x Wireless Module-ESP32-H2 Optional
  • 1x Wireless Module-ESP32-C6 Optional
  • 1x Wireless Module-nRF2401 Optional
  • 1x USB-A to Type-C Cable
  • 1x Crowtail/Grove 4pin DuPont cable
