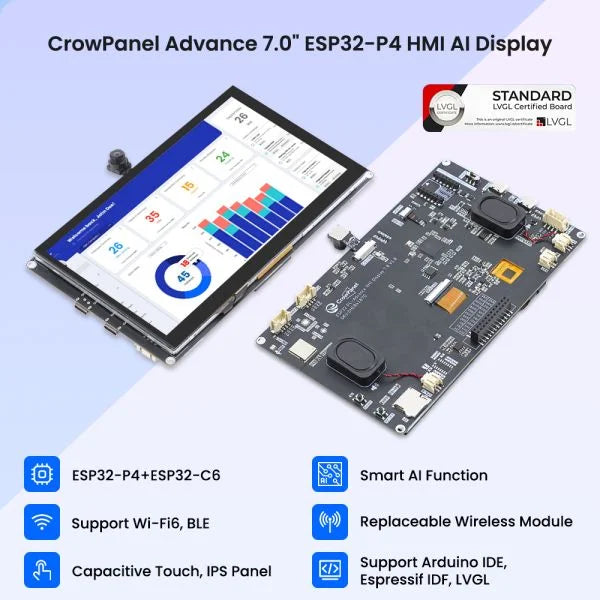

ESP32-P4 7" HMI AI Display: Dual-Chip, Wi-Fi 6 & Edge AI Vision
The CrowPanel Advance ESP32-P4 HMI series is a high-performance AI-powered intelligent interactive terminal designed for demanding applications. Its innovative dual-chip architecture combines powerful computing power, rich multimedia features, and ultimate expansion flexibility, making it the ideal core for driving the next generation of smart devices.
This 7-inch display is powered by the RISC-V-based ESP32-P4 SoC, featuring both high-performance and low-power cores, operating at frequencies up to 400MHz. Combined with the generous storage capacity of 16MB Flash and 32MB PSRAM, it provides ample power for complex graphical interfaces and real-time AI tasks.
The onboard ESP32-C6-MINI-1 module supports 2.4GHz Wi-Fi 6 and Bluetooth 5.3, ensuring stable and reliable connectivity with excellent power consumption.
The 7-inch IPS touchscreen integrates capacitive touch technology, providing an intuitive user experience. The integrated 2-megapixel MIPI-CSIcamera (optional) not only supports high-definition image capture but also efficiently runs edge AI applications such as real-time facial recognition and dynamic object tracking.
The onboard NS4168 audio codec and single-microphone array provide high-fidelity playback and accurate far-field voice recognition. Equipped with dual-channel speakers, it lays a solid foundation for voice interaction and is suitable for scenarios such as voice assistants and smart home control.
The 7-inch screen also offers ultimate expandability. Equipped with dual USB-C ports (UART adapter/USB 2.0 Device), 11pin GPIO, multiple Crowtail ports (supporting I2C/UART protocols), and interchangeable wireless module slots (supporting Thread, Zigbee, etc.), it easily adapts to various sensors and communication protocols.
Whether you're building a smart home central control, an industrial automation panel, or an AIoT edge device, the CrowPanel Advanced 7" delivers the performance and flexibility you need.
Why choose the P4 HMI series?
Compared to previous generations(Basic/Advanced ESP32-S3), the ESP32-P4 HMI series achieves a significant leap in machine learning inference and real-time data processing performance through an upgraded processor and AI instruction set. Whether it's a smart home central control, an industrial control panel, a commercial display device, or an AIoT application in Industry 4.0, its comprehensive peripheral support can provide excellent solutions to help you quickly build powerful and interactive smart products.
Note: The ESP32 P4 Official is not supported by the PlatformIO platform.
ESP32-P4+ ESP32-C6 dual chips
Integrated Intelligent AI Functions
Voice interaction is achieved through the microphone and speaker, allowing seamless conversations with the smart assistant and easy access to information.

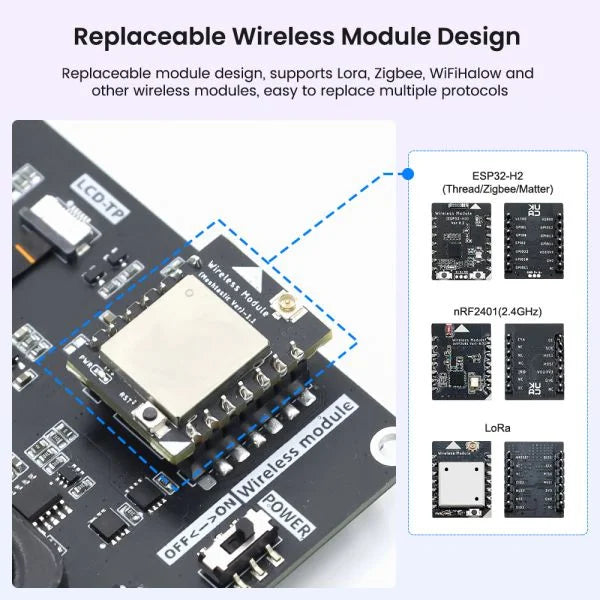

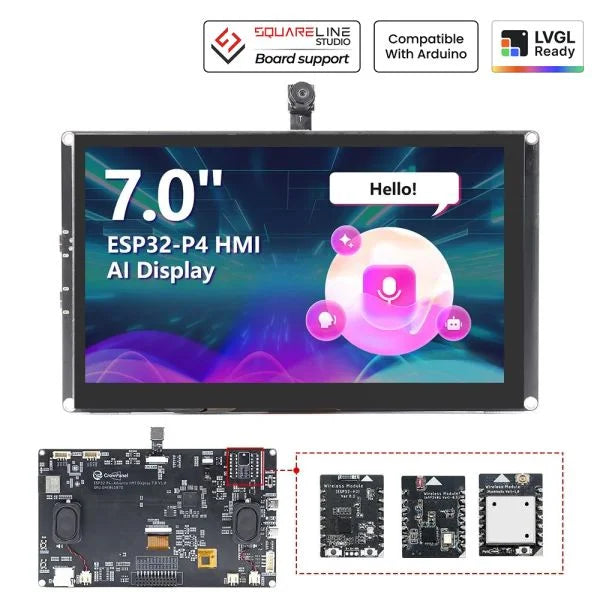

Replaceable Wireless module design, easy to replace multiple protocols
Human-Machine Interface
You can easily design and build your own LVGL UI on SquareLine Vision — now with LVGL 9.5 support, a redesigned component system that exposes parameters and supports instance-level overrides, plus global variables and collections.
Equipped with the RISC-V architecture ESP32-P4 dual-core processor (400MHz high-performance core + low-power core), equipped with 16MB Flash and 32MB PSRAM, it easily handles complex graphical interfaces and real-time AI calculations.
An independent ESP32-C6-MINI-1 wireless module supports Wi-Fi 6 and Bluetooth 5.3, balancing stable connectivity with low power consumption.
✅ AI acceleration, fully upgraded performance
Significantly improved computing power compared to previous generations, suitable for high-load tasks such as real-time data analysis, and suitable for high-performance applications such as smart home appliances and industrial control.
Supports dual-channel speaker output, making it suitable for scenarios such as voice assistants and smart home control.
✅ High-definition IPS touchscreen for smooth and natural interaction
Available in multiple sizes: 5.0/7.0/9.0/10.1 inches, IPS TFT screens support capacitive touch, wide viewing angles, and smoother interaction.
✅ Integrated intelligent vision, empowering AI applications
An integrated 2-megapixel MIPI-CSI camera smoothly runs AI vision algorithms like facial recognition and object tracking.
✅ Rich and comprehensive interfaces for flexible expansion
Dual USB-C (supporting UART debugging and USB 2.0 Device), 11pin GPIO, and Crowtail (I2C/UART) interfaces facilitate connection to various peripherals and sensors.
A replaceable wireless module slot supports multiple communication protocols, including Wi-Fi 6, Thread, Zigbee, allowing a single board to accommodate diverse IoT scenarios.
Application scenarios
Industrial automation
Smart city
Smart home
Energy management
Retail and catering
Agricultural technology
Medical equipment
Environmental monitoring
Logistics and warehousing
Education and research
Target Group
Engineers and technicians, system integrators, facility managers, R&D personnel, agricultural workers, environmental scientists, medical professionals, retailers and restaurant owners, educational institutions, energy companies, etc.
Specification
Main Chip-ESP32-P4NRW32
CPU/SoC
ESP32-P4
RISC-V 32-bit dual-core processor for HP systems, running at up to 400 MHz;
RISC-V 32-bit single-core processor for LP systems, running at up to 40 MHz
System Memory
768 KB L2MEM(HP)
32 KB SRAM(LP)
8 KB TCM
32 MB PSRAM
Memory
128 KB ROM(HP)
16 KB ROM(LP)
16 MB Flash

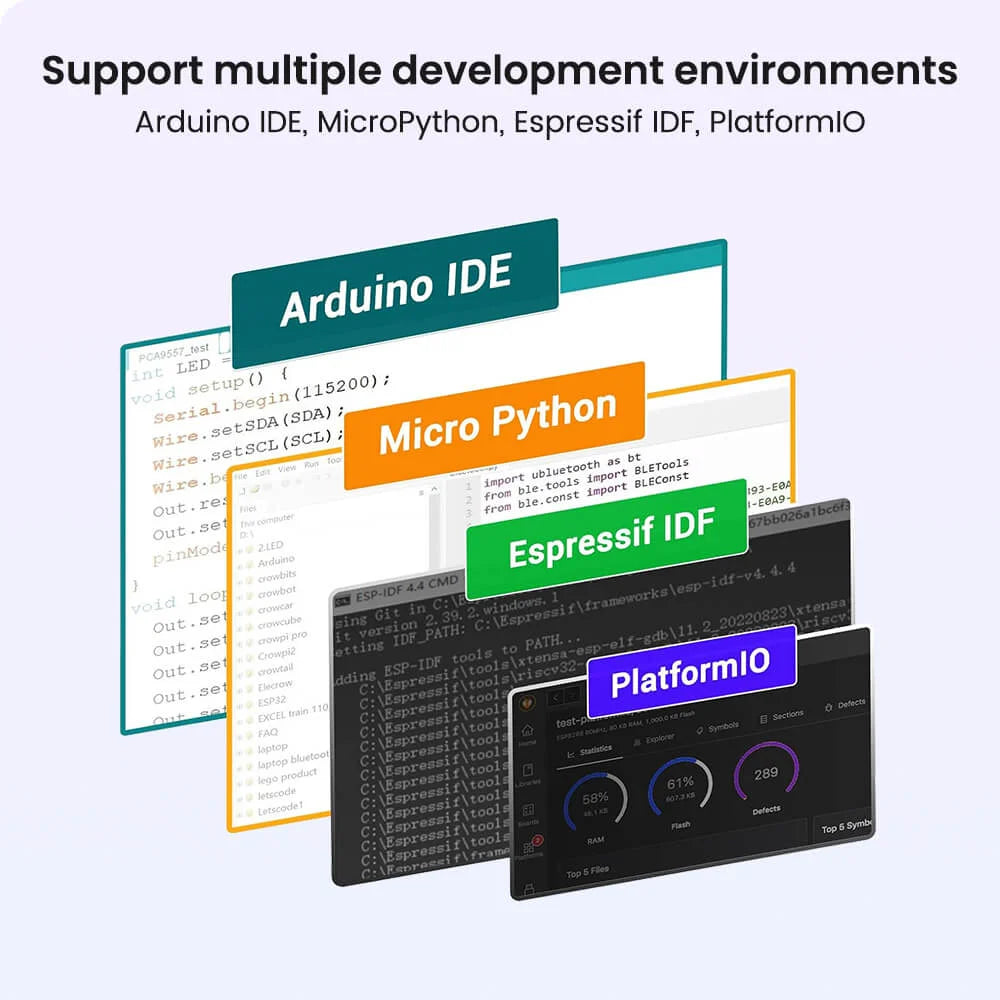

Development Environment
ESP-IDF、Arduino IDE
Screen
Size
7.0 inch
Resolution
1024*600
Display Panel
IPS Panel
Touch Panel
Capacitive Touch, Single/5-point Touch
Viewing Angle
178°
Brightness
400 cd/m²(Typ.)
Color Depth
16.7M (8-bit)
Wireless Communication - Onboard Antenna
WiFi
Support 2.4GHz(Wi-Fi6), 802.11b/g/n
Bluetooth
Support Bluetooth 5.3 and BLE
Other
Zigbee, LoRa, nRF2401, Matter, Thread (Optional)

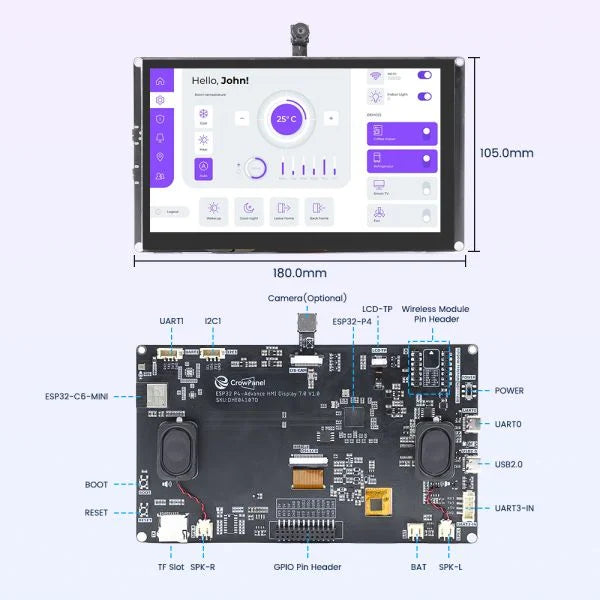

Interface/Function
Interface
USB2.0, UART, I2C, GPIO female headers, SD card holder, battery socket, speaker jack, camera header, module female headers, etc.
Function
Audio amplifier, battery charge management, USB to UART, microphones, dual speakers, etc.
Speaker Connector
Model
BX-PH 2.0-2PWT
Number of Pins
1x2P
Pin Pitch
2mm
Dimensions(L*W*H)
8*8.5*5.6mm
Mounting Type
SMT Right Angle
Button/LED Indicator
Reset Button
Yes, press to reset the device
Boot Button
Yes, press and hold the power button to burn the program
Power Button
Switch On/Off
PWR
Device power on/off indication
CHG
Lithium battery charging status, Low battery state
Other
Installation method
All around mounting holes(M3 3.2mm), embedded, shell assembly
Operating temperature
-20~70 °C
Storage temperature
-30~80 °C
Power Input
5V/2A, USB or UART terminal
Active Area
155mm*87mm
Dimensions
180*105mm
Three Wireless Module Details
ESP32-H2 Wireless Module
Pin
Pin Direction
Note
U1RXD
Input
Serial port 0 receiving pin
U1TXD
Output
Serial port 0 receiving pin
GPIO12
Input/Output
GPIO
GPIO13
Input/Output
GPIO
GPIO14
Input/Output
GPIO
3V3
Power supply
GND
Ground wire, connected to the power reference ground
GPIO1
Input/Output
GPIO
GPIO0
Input/Output
GPIO
GPIO2
Input/Output
GPIO
GPIO22
Input/Output
GPIO
GPIO10
Input/Output
GPIO
GPIO11
Input/Output
GPIO
BOOT
Press and then tap the RST key to enter the burning mode
RST
Press it to re-run the program and also to burn the program.
Chip performance
Chip Model
ESP32-H2FH4
FLASH
4MB Quad SPI
SRAM
320KB
ROM
128KB
LP memory
4KB
Ambient temperature
-40℃~105℃
Voltage
3.3V
Bluetooth Low Energy Radio Specifications
Working channel center frequency range
2402~2480MHz
RF transmission power range
-24.0~20.0dBm
Patch Antenna Performance
Gain and efficiency
Bandwidth 2.4G~2.5GHz
Peak Gain
4.33dBi
Average Gain across the band
4.0dBi
Gain Range across the band
3.59dBi~4.33dBi
Peak Efficiency
62.5%
Average Efficiency across the band
57.5%
Efficiency Range across the band
51.3%~62.5%
nRF2401 Wireless Module
Pin
Pin Direction
Note
CE
Input
Module control pin
SCK
Output
SPI Data Pin
MISO
Input
SPI Data Pin
MOSI
Output
SPI Data Pin
3V3
Power Supply
GND
Ground wire, connected to the power reference ground
CSN
Input
Module chip select pin, used to start an SPI communication
IRQ
Input
Module interrupt signal output, low level is effective
Chip performance
Chip Model：nRF24L01+
Worldwide 2.4GHz ISM band operation
250kbps, 1Mbps and 2Mbps on air data rates
Ultra low power operation
11.3mA TX at 0dBm output power
13.5mA RX at 2Mbps air data rate
900nA in power down
On chip voltage regulator
1.9 to 3.6V supply range
Patch Antenna Performance
Gain and efficiency
Bandwidth 2.4G~2.5GHz
Peak Gain
3.74dBi
Average Gain across the band
3.66dBi
Gain Range across the band
3.45dBi~3.74dBi
Peak Efficiency
58.9%
Average Efficiency across the band
55.9%
Efficiency Range across the band
53.0%~58.9%
SX1262 Wireless Module
Pin
Pin Direction
Note
DIO1
Input/Output
Configurable general purpose IO ports
SCK
Input
SPI Data Pin
MISO
Input
SPI Data Pin
MOSI
Output
SPI Data Pin
3V3
Power supply
GND
Ground wire, connected to the power reference ground
NRESET
Output
Chip reset trigger input pin, low level is effective
DIO2
Input
RF switch send/receive control pin, low level is receiving, high level is sending
BUSY
Output
Used for status indication
NSS
Input
Module chip select pin, used for SPI communication
DIO3
Input/Output
Configurable general purpose IO ports
Antenna Performance
Gain（dBi）
3.5dBi
VSWR
<=1.9
Input impedance（Ω）
50
Polarization
Vertical
Lightning Protection
DC Ground
Mechanical Specification
Wire Spec
RF1.13
Wire length(cm)
10cm
Input connector type
IPEX-1
Antenna weight(kg)
0.01
Operating temperature
-40℃~85℃
For more pin functions, see Wiki.

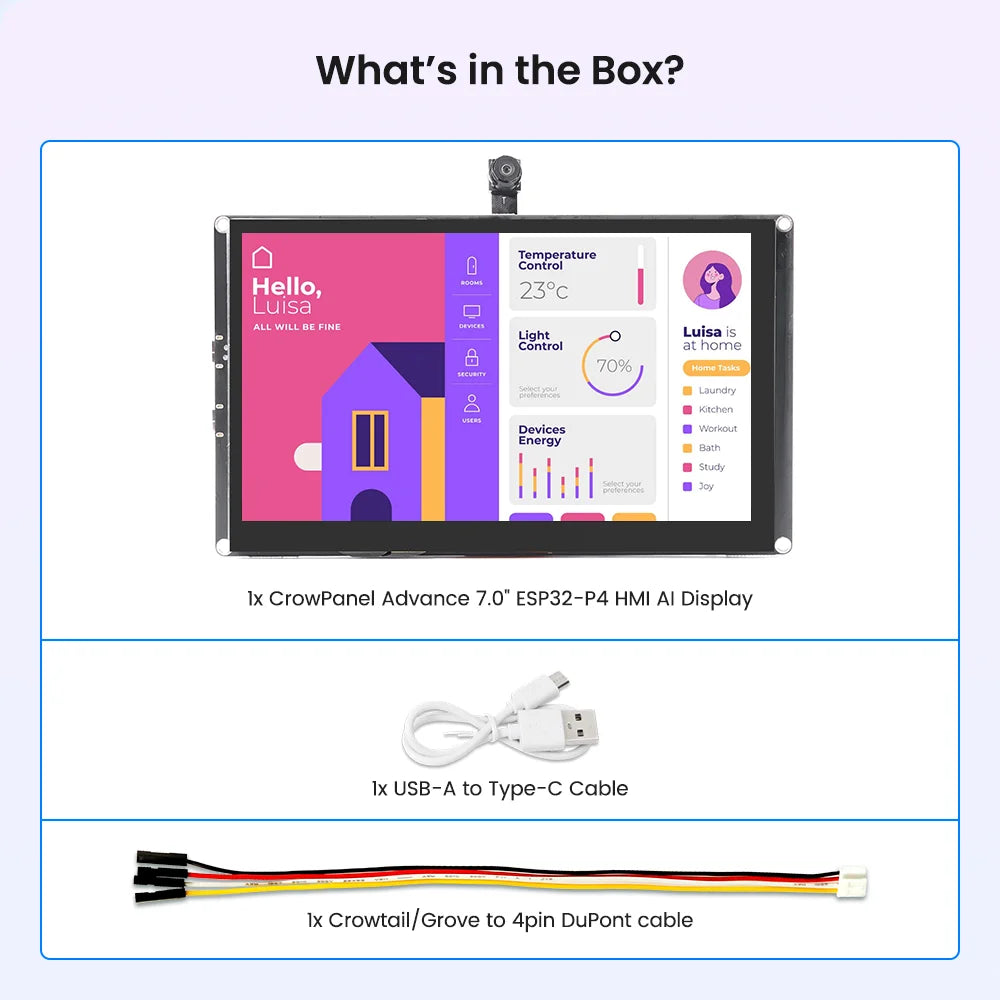

Package List
1x CrowPanel Advance ESP32-P4 Display-7.0 inch
1x USB-A to Type-C Cable
1x Crowtail/Grove 4pin DuPont cable
1x Wireless Module-ESP32-H2 Optional
1x Wireless Module-nRF2401 Optional
1x Wireless Module-WiFi Halow Optional
1x Wireless Module-LoRa( with 868Mhz/915MHz Copper Tube Spring antenna) Optional
