CrowPanel -ESP32 Display-1.28inch(R) 240*240 Round IPS Display Capacitive Touch SPI Screen

$0.00

Shipping calculated at checkout.

Quantity

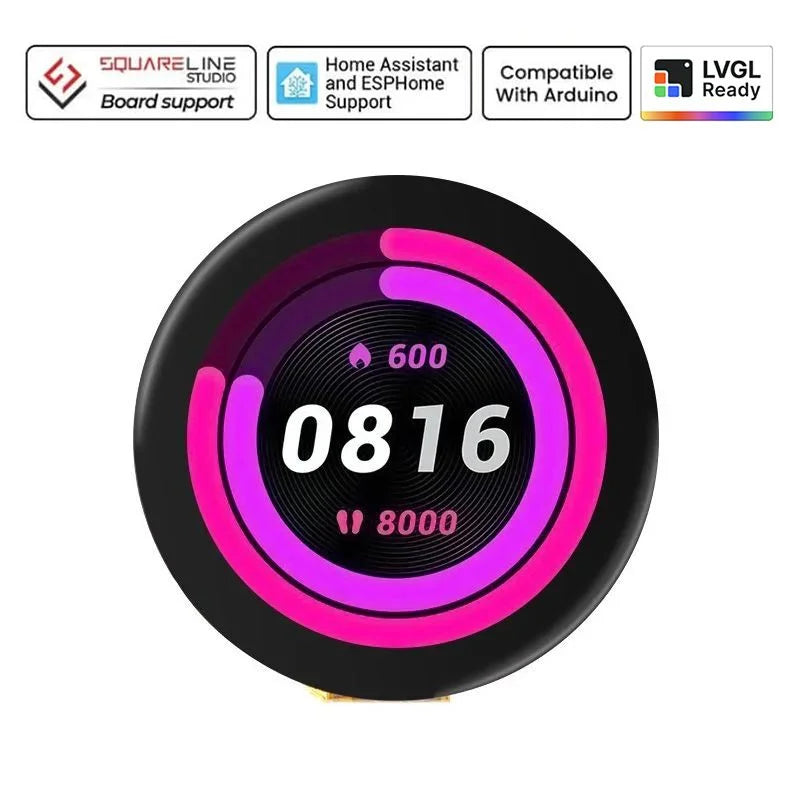

1.28-inch Round Capacitive Touchscreen with Integrated ESP32-S3

CrowPanel ESP32 Display1.28 inch round screen uses ESP32-C3 as the main control, equipped with a 32-bit dual-core chip, and the highest clock frequency reaches 160 MHz. Supports 2.4G WiFi and BLE low-power Bluetooth, making it suitable for IoT, smart home, and other fields.

This 1.28-inch round screen has a resolution of 240*240, an IPS screen, and a 178° viewing angle, which allows you to enjoy more vivid and realistic images at any angle. It supports capacitive touch and is responsive; it has custom buttons, REST, and BOOST buttons, and the UART serial port can upgrade the firmware. It supports Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro Python, and supports the LVGL library. It can design the UI interface by yourself, which is an ideal platform for DIY projects.

Quick Click to where you are interested: #Feature, #Specification, #Documents, #Review

Designed and manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com.

If you want to know the reviewer's feedback, please click here.

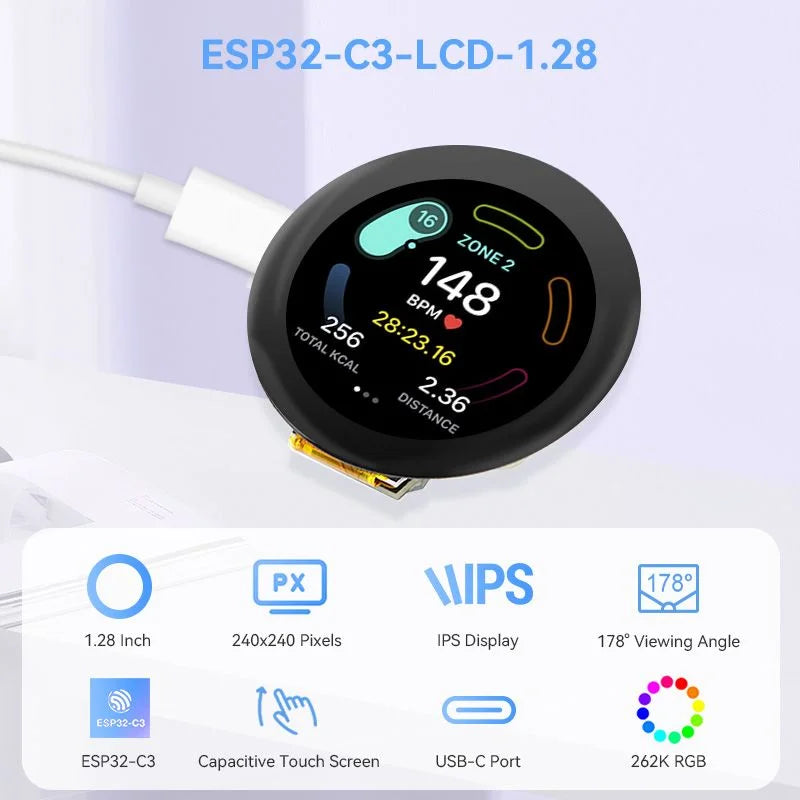

1.28 inch round ESP32 HMI display feature

Small Size, Touch More Possibilities

1.28 inch round ESP32 HMI display with capacitive touch

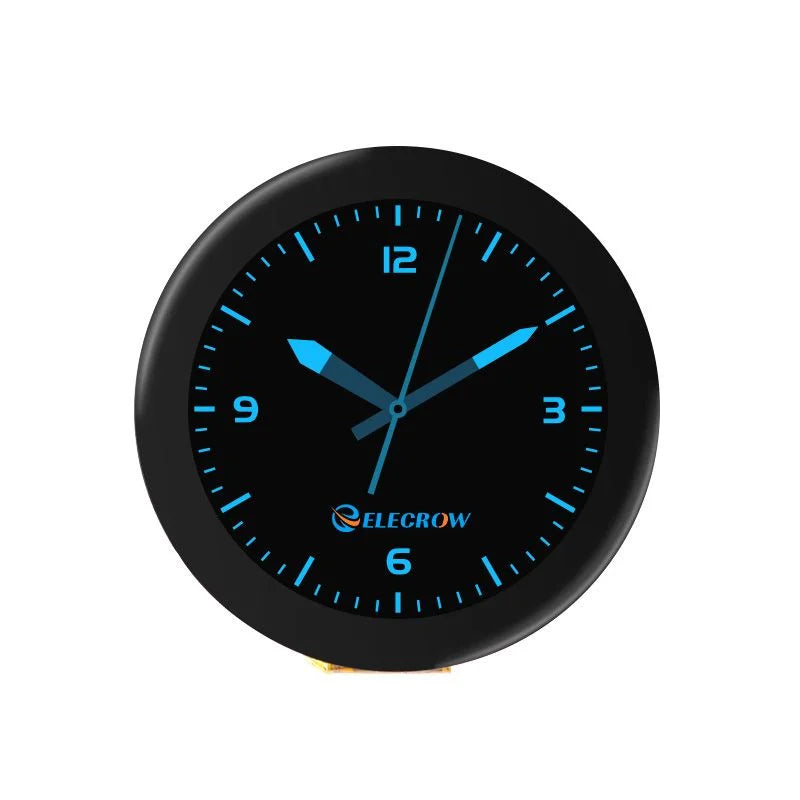

Different UI Demos (Designed By Felix Biego)

details of 1.28 inch round ESP32 HMI display

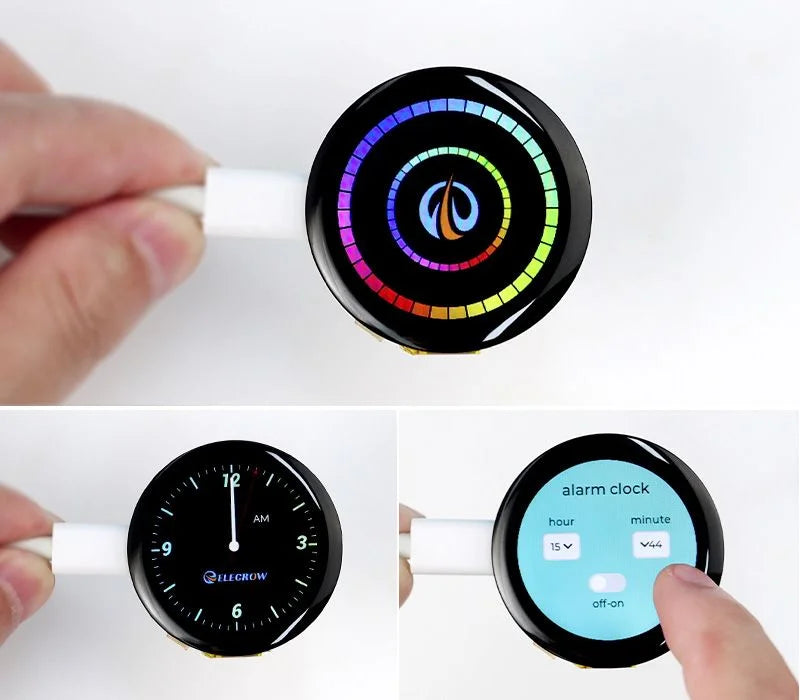

Applications Examples

use examples of 1.28 inch round ESP32 HMI display

Feature

  • ESP32-C3 master control, equipped with a 32-bit dual-core chip, a highest clock frequency reaches 160 MHz.
  • IPS screen, 178° visual range, and more vivid images.
  • Capacitive touch, fast response.
  • With custom buttons and REST and BOOT buttons, the UART serial port supports power supply and firmware upgrades.
  • Supports multiple development environments, Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro Python, and supports the LVGL library.

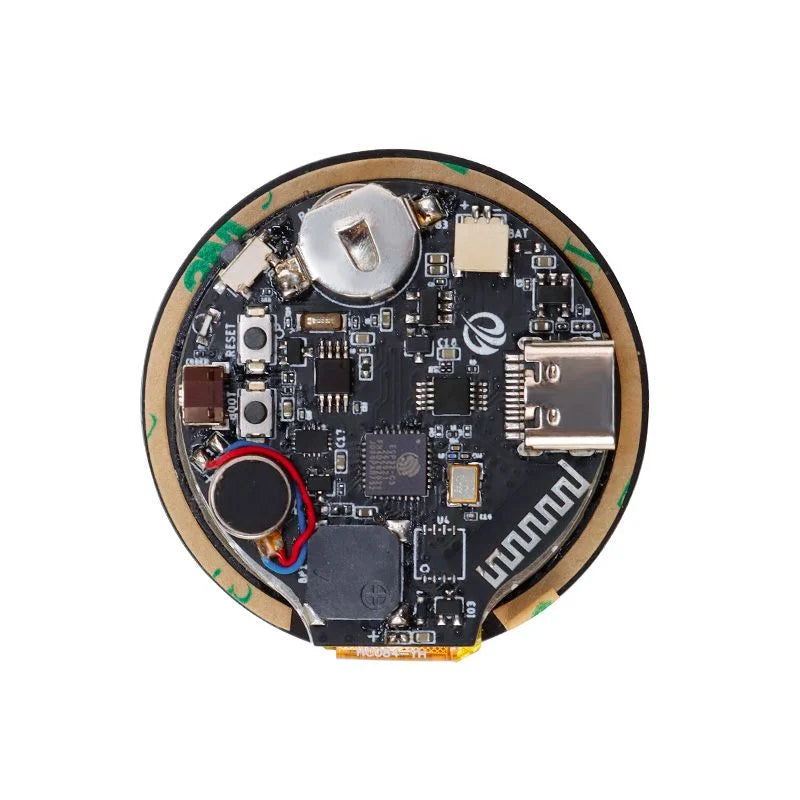

Hardware Overview

hardware overview of 1.28 inch round ESP32 HMI display

Outline Dimension

diagram of 1.28 inch round ESP32 HMI display

Specification

Main Chip

ESP32-C3

Processor

32-bit RISC-V single-core processor, up to 160 MHz

Memory

384 KB ROM

400 KB SRAM (16 KB for cache)

8 KB SRAM in RTC

Size

1.28 inch

Resolution

240*240

Signal Interface

SPI

Touch Type

Capacitive Touch

Panel Type

TFT LCD, IPS Panel

Color Depth

262K

Brightness

350 cd/m²

Viewing Angle

178°

Button

Rest Butto, Boot Button, Custom Button

Interface

Type-C Interface, Battery Interface

Encoder

With Button Function, Without Pin (Pin Size: 0.8mm*0.8mm)

Operation Power

Module: DC5V

Main Chip: 3.3V

Active Area

32.51*32.51mm

Dimensions

42*42*9.8mm

Net Weight

15g



Package List

  • 1x ESP32 Display-1.28 inch Round Display (With Battery)
  • 1x USB-A to USB-C Cable
