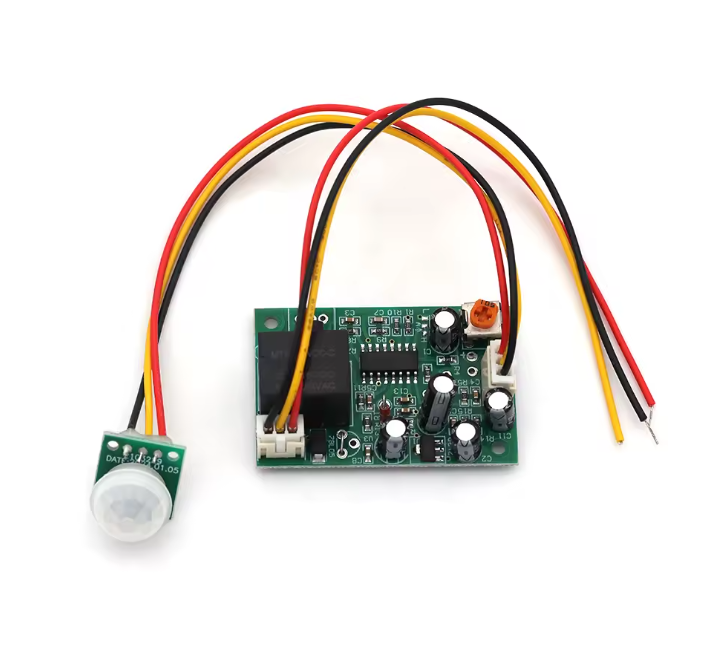

DC 12V PIR Motion Sensor Relay Module

$4.99

Shipping calculated at checkout.

Quantity

DC 12V PIR Motion Sensor Switch with Adjustable Delay – 5–8m Range

The DC 12V PIR Motion Sensor Switch automatically activates a connected 12V load when human movement is detected.

Using Passive Infrared (PIR) technology, the sensor detects changes in infrared radiation caused by a person moving within its detection area. It features an adjustable output delay, allowing the connected device to remain active for a selected period after motion is detected.

The compact pre-wired design makes it suitable for automatic LED lighting, security systems, corridor lights, cabinets and other 12V automation projects.

Technical Specifications

  • Product Type: PIR Motion Sensor Switch
  • Sensor Technology: Passive Infrared (PIR)
  • Detection: Human Body Motion
  • Operating Voltage: 12V DC
  • Working Current: <50mA
  • Detection Distance: Approx. 5–8m
  • Detection Angle: Approx. 120°
  • Delay Time: Approx. 10 Seconds to 5 Minutes
  • Delay Adjustment: Onboard Potentiometer
  • Output: Switched 12V DC
  • Wiring: 3-Wire
  • Installation: Pre-Wired
  • Application: Indoor 12V Automation

PIR Human Motion Detection

The sensor detects changes in infrared energy within its field of view.

When a person moves through the detection area, the PIR sensor activates the output automatically.

This allows lighting and other compatible devices to operate only when movement is detected, helping reduce unnecessary power consumption.

Detection Range

The PIR sensor provides a typical detection distance of approximately:

5–8 meters

with a detection angle of approximately:

120°

Actual detection performance can vary depending on installation height, ambient temperature, movement direction and surrounding conditions.

Adjustable Delay

The onboard potentiometer allows the output ON time to be adjusted.

Typical adjustment range:

Approximately 10 Seconds to 5 Minutes

Turn the adjustment toward the longer-delay setting to keep the output active for a longer period after motion is detected.

This makes the sensor suitable for applications where the light or connected equipment should remain active temporarily after movement stops.

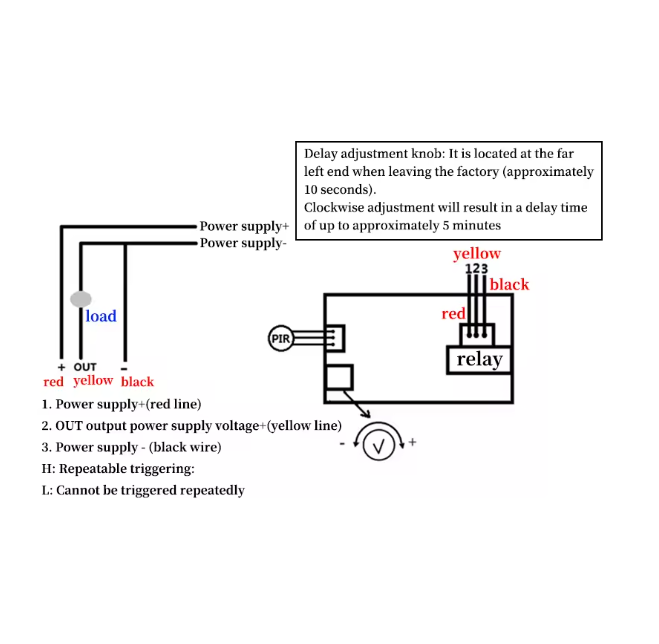

3-Wire Connection

The module uses three wires for simple installation:

Red Wire → +12V DC Power Input

Black Wire → GND / Negative

Yellow Wire → Switched Positive Output to Load

The connected load should share the same DC power supply and common ground.

Typical Connection

12V Power Supply (+) → Red Wire

12V Power Supply (-) → Black Wire

Yellow Wire → Load Positive (+)

Load Negative (-) → 12V Power Supply Negative

When motion is detected, the sensor activates the yellow output wire and supplies power to the connected load.

Applications

Ideal for:

  • Automatic LED Lighting
  • Corridor Lights
  • Staircase Lighting
  • Cabinet Lighting
  • Wardrobe Lighting
  • Security Systems
  • Entrance Lighting
  • Energy-Saving Systems
  • 12V Automation
  • DIY Smart Home Projects
  • Robotics Projects
  • Battery-Powered 12V Systems

Installation Recommendations

For reliable motion detection:

  • Install the sensor approximately 2–3m above the floor where appropriate.
  • Keep the PIR lens facing the required detection area.
  • Avoid pointing the sensor directly toward sunlight.
  • Keep it away from heaters and other strong heat sources.
  • Avoid locations with strong airflow from air conditioners or heating systems.
  • Avoid placing objects directly in front of the PIR lens.

PIR sensors generally detect movement across their field of view more effectively than movement directly toward the sensor.

Important Notes

This sensor is designed primarily to detect human movement through changes in infrared radiation. It is not a precision distance or object-detection sensor.

The 5–8m detection distance is approximate and depends on environmental and installation conditions.

The output is intended for 12V DC loads. Do not connect the output directly to 110V or 220V AC mains equipment.

For loads that exceed the sensor's verified output-current capability, use the PIR output to control a suitable relay or MOSFET driver instead of powering the load directly.

Do not advertise a specific maximum load current such as 10A unless that rating is confirmed on the actual product or its datasheet.

Package Includes

1 × DC 12V PIR Motion Sensor Switch with Adjustable Delay
